Square Desk Grommet

A square desk grommetis a technical hardware component for furniture panels designed to organize and route power, data, and network cables through horizontal or vertical surfaces. In professional furniture manufacturing and interior fitting, these fittings are primarily used in desks, conference tables, media walls, and custom cabinetry. Unlike standard round versions, a square desk grommet requires more precise routing during installation, but provides higher cable capacity within a compact footprint while seamlessly integrating into modern, linear furniture designs.

This technical documentation is aimed at cabinetmakers, furniture installers, and experienced trade professionals. It highlights the mechanical properties, proper preparation of thesubstrate panel, and professional installation of square wire grommets.

Construction and Material Properties

The design of a square desk grommet typically consists of two main components: the outermounting frameand the removable or hingedcover lid.

The frame is firmly inserted into the cutout of the furniture panel. It covers the raw cut edge of theparticle boardorMDF substrateand protects routed cables from chafing. The cover lid is the functional core. On most models, it is completely removable to allow large plugs (such as standard power cords or wide DisplayPort cables) to pass through easily.

The Role of the Brush Seal

A key feature of professional grommets is the integratedbrush seal. These fine nylon or horsehair bristles close the remaining gap when the cover lid is in place. The brush seal acts like a flexible barrier that allows cables of various diameters to pass through undamaged, while preventing dust, dirt, and small items like paper clips from falling into the cable tray beneath the desktop. At the same time, the bristles center the cables and prevent them from slipping or kinking against the hard metal edge.

Materials: Aluminum vs. Plastic

In commercial projects and high-end office furniture, analuminum cable grommetis the preferred choice. Aluminum offers high torsional rigidity, even when strong tension is exerted on the cables. Anodizing or powder-coating processes give the metal a scratch-resistant finish.

Alternatively, aplastic cable grommetoption exists. These ABS plastic variants are lighter and frequently used in standard office furniture, but they exhibit lower mechanical load capacity under heavy cable bundles. In general, professional furniture makers prefer a solidmetal cable grommet, as its tactile feel and aesthetic blend superiorly with high-grade melamine decors or real wood veneers.

Standard Dimensions and Design Variants

The most common format in this category features outer dimensions of3-1/8 in x 3-1/8 in (80 mm x 80 mm). This dimension has established itself as an industry standard because it offers sufficient space for up to eight thick power cables or a dense bundle of network cables without compromising the structural integrity of the desktop.

For seamless visual integration into different decors, various surface finishes are available:

• Square Aluminum Desk Grommet 3-1/8x3-1/8 in (80x80mm), Black– Ideal for dark woods like wenge or matte anti-fingerprint surfaces.

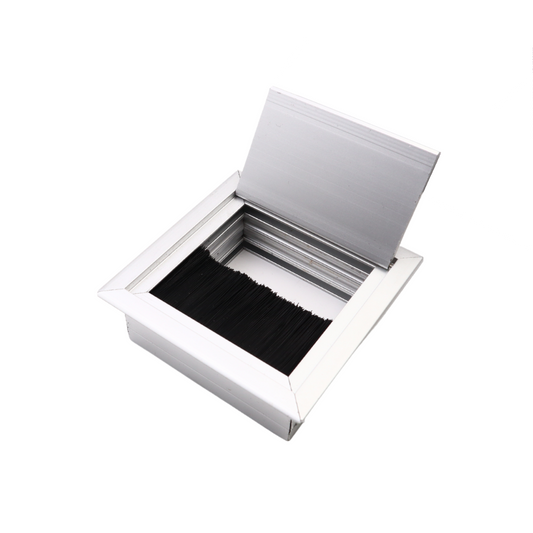

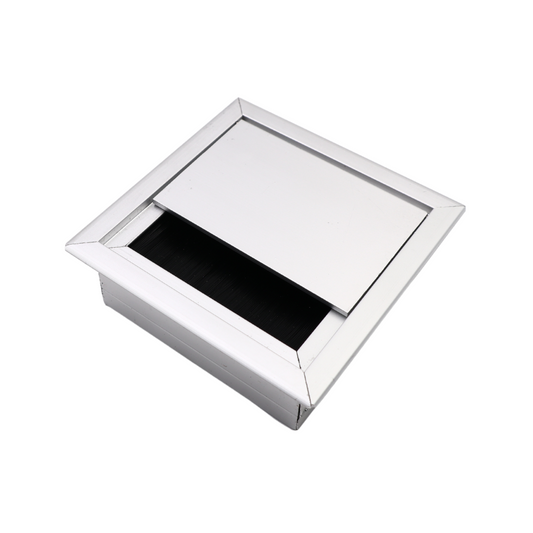

• Square Aluminum Desk Grommet 3-1/8x3-1/8 in (80x80mm), Silver– The classic choice for light gray or white office desks.
• Square Aluminum Desk Grommet 3-1/8x3-1/8 in (80x80mm), White– For monochrome, pure white interior concepts.

The "Wave" Design

Certain specific models feature a so-called Wave profile built into the cover lid:

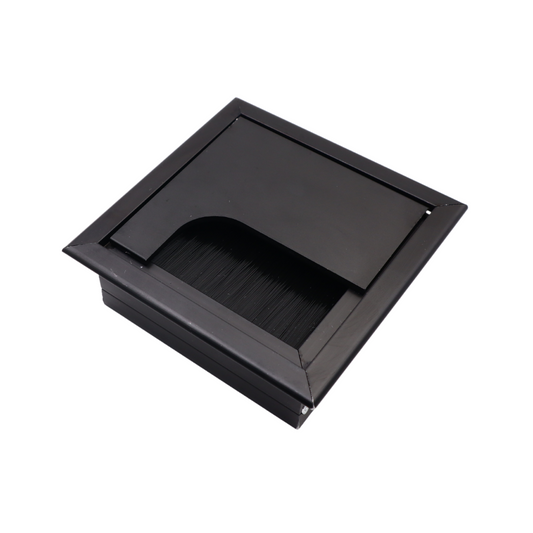

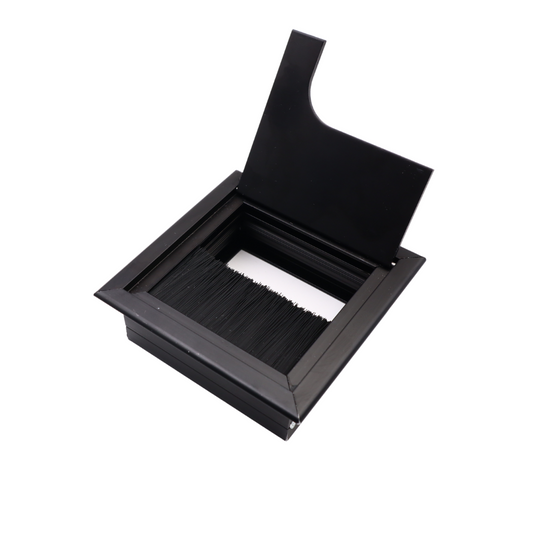

• Square Aluminum Desk Grommet 3-1/8x3-1/8 in (80x80mm), Black "Wave"

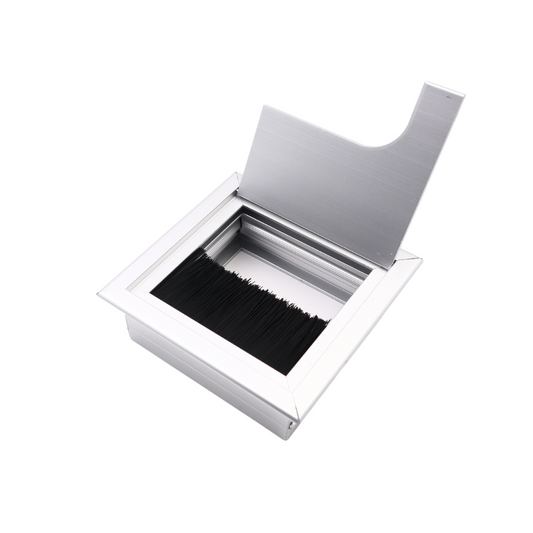

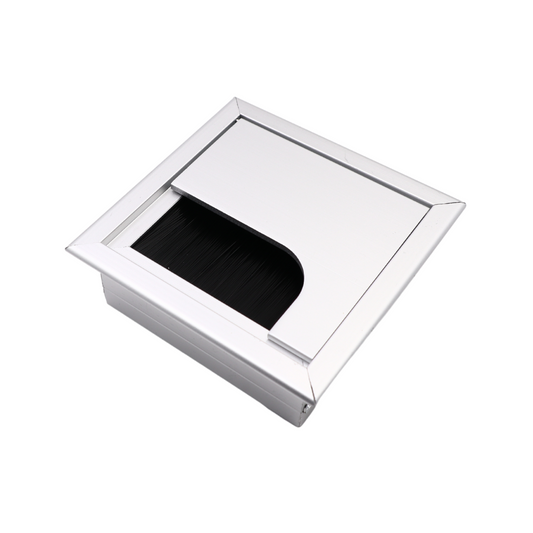

• Square Aluminum Desk Grommet 3-1/8x3-1/8 in (80x80mm), Silver "Wave"

With this design, the cable outlet opening is not a simple straight line, but a modulated wave shape. This allows cables to exit the desk following their natural bend radius. The wave contour reduces mechanical stress on the cable jacket, especially when cables branch off in different directions immediately upon exit (toward monitors, desk lamps, or chargers).

Professional Installation and Routing Technique

Installing a square desk grommet demands higher craftsmanship and precision than a round variant, which only requires a hole saw or Forstner bit. A square cutout must be precisely dimensioned to ensure the mounting frame fits snugly without play.

Determining Cutout Dimensions

Before making any cuts, determine the exactcutout dimensions(routing size). This is always smaller than the outer dimensions. For a square desk grommet with outer dimensions of3-1/8 in x 3-1/8 in (80 mm x 80 mm), the required cutout size typically ranges from2-11/16 in x 2-11/16 in (68 mm x 68 mm)to2-3/4 in x 2-3/4 in (70 mm x 70 mm). The exact tolerance depends on the inner ribbing of the frame. Measure the inner body of the frame using a caliper and add a tolerance of3/64 in (1.0 mm)to1/16 in (1.5 mm)to prevent binding during insertion.

Required Tools

• Router with straight bit (e.g.,5/16 in (8 mm)or3/8 in (10 mm)diameter)
• Guide bushing and custom routing template (for mass production)
• Alternatively: Drill with3/8 in (10 mm)wood bit and a precise jigsaw with a fine-toothed blade
• Sandpaper (120 grit)
• Construction adhesive or silicone (if needed)

Step-by-Step Guide (Jigsaw Method for One-Off Installations)

1. Positioning:Select the position on the desktop. A distance of4 in (100 mm)to6 in (150 mm)from the rear edge of the desk is standard. Ensure no sub-frame crossbars or supports interfere underneath the panel.
2. Marking:Using a carpenter's square, precisely draft the measured cutout dimensions (e.g.,2-11/16 in x 2-11/16 in (68 mm x 68 mm)) onto the panel. Mask the cut lines with painter's tape beforehand to minimize surface chip-out.
3. Pre-drilling:Drill a hole in all four corners of the marked square using a3/8 in (10 mm)wood bit. Keep the bit strictly inside the scribed line. These holes act as turn points for the jigsaw blade.
4. Cutting:Guide the jigsaw (with orbital action turned off to prevent tear-out) from hole to hole.
5. Edge Finishing:Lightly smooth the cut edges with sandpaper.
6. Insertion:Press the frame of the desk grommet into the cutout. If cut accurately, the frame holds via friction fit. If the cutout is slightly oversized, secure the frame with a few drops of clear silicone or construction adhesive along the inner flanks.

For cabinetmakers equipping multiple desks, making a routing template out of3/4 in (19 mm)MDF is highly recommended. Using a router and matching guide bushing allows cutouts to be produced in a fraction of the time with absolute repeatability.

Space Planning and Furniture Compatibility

Integrating cable management solutions begins right in the furniture planning stage. A desk fitted with a cable grommet is standard equipment in modern office design. However, the demand for concealed cable routing is also rising in residential interiors.

Use in Home Offices and Commercial Workspaces

The classic application is the desktop surface. Here, two grommets are frequently placed in the rear left and right corners to neatly direct monitor cables, keyboard leads, and power cords beneath the desk into a cable tray. Thetable cable grommetsand dedicated desk cable grommets are specifically designed for this purpose.

Integration into Storage Cabinets and Credenzas

Beyond desks, wire pass-throughs are frequently installed in casegoods. A square credenza used as a media console or TV stand requires openings in the back panel or top surface to connect receivers, gaming consoles, or smart speakers. The clean, square geometric design of this grommet blends seamlessly into modern cabinetry, especially when paired with angular hardware. For instance, whensquare furniture legsare installed, a square desk grommet on the top surface echoes those geometric lines for a cohesive look. To protect hard flooring beneath such furniture, matchingsquare felt padsshould be fitted under the legs or plinth base.

Combining with Other Finishes

Depending on the hardware hardware scheme of the room, the cable grommet should match surrounding metal accents (handles, hinges, desk legs). In addition to standard black, white, and silver finishes, professional fit-outs often incorporate options like achrome cable grommetfor high-gloss environments or asatin cable grommetfor a matte, glare-free finish.

Alternatives to the Square Shape

Depending on routing tooling, available surface area, and design preferences, alternative geometries may be more practical. Understanding the differences helps in selecting the right hardware:

• Round Grommets:The industry standard for quick installation. Around cable grommetrequires only a standard Forstner bit. Popular sizes include the 2-3/8 in (60 mm) desk cable grommet for single cable runs or the 3-1/8 in (80 mm) desk cable grommet for larger plug heads.
• Rectangular Grommets:When a high volume of cables must run side-by-side (e.g., in large conference tables featuring built-in power modules), arectangular cable grommetoffers the required width. These models can reach lengths from7-7/8 in (200 mm)to over15-3/4 in (400 mm).

Frequently Asked Questions (FAQ) on Specifications and Installation

1. How do I prevent cable clutter under the desk after routing cables through the top?The square desk grommet is only the first step. Underneath the desktop, routed cables should be caught immediately by a horizontal wire tray or cable trough. From there, a vertical cable spine or flexible wire loom routes the bundled cords down to a floor box or wall outlet.

2. Are these square desk grommets waterproof?No. Standard cable grommets for desks or furniture panels do not carry an IP waterproof rating. The brush seal keeps out dust and small debris, but it is not liquid-tight. For exterior applications or damp environments (e.g., exterior wall pass-throughs), specialized weather-sealed pass-through systems featuring rubber compression fittings are required.

3. How wide is the frame lip on top of the desk?The outer mounting lip (flange) of an aluminum desk grommet typically measures3/16 in (5 mm)to1/4 in (7 mm)wide. This overlap is necessary to neatly cover the raw wood cut edge and conceal minor imperfections from drilling or routing.

4. Can the grommet lid be locked in place?On most models, the cover lid is held in place simply by its own weight and small alignment tabs inside the frame. It can be completely removed whenever necessary to feed wide plugs through, then set back flush into place.

5. Are square grommets suitable for solid wood desktops?Yes. However, keep in mind that solid wood expands and contracts with humidity changes. Therefore, the cutout should not be overly tight. A clearance tolerance of1/16 in (1.5 mm)to5/64 in (2.0 mm)all around allows the wood to move naturally without pinching or distorting the aluminum frame.

6. What should I do if the cutout was routed slightly too large?If the frame wobbles inside the cutout, line the opening with thin veneer strips or scrap ABS edgebanding. Alternatively, secure the frame centrally using a durable elastic construction adhesive (such as an MS-polymer formula). The adhesive fills the void and prevents the frame from dislodging when pulling cables.
