Rectangular Desk Grommet

Arectangular desk grommet(also known as a rectangular cable pass-through, drop slot, or wire hole cover) is a technical hardware fitting designed for furniture surfaces. It allows power, data, and signal cables to pass cleanly through desktops, cabinet walls, or architectural paneling. In professional furniture manufacturing and commercial interior fitting, this component provides not only clean visual organization, but crucial mechanical protection against sharp panel edges along with strain relief for cable jackets.

Unlike standard round grommets, a rectangular desk grommet offers significantly larger pass-through volume. This is essential in modern office environments that require managing complex cable bundles, bulky right-angle power plugs, oversized power adapters, or complete power strip bars rather than single USB or network cords. In furniture design, a large-format cable entry acts like a well-organized junction box: it bundles the clutter and routes cable runs safely to their destination.

Anatomy and Technical Construction

A professionalrectangular desk grommettypically consists of several precisely engineered components. Understanding these parts is essential for installers and designers to ensure compatibility with specific desk surfaces and wire management systems.

The Mounting Frame (Bezel)

The outer frame is the structural element inserted firmly into the routed or sawn cut-out in the substrate panel. It features a perimeter lip (flange) that is usually 1/16 in to 1/8 in (1.5 mm to 3 mm) thick. This flange neatly covers the raw cut edges of particle board or solid wood, concealing minor tolerances from manual routing or sawing. Frame depth varies by model, but typically runs 1 in to 1-3/16 in (25 mm to 30 mm), allowing effortless installation into standard desktop thicknesses of 3/4 in, 7/8 in, or 1 in (19 mm, 22 mm, or 25 mm).

The Hinged Cover (Lid)

The cover seals the opening flush or slightly raised relative to the surface. On premium models, this lid is hinged and can be removed completely without tools. This is a crucial feature during IT hardware installation: remove the lid, pass the entire cable bundle—including bulky power plugs—through the wide opening, and snap the lid back into place. A detent mechanism (often utilizing small plastic tabs or light spring tension) prevents stiff, tensioned cables from pushing the lid out of the frame.

The Brush Seal (Dust and Anti-Slip Guard)

A dense nylon brush strip runs along the length of the opening (and occasionally the sides). It fulfills two major technical roles. First, it seals the gap between the closed lid and the routed cables, minimizing dust, dirt, and small items from falling into the under-desk wire tray. Second, the bristles provide mechanical friction. When a cable is disconnected on the desk, bristle resistance prevents the cord from slipping back down under the desk under its own weight.

Materials and Surface Finishes

Selecting the right material for arectangular desk grommetdepends heavily on durability requirements and room aesthetics. While budget installations rely on plastics, high-end commercial interiors call for metallic construction.

Aluminum (Anodized and Powder-Coated)

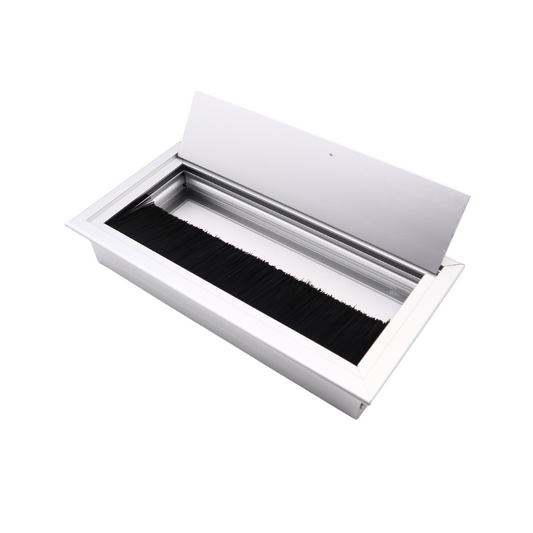

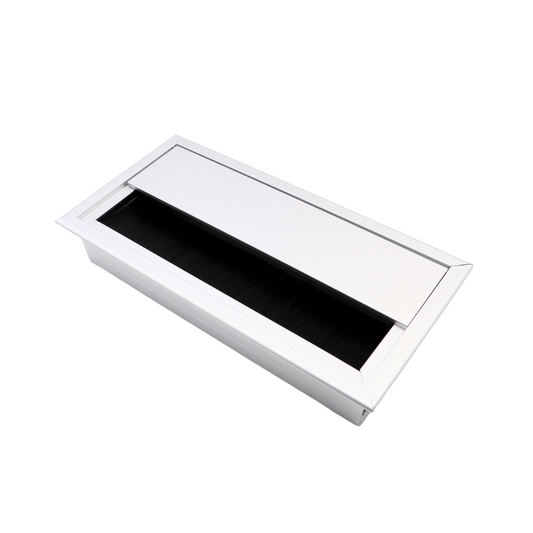

Analuminum cable grommetis the industry standard for conference tables and executive workstations. Aluminum provides exceptional torsional rigidity at a light weight. The surface is typically finished via anodizing (anodic oxidation), converting the top layer of metal into a durable oxide layer. A silver rectangular desk grommet finished this way resists scratches caused by heavy connector housings dragged across the desk surface.

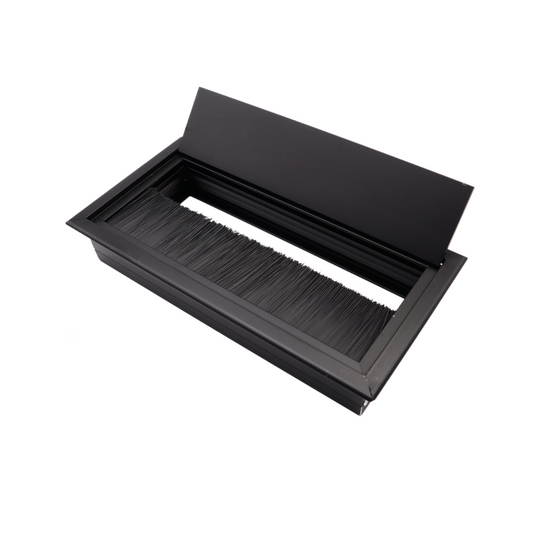

To match modern decor finishes (such as anthracite, matte black, or pure white), aluminum is powder-coated. The powder coating is heat-cured at high temperatures to form an impact-resistant layer. Popular choices include analuminum cable grommet 160x80mm, blackfor dark wood grains, or awhite cable grommetfor bright, minimalist office environments.

Design Variants: The "Wave" Profile

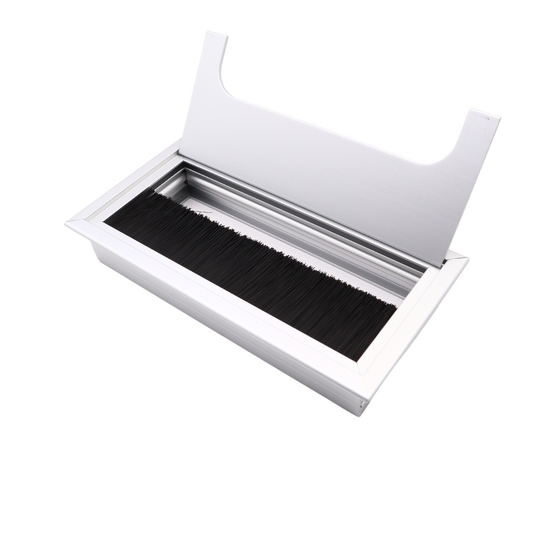

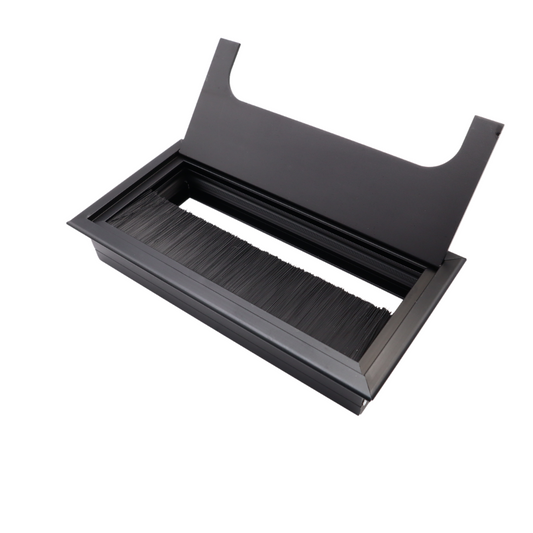

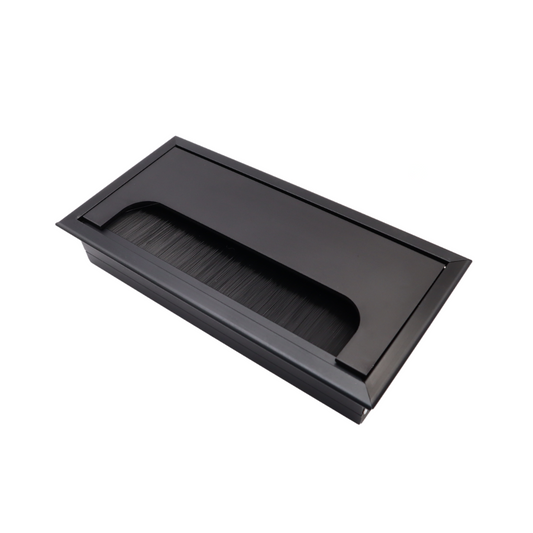

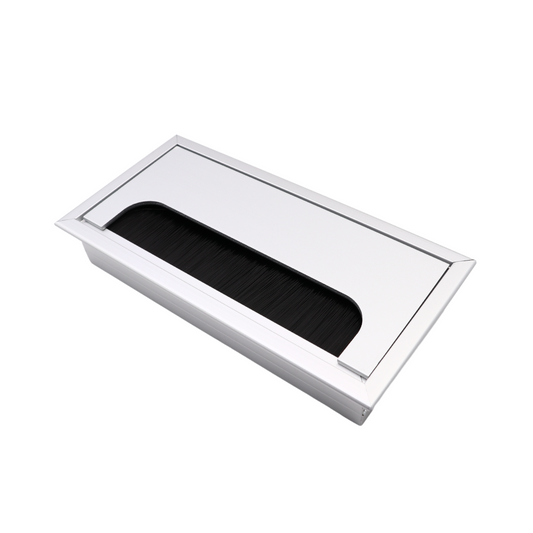

Alongside strict straight-line models, ergonomic variants exist. Examples include thealuminum cable grommet 160x80mm, black "Wave"and thealuminum cable grommet 160x80mm, silver "Wave". On these models, the finger grip edge on the flip-up lid features a subtle wave contour. This allows effortless tactile opening under or across the desk while giving the hardware a fluid, contemporary look that complements organically shaped desktops.

Plastic and Other Metals

Beyond aluminum,plastic cable grommetsmade from high-impact ABS are frequently specified for commercial fitting. They are corrosion-free and non-conductive. When higher weight or a distinct tactile feel is required, designers turn tometal cable grommetscrafted from die-cast zinc alloy or steel with specialty plated finishes.

Capacity Planning: Round vs. Rectangular Desk Grommet

A common mistake in workstation planning is underestimating the required cable cross-section. A standardround cable grommet, such as a desk cable grommet 60mm, offers a gross cross-sectional area of roughly 4.34 sq in (2,800 mm²). Once frame clearance is deducted, there is often only room for two or three basic cords. As soon as a thick DVI connector or three-prong AC plug must pass through, a round 2-3/8 in (60 mm) grommet hits its physical limit.

By contrast, a rectangular desk grommet in the industry-standard size of 6-5/16 in x 3-1/8 in (160 mm x 80 mm) provides a gross surface area of 19.84 sq in (12,800 mm²). This easily accommodates:

• 2x 120V/230V heavy-duty power cords (approx. 5/16 in / 8 mm dia.)
• 1x DisplayPort or HDMI cable (connector widths often exceeding 3/4 in / 20 mm)
• 4x USB or network patch cables (approx. 3/16 in / 5 mm dia.)
• Multiple thin peripheral wires

When even greater capacity is needed, designers specify multiple units side-by-side or select extended lengths. For square desktop cut-outs, particularly in corner stations, asquare cable grommetis an ideal alternative.

Installation and Routing Techniques: A Guide for Joiners and Cabinetmakers

Installing arectangular desk grommetrequires precise craftsmanship and proper tools, unlike round grommets that can simply be drilled with a hole saw. The cut-out must be perfectly square and accurate, as the narrow flange rim leaves very little margin for error.

Recommended Tooling

A plunge router is essential for clean edge cuts in melamine-faced chipboard, laminate, or MDF. Using a jigsaw almost always results in chipped laminate and uneven lines that the frame flange cannot hide. You will need:

• Plunge router (min. 1,000 W / 1.5 HP)
• Sharp straight router bit (5/16 in or 3/8 in / 8 mm or 10 mm dia., preferably carbide-tipped)
• Guide bush (copy ring) and a custom-made routing template
• Alternatively: Guide rail with clamp system

Determining Cut-Out Dimensions

Always verify the exactcut-out dimensionbefore routing—it is not identical to the outer flange dimensions! On analuminum cable grommet 160x80mm, white, the outer face measures 6-5/16 in x 3-1/8 in (160 mm x 80 mm), while the recess dimension for the body is typically 5-13/16 in x 2-11/16 in (148 mm x 68 mm) (always check manufacturer specs). It is best practice to allow a 1/32 in (1 mm) perimeter tolerance so the frame fits without strain. A tight fit can bow the frame, causing the flip lid to bind.

The Routing Process

1. Layout:Mark the location for therectangular desk grommet. Standard placement is centered in the rear third of the desk, roughly 4 in to 6 in (100 mm to 150 mm) from the back edge to avoid interference with under-desk support beams.
2. Starter Hole:Drill a starter hole (1/2 in / 12 mm dia.) within the waste section of the cut-out for the router bit to plunge cleanly.
3. Routing:Route the perimeter using the plunge router and template in multiple passes (max. 5/16 in / 8 mm depth per pass) to prevent bit overheating and wood scorch marks.
4. Corner Prep:Because a round router bit leaves radiused corners, check your grommet design. Many modern rectangular grommets feature rounded corner radii under the lip, fitting directly into routed cut-outs. If the grommet housing has sharp 90° corners, square off the cut-out corners manually using a sharp wood chisel.

Securing the Frame

In most instances, arectangular desk grommetis press-fitted into place. On slick synthetic substrates or where heavy cable tension is expected, apply small dabs of silicone or construction adhesive along the inner panel cutout edge. Avoid polyurethane-based structural glues, as they prevent damage-free removal during future office reconfigurations or moves.

Applications and Layout Planning

Rectangular pass-throughs are not limited to traditional office desks. They are widely specified across millwork, casework, and commercial furniture projects.

Conference Tables and Boardrooms

In large conference tables, multiple grommets are routinely installed in series. Here, therectangular desk grommetprovides easy access to under-table wire troughs housing power outlets and AV equipment (HDMI extenders, network switches). The wide flip lid allows meeting attendees to temporarily drop laptop power bricks into the trough below, running only the thin charging cable up through the brush seal. For a cohesive aesthetic, matching hardware series are specified, such as thealuminum cable grommet 160x80mm, silver.

Media Walls and Credenzas

In residential interiors and custom media credenzas, installers must route heavy HDMI cables and bulky AC power cords from wall-mounted screens into lower receiver cabinets. A specialized wall outlet grommet or top-panel credenza pass-through must be wide enough to accept these thick connectors. An anodized or black finish blends seamlessly with modern audio-visual equipment (see ourblack cable grommet collection).

Kitchen Cabinets and Countertops

When installing a desk wire grommet into a kitchen countertop or island (for example, to power coffee stations or pop-up outlets), liquid sealing requires careful attention. Standard brush grommets are not waterproof. Spills on the countertop can drip through brush bristles into base cabinets. In damp areas, cut-out edges must be thoroughly sealed with waterproof silicone or PVA glue before seating the frame to prevent particle board swelling. When liquid resistance is required, use specialty rubber-gasketed fittings or position the grommet on an elevated backsplash ledger.

Integration into Complete Cable Management Systems

Installing arectangular desk grommetis only the first step in effective workplace cable management. Once cords pass through the desktop, they hang beneath the surface. To prevent tension on device connection ports, cables must be secured immediately below the top.

Under-desk wire trays, wire mesh channels, or flexible spine organizers (cable snakes) complete the setup. Ensure that the placement of yourdesk cable grommetsaligns directly above the entry point of the under-desk wire tray. For height-adjustable sit-stand desks, allow a sufficient slack loop below the grommet to accommodate desk travel of up to 25-1/2 in (650 mm) or more (e.g., from a 23-5/8 in / 600 mm seated height to a 49-1/4 in / 1250 mm standing height) without binding.

Frequently Asked Questions (FAQ)

What are the standard dimensions of a rectangular desk grommet?The most common industry-standard size is 6-5/16 in x 3-1/8 in (160 mm x 80 mm) outer dimensions. Slimmer versions (e.g., 6-5/16 in x 2-3/8 in / 160 mm x 60 mm) and extended boardroom models (up to 11-13/16 in or 15-3/4 in / 300 mm or 400 mm) are also available. Always verify the manufacturer's specified cut-out dimensions prior to routing.

How far should a desk grommet be set back from the edge?To maintain structural strength in the desktop panel, route cut-outs at least 2 in (50 mm), and preferably 4 in (100 mm), away from the rear edge. Always check clearance beneath the desk to ensure the grommet frame will not interfere with structural metal crossbars or legs.

Can I install a rectangular desk grommet in solid wood tops?Yes. However, solid wood expands and contracts with ambient humidity. Route the cut-out with approximately 1/16 in (1 mm to 1.5 mm) of extra clearance so the rigid aluminum frame will not bind or cause solid wood panels to crack over time.

Are wooden rectangular desk grommets available?While customers occasionally search for solid wood grommets, true solid wood pass-throughs are rare because thin wood flanges chip easily and cable friction damages unfinished timber. The industry standard is to use metal or plastic grommets in finishes that complement natural wood tones like oak or beech, or to choose neutral black or silver hardware.

How do I clean the brush seal?Dust accumulates in nylon brush inserts over time. On most models, the brush strips are permanently set into the lid frame. Vacuum the bristles using a soft vacuum brush attachment, or blow out debris with compressed air. For stubborn dirt, wipe gently with a slightly damp microfiber cloth.

What is a U-shaped cable grommet?The term "U-shaped cable grommet" generally refers to edge-mount channel profiles or notch grommets installed at the rear edge of a desk, eliminating the need to route a fully enclosed hole in the center of the panel. These are ideal when desks butt flush against walls and cables must drop down the back edge.
