Adesk cable grommetis a functional hardware fitting recessed into worktops, office desks, or conference tables to route power, data, and peripheral cables neatly through the tabletop while providing strain relief. They prevent chaotic bending of lines against hard panel edges, minimize mechanical stress on cable jackets, and bring structure to entire workplace cable management systems.

In modern furniture manufacturing and commercial interior fitting, organized cable routing is an essential component of workplace ergonomics. Loose or dangling cables stretched over table edges are not only an aesthetic eyesore, but also pose risks of wire breakage and tripping hazards. Like a well-planned underground conduit system, these fittings bundle cable runs right where they are needed, safely guiding them through the tabletop barrier into the wire management tray below.

For cabinetmakers, interior fitters, and skilled installers, our range ofdesk cable grommetsoffers precisely manufactured components that integrate seamlessly into various core materials such asparticle board,MDF, orsolid wood.

Construction and Technical Features

A classic desk cable grommet typically consists of two main components: themounting frame(or housing) and the removablecover plate.

The mounting frame is inserted into the prepared routing or bored hole in the tabletop. Its outer perimeter frequently features fine vertical ribs or knurling. When pressed into the engineered wood substrate, these create a firm, force-locking friction fit without requiring additional adhesive. The cover plate drops into the frame and, on most models, locks into place with a slight twist (bayonet catch). This prevents stiff or taut cables from lifting the cover out of its socket.

A crucial technical detail is the pass-through opening in the cover itself. This is often equipped with a flexiblebrush sealor rubber membrane. The brush serves multiple purposes: it holds routed cables in position, prevents individual cords (especially phone chargers) from slipping back under the desk, and shields the inside of the desk from falling dust or small debris.

Materials: Plastic vs. Metal

When planning a desk or conference table, the grommet material should be matched to the expected mechanical load and the frame design.

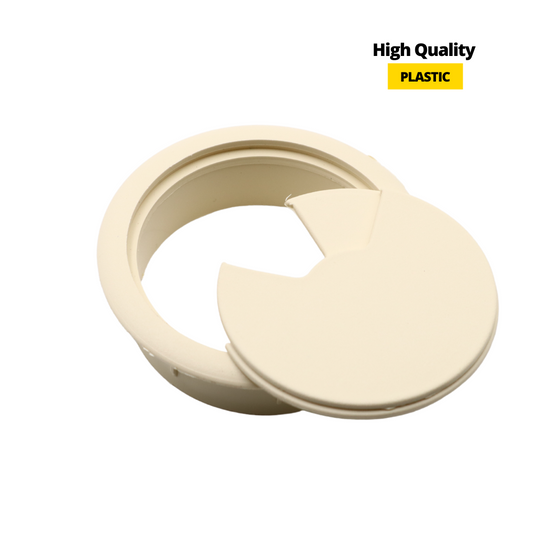

Plastic grommetsare usually injection-molded from high-impact ABS (Acrylonitrile Butadiene Styrene). They are lightweight, corrosion-free, and available in a wide array of finishes. For subtle integration into wood grains, options like thePlastic Desk Cable Grommet 2-3/8 in (60 mm), Alderor the Plastic Desk Cable Grommet 2-3/8 in (60 mm), Elm are ideal. For neutral solid colors, versions such as thePlastic Desk Cable Grommet 2-3/8 in (60 mm), Light Grayare frequently chosen.

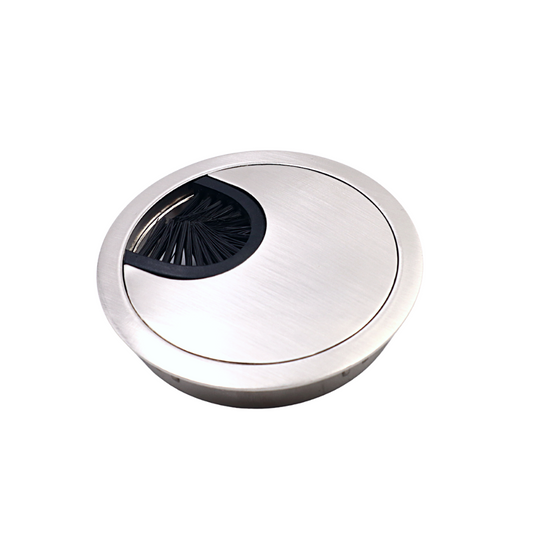

Metal grommetsare constructed from die-cast aluminum, zinc alloy (Zamak), or sheet steel. They offer significantly higher mechanical load capacity. If heavy monitors are frequently moved across the desk or if the desk cable grommet is installed in high-traffic environments (e.g., reception desks or libraries), metal is the preferred choice. Surfaces are typically electroplated or anodized. AMetal Desk Cable Grommet 3-1/8 in (80 mm) - Satinor aMetal Desk Cable Grommet with Rubber Hole - Chrome 2-3/8 in (60 mm)pairs exceptionally well with metallic desk bases or handle profiles.

Formats and Dimensions for Installation

Selecting the correct geometry and size depends on the volume of cables and the types of plugs used.

Round Desk Cable Grommets (Borehole Installation)

The round shape is the industry standard because it is the easiest to machine. Installation requires only a drill equipped with a matchingForstner bitorhole saw.

The two dominant standard sizes in furniture construction are2-3/8 in (60 mm)and3-1/8 in (80 mm).

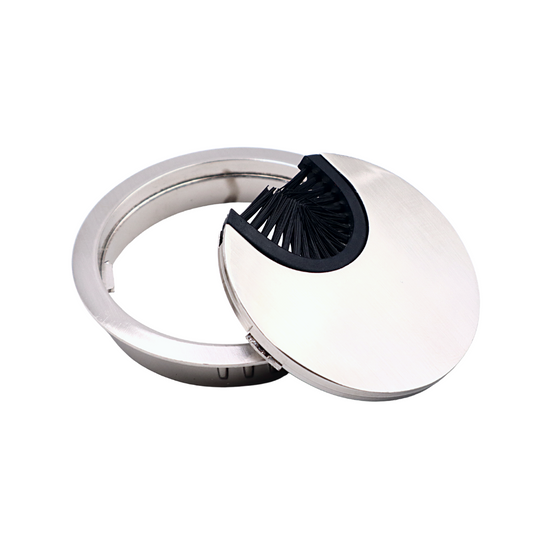

  • 2-3/8 in (Ø 60 mm):This size is generally sufficient for standard office workstations. Power cords, USB cables, and network leads pass through with ease. A popular option is the Desk Cable Grommet 2-3/8 in (60 mm). Standard grounded plugs (approx. 1-1/2 in to 1-5/8 in (38 mm - 42 mm) in diameter) also fit diagonally through the open 2-3/8 in (60 mm) opening when the cover plate is completely removed.

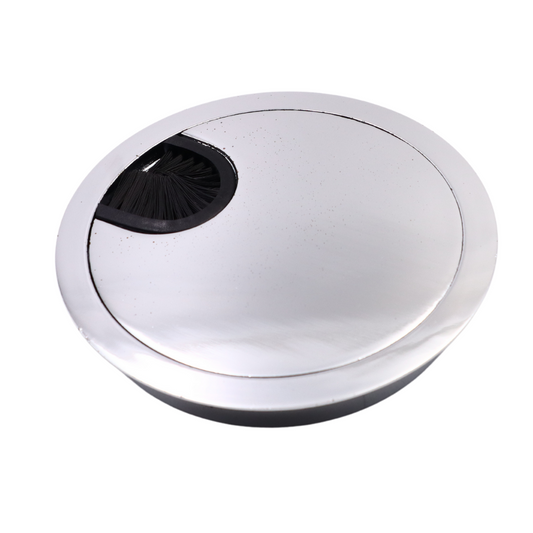

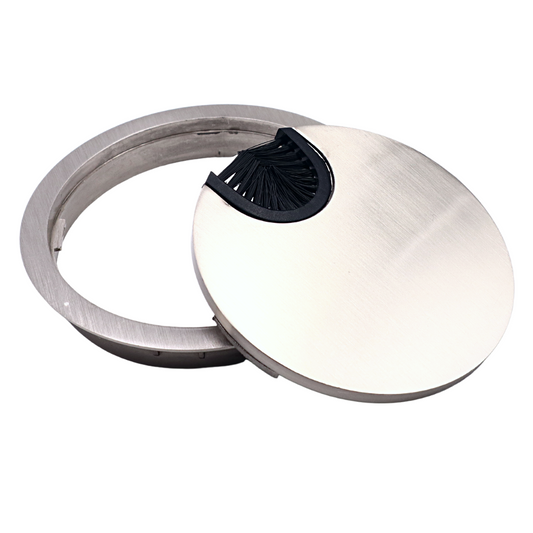

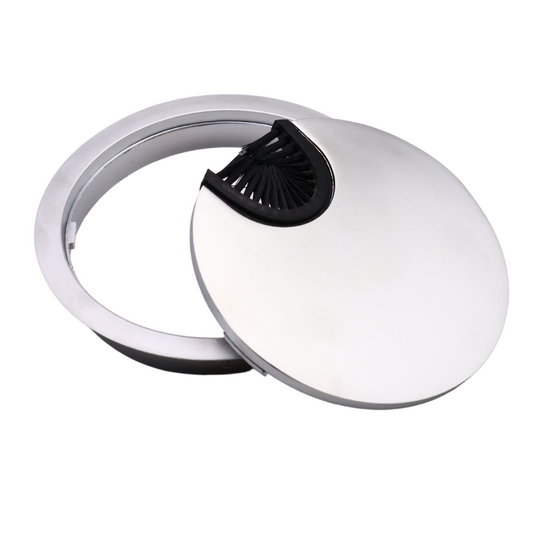

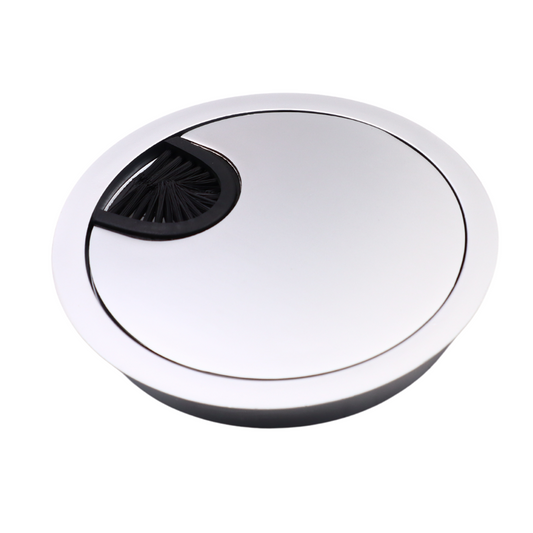

  • 3-1/8 in (Ø 80 mm):When routing large cable bundles, power strip supply lines, or thick DVI/DisplayPort cables with wide ferrite cores, a Desk Cable Grommet 3-1/8 in (80 mm) is essential. It provides enough clearance to pass pre-terminated plugs through later without disconnecting existing wiring. A prime example is theMetal Desk Cable Grommet 3-1/8 in (80 mm), Brushed Steel.

Square and Rectangular Cable Grommets (Routed Installation)

For architecturally demanding furniture or extremely heavy cable volumes, rectangular formats are used. These require more effort during production, as the cutout must be milled using arouterand template or on a CNC machining center.

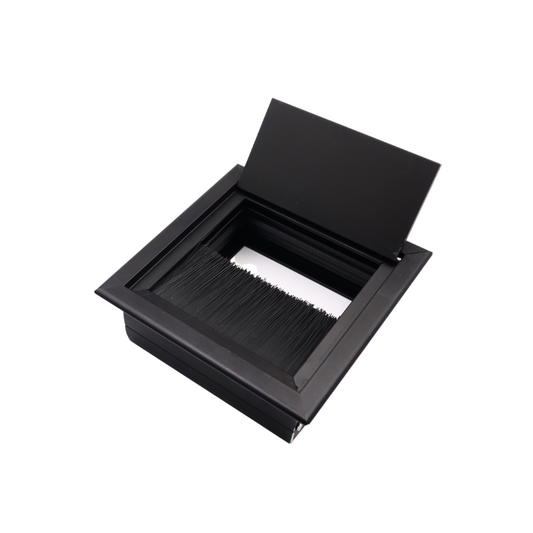

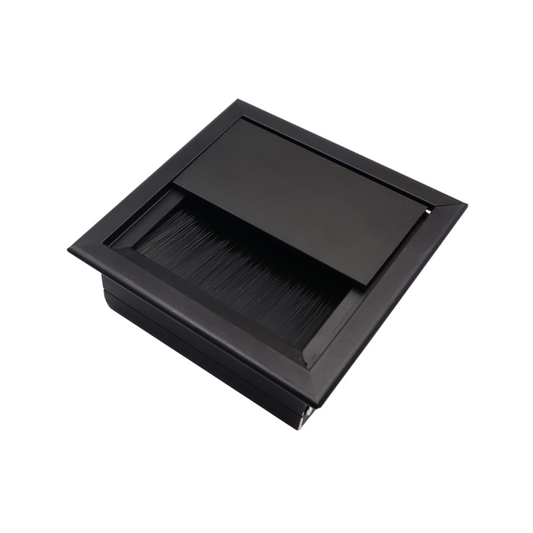

ASquare Desk Cable Grommet, such as theSquare Aluminum Desk Cable Grommet 3-1/8 x 3-1/8 in (80x80 mm), Black, complements the clean lines of modern office furniture. For conference tables where central connectivity boxes for laptops and projectors are built into the tabletop, wide formats like theAluminum Desk Cable Grommet 6-5/16 x 3-1/8 in (160x80 mm), Silverare ideal. These offer a clear opening width of nearly 5-7/8 in (150 mm) to handle massive wire runs.

Installation Parameters and Guidelines

Proper installation of a desk cable grommet demands accuracy. The cutout size (nominal dimension) of the grommet matches the required drill diameter exactly. When installing aPlastic Desk Cable Grommet 2-3/8 in (60 mm), Anthracite, the hole must be drilled to precisely 2-3/8 in (60 mm). A 2-7/16 in (61 mm) hole will leave the fitting loose, causing it to pop out when pull force is applied to a cord.

Step-by-Step Installation (Round):

  1. Positioning:Place the grommet near the back corners of the desk, typically 3-1/8 in to 4 in (80 mm - 100 mm) from the edges, avoiding conflicts with the desk frame or support crossbars.
  2. Pilot Hole:Drill a pilot hole straight through the top using a 1/8 in or 5/32 in (3 mm or 4 mm) wood drill bit. This acts as a center guide for drilling from both sides.
  3. Main Hole:To prevent tear-out on laminate or veneer surfaces, use a hole saw or Forstner bit to drill from the top until the center point pierces the underside. Flip the panel and complete the hole from below.
  4. Pressing In:Press the grommet frame firmly into the top until it sits flush, tapping lightly with a rubber mallet if needed.

Flush-Mount Installation:In standard installations, the outer lip of the grommet (approx. 1/16 in to 3/32 in (1.5 mm - 2.5 mm) thick) rests on top of the desk. For an absolute flush finish—frequently specified for high-end conference tables—a rebate must be routed first. The outer lip diameter (e.g., 2-11/16 in (68 mm) for a 2-3/8 in (60 mm) grommet) is routed precisely 5/64 in (2 mm) deep before drilling the inner pass-through hole.

Applications in Furniture Making

Integrating a desk cable grommet is not limited to standardoffice desks. Virtually any piece of furniture housing electronic devices benefits from structured wire management.

Desks and Computer Tables

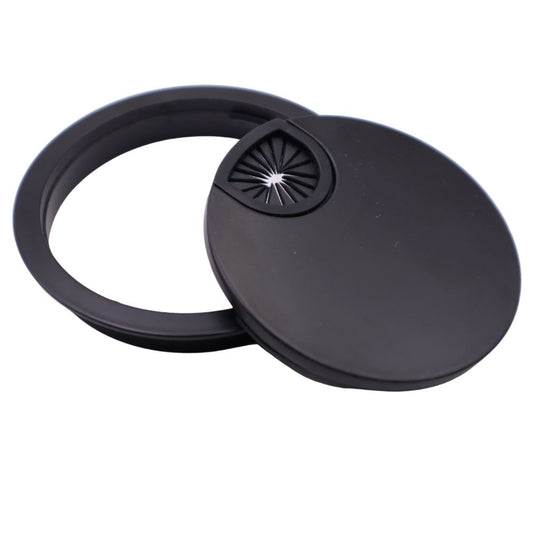

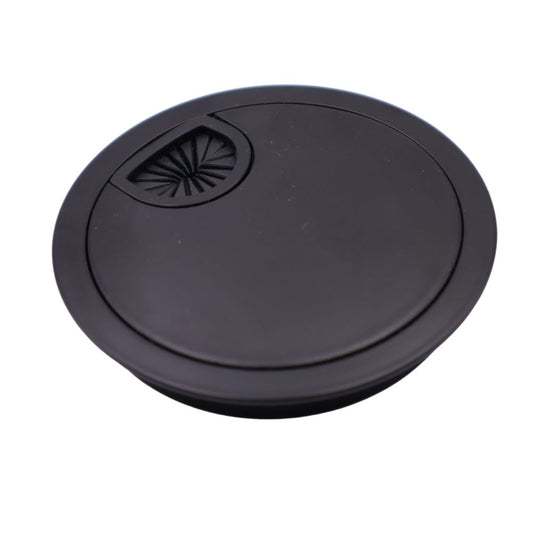

This is the primary application. A desk with drawers or a wooden desk benefits greatly from tidy cord management. When setting up computer screens, the monitor base often neatly hides the grommet positioned behind it. For custom gaming desk builds, sleek dark hardware like theMetal Desk Cable Grommet with Rubber Hole - Matte Black 3-1/8 in (80 mm)is a popular choice.

Height-Adjustable Standing Desks

A height-adjustable desk places special demands on wiring. Because the tabletop moves vertically (often across a range of 27-9/16 in to 47-1/4 in (700 mm - 1200 mm)), cables must be organized in flexible cable chains. The desk cable grommet in the desktop serves as the critical anchor point where strain relief begins. If you build such a system withheight-adjustable table legs, the grommet must sit securely in the wood to withstand tensile forces during upward travel.

Living Room and Bedroom Furniture

Home furniture regularly integrates modern electronics. Acoffee tablewith built-in charging ports or ambient lighting requires discreet pass-throughs. Likewise,nightstands & bedside tablesare increasingly outfitted with grommets to route phone charger cords or lamp cables neatly into the cabinet body. For smaller furniture, a compact drill hole finished with a matchingPlastic Desk Cable Grommet 2-3/8 in (60 mm), Brownis all it takes.

Synergy with Table Frames and Legs

The choice of desk cable grommet should always complement the overall design of the furniture piece. The style of thetable legsoften dictates the material finish of the hardware fittings.

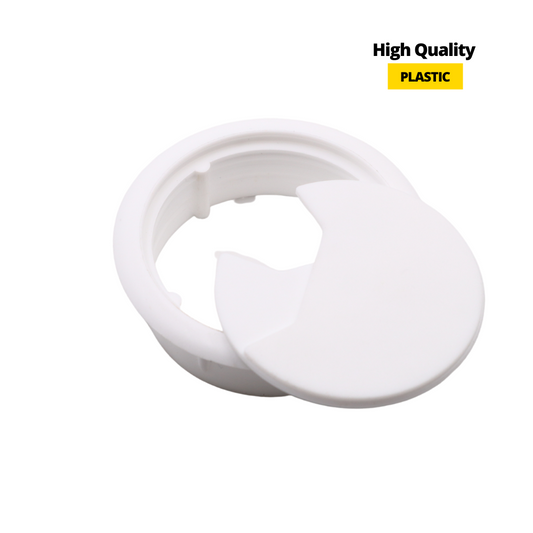

When heavy-dutysteel table legsor industrialmetal table legsare used, a cheap plastic grommet disrupts the premium feel of the desk. In these builds, a brushed steel or aluminum grommet is highly recommended. Conversely, for a bright Scandinavian look usingwhite table legs, aPlastic Desk Cable Grommet 2-3/8 in (60 mm), Whiteor aSquare Aluminum Desk Cable Grommet 3-1/8 x 3-1/8 in (80x80 mm), Whiteblends in seamlessly.

When constructing standing tables or reception counters using39-3/8 in (100 cm) high table legs, the distance from the top to the floor is considerable. In these designs, the desk cable grommet in the worktop should be paired with vertical cable channels running down the leg.

Specialized Solutions: Rubber Hole and Brush Seals

While a standard desk cable grommet features a hard plastic or metal lid with a side cutout, alternative designs cater to specialized installation requirements.

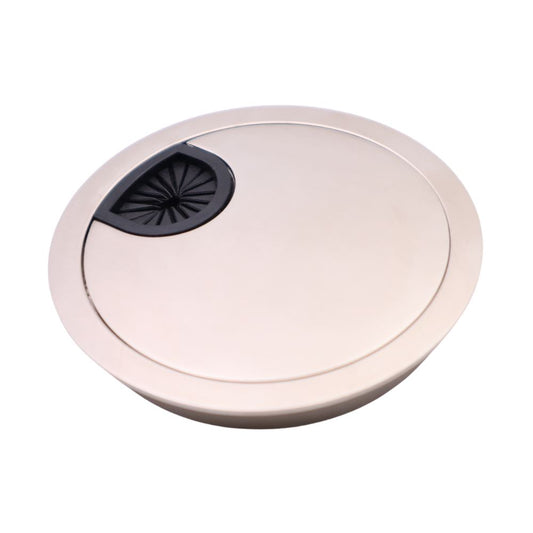

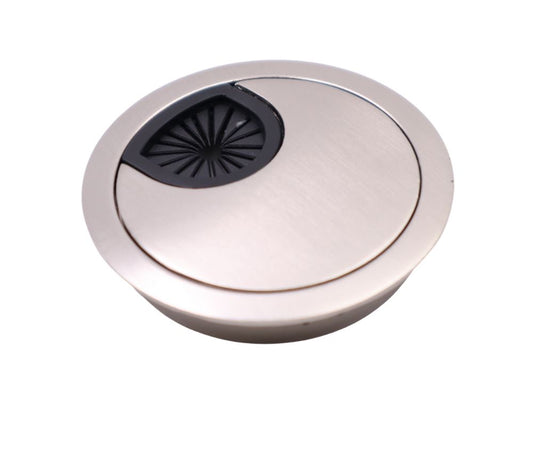

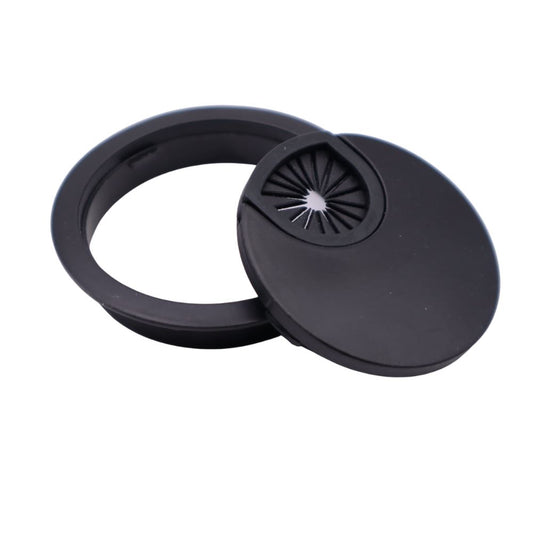

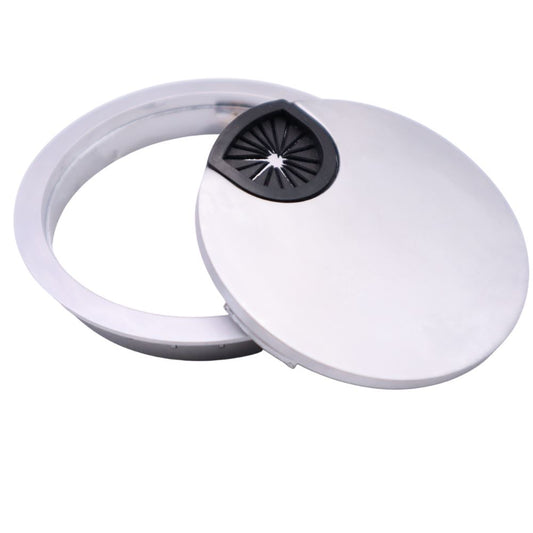

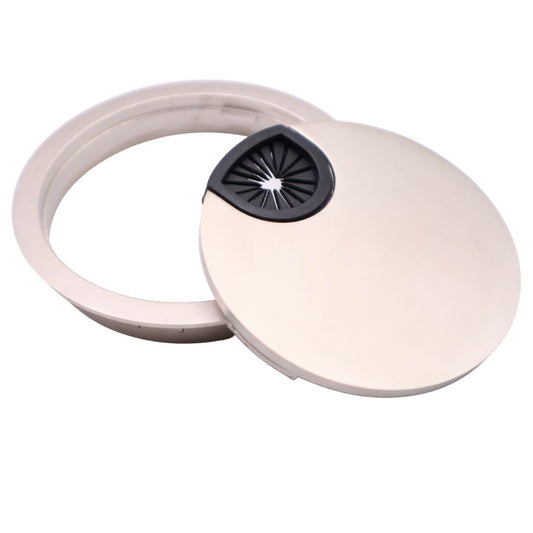

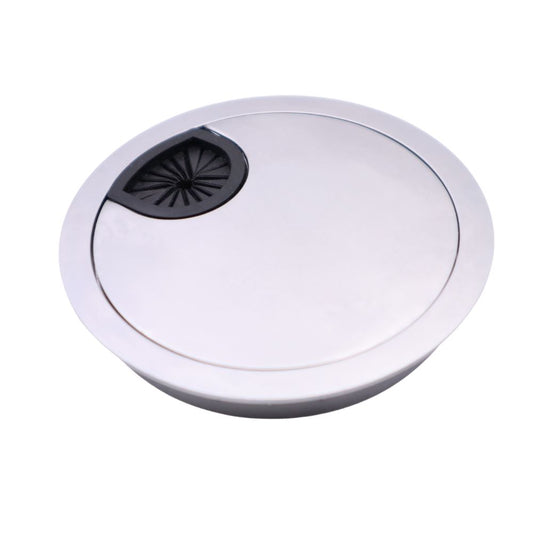

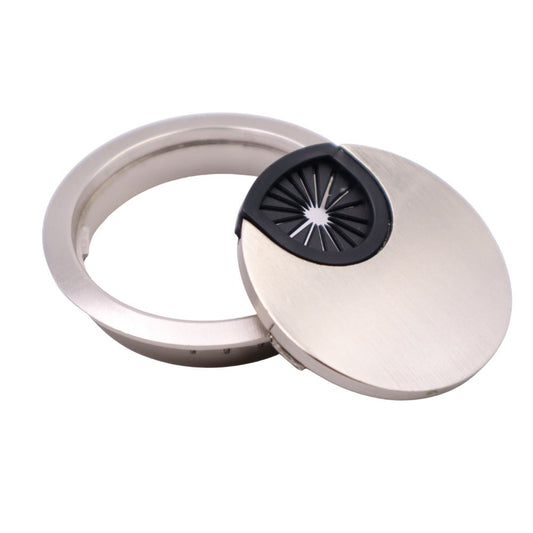

Models like theMetal Desk Cable Grommet with Rubber Hole - Silver 3-1/8 in (80 mm)replace the rigid lid with a flexible rubber membrane featuring star-shaped slits. The advantage: cables are centered in the middle of the hole and gripped snugly around their entire circumference. This keeps thin cords (like USB-C or audio jacks) from sliding down and creates a near-airtight seal—especially useful in dusty environments or workshops.

Classic brush seals, as seen on theAluminum Desk Cable Grommet 6-5/16 x 3-1/8 in (160x80 mm), Black "Wave", allow wide ribbon cables or multiple side-by-side power cords to pass through without stretching out the seal. The flexible nylon bristles conform easily around any cable bundle.

---

Frequently Asked Questions (FAQ) about Desk Cable Grommets

What tools do I need to install a round desk cable grommet?To install a grommet in wood-based materials (particle board, MDF, solid wood), you will need a power drill and a hole saw or Forstner bit. The bit diameter must match the nominal size of the desk cable grommet (e.g., 2-3/8 in (60 mm) or 3-1/8 in (80 mm)). For clean, tear-free cutouts, a sharp Forstner bit is preferred over a hole saw.

Do standard power plugs fit through a 2-3/8 in (60 mm) desk cable grommet?Yes. A standard three-prong power plug measures roughly 1-1/2 in to 1-5/8 in (38 mm to 42 mm) across. Removing the grommet cover plate allows the plug to pass easily through the main housing. Once through, place the cord into the cover notch and snap the lid back in place. For setups with multiple thick plugs, a 3-1/8 in (80 mm) grommet provides a more comfortable fit.

How is the grommet secured in the desk? Do I need glue?No adhesive is required for standard installations. The mounting frames feature flexible vertical ribs or ridges on the outer wall. As long as the hole matches the nominal size, the frame presses tightly into place and relies on friction (press fit) for a permanent hold. Glue or silicone sealant is only needed when installing grommets into ultra-smooth surfaces like glass or stone tops.

What is the difference between brush grommets and rubber hole grommets?Brush seals consist of fine nylon bristles that flex around multiple thick cable bundles, making them ideal for standard office setups. Rubber hole grommets feature a star-slitted membrane that grips individual cables tightly in the center. They offer superior dust protection and prevent slim charging cables from falling beneath the desk.

Can I retrofit a square desk cable grommet into an existing desk?Yes, retrofitting is possible with basic woodworking skills. Trace the rectangular outline onto the desktop, drill pilot holes in the corners (e.g., 3/8 in (10 mm)), and cut out the inner section using a jigsaw or, for best results, a router with a straight guide edge.

Which material is best for a desk cable grommet on an adjustable standing desk?Height-adjustable desks subject cables to continuous movement and pull forces as the top moves up and down. For these setups, sturdy metal grommets (such as die-cast zinc or aluminum) are recommended because their frames and locking covers withstand mechanical stress far better than plastic models.

---
