Metal Desk Grommet

A silver metal desk grommetis a functional hardware solution for routing cables cleanly and safely through furniture panels, desks, or wall cladding. In professional cabinetmaking and commercial interior fitting, these components play a key technical role: they prevent cables from kinking, protect insulation from the sharp edges of the substrate, and keep wiring neatly structured. The silver surface finish—typically achieved with anodized aluminum, a brushed stainless-steel look, or coated die-cast zinc—delivers a sleek, technical aesthetic that blends seamlessly into commercial and residential furniture design.

The Technical Appeal of Silver Hardware

In modern furniture manufacturing, silver is more than a decorative choice; it reflects the true nature of the underlying materials. For components like ametal desk grommetor analuminum cable grommet, the silver tone naturally results from the raw material and its surface refinement process.

Anodized aluminum delivers a matte, slightly textured feel that is exceptionally scratch-resistant. Electro-galvanized or chrome-plated matte silver surfaces offer diffuse light reflection, masking fingerprints and minor scratches caused by pulling power plugs through the opening during daily office use. This understated, technical finish makes silver hardware the go-to standard for modern workstation systems and media equipment installations.

Applications and Spatial Layout

Planning wire pathways is a critical step in modern furniture engineering, especially when integrating built-in electronics.

The Modern Workstation

A professionaldesk with a metal desk grommetrequires precise outlet positioning. Typically, grommets are set in the rear corners of the desktop, roughly 3-15/16 in to 5-7/8 in (100 mm to 150 mm) from the edges. The desk wire grommet routes power, network, and monitor cables directly into an under-desk cable tray. Much like wire bundling inside an industrial control cabinet, it channels cable runs cleanly through engineered wood panels, minimizing strain on connectors and leaving the work surface clutter-free.

Residential & Storage Furniture

Effective cable management is equally essential in home environments. When designing a modern media console or asilver dressers / sideboard cabinetin white or silver tones, power leads for receivers, gaming consoles, or integrated LED lighting must be routed neatly inside the cabinet body. Here, themetal desk grommet for desk topsor back panels is routed directly into the material. Whether fitted into ablack and silver cabinetor a classic credenza, a silver wire pass-through provides a clean, professional finish to drilled holes in melamine-faced particle board or MDF substrates.

Kitchen Cabinetry

In kitchen design, cable pass-throughs facilitate pop-up power outlets or route wiring for coffee machines and microwaves. The silver finish pairs perfectly with stainless steel sinks and modern kitchen appliances.

Matching Silver Hardware Finishes

A cohesive furniture design relies on coordinating all visible hardware elements. A silver desk grommet looks best when paired with matching handles and structural hardware components.

• Cabinet Hardware:Combining your setup withsilver cabinet handlescreates a unified aesthetic. Whether you select high-glosssilver cabinet pullsormatte silver drawer handlesdepends on the finish of your desk grommet. For kitchen fronts,silver kitchen door handlesround out the crisp, modern look.
• Flap Stays & Lifts:For overhead cabinets or wall-mounted media panels opening upward,silver gas strutsare a natural addition. The metallic piston rod and silver cylinder match the technical look of metallic cable outlets flawlessly.

Product Options & Technical Specifications

Selecting the rightfurniture cable grommetdepends on the thickness of your cable harness and the size of the connectors passing through.

Round Desk Grommets

The classic standard in furniture production. They install quickly and accurately using a standard hole saw or Forstner bit.

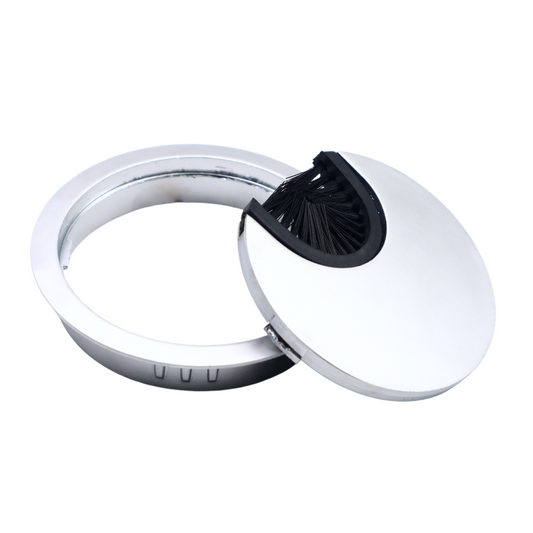

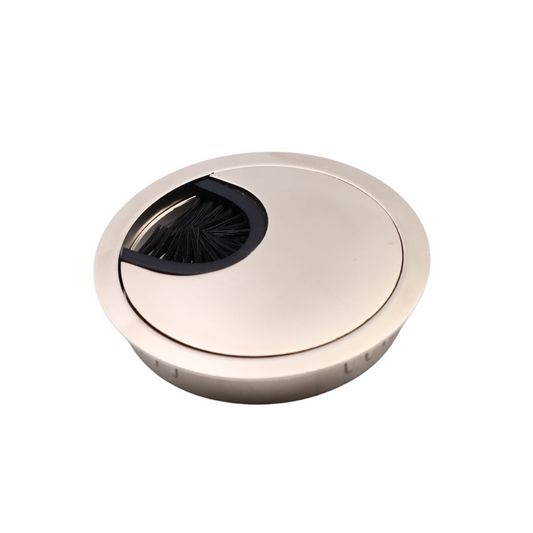

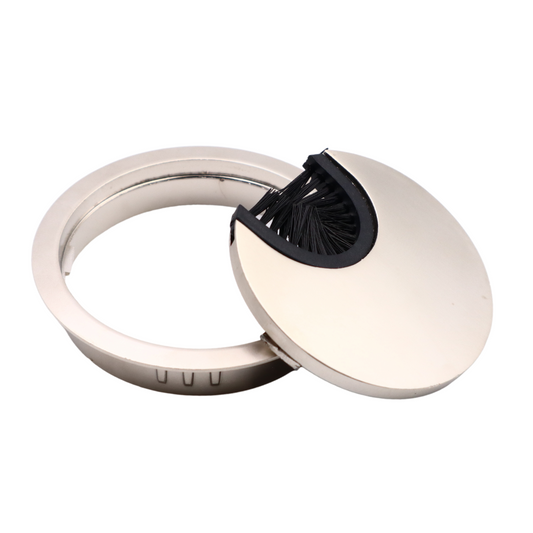

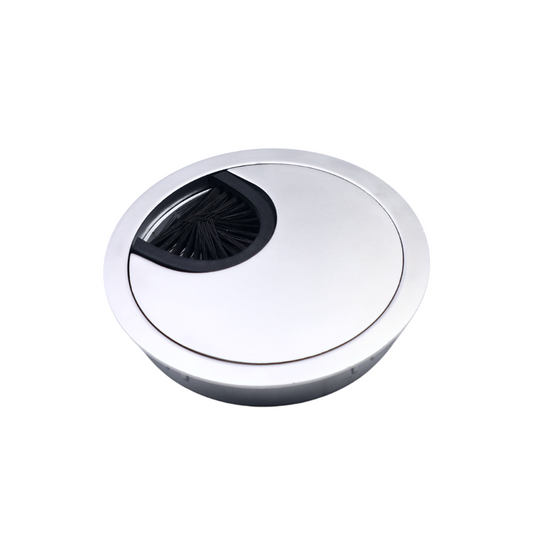

• 2-3/8 in (60 mm) Diameter:The 2-3/8 in (60 mm) desk grommet is ideal for single power cords, USB cables, or HDMI leads. Standard grounded plugs up to 1-1/2 in (38 mm) wide pass through easily. A popular option is themetal desk grommet with flexible rubber pass-through - Silver 2-3/8 in (Ø60 mm). Agrommet with a rubber gasketkeeps wires centered while preventing smaller connectors from slipping below the desk surface.
• 3-1/8 in (80 mm) Diameter:When routing thicker wire harnesses or bulky power supplies, a3-1/8 in (80 mm) metal desk grommetprovides ample clearance. The 3-1/8 in (80 mm) desk grommet delivers superior capacity. A durable solution for heavy-duty setups is themetal desk grommet with flexible rubber pass-through - Silver 3-1/8 in (Ø80 mm).

Rectangular and Square Grommets

For high-density cable runs or structured architectural designs, install rectangular or square grommet profiles.

• Square:Asquare cable grommet, such as thesquare aluminum desk grommet 3-1/8 x 3-1/8 in (80 x 80 mm) in silver, requires precise routing while offering a sharp, modern appearance.
• Rectangular:Arectangular wire grommetis designed for wide cable outlets on conference tables. Thealuminum rectangular grommet 6-5/16 x 3-1/8 in (160 x 80 mm), Silver "Wave"features a flip-up lid and an integrated brush seal. The brush strip blocks dust from entering the wire raceway while holding cables securely in place.

Installation & Processing Guidelines

Installing a metal desk grommet requires precise work to ensure the flange sits flush against the panel surface and holds firm inside the cutout.

1. Drilling (Round Grommets):For a2-3/8 in (60 mm)grommet, drill a precise2-3/8 in (60 mm)hole using a sharp bi-metal hole saw or Forstner bit. When working with double-sided melamine particle board (typically 3/4 in or 1 in /19 mmor25 mmthick), drill halfway from one side until the pilot tip breaks through, then finish from the reverse side to prevent surface chipping.
2. Routing (Square & Rectangular Grommets):Cutouts for rectangular pass-throughs (e.g.,6-5/16 x 3-1/8 in / 160 x 80 mm) require a handheld router. Fabricate a custom routing template and use a guide bushing. Squaring off the corners with a wood chisel may be necessary if the hardware frame features sharp 90-degree outer corners.
3. Fitting & Fastening:Most metal grommets feature ribbed or textured splines on their outer barrel. Press the sleeve firmly into the cutout (using a rubber mallet if needed). For extra retention in smooth MDF bores, add a drop of construction adhesive or silicone along the inner sidewall.

Frequently Asked Questions (FAQ)

What grommet diameter do I need for a standard home office desk?

For standard workstations with one monitor, a keyboard, and a mouse, a2-3/8 in (60 mm)cutout is usually sufficient. However, if you plan to pass power strips, heavy-duty computer power cords, or wide DVI/VGA connectors, choose a3-1/8 in (80 mm)diameter to keep plugs from jamming during setup.

What is the difference between aluminum and zinc die-cast grommets?

Aluminum is lightweight and extruded, creating sharp, crisp edges—ideal for rectangular desk grommets. Its anodized finish is highly wear-resistant. Die-cast zinc is heavier and feels more substantial, making it perfect for complex, multi-piece round grommets with swivel lids.

Can I install a desk grommet into a wall paneling system?

Yes. Installing grommets into media walls or accent paneling follows the exact same process as desk top installations. Ensure there is adequate hollow space behind the paneling—at least 1-3/16 in to 2 in (30 mmto50 mm)—so cables can drop down freely without sharp bends.
