Brushed Steel Desk Grommet

Abrushed steel desk grommetis a ring-shaped metal hardware fitting recessed into desktops, countertops, or cabinet panels to route electrical wiring, data cables, and power plugs neatly while providing strain relief through the substrate material.

In professional furniture making and interior millwork, these grommets serve as the mechanical interface between the work surface and the underlying cable management system. Unlike basic plastic alternatives, brushed steel delivers high mechanical resistance against abrasion from stiff cable jackets while meeting strict aesthetic standards in modern commercial and kitchen design.

Construction and Technical Anatomy

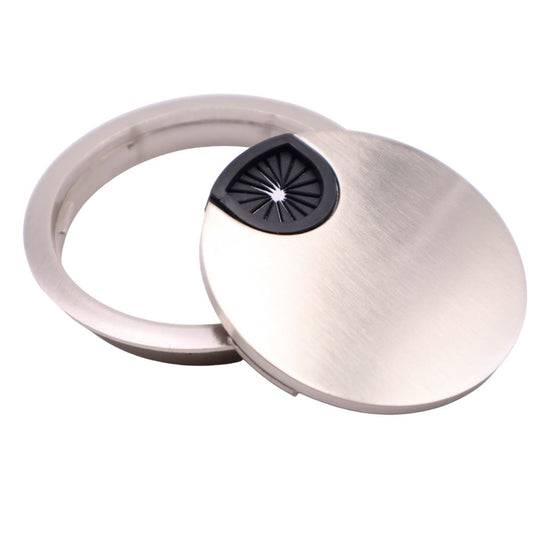

A professionalmetal cable grommettypically consists of two precision-matched primary components: the outer mounting ring (also referred to as the flange or collar) and the removable cover cap.

The Mounting Ring (Flange)

The cylindrical mounting ring is inserted directly into the drilled or routed cutout in the substrate board. It conceals the raw cut edge of particleboard, MDF, or solid wood. The steel wall thickness typically ranges from 3/64 in to 1/16 in (1.2 mm to 1.5 mm), guaranteeing sufficient torsional rigidity during press-fitting. At the top edge, the ring terminates in a flat collar resting on the surface. This collar is only about 1/16 in to 5/64 in (1.5 mm to 2.0 mm) thick to avoid creating a disruptive edge on the workspace. The outer diameter of the collar is always about 1/4 in to 3/8 in (6 mm to 10 mm) larger than the cutout dimension to reliably cover minor tear-out caused by drilling melamine-faced boards.

The Locking Cover Cap

The cover cap drops into the flange and locks in place with a gentle twist. This mechanical locking feature is essential. When rigid feed lines or heavy industrial steel cables pass through the opening, they generate leverage forces that could dislodge an unsecured cap. The cover cap includes a segmented opening through which the cable bundles pass.

Edge Protection: Rubber Seal and Brush Strip

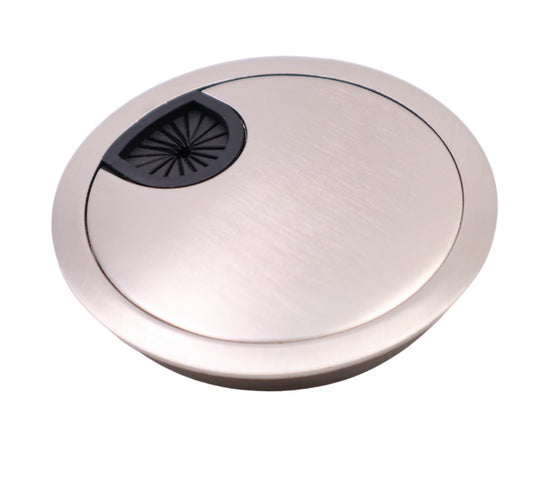

Models like theMetal Cable Grommet with Rubber Hole - Brushed Steel 2-3/8 in (Ø60mm)feature a soft elastomer insert along the cap opening edges. This rubber lining serves two technical purposes:

1. Abrasion Protection:Cable insulation is shielded from hard metal edges, preventing cable breakage and short circuits—especially on frequently moved cords like charger cables.
2. Strain Relief and Retention:The rubber gently grips cables so they don't slide under the desk under their own weight when unplugged.

The grommet acts like a workshop funnel: it bundles wire chaos precisely at a single point without fraying the surface finish.

Standard Dimensions and Capacity Planning

When designing office furniture or kitchen countertops, the inner clearance of the grommet must match the number and type of connectors being routed. The industry has standardized on two primary hole sizes.

The 2-3/8 in (60 mm) System

The nominal size of 2-3/8 in (60 mm) is the standard for compact workstations. A 2-3/8 in (60mm) desk cable grommet requires a precise hole cutout of 2-3/8 in (60.0 mm). The clear inner diameter minus the ring collar material is approximately 2-3/16 in (56 mm). This capacity easily handles:

• Multiple USB cables and network cables (RJ45).
• IEC power cords (C13/C14) for monitors and PCs.
• Slim two-prong power plugs.

A bulky grounded three-prong power plug usually needs to be threaded through a 2-3/8 in (60 mm) opening diagonally and individually with the cap removed. A ideal hardware piece for this size is theMetal Desk Cable Grommet 2-3/8 in (60mm), Brushed Steel.

The 3-1/8 in (80 mm) System

For conference tables, server racks, or kitchen countertops handling high equipment density, the 3-1/8 in (80 mm) size is preferred. A 3-1/8 in (80mm) desk cable grommet provides significantly more clearance. Through theMetal Cable Grommet with Rubber Hole - Brushed Steel 3-1/8 in (Ø80mm), bulky power adapters, thick DVI connectors, or right-angle plugs pass through easily without disconnecting the entire wire bundle.

Material Science: Brushed Steel in Cabinetry

Choosing a brushed steel desk grommet over plastic or polished chrome comes down to key material characteristics. The surface undergoes an abrasive finishing process using non-woven abrasive pads, creating a fine, directional satin line finish.

This texture diffuses light to eliminate harsh glare, which is ergonomically beneficial at computer workstations. Additionally, the brushed finish resists fingerprints and micro-scratches caused by frequent friction from cables and plugs sliding across the rim.

Visual Integration and Hardware Compatibility

In modern millwork, cabinet hardware is planned as a cohesive design concept.Furniture grommetsshould visually match front-facing cabinet hardware.

When cabinet fronts featurestainless steel cabinet handlesor specificallybrushed steel cabinet pulls, choosing a matching brushed steel desk grommet on the desktop creates a seamless appearance. This consistency also applies when usingsquare stainless steel cabinet handles, as the brushed finish echoes their clean geometric aesthetic.

If wornvintage IKEA stainless steel handlesare replaced during an office furniture update, it is the ideal time to swap out cheap plastic cord pass-throughs for a high-endMetal Cable Grommet 3-1/8 in (80mm), Brushed Steel.

Color matching is equally vital in kitchens. A grommet for coffee makers or appliances pairs naturally whenstainless steel kitchen cabinet handlesor a nearbystainless steel sink dish drying rackare present. Even structural elements likestainless steel table legsor heavy-dutysteel table legstie in visually when the metal finish is mirrored on the tabletop.

Professional Installation and Machining

Installing a desk cable grommet requires precise hole cutting. An uneven cutout causes the mounting ring to wobble or distort during insertion.

Tool Selection: Hole Saw vs. Forstner Bit

For board thicknesses ranging from 3/4 in to 1-1/2 in (19 mm to 38 mm)—the standard for countertops—two cutting tools are common:

• Bi-Metal Hole Saw:Best suited for dense particleboard, creating a clean cylindrical cutout. Ensure a precise pilot hole and maintain low drill speeds (approx. 400 - 600 RPM) to prevent scorching the edges.
• Forstner / Cylinder Bit:Produces the cleanest edge cuts by machining out all interior material. At a 3-1/8 in (80 mm) diameter, this requires a high-torque drill press or CNC router setup.

Preventing Surface Tear-Out

Melamine-coated particleboards are prone to chipping along the decorative layer as the bit exits. To prevent tear-out, drill from the top finished side until the pilot bit tip pierces the underside. Then finish drilling from the bottom side. This dual-pass method guarantees clean edges on both sides that are completely concealed by the grommet collar.

Tolerances and Securing the Ring

Mounting rings are engineered for a lightpress fit(interference fit). The drilled cutout should match the nominal size (e.g., 2-3/8 in / 60.0 mm) exactly. The ring features fine knurling or a subtle outer taper to grip the wood securely.

If the hole is slightly oversized due to drill runout (tolerance > 0.02 in (0.5 mm)), the ring must not sit loose. Pulling a snug cable could lift the hardware out of the desktop. In this case, secure the ring by applying a few drops of clear construction adhesive or silicone to the inner wall of the cutout.

Specific Application Areas

Brushed steel desk grommet fittings excel far beyond standard office desks, thanks to their durable material properties.

Kitchen Countertops and Islands

Modern kitchen islands frequently require pass-throughs for pop-up power outlets or kitchen appliance cords. Given the presence of moisture, metal is far superior to plastic, which turns brittle over time. However, standard furniture grommets are not waterproof. Web searches forwaterproof cable grommetsusually refer to industrial cable glands (IP68). A steel desk grommet protects against debris but not standing water. In kitchen settings, these grommets pair exceptionally well with astainless steel wall shelfor astainless steel trash can.

Media Console Cabinets and AV Racks

Enclosed TV credenzas require routing heavy HDMI cables, speaker wires, and power lines between interior shelves and back panels. Desk grommets are commonly installed in interior partitions or backboards. Because AV receivers generate heat, proper cabinet ventilation is essential. Alongside cable pass-throughs, installers frequently recess astainless steel vent grilleorstainless steel louvered ventinto backboards or top panels to promote convection cooling.

Workbenches and Commercial Labs

In demanding environments handling heavy tools or chemicals, plastictable cable grommetsfail quickly. Dropping a heavy tool can crack plastic, whereas a brushed steel desk grommet withstands heavy impact. Heavy-dutystainless steel angle bracketsused to reinforce workbenches complement this rugged, industrial design aesthetic.

Variations and Cable Management Alternatives

While brushed steel is a premier choice for modern and industrial interiors, different wood tones or room concepts may call for alternative finishes. Core construction and cutout sizes remain identical.

• Color Coatings:For dark wood veneers like walnut or black matte surfaces, ablack cable grommetis ideal. For light wood finishes or white desks, designers often specify a powder-coatedwhite cable grommetor a neutralgray cable grommet.
• Alternative Metalic Finishes:For a warmer metallic tone, select abrown cable grommet. High-gloss reception desks suit achrome cable grommet, while asatin cable grommetoffers a fine, silky matte alternative to brushed steel.
• Shapes:Beyond standardround cable grommets, specialized architectural layouts may call for arectangular cable grommetor asquare cable grommet. These require routing with a template, involving higher installation effort than a simple hole saw cutout.

Integration into Cabinetry and Custom Furniture

Grommet installation isn't limited to horizontal surfaces. They serve vital functions in vertical applications, such as cabinet side panels. When adding interior lighting to wardrobes, 12V lines must pass cleanly from transformers to LED channels.

This highlights the system compatibility of premium hardware. A woodworker installing heavy-dutysoft-close 24-inch (600 mm) full-extension stainless steel drawer slidesin a server enclosure will select matching metal grommets to prevent wires from shearing during drawer operation.

The same applies to bathroom vanity design. When incorporatingstainless steel bathroom cabinet handles, cord pass-throughs for hairdryers or shavers inside cabinets should be made of corrosion-resistant metal to endure high humidity.

This attention to detail extends to interior pocket doors and wall paneling. Installing solidstainless steel door handlesorstainless steel hingesmaintains a consistent design language down to the cable grommets. Astainless steel bar pullon a desk drawer aligns perfectly with the brushed steel finish on the desktop grommet above.

---

Frequently Asked Questions (FAQ)

1. What exact hole saw size is required for installation?

The nominal size of the desk grommet matches the required drill diameter. For a 2-3/8 in (60 mm) grommet, use a hole saw or drill bit measuring exactly 2-3/8 in (60.0 mm). The top rim resting on the surface is larger—typically 2-11/16 in to 2-3/4 in (68 mm to 70 mm)—to completely hide the cutout edge.

2. Can standard power plugs pass through a 2-3/8 in (60 mm) grommet?

Standard power plugs measuring about 1-1/2 in to 1-9/16 in (38 mm to 40 mm) fit through a 2-3/8 in (60 mm) flange ring, though the cover cap must be temporarily removed. If routing multiple thick cords or oversized right-angle plugs, step up to a 3-1/8 in (80 mm) grommet.

3. How do you prevent the desk grommet from sliding or pulling out?

In a precisely drilled cutout, the mounting ring is held securely by friction (press fit). If the hole is slightly loose due to tool variance, apply a small bead of construction adhesive, PU glue, or silicone along the inner rim of the cutout before pressing the flange in place.

4. Are there waterproof desk grommets for kitchen countertops?

Brushed steel desk grommets designed for furniture are not waterproof (IP rated) and do not include rubber O-ring seals against the wood surface. Liquid spills on a countertop can pass through the opening into lower cabinets. For wet areas requiring sealed pass-throughs, industrial IP-rated cable glands must be used.

5. Do these grommets match existing stainless steel cabinet handles?

Yes. Brushed steel features a fine directional satin finish identical to standard stainless steel handles, kitchen pulls, and bar pulls. The brushed texture diffuses light in the same manner, creating a cohesive hardware finish across the room.

6. Can the cover cap be removed completely for large cable bundles?

Yes. The mounting ring can stay installed in the desktop to protect wires from raw wood edges while leaving an open pass-through. On select models, you can also remove the rubber seal or brush strip to maximize clearance while keeping the cap on.

7. How do you clean and maintain a brushed steel surface?

Remove dust and light dirt with a dry or damp microfiber cloth. For greasy smudges (such as in kitchens), use a dedicated stainless steel cleaner spray. Always wipe parallel to the brushed grain direction to preserve the satin finish and prevent cross-scratching. Never use abrasive pads or steel wool.
