Chrome Desk Grommet

Chrome desk grommetsare functional built-in hardware fittings for furniture panels designed to organize cable runs. Featuring an electroplated chrome finish, they offer mechanical edge protection and a clean visual transition over raw cutout edges. In professional furniture assembly and interior fitting, these metal inserts prevent the rough edges of particleboard or MDF cores from damaging the insulation of power and data cables.

The Technical Character of the Chrome-Plated Surface

During the manufacturing of achrome desk grommet, the metal body is coated with a thin yet extremely hard layer of chrome in an electroplating bath. This process creates the characteristic high-gloss, reflective surface. From a technical standpoint, this coating offers crucial advantages for furniture construction. Chrome is exceptionally wear-resistant. The polished surface acts as a robust shield, allowing even thick, rigid power cords or coarse textile jackets to slide smoothly during daily monitor adjustments without scratching the metal finish.

Unlike painted plastic options, a chrome-platedmetal desk grommetmaintains its dimensional stability and resistance to mechanical stress for years. The high-gloss surface reflects ambient light and tabletop colors, allowing the fitting to integrate seamlessly into various substrate materials despite its prominent polish.

Applications: From Office Environments to Bathroom Furniture

The classic application is found in building or retrofitting workstations. A professional office desk requires precise cable routing to neatly wire monitors, laptops, and peripherals. The cable pass-through is typically positioned in the rear corners or centered above a cable tray. When a chrome or galvanized steel wire tray runs beneath the desktop, the chrome sleeve creates a matching, polished transition on the work surface.

Beyond traditional office setups, these fittings are increasingly used in other residential areas:

• TV Sideboards and Media Consoles:For routing HDMI and power cables behind the back panel.
• Bathrooms:In vanity units to feed wires for illuminated mirrors or internal cabinet outlets. Here, the fitting coordinates perfectly ifchrome bathroom hardwareis already installed.
• Conference Tables:Centrally placed grommets for projector and network connections.

In general, these fittings suit all standard furniture panel thicknesses, typically5/8 in (16 mm),3/4 in (19 mm), or1 in (25 mm). The cylindrical collar completely conceals the cut edge of the engineered wood.

Systematic Design: Chrome in Furniture Construction

Thoughtful furniture design relies on matching hardware finishes. If a polished chrome desk cable grommet is chosen, this finish should be reflected in the rest of the components.

For instance, if the tabletop rests onchrome furniture feetor features chrome table legs, the grommet ties that design element directly into the desktop. The same applies to cabinet fronts: a mobile pedestal beneath the desk or sideboard drawers looks completely cohesive when paired withchrome furniture handles. Whether using long, high-gloss chrome cabinet pulls, specialized drawer handles, or subtle chrome kitchen hardware—maintaining a consistent finish specification (electroplated polished chrome) is a core planning principle for cabinetmakers and interior designers.

Selected Products and Specifications

The range includes various diameters and styles to precisely accommodate specific wire bundles. Choosing the correct diameter determines the required drill size.

Grommets with a 2-3/8 in (60 mm) Diameter

For standard workstations with few cables (e.g., one power cord, one monitor cable), a2-3/8 in (60 mm)drill size is the industry standard.

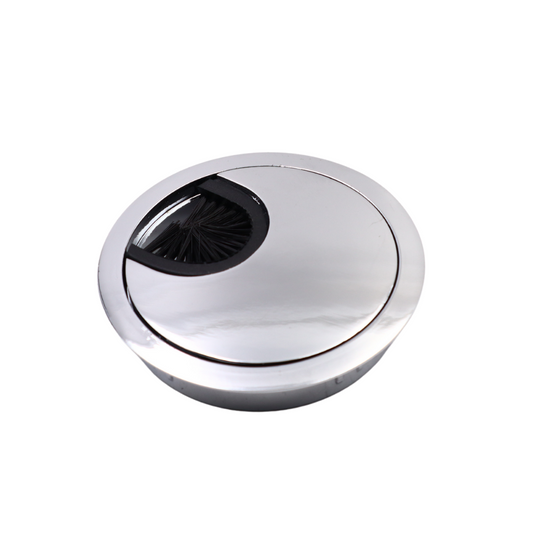

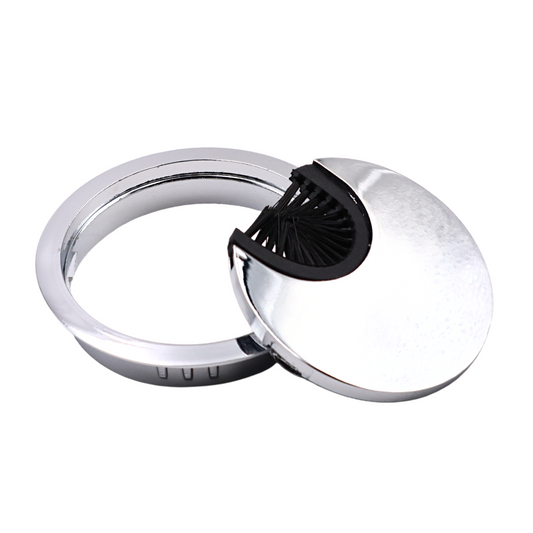

• TheMetal Desk Grommet 2-3/8 in (60 mm), Chromefeatures a classic rotating cover plate. By turning the top cap, the opening size can be adjusted to match the cable bundle.

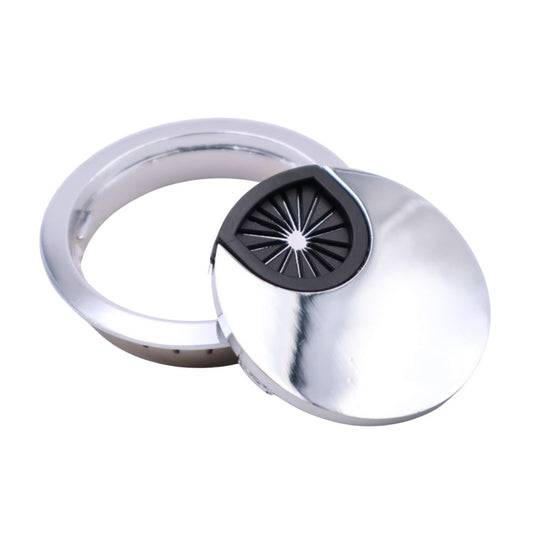

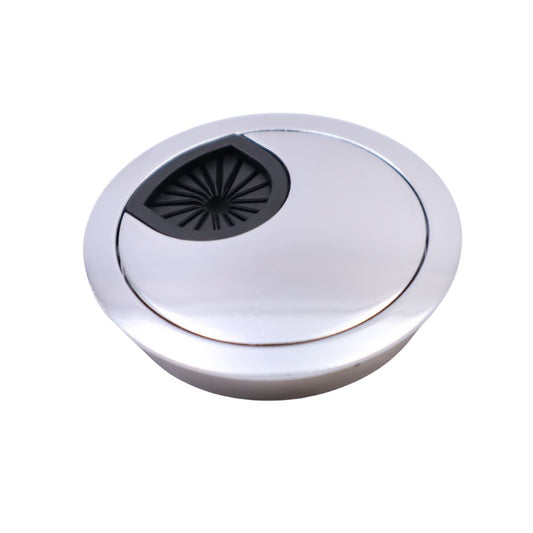

• An enhanced option is theMetal Desk Grommet with Rubber Insert - Chrome 2-3/8 in (60 mm). This style features a soft interior seal. The rubber gasket gently grips cables to prevent loose ends (like phone chargers) from slipping under the desk due to gravity.

Grommets with a 3-1/8 in (80 mm) Diameter

When routing thick power cords, multiple standard plugs, or bulky DVI/HDMI cables through the panel, a3-1/8 in (80 mm)hole is required. Large plugs often need more diagonal clearance than a 2-3/8 in (60 mm) opening can provide once the cover bar is factored in.

• TheMetal Desk Grommet 3-1/8 in (80 mm), Chromeoffers maximum clearance with the same polished chrome appearance.
• To hold larger wire bundles securely, choose theMetal Desk Grommet with Rubber Insert - Chrome 3-1/8 in (80 mm).

Installation and Milling Notes

Installingdesk grommetsrequires precise tools. Round grommets are best fitted using a Forstner bit or a high-quality bi-metal hole saw.

1. Select Hole Saw Size:The nominal diameter of the fitting (e.g.,2-3/8 in (60 mm)or3-1/8 in (80 mm)) matches the exact drill bit size required.
2. Tolerances:Metal grommets do not forgive undersized holes. Drill precisely to the nominal dimension. A tolerance of+1/64 in (+0.5 mm)is acceptable, as the outer lip of the flange (typically1/16 in to 1/8 in (2 mm to 3 mm)wider than the barrel) cleanly covers the edge gap.
3. Press Fitting:Press the sleeve into the hole from above. For metal models, a snug friction fit or the heavy metal body itself is often sufficient. If necessary, apply a drop of construction adhesive or silicone to the barrel to prevent rotation.
4. Insert Cover Plate:Pass the cables through, then place the cover plate on top and twist slightly to lock it into place.

Frequently Asked Questions (FAQ)

Should I choose a rectangular or round chrome desk grommet?

That depends on your machining equipment. Around desk grommetcan be installed on-site within minutes using a handheld drill and hole saw. Conversely, a rectangular cable pass-through requires a router with a template or a CNC machining center. Rectangular models often feature wider brush seals and accommodate large cable channels, but retrofitting them takes significantly more effort. You can findrectangular cable grommetsin our designated category.

Are these desk grommets waterproof?

No. Furniture fittings are not sealed against water. If you require a waterproof cable pass-through or an exterior wall grommet (e.g., for outdoor installations or damp environments), you need industrial strain-relief cable glands with an IP protection rating. Interior desk grommets are strictly designed for mechanical protection and clean interior aesthetics.

What is the standard diameter for desk grommets?

While there is no single universal standard, two sizes dominate the office furniture industry. For basic wiring needs, opt for a 2-3/8 in (60 mm) desk grommet. When routing power strips, thick transformers, or more than three cable runs through the tabletop, an 3-1/8 in (80 mm) desk grommet is strongly recommended.

Related Hardware Solutions and Finishes

If polished chrome does not fit your existing design concept, alternative metal finishes are available. For a more subtle, technical look, consider asilver desk grommet. For modern dark laminates or powder-coated desk frames, ablack desk grommetis frequently selected to blend seamlessly into the surface.
