14mm cover capsare circular concealment caps backed with a high-performance adhesive, widely used in professional cabinetmaking and interior woodworking to flush-cover visible screw heads, unused system holes, and assembly openings.

This specific sizing of 9/16 in (14 mm) is an industry standard. It provides sufficient overhang to securely cover common drill hole diameters in cabinet construction without looking visually obtrusive. For carpenters, installers, and cabinetmakers, these adhesive caps offer the most efficient way to create a smooth, seamless decor surface after final assembly.

Technical Specifications and Tolerances

Selecting14mm cover capswith an exact diameter of 9/16 in (14 mm) is tailored to popular hardware and joining systems used in modern cabinet building. A precise adhesive cap acts like an invisible band-aid in furniture manufacturing—sealing necessary assembly points and leaving a flawless surface that doesn't catch the eye.

To ensure proper function, the following technical dimensions work hand in hand:

  • Drill hole coverage:Unused shelf-pin holes in theSystem 32standard feature a typical diameter of 3/16 in (5 mm). A 9/16 in (14 mm) cap provides an all-around overhang of 3/16 in (4.5 mm), guaranteeing strong adhesion to the surrounding substrate.
  • Screw head coverage:Standard flat-head wood screws (diameters from 1/8 in to 5/32 in (3.5 mm to 4.0 mm)) leave a visible countersunk recess when driven flush. Euro screws and wood screws withPhillips, Pozidriv, or Torx drivesare also fully concealed by this size.
  • Material thickness:The caps feature an ultra-thin design. With a thickness of only 0.012 in to 0.018 in (0.3 mm to 0.45 mm), they barely add profile. This prevents cleaning cloths or binder edges on shelving units from snagging on the edges.

For larger mounting openings, such as those required forcam lock fasteners(Minifix) or European cabinet hinges, this size is too small. In those cases, move up to the next size tier specified in the18mm cover capscategory.

Material Properties and Adhesive Technology

The performance of thesescrew cover capsdepends heavily on two components: the base substrate and the pressure-sensitive adhesive.

The backing material is typically made of solid-color melamine resin or high-density PVC. These materials offer exceptional UV resistance, ensuring that the caps will not yellow or fade even after years of direct sunlight exposure. Surface textures (smooth, satin, textured, or wood-grain pore) are engineered to match major panel manufacturers' laminates (such as Egger or Kronospan) precisely.

The back features a pressure-sensitive acrylic adhesive. This adhesive delivers extremely high initial tack (instant grab) and superior shear strength. Acrylic adhesives cross-link over time, forming an increasingly stronger bond with the substrate. Full curing strength is reached after approximately24 hours. The adhesive is age-resistant and non-drying, preventing thesehole cover capsfrom falling off over time.

Applications in Cabinetry and Interior Woodworking

Application possibilities span across all areas of cabinet construction, casework, and interior fitting.

Cabinet Assembly and Shelving Systems

When assembling cabinets, dressers, or bookcases, visible fasteners are inevitable. When retrofitting or reconfiguring modular furniture, extracover caps for drill holesare frequently required. A classic example is adjusting shelf heights where unused pin holes need to be covered. If you needIKEA Billy bookcase hole coversto visually clean up unused shelf pin rows along side panels,14mm cover capsare the exact technical fit.

Architectural Millwork and Wall Paneling

When wall panels or wainscoting are face-screwed directly to framing, the screw heads remain visible. Self-adhesivescrew cover caps for Phillipsor Torx drives are ideal here. Thanks to their ultra-low profile, they visually blend right into the panel surface.

Window and Door Trim (Interior)

Trim elements also require clean concealment. When vinyl windows are fastened into framing from the interior, deep mounting holes remain. Installers often look forvinyl window hole capsfor these applications. While large anchor holes in the frame profile usually require molded plug inserts, self-adhesivecover caps for vinyl windowsexcel at neatly covering smaller set screws, trim strips, or hardware mounting points in dry interior spaces. The compatibility of the acrylic adhesive with PVC surfaces is a key technical benefit.

Finishes and Color Matching

Exact color matching is crucial when selecting cover caps. A slight variance in sheen or shade will make the cover stand out and defeat its cosmetic purpose. The selection covers the complete spectrum of standard board materials.

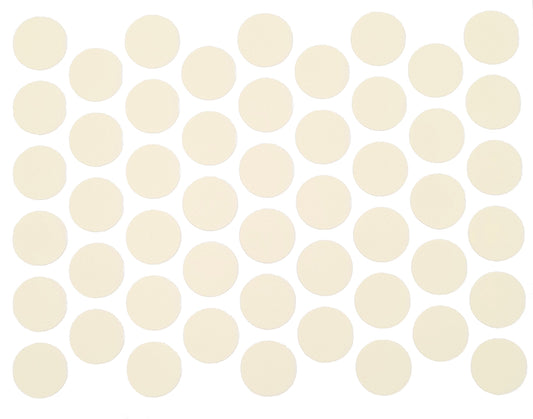

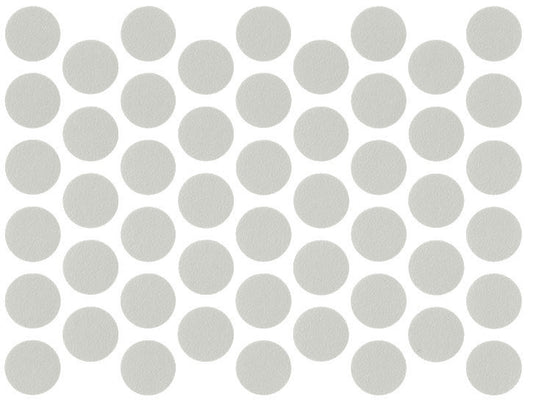

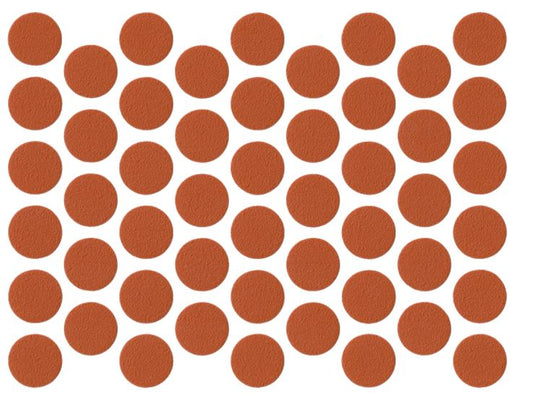

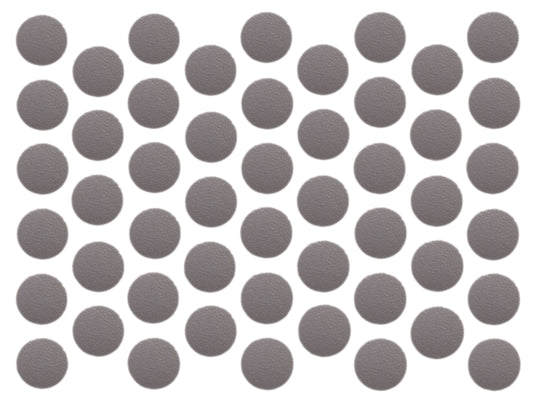

Solid Colors

For classic white cabinet carcasses, fronts, or architectural elements in solid tones, precisely matched shades are readily available.

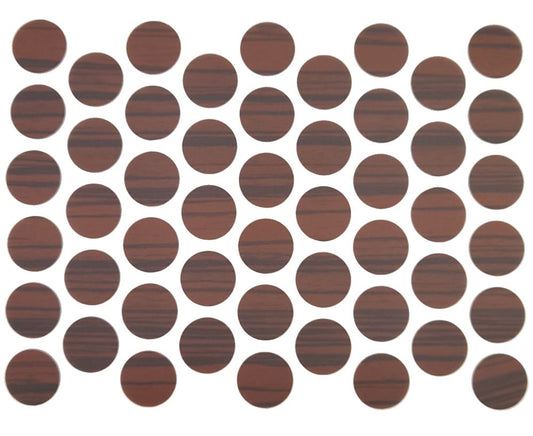

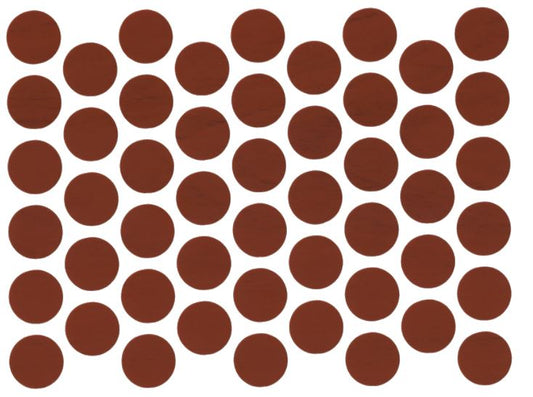

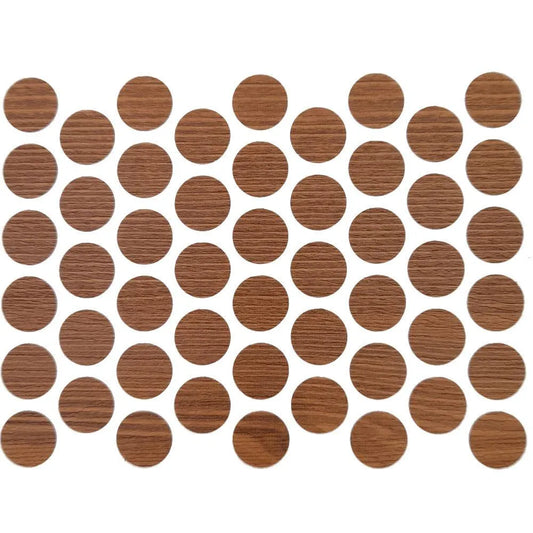

Wood Grain Finishes

For woodgrain laminates, matching both the base color and the pore structure is essential. The caps are printed to replicate solid wood and real wood veneers seamlessly.

Proper Application and Installation Guidelines

Applyingfurniture cover capsrequires no specialized tools, but following key surface prep steps ensures a permanent adhesive bond.

  1. Surface Preparation:The area surrounding the drill hole or screw head must be completely dry, clean, and free of dust or grease. Release agent residue from board manufacturing, silicone sprays, or skin oils will severely impair adhesive performance. A quick wipe with a clean cloth dampened with isopropyl alcohol optimizes surface tension.
  2. Application Temperature:Acrylic adhesive performance is temperature-sensitive. The ideal installation temperature is between 64 °F and 77 °F (18 °C to 25 °C). If caps are applied in unheated shops or job sites below 50 °F (10 °C), the adhesive becomes too stiff to properly penetrate the micro-pores of the melamine coating.
  3. Screw Alignment:When usingcover caps for cabinet screws, ensure the screw is set perfectly flush or slightly countersunk. If a screw head protrudes even 1/64 in (0.5 mm) above the panel surface, the cap will tent over it. This creates point stress that causes the outer edges to peel over time.
  4. Firm Pressure:Because this is a pressure-sensitive adhesive, apply firm pressure with your thumb or a small laminate roller for a few seconds to achieve maximum adhesive contact across the surface.

Storage and Shelf Life

Self-adhesivedrill hole cover capsare supplied on release-coated liner sheets. To preserve adhesive strength, store sheets flat in their original packaging. Extreme temperature swings or direct sunlight exposure on storage racks will prematurely degrade the adhesive. Kept at a steady room temperature of 68 °F (20 °C) and 50% to 60% relative humidity, the guaranteed shelf life of the adhesive is at least12 months.

Browsing by Color Category

To help you quickly source hardware for production projects, our caps are organized by diameter as well as primary color groups. Installers working with specific substrates can jump straight to matching shade collections.

For white and light-colored cabinets, ourSelf-Adhesive White Cover Capssection gathers every shade from crisp bright white to warm off-white. Darker modern cabinetry calls forSelf-Adhesive Black Cover CapsorSelf-Adhesive Gray Cover Caps. When working with natural veneers or woodgrain laminates, exploreSelf-Adhesive Woodgrain Cover CapsandSelf-Adhesive Brown Cover Capsfor authentic pore details that create a flawless finish.

To view all available sizes, drive types, and flush push-in caps, visit our mainCover Capscategory page.

FAQ – Frequently Asked Questions

Will a 14mm cover cap fit standard Minifix cam lock connectors?

No. The housing of a standard cam lock connector (such as a Minifix 15) requires a 19/32 in (15 mm) hole. A cap measuring 9/16 in (14 mm) will sink into the recess or fail to cover the edges. For cam connectors, always select caps with a 11/16 in (18 mm) or 25/32 in (20 mm) diameter.

Will self-adhesive cover caps stick to oiled or waxed solid wood?

Only under specific conditions. Oils and waxes lower the surface energy of wood significantly, acting as a bond breaker. Acrylic adhesives cannot establish a permanent grip over wax or oil finishes. The area around the hole must be thoroughly degreased before application; otherwise, the caps will lift within a few days.

Are these caps suitable for outdoor use or high-moisture areas?

These caps are designed primarily for dry indoor woodworking. In typical residential bathrooms with adequate ventilation, adhesion is reliable. However, in direct outdoor environments or wet zones, continuous moisture exposure and freeze-thaw cycles will weaken the adhesive bond.

How can old cover caps be removed without damaging the laminate surface?

Acrylic adhesives soften under heat. Gently warming the cap with a heat gun set to 122 °F to 140 °F (50 °C to 60 °C) causes the adhesive to release its grip. The cap can then be peeled away cleanly using a plastic scraper or thumbnail. Any slight adhesive residue wipes off easily with isopropyl alcohol or adhesive remover. Never use sharp chisels or metal screwdrivers, as they will permanently scratch the laminate finish.
