18mm cover caps(23/32 in (18 mm)) are circular, self-adhesive covers made of melamine resin-coated decorative paper or thin plastic. In cabinetmaking and furniture making, they serve to visually conceal screw heads, cam lock connectors, and unused drill holes.

In professional woodworking and interior fitting, visible screw joints are often unavoidable—whether during cabinet assembly, shelf installation, or back panel attachment. To ensure a seamless, uninterrupted surface, screw head covers are essential. The exact size of 23/32 in (18 mm) diameter has established itself as an industry standard for specialized hardware where smaller caps reach their physical limits.

Technical Specifications and Material Structure

The construction of a self-adhesive screw cover for professional applications consists of several functional layers. The base substrate is typically made of impregnated decorative paper or PVC foil with a thickness of approximately 0.012 in to 0.018 in (0.3 mm to 0.45 mm). This minimal material thickness is crucial so that the cap sits virtually flush with the furniture surface after application, creating no distracting tactile edge.

The back of the self-adhesive cover cap is coated with a high-tack acrylic adhesive. Acrylic adhesives feature exceptional aging resistance and superior shear strength. They reliably withstand normal room temperature fluctuations and ambient indoor humidity. As supplied, the adhesive layer is protected by a silicone release liner from which individual caps peel easily during installation.

Dimensional Fit: Why Exactly 11/16 in (18 mm)?

Choosing the correct diameter is vital during assembly. While smaller formats are often sufficient for standard drill holes, the 11/16 in (18 mm) dimension is required for specific jointing techniques.

A classic cam lock connector (commonly known as a Minifix fastener) features a housing diameter of exactly 19/32 in (15 mm). When this connector is recessed into particle board, it creates a 19/32 in (15 mm) circular feature that often leaves a minor edge gap. If an installer uses a 9/16 in (14 mm) cap here, the fitting remains visible. An 18mm cover cap provides 1/16 in (1.5 mm) of overlap on every side. This offers cabinetmakers sufficient placement tolerance while reliably covering minor tear-outs around the edges of the 19/32 in (15 mm) bore.

The 11/16 in (18 mm) format is also the correct choice when using large wood screws (for example, with thread diameters of 3/16 in (5.0 mm) or 1/4 in (6.0 mm)). The head of a 3/16 in (5.0 mm) screw measures nearly 3/8 in (10 mm) in diameter. When countersunk deeply into the material, it creates a bevel that quickly spans 15/32 in to 1/2 in (12 mm to 13 mm) on the surface. The 18mm cover cap seals this countersunk hole completely. Acting like a custom-fit bandage over a small scratch, the 18mm cover cap not only hides the mechanical hardware, but also protects the engineered wood from moisture ingress.

Finishes and Color Matching

Seamless optical integration of furniture screw caps requires an exact match with the substrate. The industry offers a wide spectrum of finishes tailored to popular panel materials (such as melamine-faced boards from Egger, Kronospan, or Pfleiderer).

Wood Grain Finishes for Natural Furniture Design

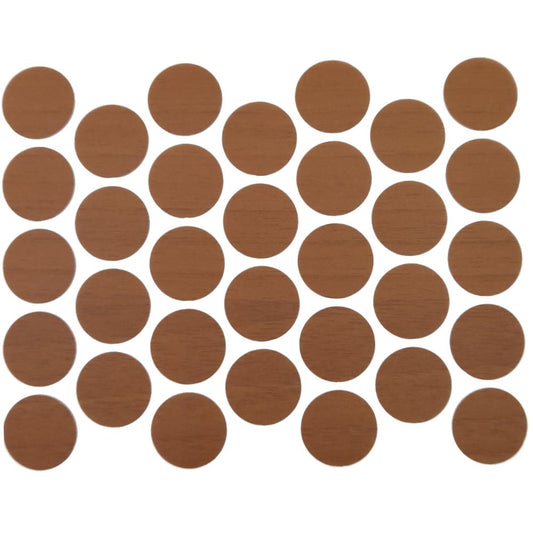

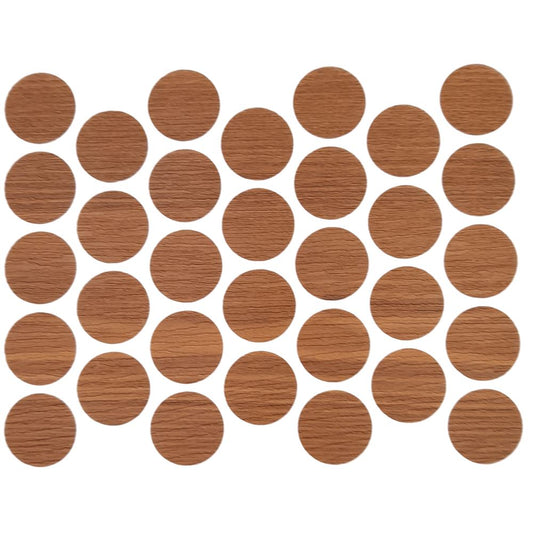

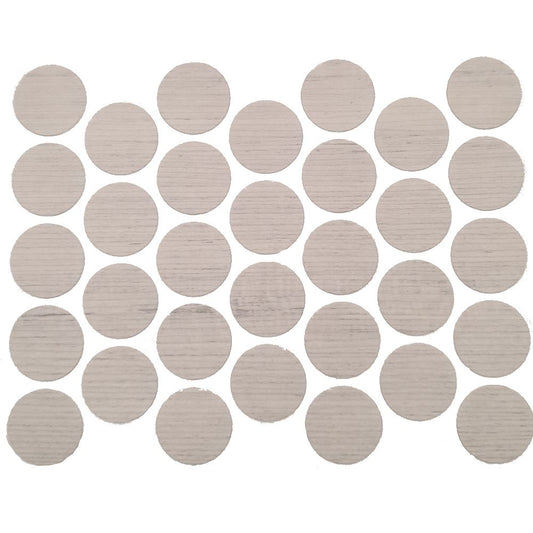

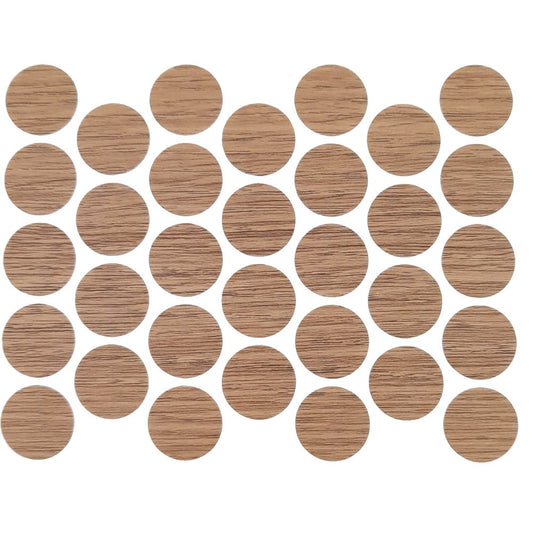

For cabinet bodies made of veneered particle board or wood-look melamine panels, wood-grain screw covers are essential. These caps match the base tone of the wood and feature detailed printed grain patterns. Key 18mm variants include:

Explore further variations in the parentSelf-Adhesive Wood Cover Capscollection. If you are looking specifically for oak finishes, visit the dedicatedSelf-Adhesive Oak Cover Capscollection.

Solid Colors for Modern Surfaces

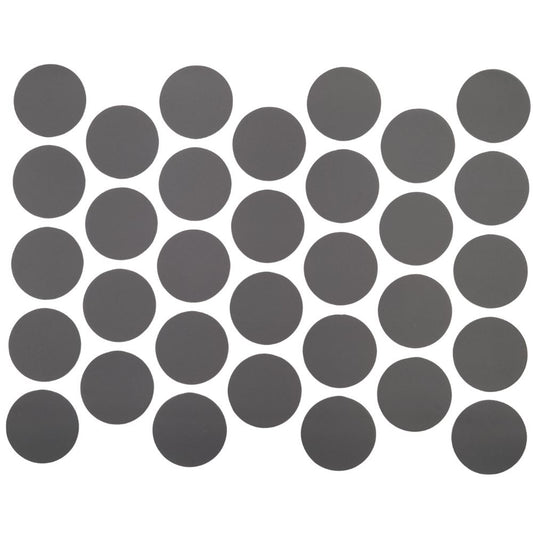

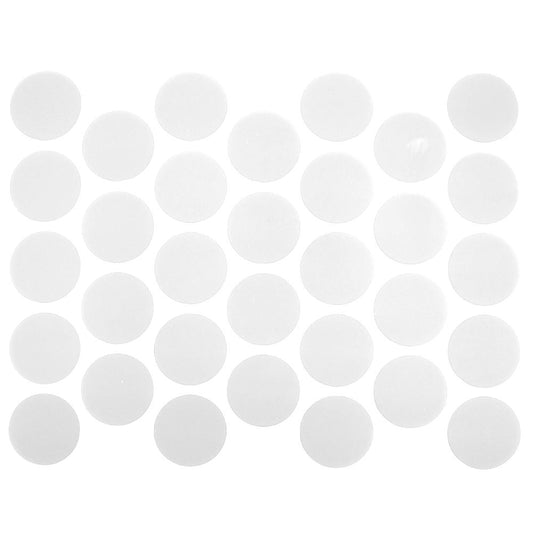

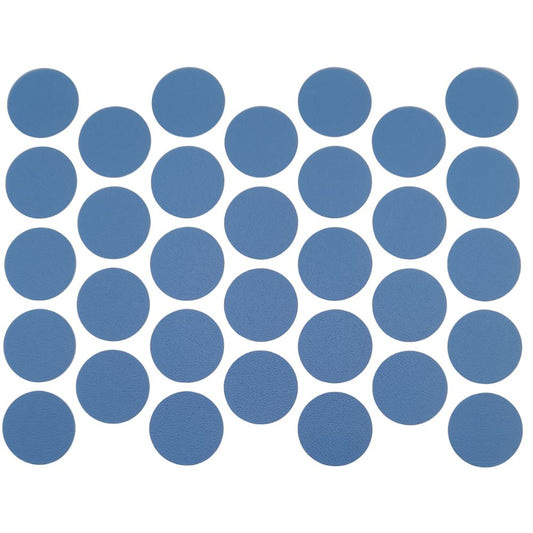

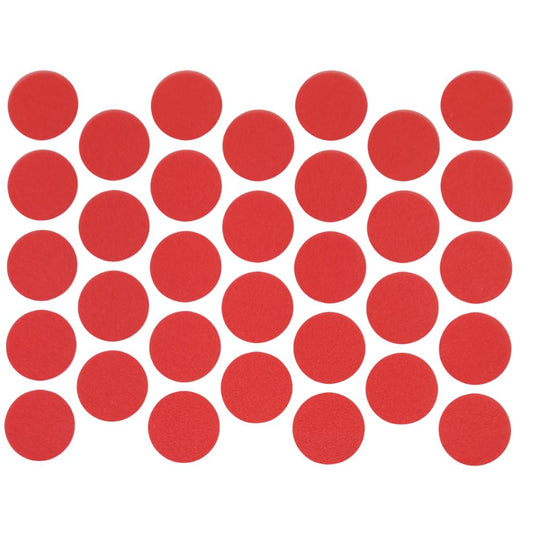

Solid surfaces often dominate kitchen and bathroom designs. Here, the self-adhesive screw cover cap must match the exact RAL or NCS color tone of the cabinet front or carcass.

For a broader selection of neutral tones, explore ourSelf-Adhesive White Cover Caps,Self-Adhesive Black Cover Caps, andSelf-Adhesive Gray Cover Capscollections.

Installation and Application Guidelines

Applying screw hole cover caps correctly requires a basic understanding of the adhesive properties of acrylic tape. Improper surface preparation can lead to lifting, especially when exposed to thermal stress or routine cleaning.

  1. Surface Preparation:The surface surrounding the screw head or drill hole must be completely clean and free of dust and grease. Sanding dust remaining on melamine boards acts as a bond breaker. Wipe the surface with a slightly damp cloth or clean with isopropyl alcohol to remove oily residues.
  2. Temperature:Application temperature should ideally be between 64 °F and 77 °F (18 °C and 25 °C). Below 59 °F (15 °C), the initial tack of the adhesive decreases significantly. If assembling furniture in unheated job sites during winter, keep cap sheets in a heated area before installation.
  3. Positioning:Center the 11/16 in (18 mm) cap precisely over the hardware or hole being covered (e.g., a 19/32 in (15 mm) cam lock bore).
  4. Pressure:Acrylic adhesives are pressure-sensitive (PSA). After placing the cap, apply firm, direct pressure with your thumb or a soft squeegee for 2 to 3 seconds. Pressing firmly forces the adhesive into the micro-pores of the surface.
  5. Curing Time:Full adhesive bond strength is reached after 24 to 48 hours. Avoid mechanical stress or cleaning with harsh chemicals during this window.

Applications in Cabinetry and Woodworking

18mm cover caps are versatile problem solvers across various woodworking disciplines.

  • Cabinet and Bookshelf Assembly:Structural connectors are standard when building wardrobes or large shelving units. For generic 3/16 in (5 mm) shelf pin holes, explore our smaller14mm Cover Capscollection.
  • Kitchen Installation:Countertop joint fasteners and heavy-duty carcass connectors frequently leave large recesses that require covering. The moisture resistance of melamine-coated caps protects exposed raw wood inside drill holes from swelling caused by steam.
  • Doors and Frames:When installing door frames, mounting screws are driven through the frame into the surrounding wall. Here, cover caps disguise deeply recessed screw heads for a clean final look.
  • Furniture Restoration:Restoring older or antique furniture often requires dark wood finishes. Antique screw covers like our Self-Adhesive Screw Cover Caps - Dark Walnut 11/16 in (18 mm) orSelf-Adhesive Screw Cover Caps - Mahogany 11/16 in (18 mm)blend naturally into aged wood surfaces.

Selected Products for Specialized Applications

Our wide range of 18mm cover caps allows precise matching for almost any project. Here is a breakdown of technical solutions for various finishes:

Frequently Asked Questions (FAQ) About 18mm Cover Caps

What diameter cover cap do I need for a standard cam lock connector (Minifix)?A standard cam lock fitted into a 19/32 in (15 mm) hole requires an 18mm cover cap (11/16 in). A 9/16 in (14 mm) cap would drop into the recess or fail to cover the edge gap. The 11/16 in (18 mm) cap provides a 1/16 in (1.5 mm) overlap on all sides for complete coverage.

Will self-adhesive cover caps stick to raw MDF or unfinished particle board?Acrylic pressure-sensitive adhesive requires a smooth, non-porous surface (such as melamine, lacquer, or foil) to develop full bond strength. Adhesion on raw, porous MDF or coarse particle board is severely limited. Raw surfaces must be painted, primed, or thoroughly cleaned of fine dust prior to application.

Are these caps suitable as cover caps for vinyl windows?Vinyl window profiles often require specific snap-in plug caps for weep holes or frame screws. Self-adhesive 18mm caps stick well to smooth indoor PVC window profiles to hide mounting hardware, but they are not rated for outdoor weathering or direct UV radiation. Use molded plastic plug caps for exterior applications.

How do I remove self-adhesive furniture screw caps?To disassemble furniture, peel back the caps to access underlying fasteners. Because the acrylic adhesive is high-tack, warm the cap slightly using a hair dryer (approx. 104 °F to 122 °F / 40 °C to 50 °C). This softens the adhesive, allowing you to lift the cap cleanly using a utility blade or thin screwdriver tip.

Is an 18mm cover cap large enough for a 5/16 in (8 mm) hole?Yes. For a 5/16 in (8 mm) hole (such as a misdrilled dowel hole), an 18mm cover cap provides an ample 3/16 in (5 mm) overlap on every side. If space on the panel is limited, a smaller cap from ourScrew Cover Capscollection with a 9/16 in (14 mm) diameter will also suffice.
