Organization Systems

Organization systems are the fittings that put order inside cabinets rather than on the outside: in-cabinet dish racks for wall units from 15-3/4 to 31-1/2 inch wide, pull-down and retractable wardrobe rails, drawer safes, and the chrome 1 inch pipe system – end caps, hinge connectors, flanges – used to build clothes rails, towel bars and shelf supports to size. Each product in this category replaces a loose accessory with something fixed to the carcass, so plates, clothes or valuables have a defined place and the cabinet door closes on a tidy interior.

Dish racks built into the wall cabinet

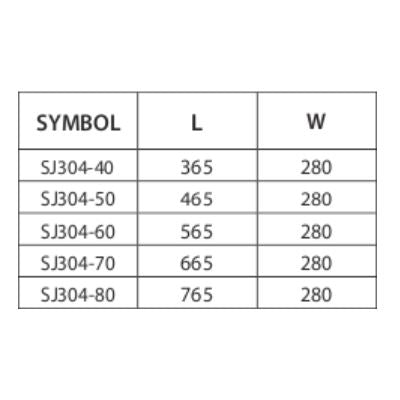

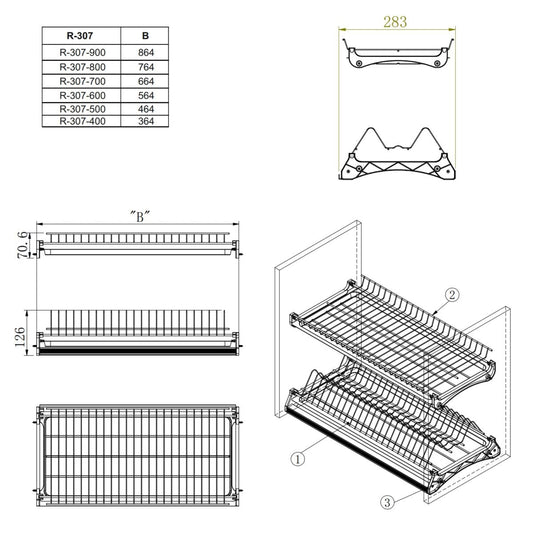

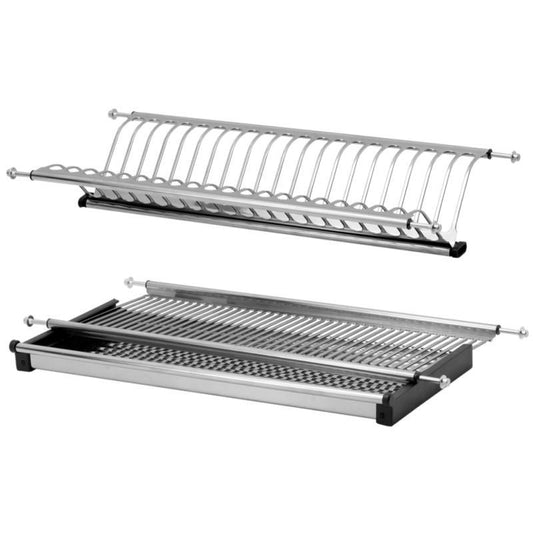

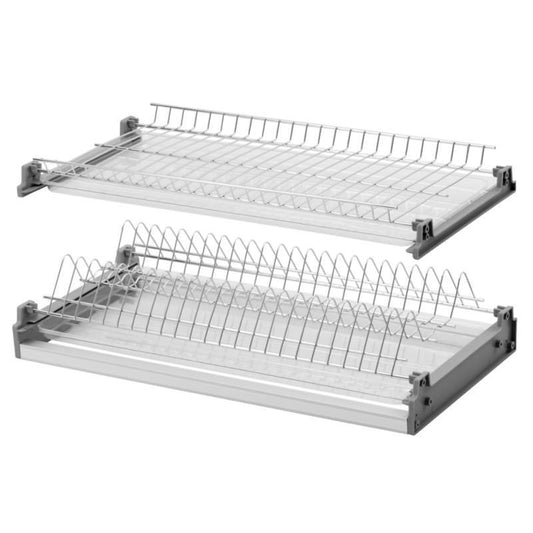

A dish rack mounted inside the wall cabinet above the sink does what a countertop drainer does, but out of sight: washed plates and glasses go straight into the cabinet, drip into a tray and dry behind a closed door. The racks in this category come in stainless steel and chrome, sized for the standard cabinet widths: the 19-11/16 inch (500 mm) stainless steel rack, the 23-5/8 inch (600 mm) rack, the 28 inch (700 mm) rack and the 31-1/2 inch (800 mm) rack, with chrome versions from 15-3/4 inch (400 mm) and 19-11/16 inch up to 31-1/2 inch. Two tiers hold plates upright on the upper level and glasses or bowls below; the rack screws to the cabinet sides like a shelf and the drip tray slides out for emptying.

Wardrobe rails that come to you

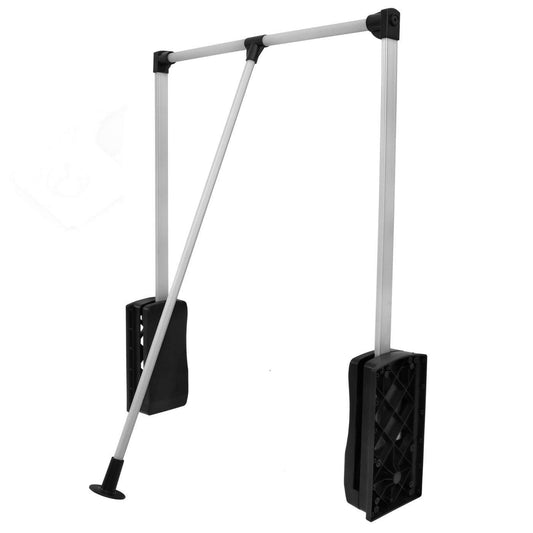

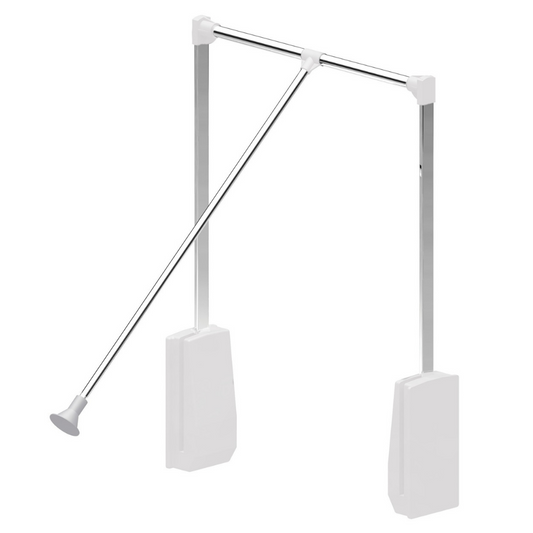

In a tall wardrobe the top rail is out of reach for most people. The pull-down wardrobe rail for 17-11/16 to 25-5/8 inch (450–650 mm) cabinets swings the whole rail down and forward with a handle, gas-spring assisted, so jackets stored 2 m high can be taken off at chest height. The retractable wardrobe hanger 9-13/16 inch (250 mm) is the compact version for a narrow section or a hallway cabinet: a telescopic arm that pulls out, takes a few hangers and slides back. The full rail range is listed under pull-out wardrobe rail and pull-down wardrobe rail.

The 1 inch pipe system

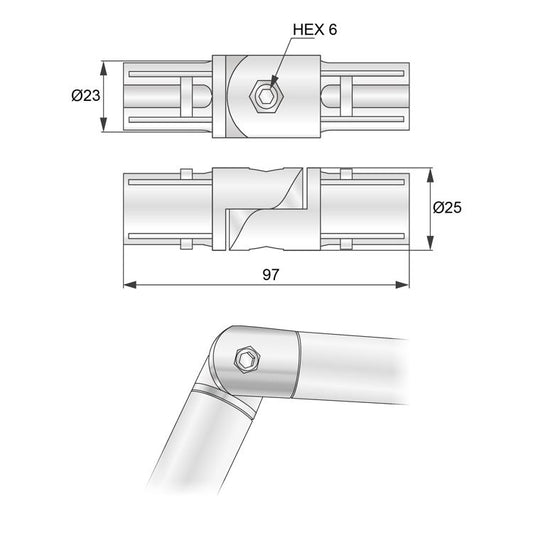

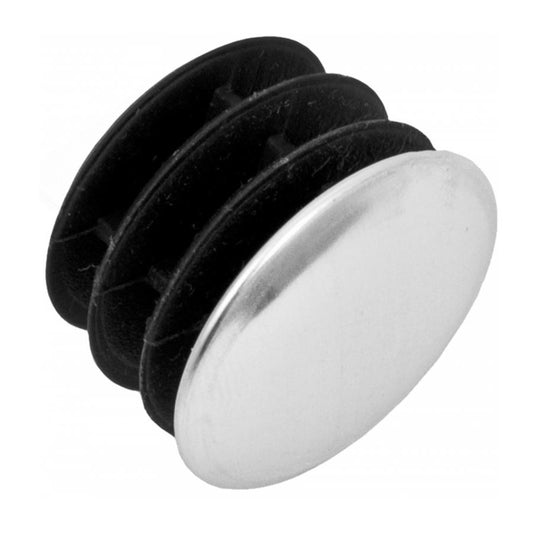

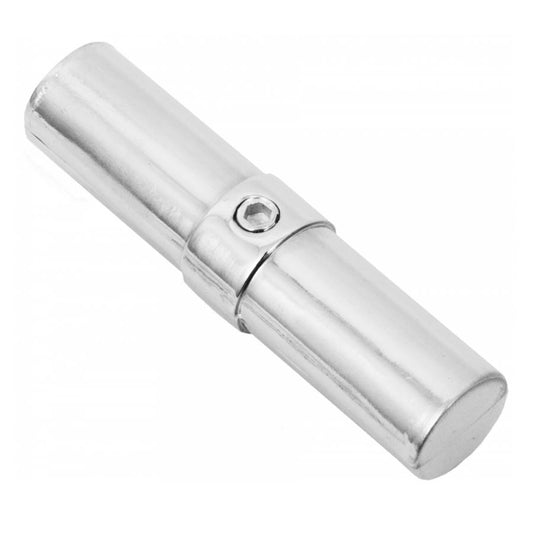

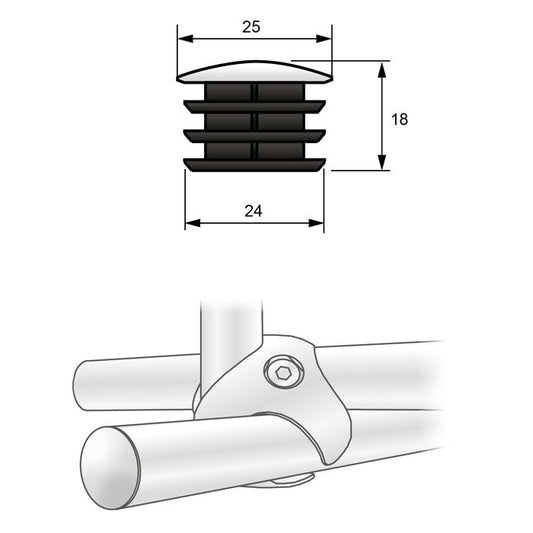

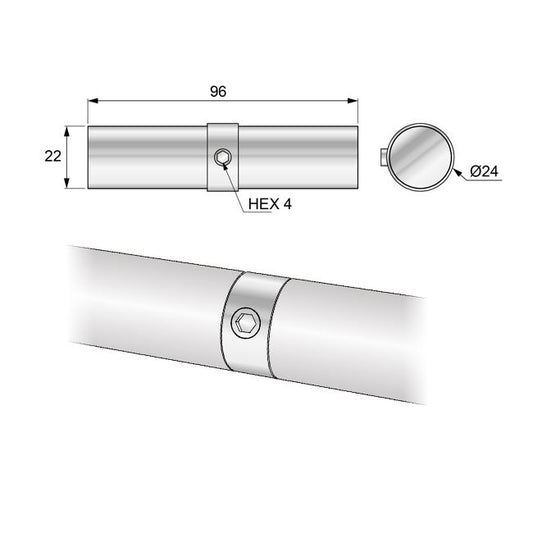

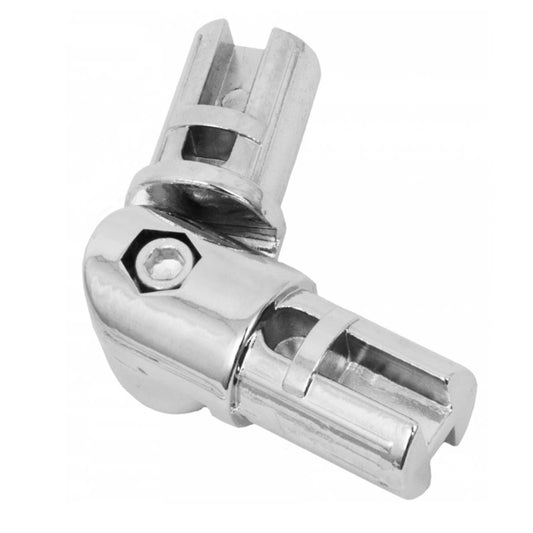

Chrome tubes of 1 inch (25 mm) diameter are the building blocks for custom rails: the 1 inch pipe end cap closes a cut tube, the 1 inch pipe hinge connector joins two tubes at a variable angle, and flanges fix the tube to a wall or a cabinet side. With these parts a clothes rail, a towel rail in a bathroom cabinet or a support bar under a shelf can be made to the exact length needed – cut the tube with a pipe cutter, deburr, push the fittings on and tighten the grub screws.

Drawer safes

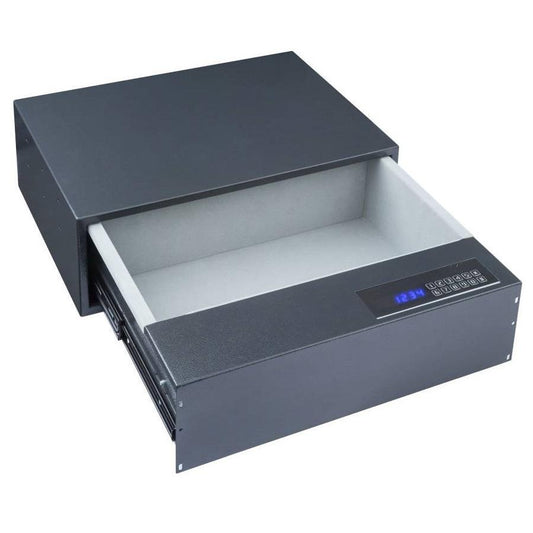

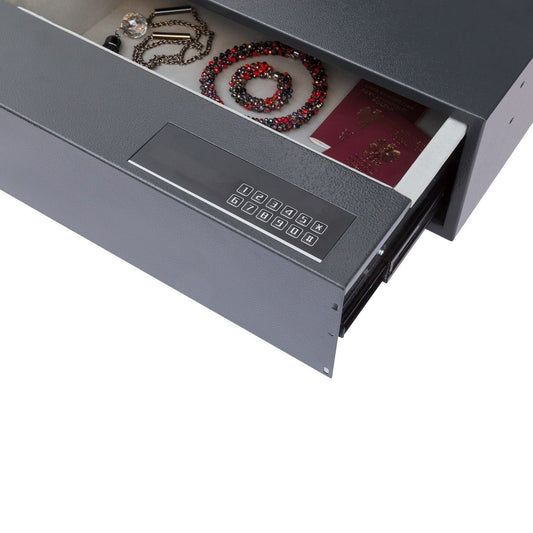

The drawer safe for 23-5/8 inch (600 mm) cabinets is a lockable steel box that mounts inside a standard drawer or on full-extension slides, so documents, cash or medication are secured behind an ordinary kitchen or office front. It is the discreet alternative to a freestanding safe where there is no wall or floor space for one.

Planning an organized interior

1. Measure the clear inner width of the cabinet: dish racks and drawer safes are made for the nominal cabinet width (400, 500, 600, 700, 800 mm) less the side panels.
2. Check the height: a two-tier dish rack needs about 14–16 inch (350–400 mm) of free height; a pull-down rail needs the full cabinet height plus room for the swing.
3. Decide what stays visible: in-cabinet racks and safes vanish behind the door, pipe-system rails can be open or inside.

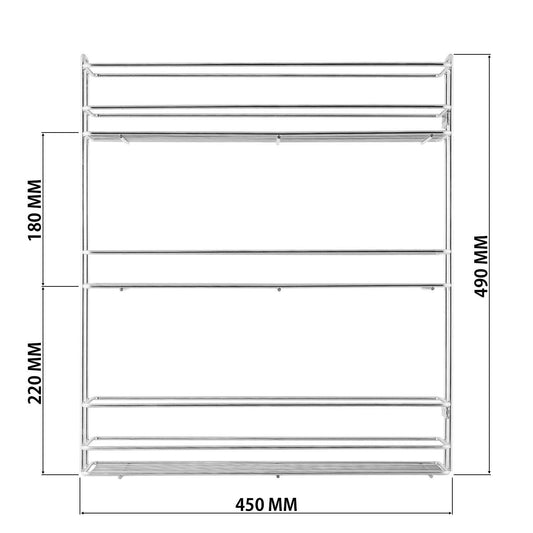

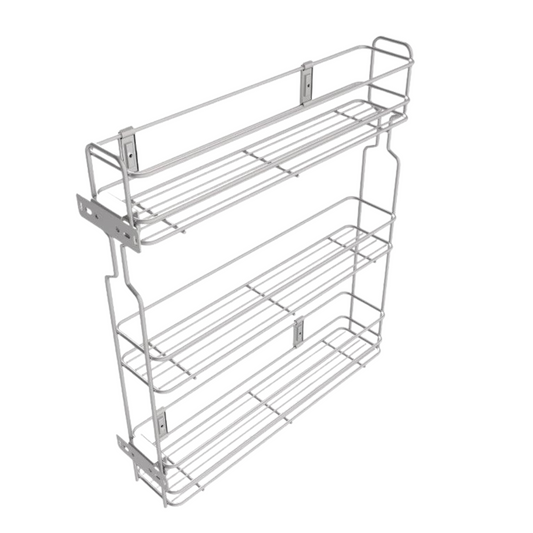

4. Combine with pull-outs: cabinet storage baskets below, a dish rack above and a dish rack cabinet next to the sink make a complete workflow.

Related categories

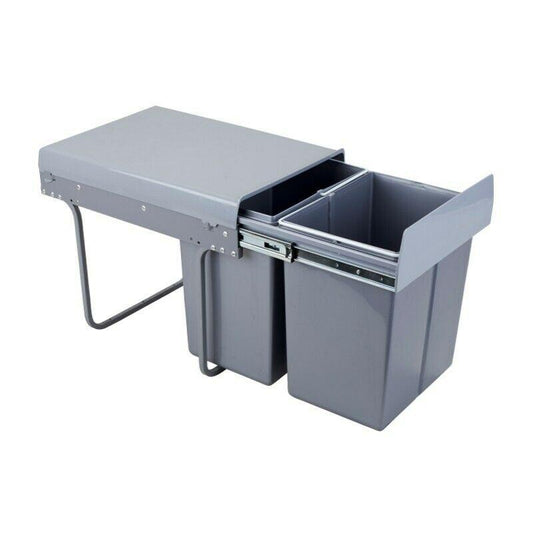

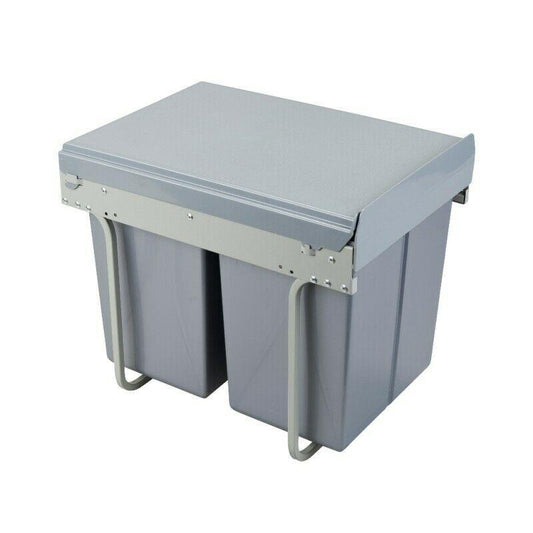

Drawer interiors are organized with inserts from pull-out storage baskets; wardrobe interiors with wardrobe fittings and wardrobe shelf brackets; waste separation with pull-out kitchen waste bins; shelves with glass shelf supports and under-shelf storage. Locks for cabinets and drawers are under cabinet locks and drawer locks.

Frequently asked questions

Does an in-cabinet dish rack need a drip tray?

Yes – each rack comes with or is designed for a tray that catches the water; without it the cabinet bottom would get wet. Empty the tray or let the water evaporate with the door ajar.

Which width of dish rack fits my cabinet?

Match the rack to the nominal cabinet width (for example 600 mm = 23-5/8 inch). The rack is slightly narrower than the clear inner width so it can be lifted in and out.

Can the pull-down rail carry a full row of coats?

The gas springs are rated for the typical load of a 450–650 mm section; keep heavy winter coats on a fixed lower rail and use the pull-down rail for the lighter garments stored high up.

Can I cut the 1 inch tubes myself?

Yes, with a tube cutter or a fine hacksaw. Deburr the ends so the end caps and connectors slide on, and keep the cut square for a clean fit.
