Metal Coat Hooks

Aluminum coat hooksare functional light metal hardware components used to construct wall-mounted coat racks, hook rails, or individual hanging points in custom cabinetry and interior fitting. These durablemetal coat hookscombine low dead weight with high structural load capacity, while their anodized or brushed surface finish provides long-lasting protection against corrosion.

Technical Properties of Aluminum Hardware

Aluminum is an essential material in professional cabinet making and coat rack installation. Unlike heavy cast iron or plain steel, it offers distinct advantages during processing and long-term use. In hardware applications, aluminum performs much like the frame of a modern aircraft—delivering minimal self-weight alongside maximum structural load capacity.

The surface of thesemetal coat hooksis typically refined through anodizing (anodic oxidation). This electrochemical process produces an extremely hard, scratch-resistant oxide layer that is permanently bonded to the base material. Surface flaking, which can occur with low-quality paint coatings, is physically impossible here. This makesaluminum coat hookscompletely impervious to moisture, making them ideal not only for entryways and hallways, but also for bathrooms and locker rooms.

The material is also non-magnetic. When installed onto substrate panels made ofparticleboard,MDF, orsolid wood, thesemetal coat hookscan be securely fastened with matching screws without risking galvanic corrosion, provided suitable fasteners are selected.

Systematics of Hook Geometries

When planning a custom wall-mounted coat rack or a continuous hook strip, the geometry of the hardware must match the expected load. In hardware engineering, three primary styles are used:

• Single Hooks:A compact design featuring one hanging point. Ideal for light jackets, scarves, or towel holding. They require a minimal mounting footprint.
• Double Hooks:Feature two hanging points at equal or offset heights. They distribute weight over a wider area and are perfect for standard entryway coat racks.
• Hat and Coat Hooks:These feature a long, raised upper arm for hats or heavy overcoats, plus a shorter lower arm for lighter jackets. Due to the longer leverage arm, higher shear forces act on the mounting plate.

Dimensional Specifications and Mounting Guidelines

Proper installation ofaluminum metal coat hooksrequires precision when preparing the substrate panel or wall.

Hole Spacing and Positioning

For comfortable, ergonomic daily use, the recommended mounting height for the top row ofmetal coat hooksis 63 in - 67 in (1600 mm - 1700 mm) above the finished floor level. If a lower second row is planned for children or shorter items, position it at approximately 43 in - 47 in (1100 mm - 1200 mm).

Horizontal spacing between individualmetal coat hookson a rail should be at least 6 in - 8 in (150 mm - 200 mm). For bulky winter coats, a spacing of 10 in (250 mm) is recommended to prevent clothing from overlapping.

Fastening Technique

Mostaluminum wall hooksare designed for flush installation usingcountersunk screws. The mounting holes in the hardware are countersunk accordingly (typically accepting screw head diameters of 1/4 in - 5/16 in (7.0 mm - 8.0 mm)).

• Mounting on Engineered Wood:Use wood or particleboard screws with a thread diameter of #6 or #8 (3.5 mm or 4.0 mm). For a standard 3/4 in (19 mm) substrate panel, select screws measuring #8 x 5/8 in (4.0 x 15 mm) or #8 x 11/16 in (4.0 x 17 mm). Pre-drilling with a 3/32 in (2.5 mm) wood bit prevents material splitting, particularly in MDF or solid hardwood. The drive should ideally bePZ (Pozidriv)orTX (Torx)to ensure optimum torque transmission without slippage.
• Direct Wall Mounting:When securingmetal coat hooksdirectly into masonry or drywall, use appropriate wall anchors (e.g., 1/4 in (6 mm)) and matching wood screws (#8 x 1-1/2 in (4.0 x 40 mm)). Always consider the load capacity of the wall substrate.

Specific Models for Custom Projects

Depending on spatial constraints and visual requirements, various designs are available, differing in projection, height, and mounting points.

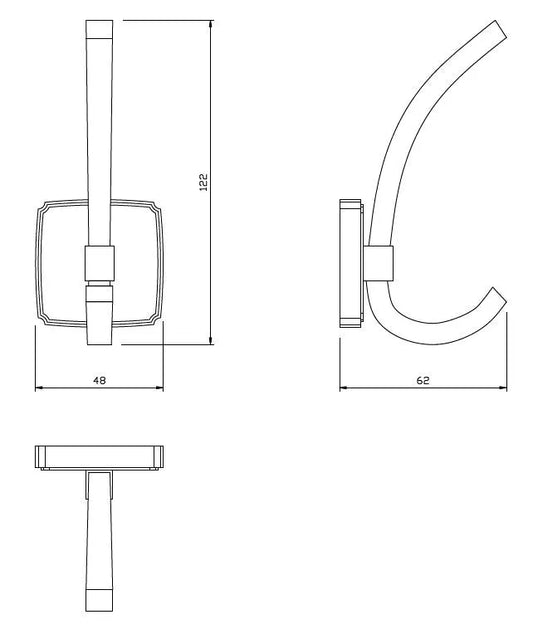

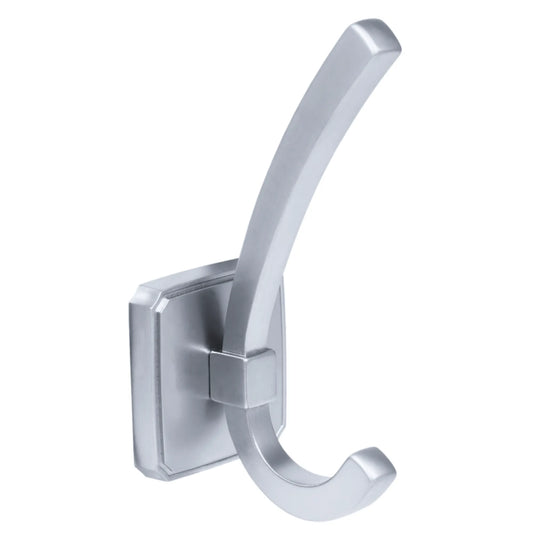

For classic applications requiring extra clearance, theDouble Hat and Coat Hook - 4-13/16 in (122 mm) - Silveris an ideal choice. With an overall height of 4-13/16 in (122 mm), it provides ample leverage clearance for heavy winter coats and secure support for headwear. Its wide mounting base ensures optimal force distribution into the substrate panel.

More compact solutions for shallow hallways can be built using models from the WP series. TheCoat Hook - Aluminum WP04and theCoat Hook - Aluminum WP02are classic doublemetal coat hooksfeaturing rounded edges to protect fabric fibers. A similar, slightly modified geometry for modern furniture designs is offered by theCoat Hook - Aluminum WP01.

When maximum hanging capacity is required in tight quarters, triple hooks deliver the ultimate utility. Models such as theCoat Hook - Aluminum WP05and theCoat Hook - Aluminum WP03feature a central forward-facing prong alongside two lateral hooks. This design excels on the inside of cabinet doors or in narrow alcoves, but requires a sturdy, tear-resistant screw connection because the load is concentrated on a small base plate.

Care and Surface Maintenance

The anodized finish of thesemetal coat hooksis exceptionally easy to maintain. To preserve the soft matte silver appearance over the long term, clean exclusively with soft microfiber cloths and mild, pH-neutral soaps.

Abrasive scouring powders, steel wool, or harsh alkaline cleaners must be strictly avoided. These can damage the microscopic protective anodized layer, leading to unsightly scratches or dull spots where raw aluminum could oxidize. For minor dirt or moisture from wet coats and umbrellas, simply wiping down with a damp cloth is sufficient.

Frequently Asked Questions (FAQ)

What is the load capacity of an aluminum coat hook?

Aluminum as a material withstands substantial loads; the limiting factor is almost always the fastener and substrate connection. When properly installed with two #8 (4.0 mm) screws into a 3/4 in (19 mm) particleboard panel, high-qualitymetal coat hookseasily support static loads of 22 lbs - 33 lbs (10 kg - 15 kg). When mounted into drywall, the weight capacity depends entirely on the rating of the hollow-wall anchors used.

Which screw drive type should I choose for installation?

For mounting cabinet hardware, aTX drive (Torx)is highly recommended because it transfers drill torque smoothly without "cam-out" (the bit slipping out of the screw head). This protects the hook's decorative surface from accidental tool scratches. Alternatively, aPZ drive (Pozidriv)is widely used. Avoid using simple slotted or standard PH (Phillips) drives for high-torque hardware assembly.

Can I use these metal coat hooks outdoors?

Anodized aluminum offers strong corrosion resistance. Installation in covered outdoor areas (such as covered porches, balconies, or carports) is technically sound. However, stainless steel mounting screws (grade A2 or A4 / 304 or 316) must be used to prevent rust formation on the screw heads from bleeding onto the aluminum body.

How do I prevent screws from breaking through the back of my cabinet panel?

Measure your substrate panel thickness precisely. The screw length should equal the panel thickness minus 1/16 in (2.0 mm). For a standard 5/8 in (16 mm) cabinet panel, use #6 x 5/8 in (3.5 x 15 mm) screws. For 3/4 in (19 mm) panels, #8 x 11/16 in (4.0 x 17 mm) screws are ideal.
