Cabinet Vent Grille

Acabinet vent grilleis a essential functional hardware component in modern cabinetry and millwork designed to promote controlled airflow within enclosed cabinet carcases, behind paneling, or inside countertops. They prevent heat buildup from built-in electrical appliances and eliminate trapped moisture in closed cabinets.

Air circulation is frequently overlooked in modern cabinet making. Whether you are planning built-in cabinetry, installing kitchen units, or fitting a countertop directly over a radiator, choosing the right cabinet vent grille is vital to protect material longevity and ensure proper appliance performance. A vent grille acts much like an engine relief valve—directing trapped heat safely away before it damages heat-sensitive laminate surfaces or causes appliance compressor failures.

This guide walks you through the technical requirements, correct sizing, and professional installation of cabinet vent grilles across various furniture projects.

Why a Cabinet Vent Grille Is Essential for Furniture

Engineered wood materials like classicparticle boardorMDF(Medium-Density Fiberboard) are sensitive to temperature changes and moisture. When a built-in refrigerator is integrated into a tall cabinet, its rear compressor generates continuous heat. Without adequate supply air and exhaust vents, this heat becomes trapped. The result: the refrigerator consumes significantly more energy to maintain cooling temperatures, drastically shortening its lifespan. At the same time, constant heat exposure can cause cabinet melamine coatings to peel or particle cores to dry out and warp.

The same physical principle applies to moisture. In bathroom vanities or kitchen sink base cabinets, humid air quickly accumulates. Without a propercabinet vent grille, humidity condenses on cold inner walls, leading to swollen edges and mold growth over time. Installing vent grilles at both the top and bottom of the cabinet creates natural convection: cool air enters at the base, warms up, absorbs moisture, and escapes through the top grille.

Typical Applications in Interior Millwork

Grille positioning always depends on the source of heat or humidity. Sizing and placement vary depending on the room and cabinet design.

Kitchen Cabinet Vent Grilles

Kitchens represent the primary application for thermal airflow solutions, housing multiple heat-generating appliances in tight spaces. A kitchen cabinet vent grille is typically installed in two main areas:

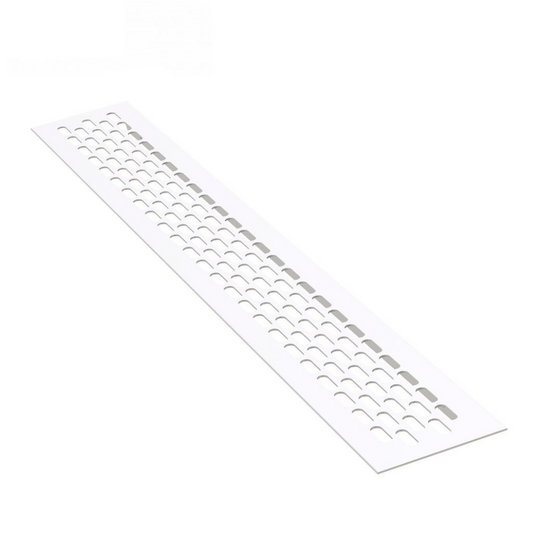

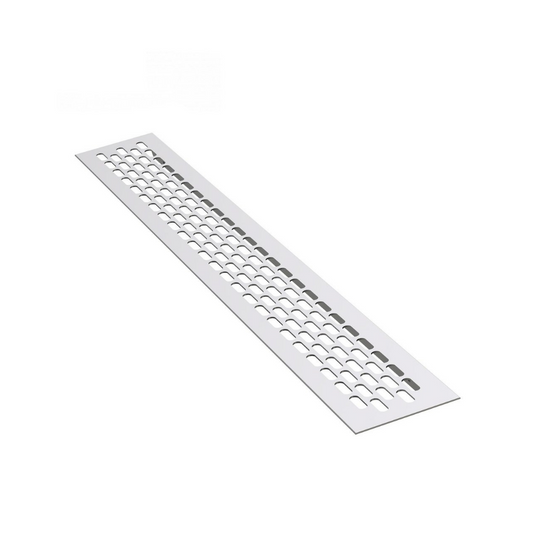

1. In the Kitchen Toe Kick (Plinth):Functions as the intake vent. Refrigerator-freezer combos draw cool room air at floor level. For light cabinet fronts and white toe kicks, theAluminum Cabinet Vent Grille for Countertops & Toe Kicks, 18-7/8 in x 3-1/8 in (480 x 80 mm) Whiteblends seamlessly into the baseboard. Alternatively, for slightly different cutouts, consider theAluminum Cabinet Vent Grille for Countertops & Toe Kicks, 19 in x 2-3/8 in (484 x 60 mm) White.
2. In Tall Appliance Cabinets (Exhaust):Rising warm air behind the refrigerator needs an escape route at the top. Grilles are typically installed in the cabinet top panel or upper filler strip.

Countertop Vent Grilles

Kitchen countertops or wide desks are often installed directly in front of windows, positioned right above radiators. If the top is pushed flush against the wall, warm airflow becomes blocked—leading to inefficient room heating and massive heat accumulation beneath the counter.

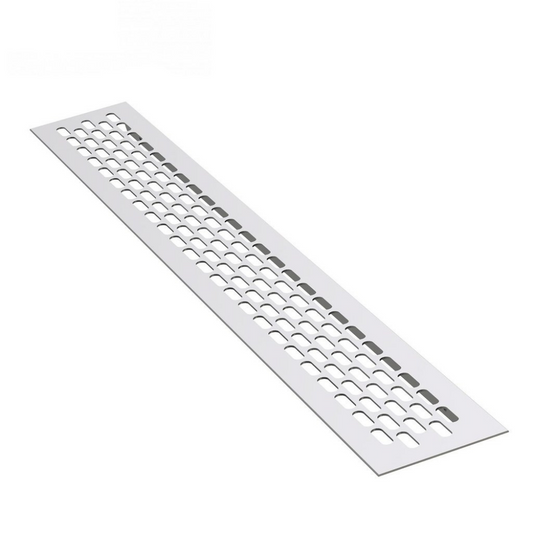

A countertop cabinet vent grille resolves this issue when recessed directly above the radiator. Heat rises freely through the grille toward the window pane, also helping prevent window glass condensation. Neutral metal tones are popular for visible countertop installations. AnAluminum Cabinet Vent Grille for Countertops & Toe Kicks, 18-7/8 in x 3-1/8 in (480 x 80 mm) Silverpairs seamlessly with wood-grain surfaces or gray stone finishes. For narrower cutouts, theAluminum Cabinet Vent Grille for Countertops & Toe Kicks, 19 in x 2-3/8 in (484 x 60 mm) Silveris the ideal choice.

Media Consoles and Custom Furniture

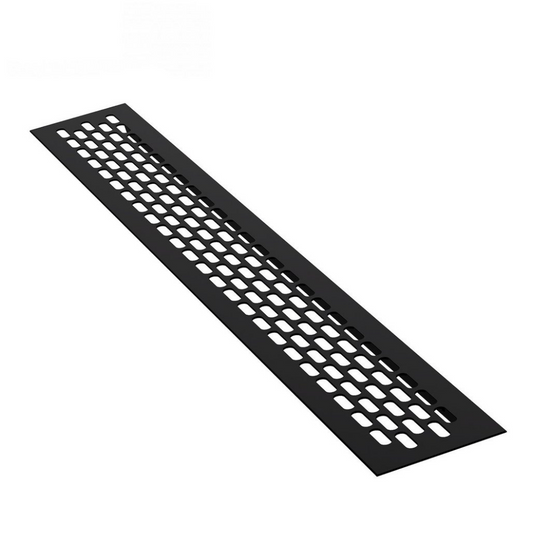

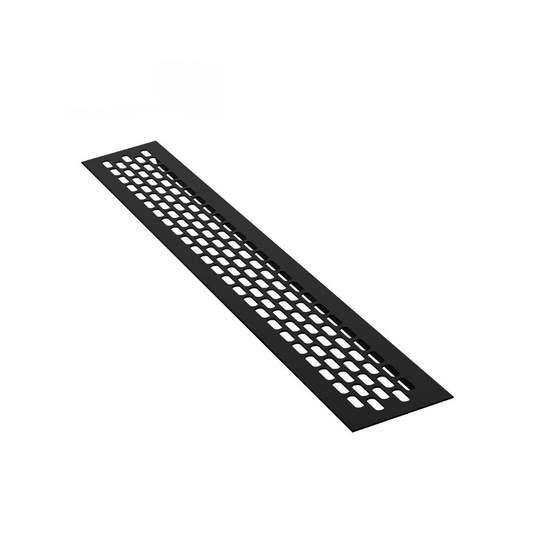

Entertainment centers and media consoles generate substantial heat from AV receivers, gaming consoles, and amplifiers. Installing a cabinet vent grille in the back panel or top surface protects high-end electronics from thermal damage. For dark furniture, industrial designs, or matte black fronts, theAluminum Cabinet Vent Grille for Countertops & Toe Kicks, 18-7/8 in x 3-1/8 in (480 x 80 mm) Blackoffers a stylish contrast or discreet integration. A narrower variant is available with theAluminum Cabinet Vent Grille for Countertops & Toe Kicks, 19 in x 2-3/8 in (484 x 60 mm) Black.

Material Selection: Aluminum vs. Stainless Steel

While many woodworkers search for stainless steel vent grilles, anodized aluminum has proven to be the superior choice for cabinet making and millwork.

Aluminum offers significant weight and installation benefits. It is considerably lighter than solid stainless steel, minimizing stress on thin toe kick faces (often only 1/2 in to 5/8 in (13 mm to 16 mm) thick). Additionally, aluminum can be easily trimmed with a fine metal saw if custom job-site adjustments are required. Anodizing creates a scratch-resistant, durable surface finish. A natural, silver anodizedAluminum Cabinet Vent Grille for Countertops & Toe Kicks, 18-7/8 in x 3-1/8 in (480 x 80 mm)provides the sleek, brushed appearance of stainless steel while being significantly easier to install. For a more subtle profile, opt for theAluminum Cabinet Vent Grille for Countertops & Toe Kicks, 19 in x 2-3/8 in (484 x 60 mm). Both models are rustproof and resistant to kitchen humidity.

Wooden air grilles are rarely used in modern cabinetry because timber responds to temperature swings, leading to warping or broken louvers. Aluminum provides permanent structural stability.

Dimensions and Calculating Free Airflow Area

When selecting a cabinet vent grille, dimensions are key. Distinguish between overall dimensions (the outer lip covering the cutout edge) and mounting dimensions (the actual opening cut into the wood).

Standard kitchen grille lengths run roughly 19 in (500 mm) long for broad air distribution. Typical overall dimensions include:

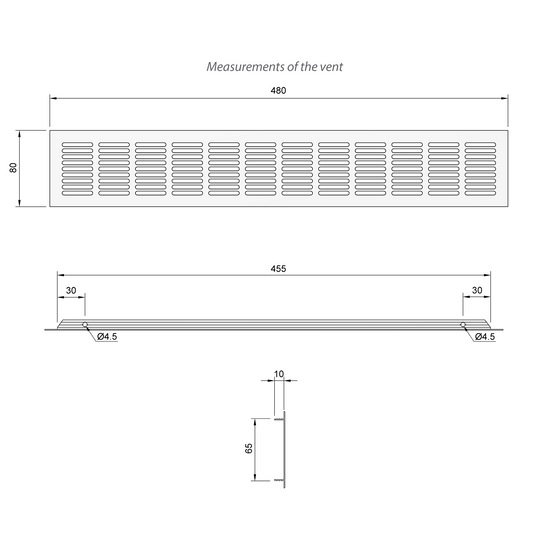

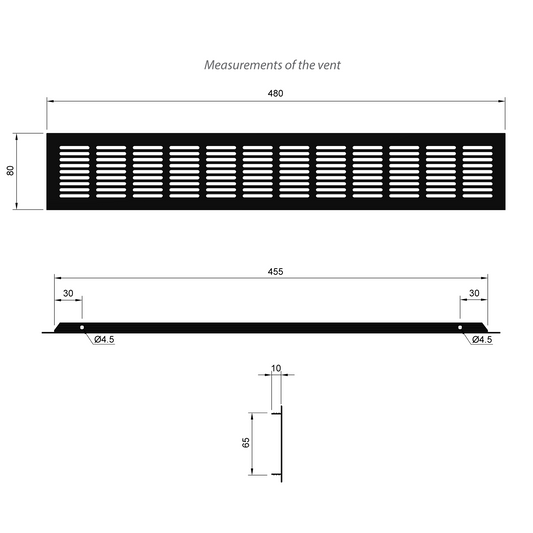

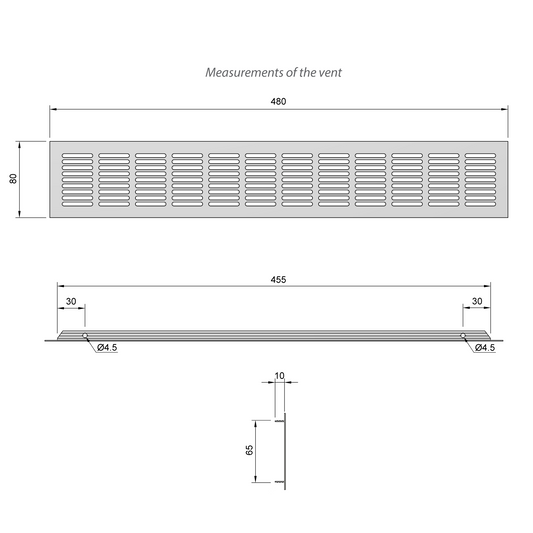

• 18-7/8 in x 3-1/8 in (480 mm x 80 mm)(Cutout size approx. 18-1/8 in x 2-9/16 in (460 mm x 65 mm))

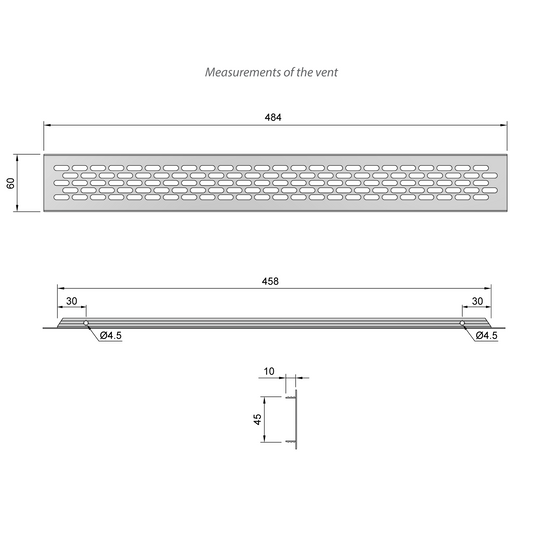

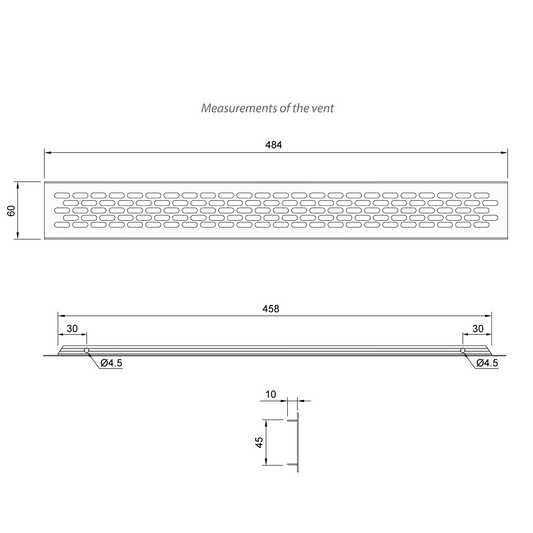

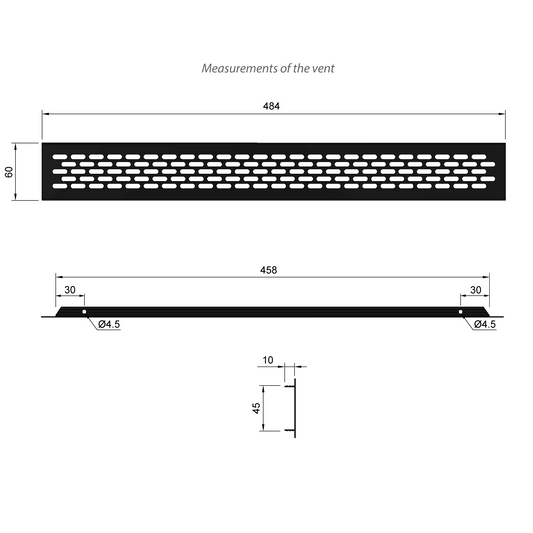

• 19 in x 2-3/8 in (484 mm x 60 mm)(Cutout size approx. 18-5/16 in x 1-3/4 in (465 mm x 45 mm))

Calculating Required Airflow

Appliance manufacturers specify minimum ventilation requirements in square inches or square centimeters. A standard built-in refrigerator typically requires31 sq in (200 cm²)of clear airflow area.

Note: Outer grille dimensions do not equal free airflow area, as louver slats block a portion of the opening. As a rule of thumb, roughly 60% to 70% of an aluminum grille's total surface area allows free air passage. A grille measuring 18-7/8 in x 3-1/8 in (48.0 cm x 8.0 cm) has a surface area of 59.5 sq in (384 cm²). At 65% open area, this yields an effective airflow capacity of about 38.7 sq in (250 cm²)—easily exceeding standard refrigerator specs.

Step-by-Step Installation Guide

Installing a cabinet vent grille requires accurate layout work but uses standard woodworking tools. Most aluminum grilles feature press-fit ribs or spring tabs on the back that grip into the rout cutout. Screw-mounted grilles are less common in modern cabinetry due to visible screw heads interrupting clean lines.

Tools Required

• Tape measure and pencil
• Painter's tape (masking tape)
• Power drill with wood bit (5/16 in or 3/8 in (8 mm or 10 mm))
• Jigsaw with fine-tooth wood blade
• File or sandpaper
• Waterproof sealant, construction adhesive, or clear silicone

Step 1: Determine Cutout Dimensions

Measure the recessed rear housing (the flange inserting into the wood). Add roughly 1/16 in (1.5 mm to 2.0 mm) of clearance to length and width. Do not force the grille into an undersized cutout, which can warp the louver ribs.

Step 2: Mark the Cutout Location

Apply painter's tape over the target area. Masking protects delicate melamine and laminate finishes from jigsaw shoe scratches. Carefully mark cutout dimensions onto the tape. When cutting countertops, verify the placement of internal cabinet stretchers underneath to avoid cutting structural framing.

Step 3: Drill Pilot Holes and Cut

Drill a pilot hole inside each corner of your marked rectangle. Ensure the outer edge of the drill bit just touches your layout line. Insert the jigsaw blade into a pilot hole and cut precisely along the line to the next corner. Disengage orbital jigsaw action to eliminate top-surface chip-out.

Step 4: Seal Raw Edges (Crucial for Kitchens)

Cutting into particle board or MDF exposes raw core materials. If liquid spills or cleaning water penetrate these edges, wood swelling is inevitable. Coat raw cut edges thoroughly with waterproof wood glue, silicone, or sealing varnish, then allow to dry.

Step 5: Fit the Grille

Remove the painter's tape and test-fit the vent grille. It should slide in smoothly with light pressure. If tight, file the cutout edges slightly. For horizontal countertop installations, gravity and friction ribs hold the unit securely. For vertical toe kick installations, add a small bead of silicone or adhesive to the mounting flanges before final press-fitting to prevent shifting from appliance vibration.

Care and Maintenance

Anodized aluminum grilles require minimal maintenance. Because air constantly moves through them, airborne dust settles on the louvers over time. In kitchen environments, dust can mix with grease vapor to form a sticky film.

Clean grilles every few months. Vacuum loose debris using a soft brush attachment. For stubborn residue, wipe down with a damp microfiber cloth and mild dish soap. Avoid abrasive cleaners or scouring pads that could scratch the protective anodized layer.

Frequently Asked Questions (FAQ)

Where should a refrigerator cabinet vent grille be installed?Built-in refrigerators require two vents. Fresh air intake occurs at the bottom—typically centered below the appliance in the toe kick panel. Exhaust air escapes at the top, placed either in the top cabinet panel or upper filler trim.

Will an 18-7/8 in (480 mm) grille fit inside a 19-11/16 in (500 mm) wide cabinet?Yes. This is standard sizing for 19-11/16 in (500 mm) and 23-5/8 in (600 mm) wide cabinets. A cabinet with a 19-11/16 in (50 cm) outer width and 5/8 in (16 mm) side walls has an internal width of 18-7/16 in (46.8 cm). Since the cutout width of an 18-7/8 in (480 mm) grille is roughly 18-1/8 in (460 mm), it fits neatly between side panels.

Is there a difference between supply vents and return vents?Functionally, they are identical hardware components. The name reflects airflow direction in the system: incoming cool air acts as supply/intake, while warm air exiting the unit acts as return/exhaust.

Can I trim an aluminum vent grille to custom lengths?While aluminum can technically be cut using a hacksaw, doing so removes the clean anodized factory edge and mounting ribs, leaving exposed metal. We strongly recommend selecting factory-sized grilles tailored to your installation.

Is one countertop grille enough above a radiator?That depends on radiator width. The grille should cover roughly 70% to 80% of total radiator length for balanced heat dispersion. For a 47-1/4 in (120 cm) wide radiator, install two grilles side by side with a narrow center divider.

How deep does the grille extend into the cutout?Most recessed cabinet grilles feature a flange depth of roughly 9/16 in to 11/16 in (15 mm to 18 mm). This aligns with common cabinet panel thicknesses of 5/8 in, 11/16 in, and 3/4 in (16 mm, 18 mm, and 19 mm). On thick countertops (1-1/8 in to 1-1/2 in (28 mm to 38 mm)), the grille sits recessed entirely within the cutout opening.
