192mm cabinet handles are defined by an exact center-to-center hole spacing of 7-9/16 in (192 mm) between the two mounting points and are an established standard dimension in professional cabinet making.This measurement stems directly from the industry-standard 32 mm cabinet system, where system holes are drilled at 1-1/4 in (32 mm) increments (32 mm x 6 = 192 mm). Pulls of this size offer a generous grip surface and are primarily suitable for wide drawer fronts, heavy pull-outs, and tall cabinet doors where optimal power transmission to the hardware is required.

Technical Specifications: Hole Center Spacing vs. Overall Length

When planning and installing cabinet fronts, it is essential to distinguish between the hole center distance and the overall length of the pull. The search term "192mm cabinet handles hole spacing" refers exclusively to the distance between the centers of the two M4 threaded holes on the back of the handle.

The actual physical length of the hardware varies depending on the design:

  • Bow Pulls:The overall length is often only slightly larger than the hole spacing (e.g., 7-7/8 in to 8-1/4 in (200 mm to 210 mm)).
  • Bar Pulls (Rail Handles):With these models, the ends extend beyond the mounting bases. A192mm cabinet handlein a bar pull style can have an overall length of 9-7/8 in (250 mm) or more.
  • Edge Pulls:These are often mounted on the top edge of the front or screwed on from behind, utilizing the 7-9/16 in (192 mm) grid for rear attachment.

In addition to length, the grip clearance (projection height of the pull) is crucial. For comfortable, ergonomic use by adult hands, the clearance between the cabinet face and the inside of the handle should be at least 3/4 in to 1 in (20 mm to 25 mm). This prevents fingers from scraping against the cabinet surface—an important consideration for delicate high-gloss or matte finishes.

Material Selection and Surface Finishes

The choice of material affects not only the tactile feel but also the durability and weight of the hardware. Metals and engineered alloys are preferred for high-traffic areas.

  • Stainless Steel:Stainless steel 192mm cabinet handles are corrosion-resistant, acid-proof, and extremely rigid. A solid stainless steel handle measuring 7-9/16 in (192 mm) will not flex even under pulling forces exceeding 67 lbs (300 N). This strength is essential for fully loaded, heavy-duty pull-outs.
  • Aluminum:Lightweight, strong, and frequently anodized. Aluminum 192mm cabinet handles provide a sleek, cool feel and are naturally fingerprint-resistant.
  • Zinc Die-Cast (Zamak):A popular alloy for intricate design profiles. Zamak is electroplated or powder-coated to produce versatile finishes like matte black 192mm cabinet handles or polished chrome.

Applications for 192mm Cabinet Handles

The 7-9/16 in (192 mm) dimension hits the sweet spot between compact standard handles and extra-long appliance pulls. It is large enough to serve as a prominent design element while remaining compact enough to avoid overpowering standard cabinet boxes with widths of 15-3/4 in to 23-5/8 in (400 mm to 600 mm).

Kitchen Installations

Kitchen hardware must withstand significant pull forces. A fully loaded pot drawer (full-extension slide) can easily reach a total weight of up to 88 lbs (40 kg). Installing192mm cabinet handlesin the kitchen distributes the tensile force over a wider surface area of the particle board or MDF door front. A properly fitted pull acts like a steering wheel—it translates the user's pull force directly and without flex to the drawer slide mechanism. High demand for terms like "black kitchen handles 192mm" highlights the growing trend toward dark, contrasting hardware on light or wood-tone kitchen cabinets.

Wardrobes and Armoires

For tall cabinet doors (e.g., 78-3/4 in (2000 mm) in height), 192mm cabinet handles are an ideal choice. They offer ample hand space across various grip heights. On heavy doors equipped with multiple soft-close hinges (e.g., 4 to 5 hinges per door), the wider handle provides better leverage to comfortably overcome the initial opening resistance.

Bathroom Vanities and Sideboards

For humid environments, anodized or powder-coated finishes, such as charcoal gray 192mm cabinet handles, are highly recommended. On living room credenzas and sideboards, the 7-9/16 in (192 mm) dimension emphasizes clean, horizontal lines, especially when paired with modern minimalist styles where the pull mounts flush.

Installation and Mounting Guidelines

Proper installation of cabinet hardware requires accuracy to prevent irreversible damage to your door or drawer fronts.

Drill Preparation

Standard 192mm cabinet handles are mounted using metric M4 machine screws. To drill the holes through the door front, use a wood drill bit with a centering point in a diameter of 5/32 in or 3/16 in (4 mm or 4.5 mm). A 3/16 in (4.5 mm) hole leaves a tiny amount of tolerance to correct minor drilling misalignments without allowing the screw head to slip through.

Preventing Backside Tear-Out

When drilling through melamine-faced particle board, there is a risk of blowout or chipping on the back side. To prevent tear-out:

  1. Use a sharp, clean drill bit.
  2. Drill at high speed with light, steady pressure.
  3. Clamp a piece of scrap wood firmly against the back (exit side) and drill straight into it. Alternatively, stop drilling as soon as the center point emerges, and finish the hole from the back.

Calculating Screw Length

The included M4 screws usually measure 7/8 in (22 mm) in length, which is ideal for standard cabinet front thicknesses of 5/8 in to 11/16 in (16 mm to 18 mm). The screw should engage the internal thread of the handle by at least 3/16 in (4 mm to 5 mm). For thicker custom fronts (e.g., 7/8 in (22 mm) solid wood), longer M4 screws—such as 1 in or 1-3/16 in (25 mm or 30 mm)—must be sourced separately. Screws that are too long will damage the pull or prevent tight fastening; screws that are too short will strip out under load.

Hardware Mounting Templates

For multi-cabinet projects (e.g., a full kitchen renovation), using a drilling template or cabinet jig is strongly recommended. Aligned against the top and side edges of the door, a template ensures that the exact center-to-center distance of 7-9/16 in (192 mm) is perfectly replicated on every drawer and door.

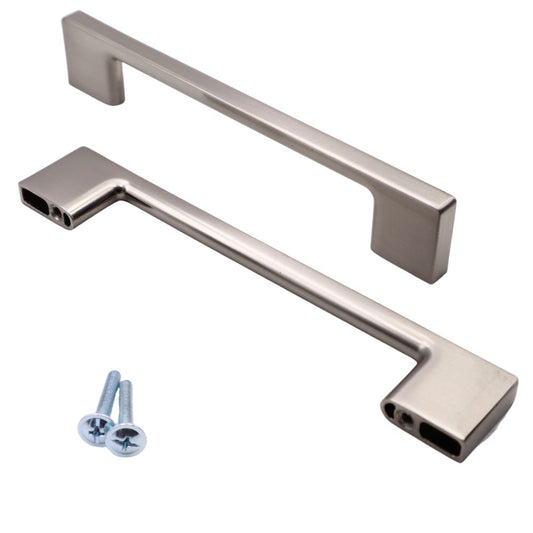

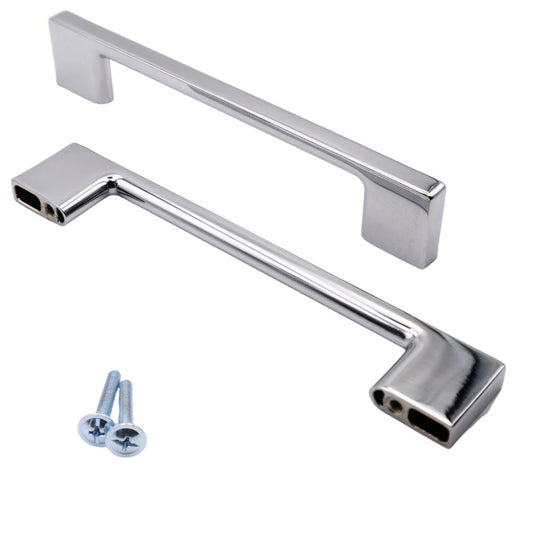

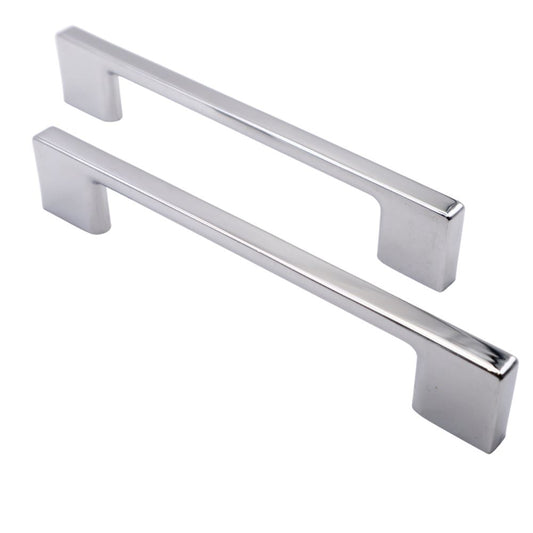

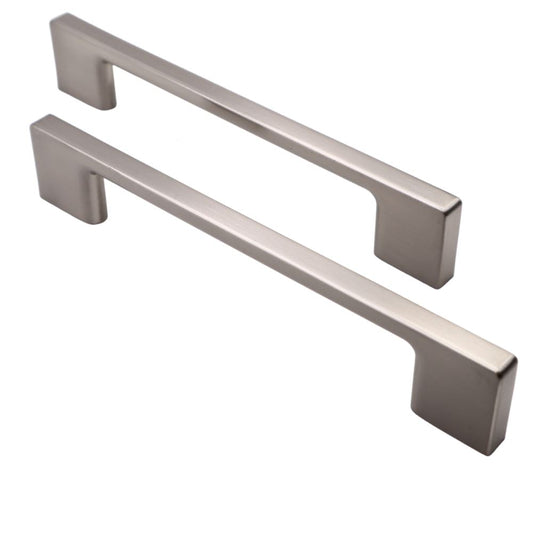

Featured Profiles: The TECHNO Series

The TECHNO series represents modern, linear styling that integrates seamlessly into contemporary interior designs. Featuring a precise hole center spacing of 7-9/16 in (192 mm), this series offers a variety of premium surface finishes:

Sizing Guide: Remodeling and Replacement

When replacing existing cabinet pulls, measuring the exact hole-to-hole center spacing is the most critical step. A direct swap is only possible if your new pull matches the original drill spacing exactly.

When shopping for 192mm cabinet handles, measure the distance on the inside of the drawer from the center of the left screw to the center of the right screw. If it measures exactly 7-9/16 in (192 mm), you can reuse your existing holes without modification.

If you are upgrading to 192mm cabinet handles from a smaller spacing (e.g., 5-1/16 in (128 mm) or 6-5/16 in (160 mm)), old screw holes must be filled with hard wax or wood putty before drilling new 5/32 in (4 mm) holes. Alternatively, choose a wide finger pull or edge profile that covers the old mounting holes completely.

Frequently Asked Questions (FAQ)

How do I correctly measure the hole center distance of a cabinet handle?

Hole spacing (center-to-center) is always measured from the exact center of one mounting hole to the exact center of the other. Use a caliper or a precise steel tape measure. For the most accurate result, measure on the back of a removed door front or directly between the screw holes on the back of the handle itself.

Do 192mm cabinet handles fit standard Euro cabinets (e.g., IKEA)?

Yes. Because 7-9/16 in (192 mm) is a standard multiple of 1-1/4 in (32 mm) in the System 32 design standard, almost all major cabinet manufacturers use this hole layout. If your current handles are spaced at 192 mm, they can be replaced 1:1 with new pulls featuring the same specification.

What thread size is used for the mounting screws?

In the cabinet hardware industry, the metric ISO threadM4is the universal standard for cabinet handles. Matching M4 pan-head machine screws (typically with a PZ2 drive) are generally included with the pulls.

Can I install a 192mm cabinet handle vertically?

Technically, there is no structural difference between horizontal and vertical orientation. For tall pantry doors and wardrobes, vertical mounting is standard. Simply ensure the handle is centered at an ergonomically comfortable height (typically between 35-1/2 in and 43-5/16 in (900 mm to 1100 mm) above the floor).

What should I do if the included screws are too short?

If your cabinet door panel is thicker than the standard 5/8 in to 11/16 in (16 mm to 18 mm)—such as with double-laminated doors or solid hardwood—the included 7/8 in (22 mm) screws will not engage deeply enough into the handle threads. In this case, purchase separate M4 machine screws that are approximately 3/16 in to 1/4 in (4 mm to 6 mm) longer than the total thickness of your door face.

Related Categories and Alternative Sizes

If the 7-9/16 in (192 mm) dimension is not suitable for your current project, or if you want a cohesive design using varied handle lengths across different drawer widths, explore these complementary sizes in the 32 mm system:
