3.75 inch drawer pulls(96 mm) are standardized hardware components with mounting points spaced exactly 3.75 in (96 mm) center-to-center (CC). This specific dimension is a direct derivative ofSystem 32, the standard established across the cabinet manufacturing industry. Under this construction system, all hole spacing and mounting points are based on a 1-1/4 in (32 mm) grid pattern. A pull with a 3.75 in (96 mm) hole spacing spans exactly three of these grid units (3 x 32 mm). This standardization allows woodworkers and cabinetmakers to streamline planning, pre-drilling, and machine setup during custom and mass production of cabinet carcasses.

Dimensions, Proportions, and Suitability

When selecting hardware, making a strict distinction between thecenter-to-center hole spacing (CC)and the overall length of the pull is essential. While the term "3.75 inch drawer pulls" defines the precise distance from the center of the first threaded hole to the center of the second, the physical overall length varies significantly depending on the design.

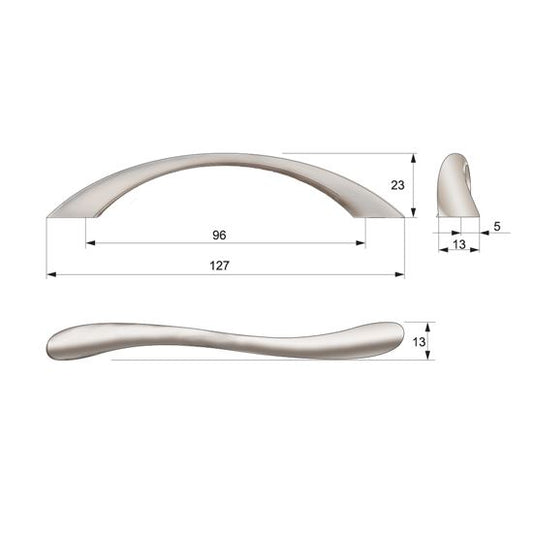

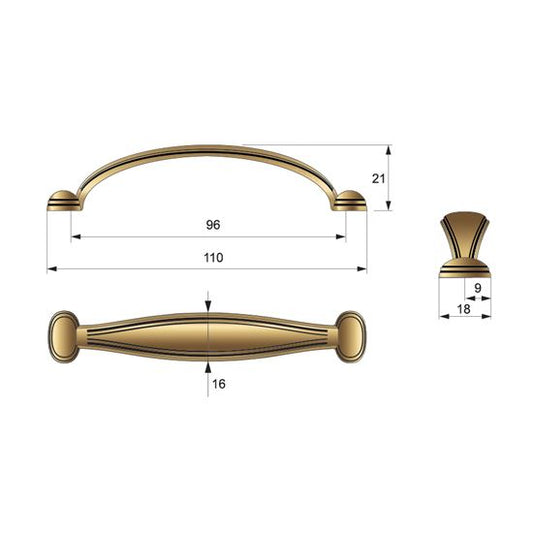

A classic D-handle bow pull with a 3.75 in (96 mm) CC spacing may have an overall length of approximately 4-1/8 to 4-5/16 in (105 mm to 110 mm). Edge profile pulls, such as theEdge Pull Profile Handle 3.75 in / 96mm (4.57 in / 116mm Overall Length) - Aluminum, extend beyond the mounting points. These overhangs must be taken into account during installation, particularly when placing pulls near cabinet sides, hinge axes, or adjacent panel fronts, to prevent collisions during opening.

The 3.75 in (96 mm) dimension is one of the more compact standard sizes in cabinet making. It is technically and aesthetically ideal for:

  • Narrow to Medium Drawer Fronts:For drawer front widths between 11-13/16 and 19-11/16 in (300 mm – 500 mm), a 3.75 in (96 mm) pull provides balanced force distribution across the drawer slides without causing binding when pulling out.
  • Upper Cabinets and Lift-Up Doors:For horizontal flap doors supported by gas struts, a compact 3.75 in (96 mm) pull offers ample leverage to overcome initial opening resistance.
  • Bathroom Vanity Units:Vanity fronts often require delicate hardware where1.25 inch drawer pulls (32 mm)feel too small, yet larger formats like 6.3 in (160 mm) appear overly dominant.

System 32 acts as an invisible coordinate grid in cabinet design, aligning all hardware with precise accuracy. Swapping or upgrading hardware within this grid pattern is effortless at any time, provided the original holes were accurately drilled.

Material and Finish Specifications

The physical properties of metal cabinet handles determine their durability, tactile feel, and resistance to environmental factors such as moisture and mechanical stress. Installers choose materials based on the intended application.

Aluminum and Extruded Profiles

Aluminum alloys feature a low strength-to-weight ratio and high corrosion resistance. This material is primarily used foraluminum cabinet handlesand edge profile pulls. Because aluminum is processed through extrusion, continuous and precise profiles can be produced. These are subsequently anodized to harden the surface. An anodized aluminum pull resists fingerprints and mild cleaning agents, making it an excellent choice for kitchen applications.

Stainless Steel and Steel

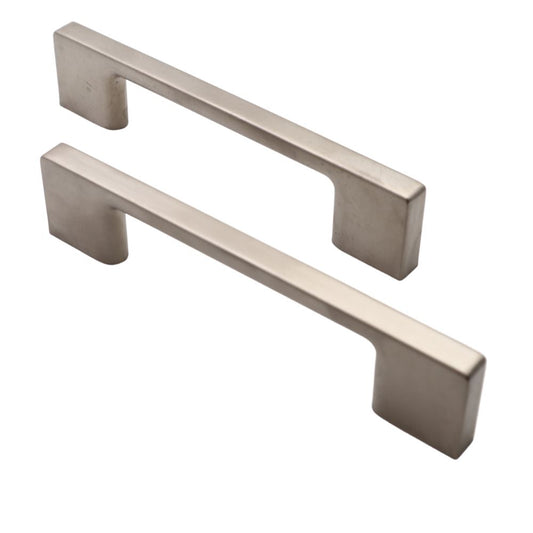

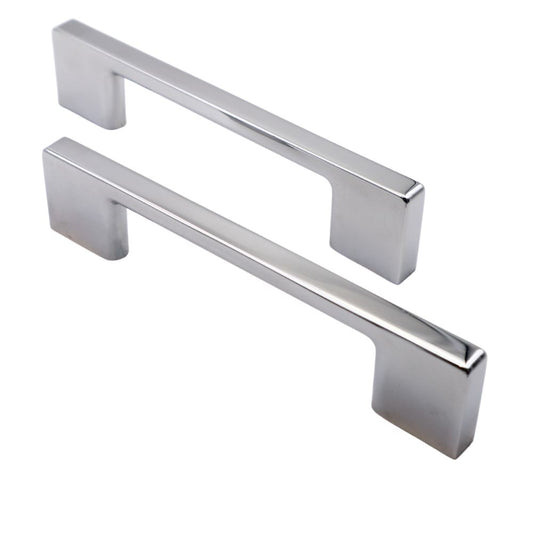

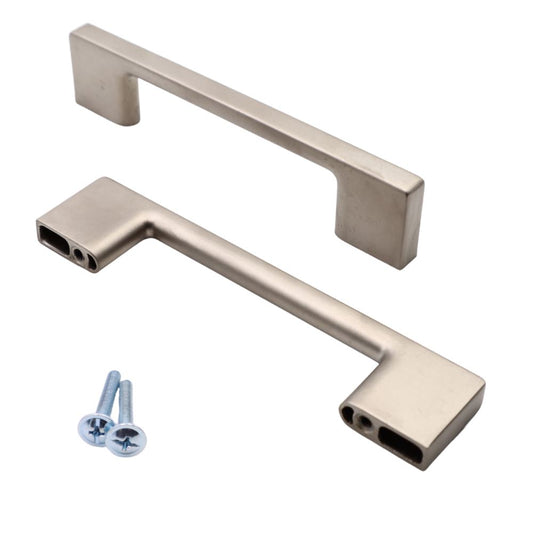

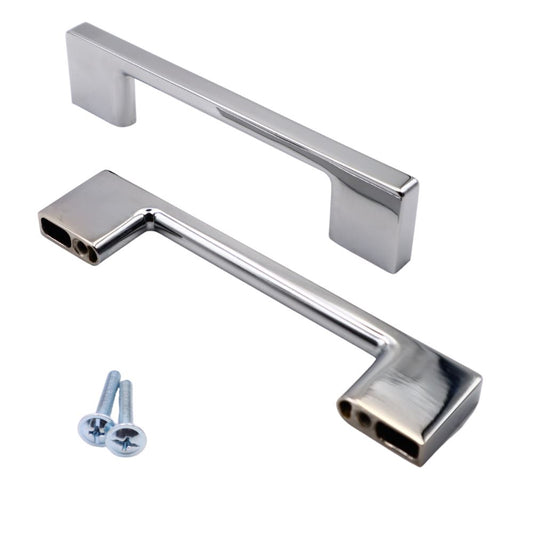

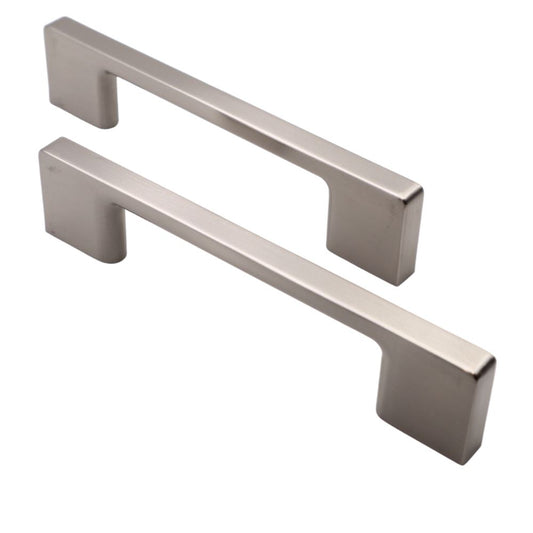

For high-traffic areas, such as commercial kitchens or workshops, search queries often focus on "3.75 inch drawer pulls stainless steel." Solid stainless steel offers maximum tensile strength. However, residential interior cabinetry more commonly uses zinc-aluminum alloy (Zamak) or steel base metals finished with a brushed stainless steel look. A durable example of this aesthetic is theTECHNO Cabinet Handle 3.75 in (96mm) - Brushed Steel. The brushed surface effectively conceals micro-scratches caused by rings or heavy daily use.

Zamak (Zinc Die-Cast)

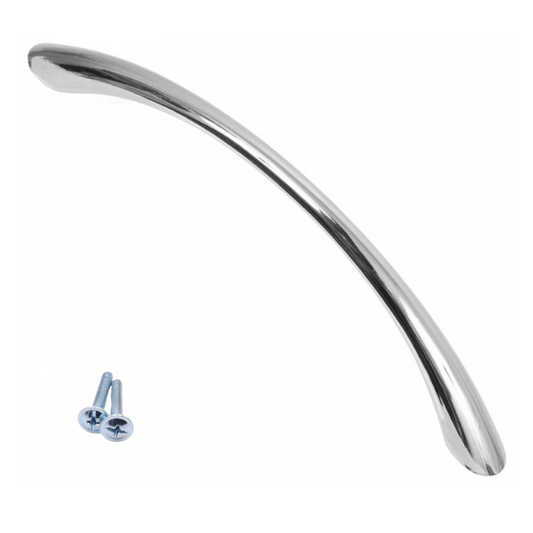

The majority of solid, molded 3.75 inch (96 mm) cabinet handles are manufactured from Zamak. This zinc alloy allows high-precision die-casting into virtually any shape—from strict geometric lines to organic curves. After casting, the raw pulls are electroplated or powder-coated. This process yields popular finishes such aschrome cabinet handles(high-gloss, extremely hard surface) ormatte black cabinet handles(often achieved via durable powder coating, non-reflective, and widely trending for modern kitchen cabinet fronts).

Selection by Mounting Type and Profile

Selecting the right 3.75 inch drawer pull depends heavily on the required grip depth and front panel construction.

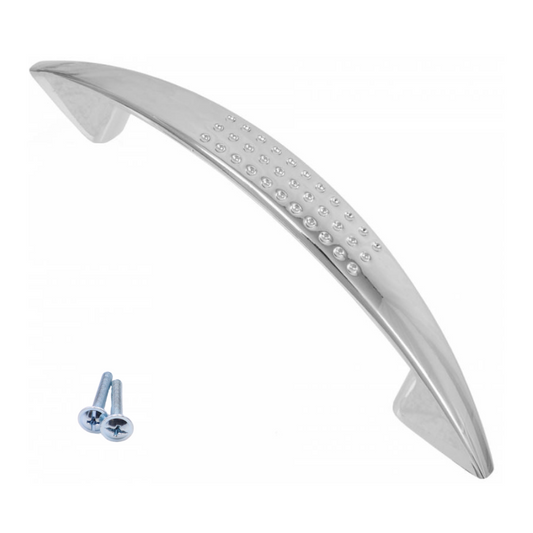

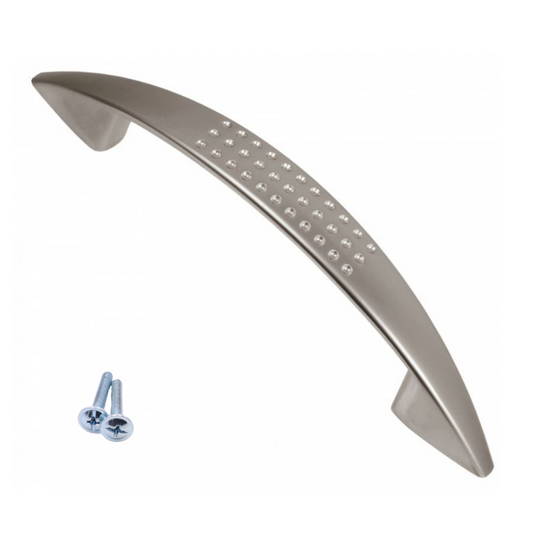

Classic Surface-Mounted Pulls (Bow and Bar Pulls):These handles mount directly onto the face of the substrate (particle board, MDF, or solid wood). Attachment is secured using through-holes drilled from the back of the panel. TheCabinet Handle 3.75 in (96mm) UZ01 - Aluminumis a classic example. Here, thegrip depth / clearance(the space between the back of the handle and the cabinet front) is critical. For comfortable ergonomics, this clearance should measure at least 13/16 to 1 in (20 mm – 25 mm), allowing larger hands to grip the handle securely without rubbing against the cabinet face.

Edge Pulls / Finger Pull Profiles:Edge pulls offer a modern alternative. Models like theEdge Pull Profile Handle, Black, CC 1.25/3.75/5.04 in (32/96/128mm)attach to the top edge (for drawers) or side edge (for hinged doors) rather than the front panel face. Fastening screws enter through the rear into the substrate.Installation note for cabinetmakers:Because the lip material of an edge pull (typically 1/16 to 5/64 in / 1.5 mm – 2.0 mm thick) wraps over the door edge, it reduces the overallreveal / gap sizebetween adjacent cabinet doors. On tight-tolerance reveal layouts (e.g., 1/8 in / 3 mm gap), the edge of the panel front may need to be recessed or routed out by the thickness of the handle lip to prevent doors from binding against each other.

Technical Installation Guidelines

Proper mounting of 3.75 in (96 mm) pulls requires careful accuracy to prevent tear-out on decorative veneers and ensure long-term stability.

Drilling and Tools

For standard cabinet pulls featuring a metricM4 internal thread, a clearance hole diameter of3/16 in (4.5 mm to 5.0 mm)is recommended. This slight clearance around the 4 mm screw thread provides necessary tolerance to adjust for minor hole-spacing variations when seating the pull. Drilling should always proceed from the front exterior face inward. To avoid tear-out on the backside exit hole of melamine-coated particle board, always use a Brad point wood drill bit. Backing the panel with a piece of scrap wood further improves hole clean-out. Layout marking can be streamlined using a professional System 32 drilling template.

Calculating Screw Lengths

Pulls are typically secured using M4 truss head screws with a Phillips or combo drive. Calculating the exact screw length is a critical step. If a screw is too short, insufficient thread engagement occurs, risking thread failure under pull load. If it is too long, the screw bottoms out inside the blind tapped hole before securing the handle flush, leaving a loose, wobbly pull.

The calculation formula is:Panel Thickness + Required Thread Engagement = Screw Length. The ideal thread engagement depth into the handle's blind hole is generally 3/16 in (4 mm – 5 mm). For a standard 3/4 in (19 mm) cabinet front panel: `19 mm + 5 mm = 24 mm`. In this case, a standard M4 x 24 mm or M4 x 25 mm machine screw is used (provided the blind hole depth permits).

Featured Products in 3.75 in (96 mm) Spacing

Our catalog offers reliable hardware options suited to various cabinet designs. Here is a selection of 3.75 in (96 mm) CC hardware:

FAQ – Frequently Asked Questions

How do I accurately measure the center-to-center (CC) spacing of an existing pull?Center-to-center spacing is always measured from the center of one mounting hole to the center of the other hole. Use a dial caliper or a precise steel ruler. Measure on the backside of the removed handle directly across the threaded openings to prevent measurement errors caused by curved handle geometry. If your measurement reads 3.75 in (96 mm), you need a pull with a 3.75 in CC spacing.

Can I replace a 5.04 in (128 mm) pull with a 3.75 in (96 mm) pull?A direct replacement is not possible because existing holes in the cabinet front will not match the narrower 3.75 in thread spacing. The old 3/16 in (5 mm) holes must be filled using hard wax or wood filler matched to the door color before drilling new holes at 3.75 in (96 mm) spacing. Alternatively, consider selecting a handle from the larger standard size range, such as5.04 inch drawer pulls (128 mm).

What screw thread size do standard 3.75 in cabinet handles use?Nearly all European-style metal cabinet handles use metric M4 internal threads. The thread depth (blind hole depth) typically ranges between 1/4 in and 3/8 in (6 mm to 10 mm) depending on the handle design.

Why is my newly installed 3.75 inch drawer pull loose or wobbly?In 90% of cases, this is caused by a mounting screw that is too long. If the M4 screw hits the bottom of the handle's blind hole before the screw head sits tight against the back of the cabinet door, the handle cannot be fully tightened. Solution: Shorten the screw by 1/16 to 1/8 in (1 mm – 2 mm) using a screw-cutting plier tool, or swap it for a shorter screw length.

Are 3.75 in (96 mm) pulls suitable for heavy-duty deep drawers?For wide drawer units (over 31-1/2 in / 800 mm) equipped with heavy-duty slides rated for 100+ lbs (45+ kg), a 3.75 in pull may be too narrow. Off-center pulling leverage could cause the drawer slides to bind. In these setups, wider hardware options like6.3 inch drawer pulls (160 mm)or7.56 inch drawer pulls (192 mm)are recommended to distribute opening force more evenly across the panel.
