Plastic Desk Grommet

Aplastic desk grommetis a two-piece fitting designed for routing cable bundles neatly through desktops, countertops, or cabinet walls. It simultaneously conceals rough-cut wood edges and protects wire jackets from chafing and abrasion.

In professional furniture assembly and interior fitting, cable management is a essential technical requirement. Adesk with desk grommetintegrations not only prevents a cluttered workspace, but also ensures proper bend radii for data cables and protects power lines. In this specialized category, we take a detailed look at the specifications, installation, and application areas of plastic desk grommets.

Design and Technical Characteristics

A classicplastic desk grommetis industrially manufactured from thermoplastic materials, typically impact-resistant high-impact polystyrene (HIPS) or acrylonitrile butadiene styrene (ABS). These materials offer high fracture resistance combined with lightweight performance.

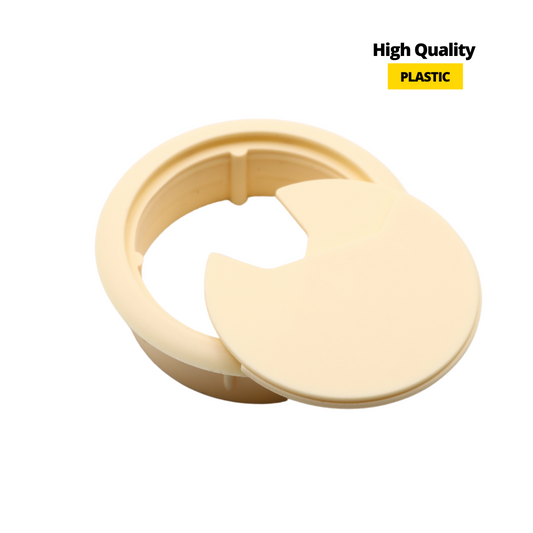

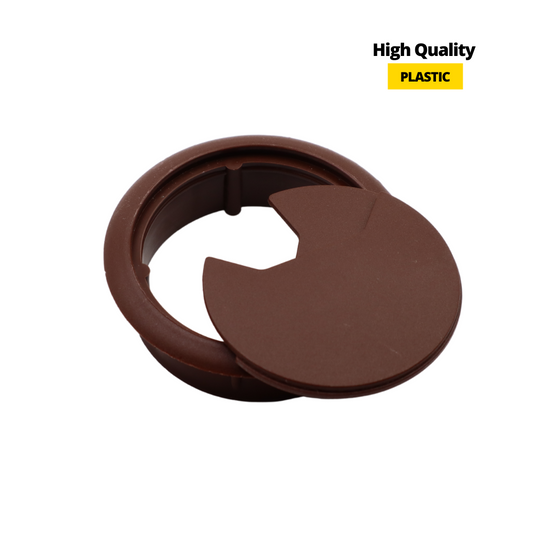

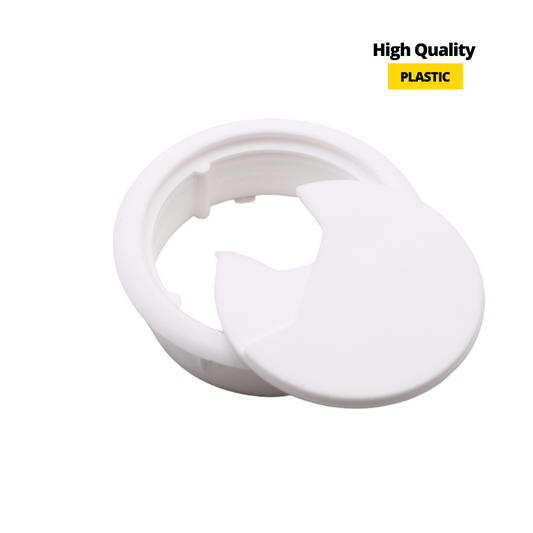

The construction generally consists of two parts:

1. The Mounting Ring (Sleeve):This cylinder is press-fitted into the pre-drilled hole of the substrate board. Vertical fins or slight knurling on the outer side of the ring compensate for minor drilling tolerances (approx. 1/64 in (0.5 mm)) and lock the sleeve securely in the wood to prevent rotation.
2. The Cap (Cover):This snaps into the mounting ring or locks in with a twist/bayonet fit. The cap features a segmented opening. An integrated, often spring-loaded cable flap or a rotatable segment allows you to adjust the pass-through size to the actualcable cross-section.

Like a protective collar, the plastic ring wraps around the raw cut edge of the particle board, preventing sharp wood splinters from fraying the delicate insulation of power cords. This is of critical safety importance, especially with melamine-coated particle board or raw MDF.

Dimensions and Tolerances

The standard industry dimension for a round cable passage in office furniture is a drill hole diameter of2-3/8 in (60 mm). This diameter has established itself because it is large enough to easily pass a standardized grounded power plug (Type F plug, approx. 1-1/2 in x 1-5/8 in (38 mm x 42 mm)).

For installations with extensive or thick cable bundles (e.g., thick HDMI cables, IEC power cords plus network cables), woodworkers frequently turn to the 80mm desk grommet. However, the models featured here consistently require a2-3/8 in (60 mm)bore hole. If you are looking for detailed specifications for this standard size, you will find them in our 60mm desk grommet collection.

Color and Decor Variety for Cabinetry

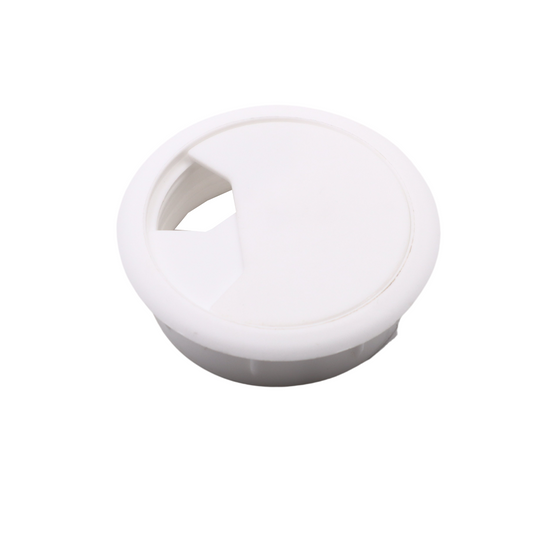

A major advantage of thermoplastic cable management solutions over metal models is the ability to color-match the plastic precisely to the furniture finish. While modern, monochrome office spaces frequently use awhite desk grommetor ablack desk grommet, traditional wood finishes require specific color coordination.

For cabinetmakers, it is vital that the hardware visually blends into the substrate. Our range therefore includes precisely matched tones for common wood composite boards:

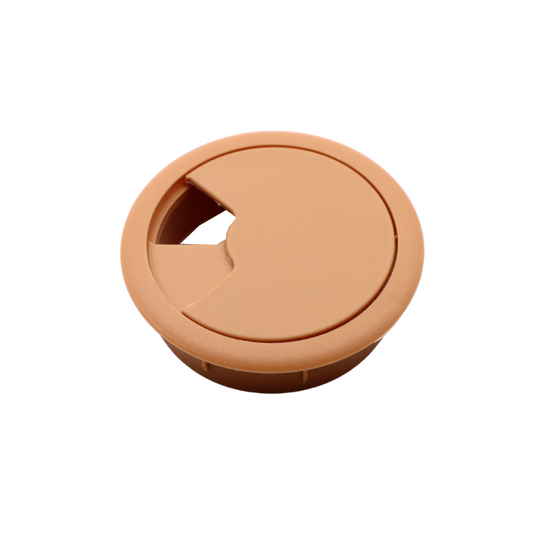

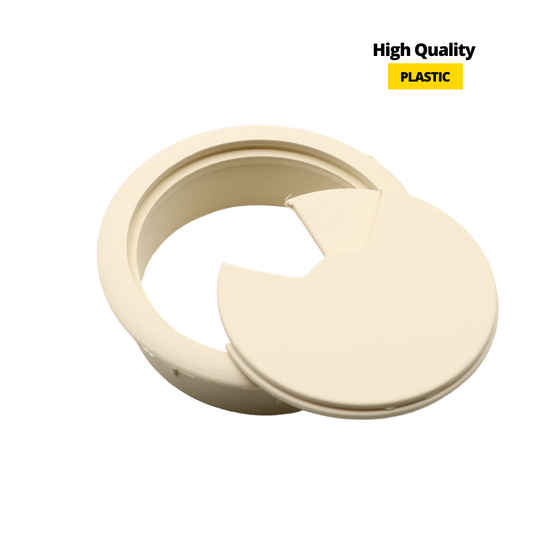

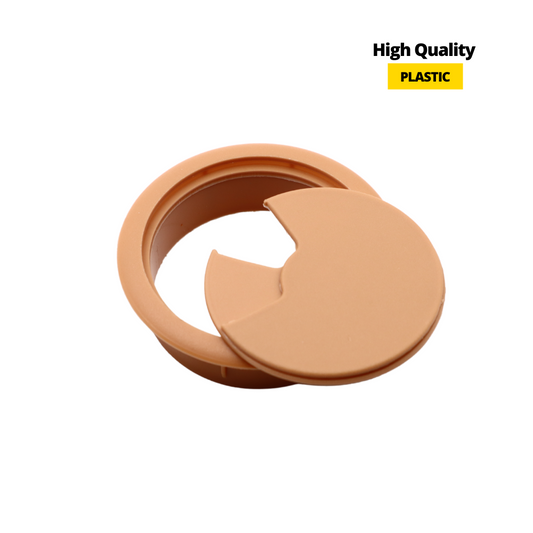

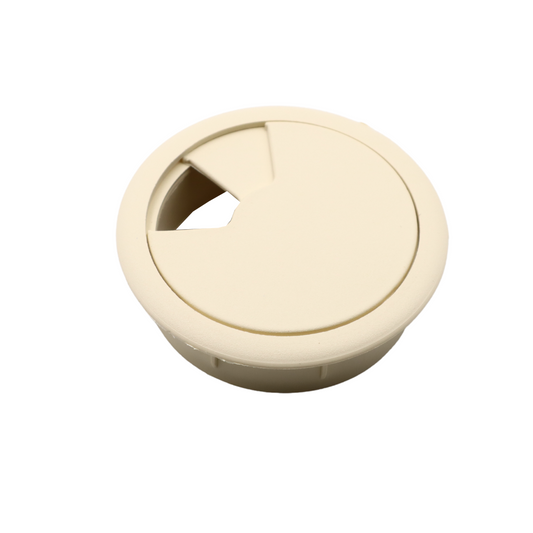

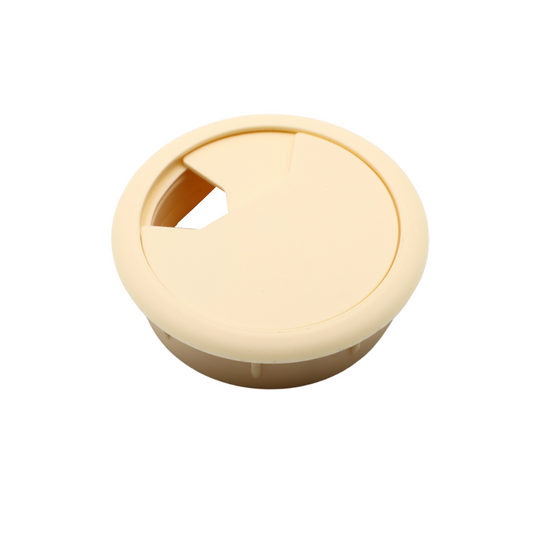

• Light Woods & Natural Tones:For maple or birch decor boards, theplastic desk grommet 2-3/8 in (60mm), pear wood(often suitable for H17 pear finishes) or theplastic desk grommet 2-3/8 in (60mm), alderare ideal. Shades like vanilla or ivory are also available.

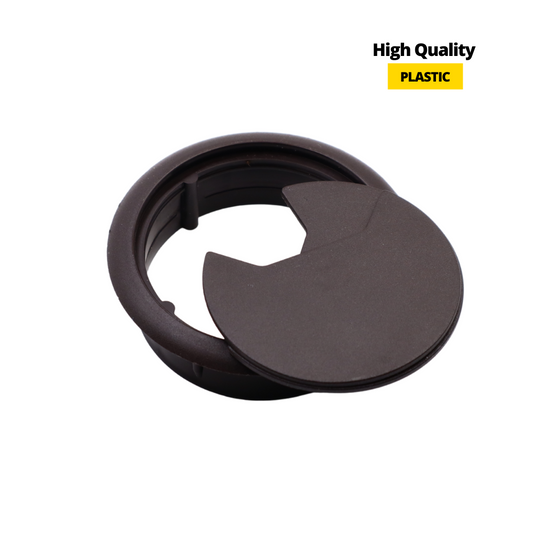

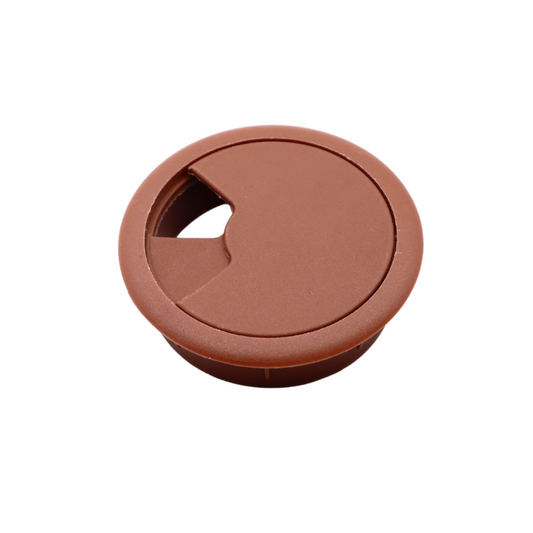

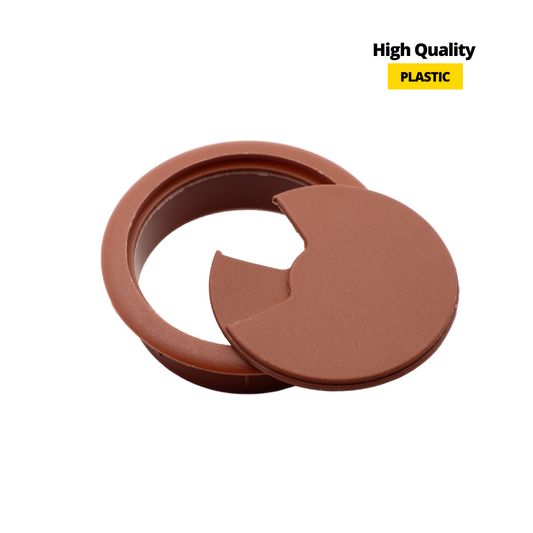

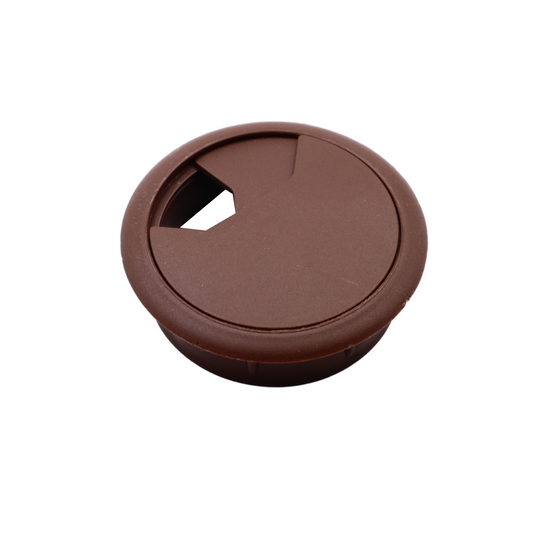

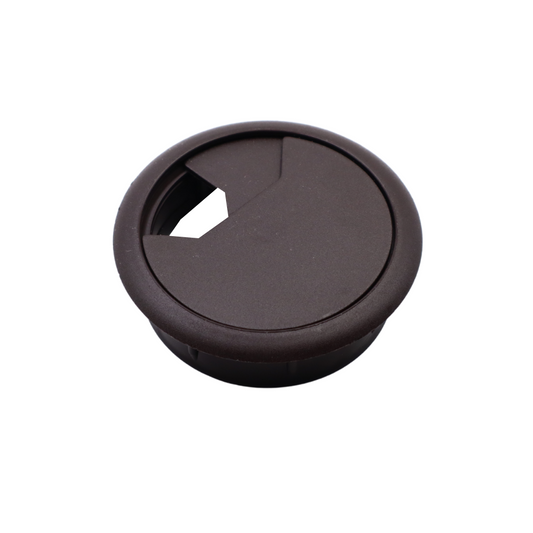

• Medium to Dark Browns:For oak, walnut, or mahogany, we recommend theplastic desk grommet 2-3/8 in (60mm), brownas well as dark brown and extra dark brown variants. Specific reddish wood tones are covered by theplastic desk grommet 2-3/8 in (60mm), red wood.

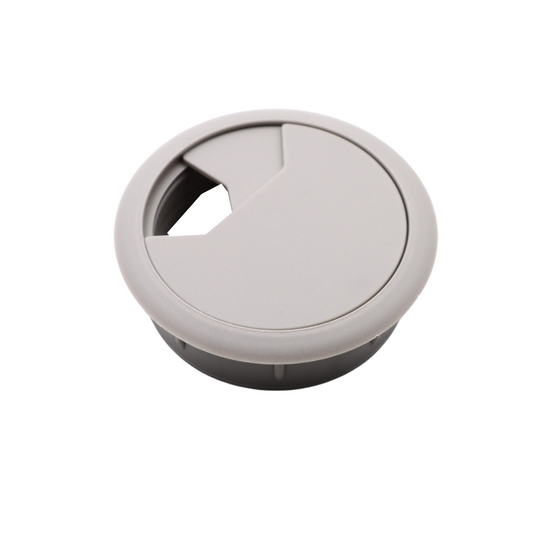

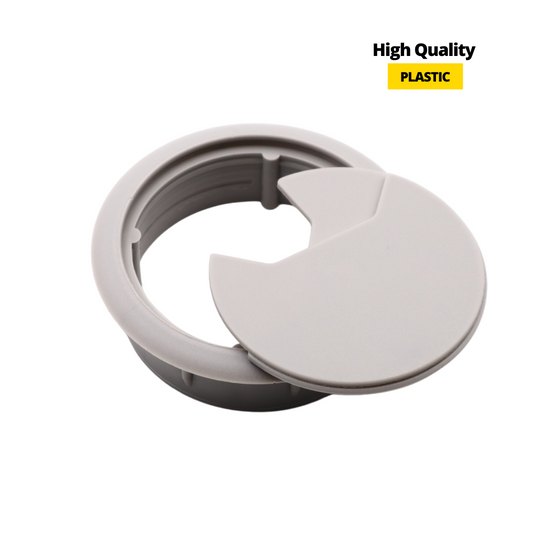

• Gray and Anthracite Tones:Neutral tones such as theplastic desk grommet 2-3/8 in (60mm), anthraciteor thegray desk grommetare very popular for technical workstations or workbenches.

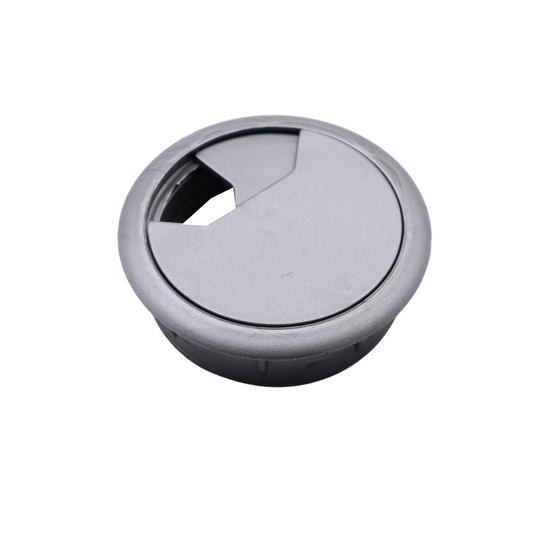

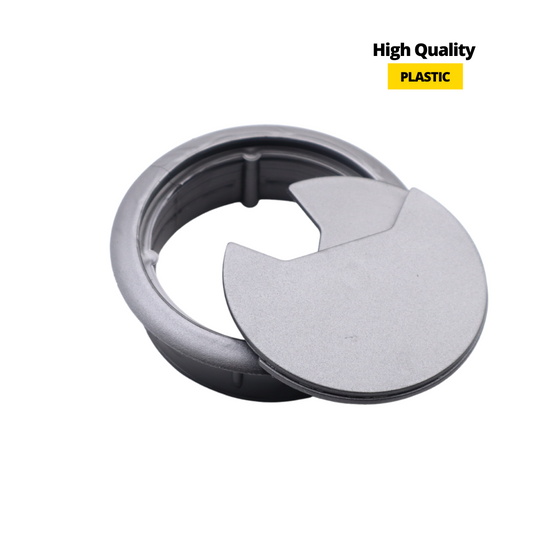

• Metalic Imitations:If you want the look of metal combined with the lightweight and easy handling of plastic, choose theplastic desk grommet 2-3/8 in (60mm), metallic finish. Alternatively, we also offer solid metal hardware in ourmetal desk grommetcollection.

Professional Installation of Desk Hole Grommets

Installing aplastic desk grommetinto a desktop is a standard process, but it requires precision to avoid tear-out on decorative coatings.

Required Tools

• Drill or powerful cordless driver
• Forstner bitor hole saw with an exact2-3/8 in (60 mm)diameter
• Tape measure, pencil, framing square
• Fine sandpaper (120 grit), if needed

Step-by-Step Instructions

1. Positioning:Position the plastic hole grommet so it does not collide with the under-desk support structure (aprons, cable trays, desk legs). A typical offset is2 in - 3-1/8 in (50 mm - 80 mm)from the rear edge of the desk to the center of the hole.
2. Pilot Hole (Optional):For very hard laminate or dense boards, a 1/8 in (3 mm) pilot hole is recommended.
3. Main Bore:Drill through the board using the 2-3/8 in (60 mm) Forstner bit.Important for melamine-faced particle board:To prevent blowout on the underside veneer, drill only until the center spur of the bit slightly breaks through the bottom. Then flip the board over and complete the hole from the opposite side using the pilot hole.
4. Smooth Edges:Lightly deburr the inner cut edge with sandpaper.
5. Insertion:Align the outer ring of the plastic grommet straight and press it in firmly with even pressure (press fit). The outer ridge grips the wood securely without requiring extra adhesive.
6. Routing Cables:Pass the plugs through, then snap the cover cap in place and lock it with a short twist.

Expanded Application Areas

While the primary focus is on a desk cable grommet, these hardware components are used far more versatilely in interior architectural woodwork.

Kitchens and Countertops

Acountertop cable pass-throughis frequently used to route power cords for coffee machines, microwaves, or pop-up power outlets neatly behind base cabinets. Note that standard plastic grommets are not waterproof. They are suitable for dry countertop zones away from sinks and cooktops. Anyone explicitly searching for a "waterproof cable pass-through" must opt for specialized IP68-rated threaded glands with rubber seals from electrical installation suppliers.

Cabinetry and Media Centers

For TV lowboards, entertainment centers, or AV racks, hidden wiring is essential. Here, grommets allow HDMI and power cables to pass from compartment to compartment without leaving large, unsightly holes in back panels. These grommets can also be easily retrofitted into a pureplastic cabinet(e.g., for utility rooms or workshops) using a hole saw.

Wall Pass-Throughs and Garden Sheds

Contractors often search for a plastic wall grommet to run low-voltage wiring through drywall partitions. The 2-3/8 in (60 mm) plastic rings are ideal for stabilizing the raw edges of cut drywall and preventing gypsum dust from shedding. Another strong application is in garden sheds and outdoor structures. When running power cables for lighting, battery chargers, or tools into a wooden shed, the plastic sleeve protects the cord against the rough edges of OSB or solid wood panels.Note:For exterior wall penetrations, seal the outer edge with silicone or acrylic sealant to prevent drafts and moisture ingress.

Formats: Round vs. Rectangular

While the items listed here feature the classic round shape (round desk grommet), certain designs require linear pass-throughs. For wide power strips or heavy cable runs, woodworkers often install arectangular desk grommetor asquare desk grommet. These require routing out the board with a plunge router instead of simple drilling.

Plastic Materials in Cabinet Hardware

Thermoplastics play a major role in furniture construction far beyond wire grommets, spanning the entire scope of modern hardware technology. Tradespeople often search for related plastic components that share the same material advantages: non-corrosive, lightweight, and cost-effective.

For light-duty furniture such as mobile pedestals or simple dressers, aplastic drawer slide(orplastic drawer runner) is commonly installed. These plastic guides operate as groove-mounted channels suited for lighter loads up to approx. 22 lbs (10 kg). For heavier loads, ball-bearing steel slides are preferred. Terms likeplastic hingeorplastic hingesare frequently found in moisture-prone furniture, acrylic display cases, or model making where metal hinges would rust or add excessive weight.

Similarly, decorative caps (e.g., aplastic hinge cover cap) serve primarily to refine appearance and block dust. In cabinet handles, plastic furniture pulls or cabinet handles offer a durable solution for office and shop utility furniture, providing high impact resistance without a cold touch. Even in kitchen storage, such as aplastic dish drying rack, water-resistant polymers dominate. All these components share the precise injection-molding production process with desk grommets, guaranteeing exact fit tolerances.

FAQ – Frequently Asked Questions About Desk Grommets

What drill bit size do I need for a 60 mm plastic desk grommet?You need a Forstner bit or hole saw measuring exactly 2-3/8 in (60 mm) in diameter. The plastic ring is engineered to create a tight press fit in a 60 mm hole. A 61 mm hole would fit too loosely.

Can I install a plastic desk grommet into solid wood?Yes. Installation in solid oak, beech, or pine is identical to particle board. When drilling hard woods like oak, run the Forstner bit at a lower speed (approx. 500 RPM) to prevent scorching the wood.

Do standard power plugs fit through the opening?Yes. When you remove the center cover cap, you have the full inner diameter of the ring (approx. 2-3/16 in (56 mm)) available. Standard grounded plugs pass through effortlessly. Afterward, slide the cap back over the cord and lock it into place.

Is a hard plastic grommet suitable as a rubber cable plug?No. The rigid plastic grommets (ABS/HIPS) featured here do not have flexible rubber membranes and do not create a hermetic seal. They serve as mechanical cord guides, not as environmental seals against air or water (unlike elastomeric rubber grommets).

How do I remove the cap once cables are already installed?The cap features a side cable slot. Twist the cap slightly counterclockwise (bayonet lock principle) until it releases from the mounting ring. You can then lift it up along the cable bundle.

Are these desk grommets available in metal?Yes. For executive desks or high-end conference tables, metal options in zinc alloy or aluminum are popular. You can find these in ouraluminum desk grommet,silver desk grommet, orbrushed steel desk grommetcollections.

Compatibility and Project Planning

When planning professional office workstations, cable management is a key architectural consideration. Aplastic desk grommetfor work surfaces should ideally be positioned directly above an under-desk cable tray or wire channel.

For a standard 63 in (1600 mm) wide desk, we recommend installing at least two grommets (left and right, each located approx. 6 in (150 mm) from the side edges) to route monitor cables, charger cords, and peripherals directly beneath the desktop. The plastictable grommetsoffered here provide an economical, long-lasting, and color-matched solution for furniture manufacturers and custom woodworkers alike.
