Valet Rod

Avalet rod(often referred to in technical terms as a pull-out closet rod or front-extractable wardrobe rail) is a specialized furniture fitting designed for space-efficient clothing suspension in cabinets with reduced carcass depth. While conventional wardrobes require a clear depth of at least 19-11/16 in to 21-5/8 in (500 mm to 550 mm) to hang hangers perpendicular to the door, a valet rod allows garments to be hung facing forward. This makes it a fundamental requirement for designing narrow hallway wardrobes, alcove cabinets, and custom walk-in closet systems.

In this technical guide, we examine the structural features, proper dimensioning, and installation requirements of valet rods, retractable garment holders, and hydraulic wardrobe lifts.

Design Principles and Mechanics

The mechanical system of a valet rod is typically based on an interlocking slide mechanism. The fixed mounting rail is screwed to the underside of a shelf or top panel, while the sliding profile carries the hanging load.

Much like the slide of a CNC router, the inner profile glides smoothly without play through an integratedball-bearing slide, which prevents binding even under uneven weight distribution. Simpler models utilize aroller guide system; however, ball-bearing telescopic slides have become the standard in professional cabinet making due to their superior torsional rigidity and load capacity.

The Classic Valet Rod

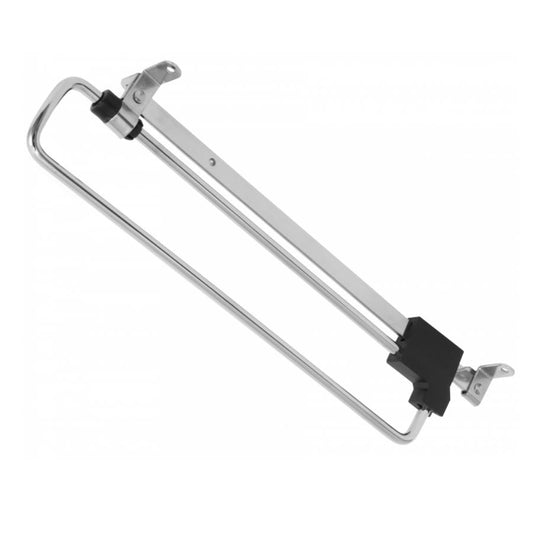

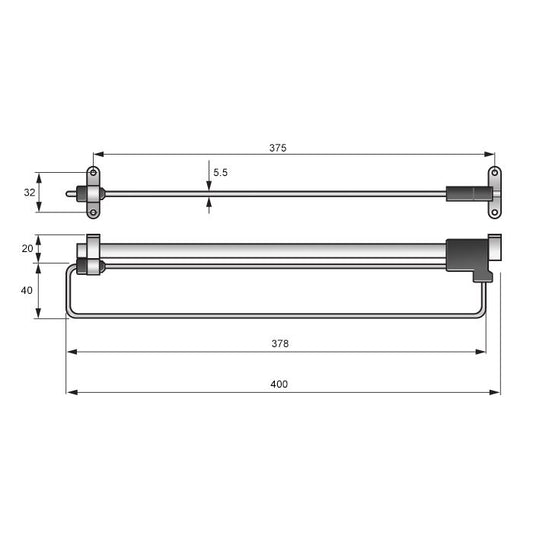

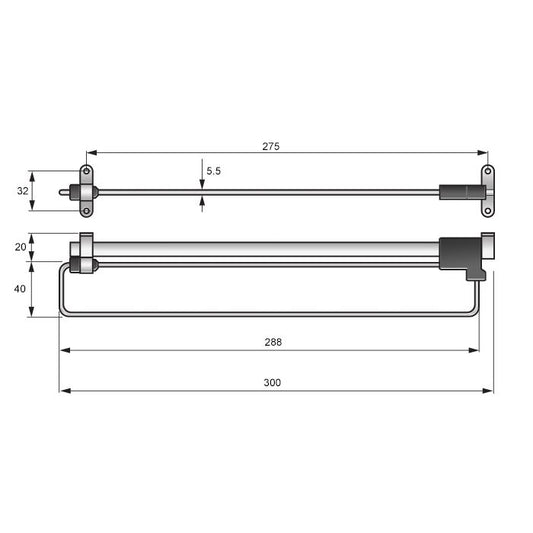

With a standard valet rod, clothing is arranged one item behind the other. To access garments at the back, the entire mechanism pulls forward out of the cabinet carcass. The nominal length of the fitting determines the required installation depth.

For shallow cabinets, such as those in tight entryway areas, compact options like thePull-Out Valet Rod - 9-27/32 in (250 mm)are ideal. These require a clear interior depth of only about 10-1/16 in to 10-1/4 in (255 mm to 260 mm). As cabinet depth increases, the fitting length scales upward, including mid-size options like thePull-Out Valet Rod - 13-25/32 in (350 mm)up to deep models like thePull-Out Valet Rod - 15-3/4 in (400 mm).

Retractable Hanger Rails

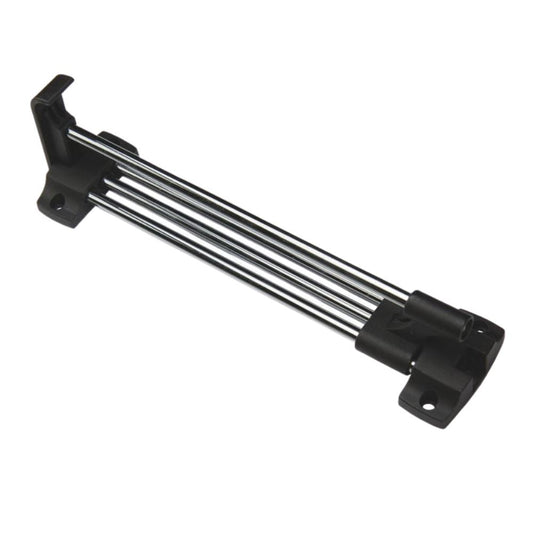

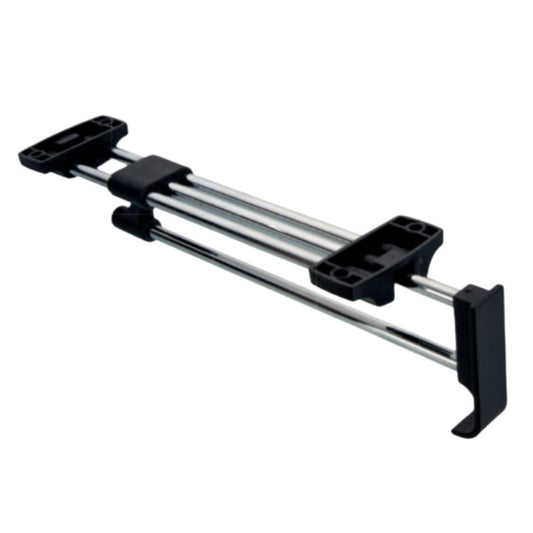

Retractable hanger rails form a subcategory of valet rods. These systems feature heavier construction and are often used for temporary garment preparation or integration into open shelving systems. Models like theRetractable Valet Rod 15-3/4 in (400 mm) - Chromefeature a cylindrical or square profile that retracts flush into a housing bracket.

Wardrobe Lifts: Ergonomics for Upper Cabinet Zones

A technological extension of the classiccloset rodis thewardrobe lift(pull-down closet rod). It solves the problem of reaching high areas in floor-to-ceiling wardrobes (carcass heights exceeding 86-5/8 in (2200 mm)). Instead of extending the rod horizontally, a pull rod swings the rail downward and forward in an arc.

The resetting force is provided by integratedgas struts(gas springs). The rating of these gas cylinders is specified inNewtons (N)and must be selected based on the anticipated weight of the clothing. If the force is too low, lifting the rail will be difficult; if it is too high, an unloaded rod will snap upward unpredictably.

Wardrobe lifts feature telescoping widths to accommodate variations in interior cabinet dimensions. Systems like theWardrobe Lift 32-11/16 in - 45-1/4 in (830-1150 mm)cover wide carcasses, while narrower sections can be outfitted with the Wardrobe Lift 17-23/32 in - 23-5/8 in (450-600 mm) - Anthracite.

Specialized Pull-Out Systems: Trouser Racks

For structured pants storage, cabinetmakers rely on specialized slide-out organizers. APull-Out Trouser Rack for 23-5/8 in (60 cm) Cabinet Soft-Close - Single Shelf - Greyincorporates multiple parallel arms onto a sliding tray.

These units frequently featuresoft-close technology(damped self-closing). Crucial planning note: Soft-close is a damping mechanism that decelerates the slide during the final few inches and gently pulls it into its closed position. Mechanically, this must never be confused withpush-to-open(tip-on) ejector systems for handleless fronts, which operate with opposite force direction.

Technical Dimensions, Tolerances, and Material Science

When specifying hardware for a valet rod wardrobe or closet system, installers and designers must adhere to precise dimensional tolerances.

Installation Depths and Extension Travel

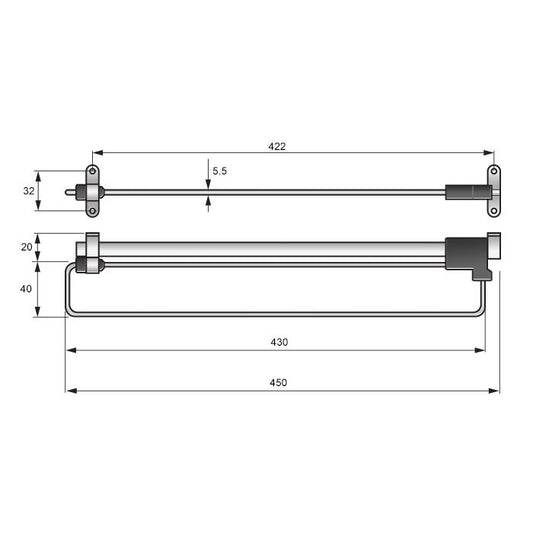

The nominal length of a valet rod generally equals its minimum required installation depth. A fitting with a nominal length of 17-23/32 in (450 mm) strictly requires a cabinet with a clear internal depth (distance from back panel to inside of door) of at least 17-15/16 in (455 mm). Theextension travelvaries by construction. With apartial extension slide, the rod pulls out to roughly 70% to 80% of its total length. Afull extension slideallows 100% travel, making rear garments much easier to reach, though requiring significantly sturdier mounting to the top shelf due to increased leverage.

Load Capacity and Leverage

The load capacity of a valet rod is specified in pounds (kg) and always refers to an evenly distributed static load. Standard valet rods carry between 22 lbs and 33 lbs (10 kg to 15 kg). Since heavy winter coats can easily weigh 4.4 lbs to 6.6 lbs (2 kg to 3 kg) each, full capacity can be reached quickly.

The critical failure point is rarely the steel profile itself, but rather the pull-out resistance of the mounting screws in the substrate (typicallyparticle boardorMDF). When a valet rod is fully loaded and completely extended, substantial torque is exerted on the rear mounting screws.

Surface Finishes and Corrosion Protection

Because metal or hard plastic clothing hangers slide over the rod during everyday use, surface finishing is critical for longevity.

• Electro-galvanized / Chrome Plating:Provides an extremely hard, wear-resistant surface ideal for modern technical hardware.
• Powder Coating:Creates sleek, matte finishes. APull-Out Valet Rod - 19-11/16 in (500 mm) Blackblends seamlessly into dark cabinet interiors (e.g., natural oak paired with black accents).
• Anodized Aluminum:Extremely lightweight and corrosion-resistant, though slightly softer than chrome-plated steel.

Installation Guidelines for Cabinetmakers and Installers

Proper hardware installation is essential for the durability of yourvalet rod. In most cases, installation is top-mounted (under-shelf mounting beneath a fixed panel).

Required Tools and Fasteners

• Cordless screwdriver with precise torque adjustment
• Driver bits:PZ2 (Pozidriv)orTX20 (Torx)
• Brad awl or wood drill bit (1/8 in / 3 mm) for pre-drilling
• Mounting screws

Selecting Screws

Screw selection determines overall stability. For melamine-faced particle board, dedicatedwood screws(chipboard screws) with asymmetrical threads and flat/countersunk heads (typically #6 / 3.5 mm or #8 / 4.0 mm) are recommended. Screw length should penetrate as deep into the panel as possible without piercing the opposite surface layer. For a standard 11/16 in (18 mm) shelf, a #8 x 5/8 in (4.0 x 15 mm or 16 mm) screw is ideal.

If hardware is mounted into system side-panel holes (32 mm system grid)—as with side-mounted trouser racks—Euro screws(1/4 in / 6.3 mm) are used. Their blunt thread profile anchors securely into pre-drilled 3/16 in (5 mm) system holes.

Step-by-Step Installation: Valet Rod

1. Positioning:Measure the clear inside width of the cabinet and mark the exact centerline.
2. Front Setback:Align the fitting so that when fully retracted, sufficient clearance remains relative to the closed cabinet door (at least 19/32 in to 25/32 in (15 mm to 20 mm)).
3. Pre-Drilling:To prevent chipping on melamine surfaces, mark and pre-drill pilot holes using a 1/8 in (3 mm) bit to a depth of roughly 5/64 in (2 mm).
4. Fastening:Set the fitting in place and drive screws flush using moderate torque. Over-tightening can strip the threads in particle board.

Step-by-Step Installation: Wardrobe Lift

Installing a wardrobe lift is more involved, as it mounts to the side walls of the carcass.

1. Height Planning:The swing mechanism requires downward clearance. Ensure no internal shelves or hinges interfere with the pull-down motion.
2. Mounting Housings:Screw the side housings containing the gas struts horizontally level and directly opposite one another. Use adequately sized screws, as these housings absorb all dynamic forces.
3. Crossbar Assembly:Adjust the telescoping crossbar to match the clear interior width, secure it, and snap it into the swing arms.
4. Pull Rod:Finally, attach the center pull rod.

Applications in Modern Interior Space Planning

A pull-out valet rod is not just a problem solver for tight quarters, but a versatile functional element in custom cabinetry.

Shallow Entryway Closet

Hallway space is often tight, with closets designed to depths of only 13-25/32 in to 15-3/4 in (350 mm to 400 mm). A traditional closet rod mounted parallel to the doors is unusable here, as a standard hanger is about 17-11/16 in (450 mm) wide and would keep the door from closing. A valet rod is the ultimate technical solution. Mounting multiple rods side by side multiplies hanging capacity.

Walk-In Closets and Custom Wardrobes

In spacious dressing rooms, vertical space utilization is key. Wardrobe lifts bring upper areas near the ceiling within reach for shirts, blouses, and jackets, leaving lower areas free for drawers or shoe storage.

Complementary Hardware

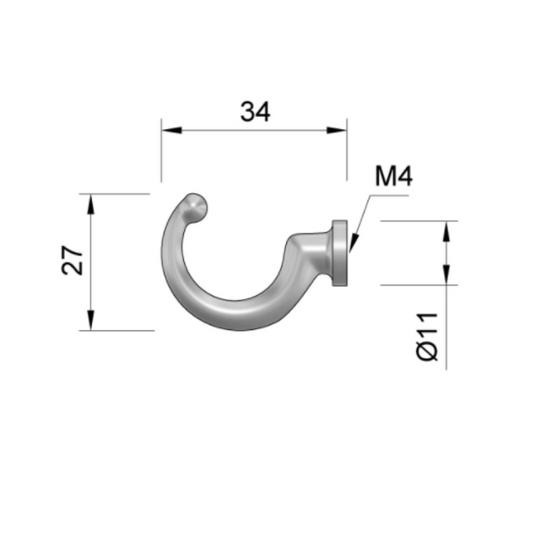

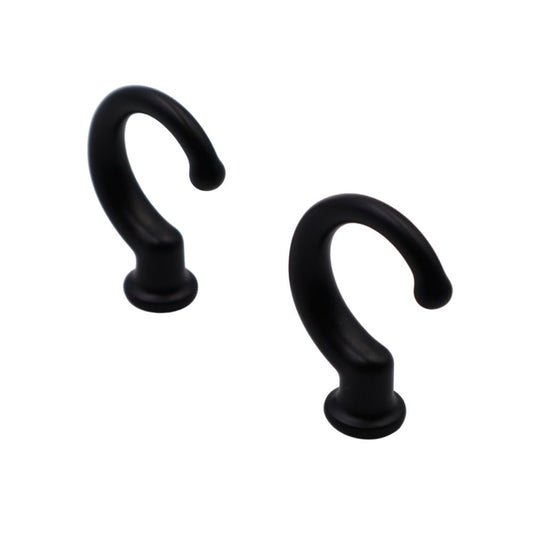

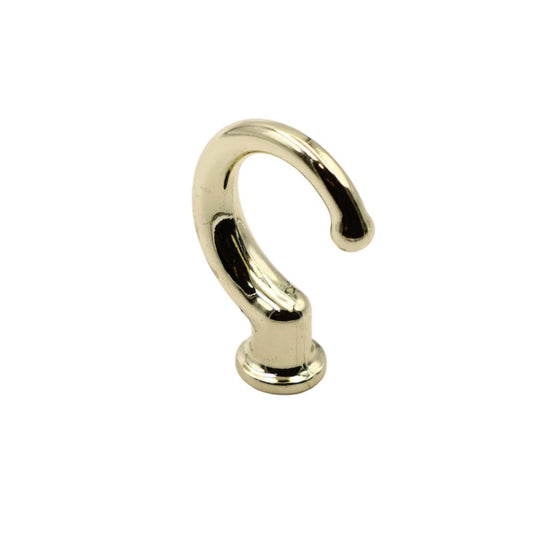

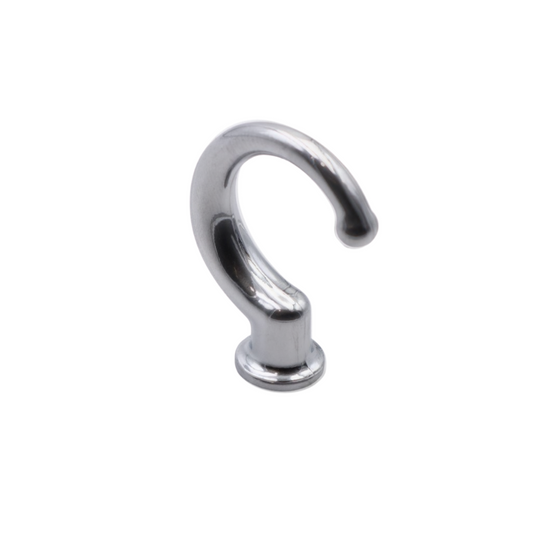

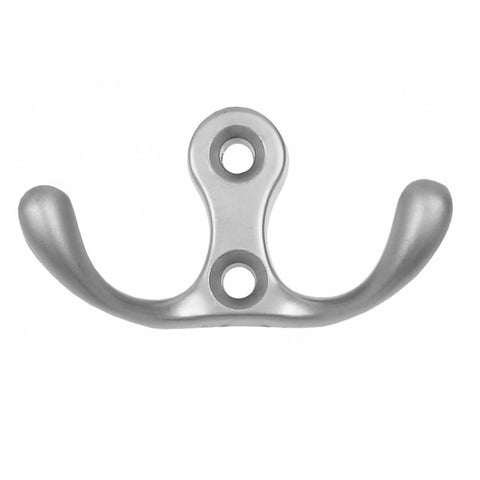

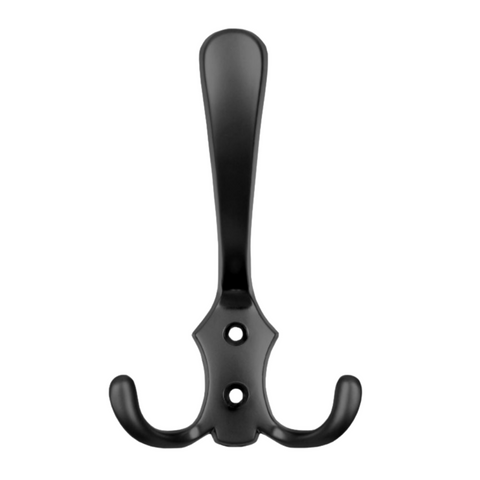

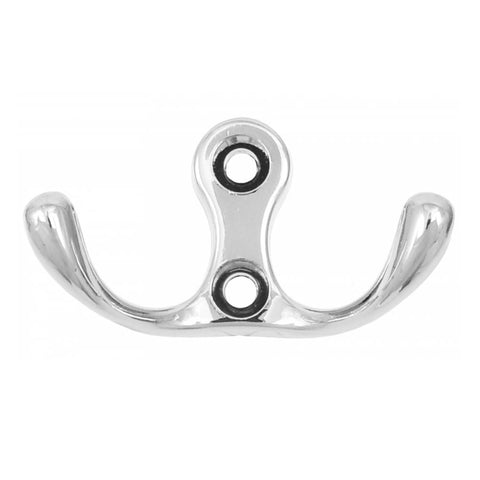

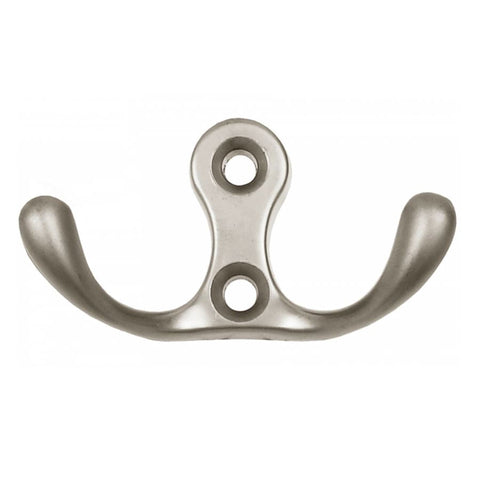

A well-planned wardrobe combines valet rods with fixed hooks for accessories, belts, or bags. ASingle Robe Hook - Matte Blackon the cabinet interior or aSingle Robe Hook - Aluminumon the exterior frame enhances utility without obstructing the travel path of the valet rod.

Buyer's Guide for Hardware Selection

Cabinetmakers and DIY installers should consider these core compatibility questions prior to ordering:

1. What is the clear interior cabinet depth?

Clear interior depth determines the maximum nominal length of the valet rod. Measure from the inside face of the back panel to the inside face of the closed door, then subtract a 3/8 in (10 mm) safety margin.

2. What weight needs to be supported?

For heavy motorcycle gear or winter coats, choose heavy-duty valet rods with multiple mounting points. For light dress shirts, standard duty models are sufficient.

3. What ergonomic height access is needed?

If the hanging rail sits higher than 78-3/4 in (2000 mm) from the floor, a wardrobe pull-down lift is essential to ensure easy access without step ladders.

4. What is the overall design theme?

Hardware should coordinate with hinges, handles, and accessories. A dark wardrobe interior looks best paired with black valet rods and dark slide mechanisms.

---

FAQ – Frequently Asked Technical Questions

How much interior depth does a valet rod require?The required clear interior depth equals the nominal length of the fitting plus a safety clearance of about 3/16 in to 3/8 in (5 mm to 10 mm). A 13-25/32 in (350 mm) rod thus requires an interior carcass depth of at least 14 in to 14-3/16 in (355 mm to 360 mm).

Can wardrobe lifts be retrofitted into existing cabinets?Yes, retrofitting is possible provided the side panels are sturdy enough (at least 5/8 in / 16 mm, ideally 3/4 in / 18–19 mm particle board or MDF) and no interior obstacles (like fixed shelves or internal drawers) block the swing path. The clear width must also match the adjustment range of the lift (e.g., 32-11/16 in to 45-1/4 in / 830 mm to 1150 mm).

What is the difference between a partial extension and full extension valet rod?A partial extension valet rod pulls out to a percentage of its total length because part of the runner must stay inside the housing for stability. A full extension valet rod uses a 3-tier telescopic rail that allows 100% of the rail to extend out of the cabinet.

Why is my new wardrobe lift stiff or hard to pull down?The gas struts are calibrated to offset garment weight (often rated for 22 lbs to 33 lbs / 10 kg to 15 kg of load). When unloaded, you are pulling against the unassisted spring force of thegas spring. Once garments are added, their weight balances the force, and the lift operates smoothly.

What screws should I use for under-shelf mounting?For standard engineered wood panels (melamine-faced particle board), use flathead or countersunk wood screws (#6 or #8 / 3.5 mm or 4.0 mm diameter). Screw length should not exceed panel thickness (typically 19/32 in or 5/8 in / 15 mm or 16 mm screws for 3/4 in / 18 mm panels) to avoid breaking through the top surface.

Are soft-close valet rods available?Yes, premium valet rods and specialized slide-outs (such as trouser or tie racks) come equipped with soft-close dampeners. This mechanism catches the slide during retraction and quietly draws it into the fully closed position.

How do I clean and maintain ball-bearing extension slides?Ball-bearing slides are permanently lubricated at the factory. Avoid harsh solvents or degreasers. For dust or debris, simply wipe clean with a dry cloth or vacuum gently. Re-greasing is unnecessary under normal household conditions and can cause dust to accumulate, causing the mechanism to stick.
