Satin Nickel Cabinet Pulls

11 products

Related categories

Satin nickel cabinet pullsand handles are functional hardware components designed for cabinet doors, flaps, and drawers. Their metallic surface features a specially engineered matte finish that creates a glare-free, velvety shimmer. Unlike high-gloss chrome plating or untreated raw metals, satin finished hardware undergoes an electroplating or mechanical refining process that generates micro-roughened textures. This diffusely refracts incoming light to provide an exceptionally durable, slip-resistant grip that professional cabinetmakers and kitchen installers prefer for its high resistance to fingerprints.

In this technical overview, we examine the specifications, hole spacing center-to-center dimensions, installation requirements, and material properties of satin nickel cabinet pulls to assist carpenters, trade installers, and experienced DIYers in precisely planning their cabinet carcasses and door fronts.

Design Types and Profile Styles

The geometry of a pull defines not only its aesthetic appeal, but also determines the leverage required to open heavy drawers (such as cookware drawers in the kitchen) or cabinet doors with high-tension concealed hinges. Within our selection of satin hardware, we distinguish between three primary construction styles:

Bar Pulls and D-Pulls

This is the standard style for most cabinet fronts. They mount securely to the door or drawer face using two attachment points. Models like theTECHNO Cabinet Pull 6-5/16 in (160 mm) - Satin Nickelor theTECHNO Cabinet Pull 10-1/16 in (256 mm) - Satin Nickelprovide a continuous gripping surface for easy blind operation. Their cylindrical or rectangular profiles evenly distribute tensile load across the mounting screws.

Cabinet Knobs

For narrow drawers, small apothecary cabinets, or lightweight swinging doors, a single mounting point is often sufficient. ASatin Nickel Cabinet Knobrequires only one centered screw hole. Knobs provide less leverage than bar pulls, making them less suitable for heavy-duty pull-outs or large integrated refrigerator doors.

Recessed Pulls / Flush Cup Handles

For sliding doors or cabinet fronts where hardware cannot project outward (such as corner cabinets with potential clearance collisions), flush-mount solutions are ideal. A Recessed Pull 5-1/16 in (128 mm) - Satin Nickel is routed into the door face rather than surface-mounted. This requires precise routing using a plunge router to create a mortise depth (typically between3/8 in and 9/16 in (10 mm and 14 mm)) accurate to the millimeter within particle board or MDF core materials.

Center-to-Center Hole Spacing and System 32

Hole spacing (center-to-center distance) is the most critical technical specification when replacing existing hardware or designing new cabinetry. Center-to-center spacing is the foundation of modern cabinet making—it dictates exactly which pulls can be installed on existing door fronts without drilling new holes.

The cabinet industry manufactures doors and carcasses almost exclusively aroundSystem 32standards. This means the center-to-center distance between mounting holes increases in increments of1-1/4 in (32 mm). If you are replacing existing handles (for instance, when upgrading off-the-shelf kitchen cabinets), measure the distance from the center of the left screw hole to the center of the right screw hole.

Satin nickel cabinet pulls cover the full spectrum of standard System 32 dimensions:

Select specialized hardware options featurevariable hole spacing. This design is commonly found on edge-pull profiles mounted to the back edge of the door, or on pulls with adjustable bases. However, standard bar pulls listed here feature fixed, standardized threaded hole centers.

Base Materials: Zinc Alloy, Aluminum, and Steel

When searching for metal cabinet handles or stainless steel pulls, it is important to distinguish between the core structural material and the surface finish. "Satin nickel" refers to the decorative finish, not the base metal itself.

Most satin pulls, such as models in our UZ series (e.g., theCabinet Pull 3-3/4 in (96 mm) UZ01 - Satin Nickelor theCabinet Pull 5-1/16 in (128 mm) UZ04 - Satin Nickel), are engineered from solidZamak (Zinc alloy). This die-cast zinc-aluminum alloy delivers exceptionally high tensile strength, resists structural deformation under load, and accepts electroplated finishes flawlessly.

The satin finish visually replicates brushed stainless steel while offering efficient manufacturing tolerances and balanced weight. For outdoor applications or wet environments requiring pure solid stainless steel, explore our dedicatedStainless Steel Cabinet Hardwarecollection. For standard indoor applications (kitchens, living rooms, bathrooms), electroplated Zamak or anodized aluminum (seeAluminum Cabinet Pulls) are the industry standard, offering complete corrosion resistance under normal ambient indoor humidity.

Installation: Tools, Screws, and Door Thicknesses

Installing satin nickel cabinet pulls correctly requires precise drilling techniques to protect decorative door laminates and ensure a rigid mount.

Drilling the Mounting Holes

Metal cabinet pulls feature metricM4 internal threads. To drill clearance holes through cabinet fronts, use a brad-point wood drill bit. The hole diameter should be3/16 in (4.5 mm)or up to13/64 in (5.0 mm)max. This subtle clearance gives the M4 screw enough tolerance to compensate for slight manufacturing variations or minor layout inaccuracies (up to1/64 in (0.5 mm)) without binding or stripping the handle’s internal threads during tightening.

To prevent blowout on rear melamine laminates or wood veneers as the drill bit exits the backside, clamp a sacrificial scrap block of particle board firmly against the back surface before drilling through.

Determining Screw Length

The length of the M4 screw depends directly on cabinet door thickness. Screws must pass completely through the door panel and penetrate deep into the handle's threaded socket (minimum3/16 in (5 mm)thread engagement) without bottoming out inside the socket bore.

  • For standard doors (5/8 in (16 mm)thickness): Use M4 x7/8 in (22 mm)screws.
  • For thicker doors (3/4 in (19 mm)thickness): Use M4 x1 in (25 mm)screws.

If an excessively long screw is driven, the pull will not draw flush against the face of the cabinet, leaving it loose and wobbly. Over-tightening an ill-fitting screw can strip the internal zinc threads or fracture the base of the pull.

Applications for Satin Finishes

Choosing satin nickel cabinet pulls for residential and commercial spaces offers distinct practical and stylistic advantages.

Kitchen Installations

Selecting hardware for kitchen cabinets often involves addressing grease, moisture, and everyday dust. High-gloss chrome surfaces show smudges immediately. In contrast, the micro-textured surface of satin nickel effectively masks light smudges and fingerprints. It cleans easily with a soft cloth and mild dish soap. Avoid abrasive scouring pads or harsh solvents, as they can scratch or polish away the satin electroplated finish. Discover matching hardware choices in ourKitchen Cabinet Pullscategory.

Modern and Transitional Interiors

Satin metal finishes blend seamlessly into contemporary, modern, and transitional room designs. Softly reflecting ambient light without harsh highlights, satin hardware complements matte cabinet finishes, rich dark wood grains, and painted flat-panel doors in charcoal or white. For a cohesive hardware theme throughout your space, pair satin nickel cabinet pulls withSatin Furniture Legsor outfit office workstations with matchingSatin Cable Grommets.

Compatibility with Modular Cabinet Systems

Replacing standard factory hardware on mass-produced modular furniture is one of the easiest ways to upgrade modern interiors. Stock cabinet systems use System 32 hole spacing layout standards, making aftermarket hardware replacement seamless.

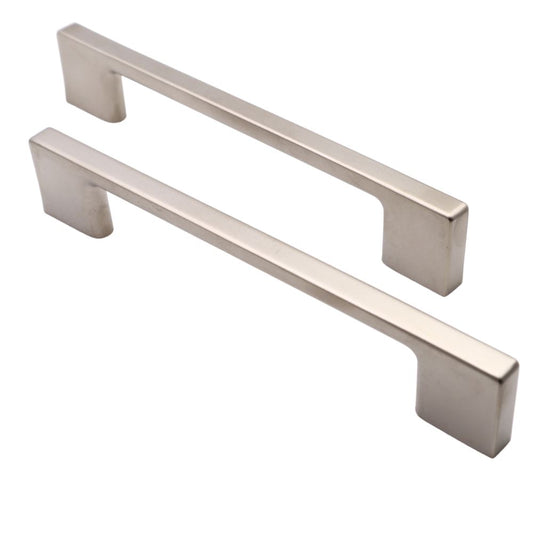

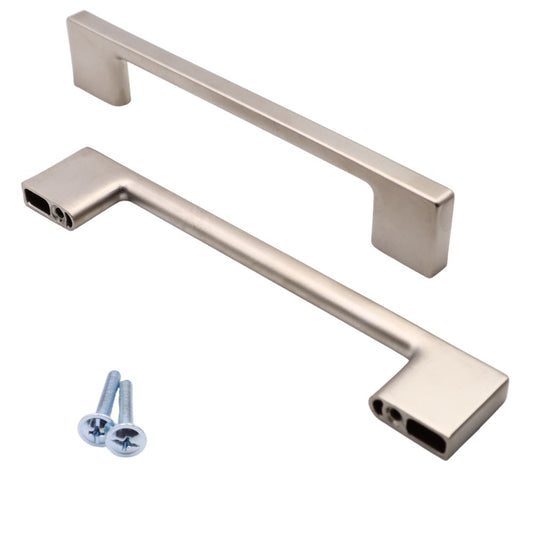

Because major cabinet manufacturers use uniform 32 mm increments, swapping old handles for premium solid hardware is mechanically straightforward. Ensure the center-to-center hole measurement of your original handle matches your new selection. ATECHNO Cabinet Pull 7-9/16 in (192 mm) - Satin Nickelmounts cleanly directly into existing7-9/16 in (192 mm)factory drillings regardless of cabinet brand.

FAQ – Frequently Asked Questions About Satin Nickel Cabinet Pulls

What is the difference between satin nickel and brushed steel finishes?A satin finish provides a uniformly smooth matte appearance with a subtle shimmer and no visible directional grain lines. Brushed finishes (seeBrushed Steel Cabinet Pulls) feature fine directional brush lines created by mechanical abrading. Satin offers a softer, more uniform surface sheen.

What drill bit size should I use for cabinet pull installation?Always use a sharp brad-point wood bit sized3/16 in (4.5 mm)or13/64 in (5.0 mm). Standard HSS metal drill bits lack a center point and can easily slip on smooth laminate surfaces, marring cabinet faces.

How do I clean satin nickel hardware?Wipe clean using a soft microfiber cloth dipped in warm water and mild dish soap. Never use abrasive scouring powders, stiff pads, or acidic chemical cleaners that could break down the protective electroplated satin layer.

Can I install a recessed flush pull without a plunge router?No. Recessed flush pulls like the 128 mm satin model require a precisely routed recess mortised into the door panel. Hand chiseling laminated particle board will cause severe chipping along the outer decorative edges.

Are mounting screws included with the pulls?Included accessories vary by product item; please review individual product descriptions for details. Standard pulls commonly include M4 x7/8 in (22 mm)screws suited for5/8 in (16 mm)door faces. For3/4 in (19 mm)panels, longer screws should be ordered separately.

Do you offer satin style pulls in black?Satin nickel refers specifically to soft silvertone metallic finishes. If you are seeking a dark, non-reflective finish, explore ourMatte Black Cabinet Pullscollection.
