Oak Cover Caps

Self-adhesive oak cover caps are circular adhesive pads covered with printed decorative paper or a melamine resin layer, used in professional cabinetmaking to visually seal and create flush covers over screw heads, cam lock connectors, and unused shelf support holes.

In industrial flat-pack furniture manufacturing and custom interior millwork, these caps represent the final step to turn technical assembly components into a seamless, clean surface. A precisewood oak screw coverdoes not just hide fasteners—it also protects underlying metal hardware from dust ingress and direct humidity.

Technical Specifications: Tolerances and Adhesion

Selecting the correctcover capsdepends strictly on the type of connecting hardware and the hole diameter. Two standard sizes have established themselves in cabinetmaking, covering virtually all typical assembly needs.

Diameter 9/16 in (14 mm)

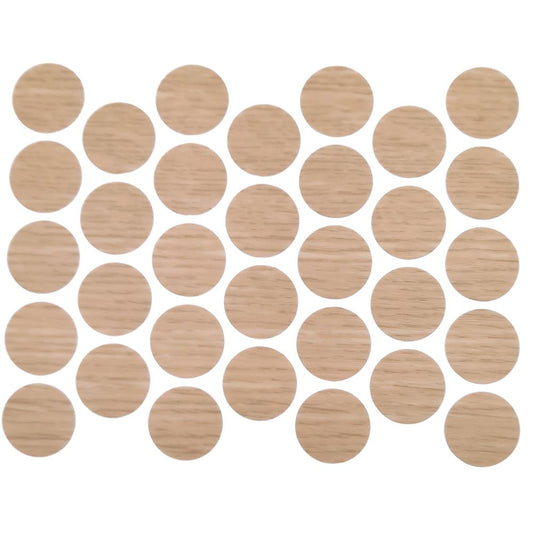

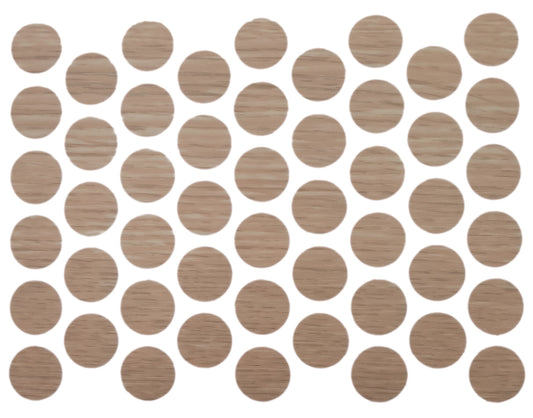

Caps with a 9/16 in (14 mm) diameter are the standard choice for classic wood and particleboard screws. When countersunk screws with a thread diameter of 1/8 in to 3/16 in (3.5 mm to 4.5 mm) are used for cabinet assembly, the screw head typically measures between 1/4 in and 3/8 in (7 mm and 9 mm). A 9/16 in (14 mm) cap provides enough margin to fully cover the edges of the countersink and ensure a strong adhesive bond on clean substrate material. The right pick for light natural tones:Self-Adhesive Screw Cover Caps - Natural Oak 9/16 in (14 mm).

Diameter 23/32 in (18 mm)

Caps with a 23/32 in (18 mm) diameter are designed for larger structural drillings. This primarily applies to cam lock housing units (Minifix systems) that require a standard 19/32 in (15 mm) pocket hole. These 23/32 in (18 mm) caps also provide necessary coverage for unused cup hinge holes (typically 1-3/8 in (35 mm), which require custom sizes) or large pass-through holes for machine bolts in the M6 to M8 range. Example for textured surfaces:Self-Adhesive Screw Cover Caps - Ribbed Oak 23/32 in (18 mm).

Material Construction and Adhesive Chemistry

These caps feature an ultra-thin profile of just 0.012 in to 0.018 in (0.3 mm to 0.45 mm). This extremely flat design ensures thefurniture hole coverdoes not stick out or feel like a raised obstacle on the panel surface. The backside is coated with a modified acrylic pressure-sensitive adhesive. Under steady pressure, the acrylic adhesive acts like a microscopic hook-and-loop system, interlocking firmly with the microporous structure of the melamine foil. These adhesives offer high initial tack and exceptional resistance to aging, ensuring the oak cover caps will not peel over time due to substrate shrinkage or ambient temperature shifts.

Grain and Finish Matching: Oak Options for Fine Furniture

The main challenge when choosingwood oak cover capsis matching the panel finish precisely. Major board manufacturers (like Egger or Kronospan) offer hundreds of oak finishes that vary in color saturation, grain pattern, and pore structure. Any mismatch between the cap and the board surface instantly breaks the visual illusion.

Sonoma Oak

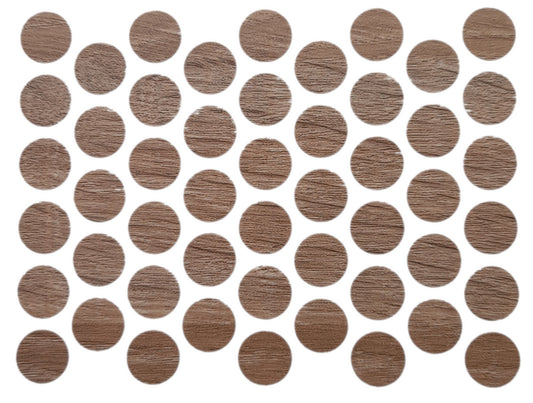

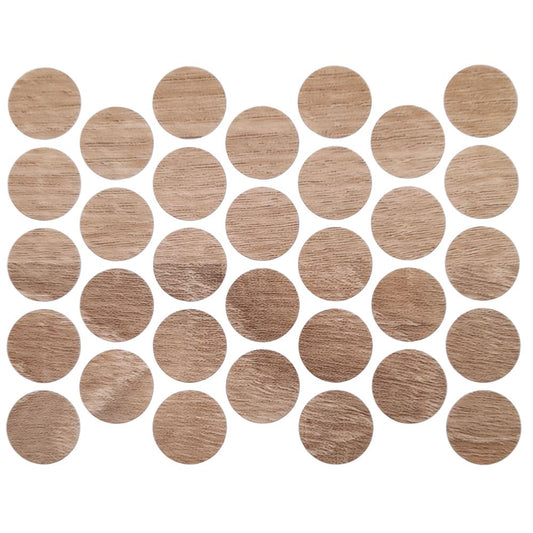

Sonoma Oak features a light, slightly grayish base tone with distinct, saw-cut cross-grain marks. It is one of the most popular finishes for modern bedroom and living room furniture. When assembling a Sonoma Oak dresser, an exact color match is essential to make hardware connectors on visible side panels disappear. For drawer slide installations inside a 4-drawer Sonoma Oak dresser or a 6-drawer Sonoma Oak dresser, the 9/16 in (14 mm) options are standard:Self-Adhesive Screw Cover Caps - Sonoma Oak 9/16 in (14 mm).

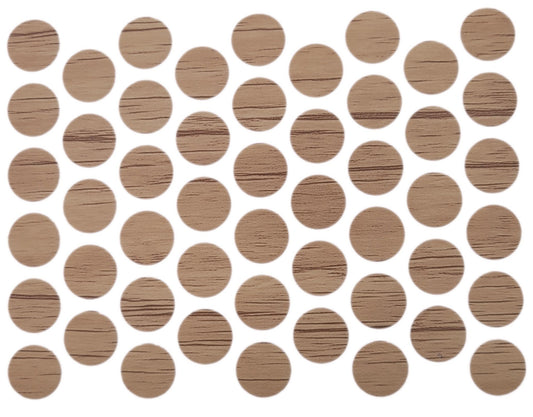

Wotan Oak and Nebraska Oak

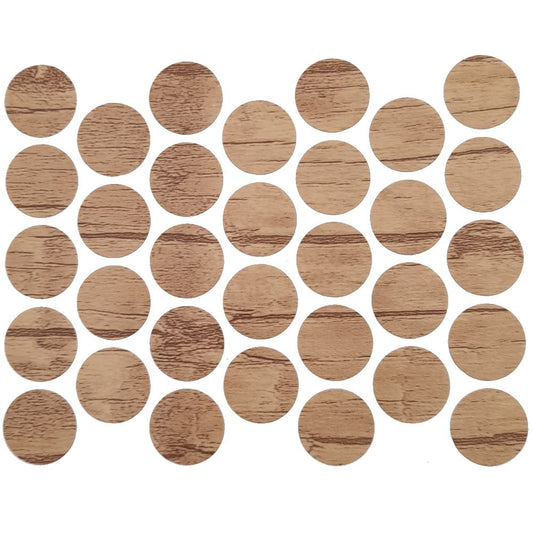

In contrast to the cool Sonoma look, Wotan Oak and Nebraska Oak feature a significantly warmer, honey-toned base with prominent dark cracks and knots. This rustic aesthetic is frequently used in heavy-look box furniture. When building aWotan Oak dresseror constructing open shelving, the caps must mirror these warm tones accurately. For larger connectors, we recommendSelf-Adhesive Screw Cover Caps - Nebraska Oak 23/32 in (18 mm).

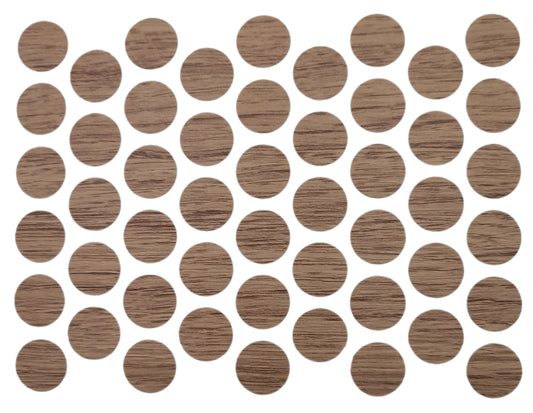

Halifax Oak and Artisan Oak

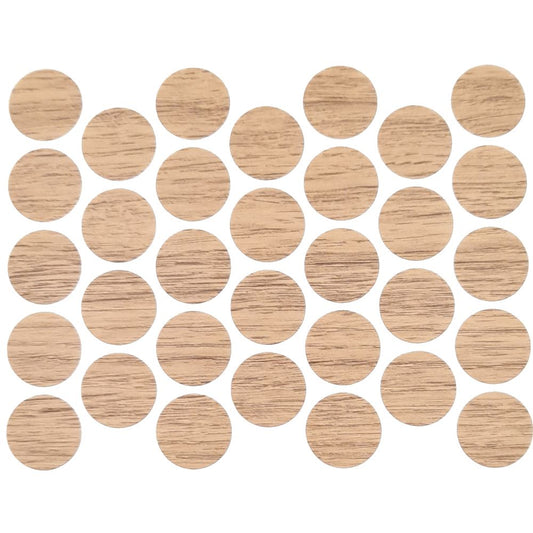

These woodgrains replicate deep pores and natural split cracks with synchronized textured surfaces. They are widely used in premium kitchen cabinets and custom interiors, such as an Artisan Oak wardrobe or a modernoak wall unit. Matching options like theSelf-Adhesive Screw Cover Caps - Halifax Oak 23/32 in (18 mm)feature a lively print design that mimics the dark, realistic grain splits of the panel finish.

Specialized Tones: From Chamonix to Cremona

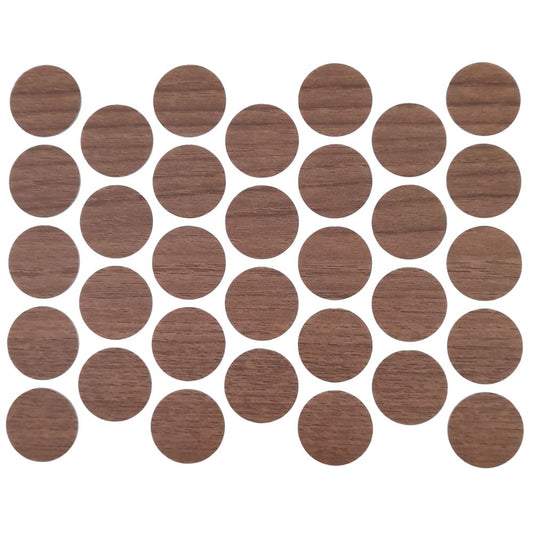

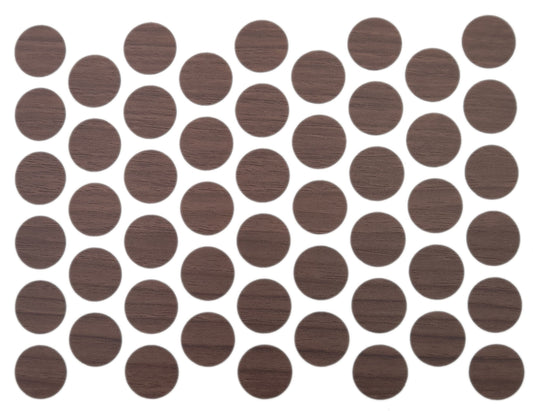

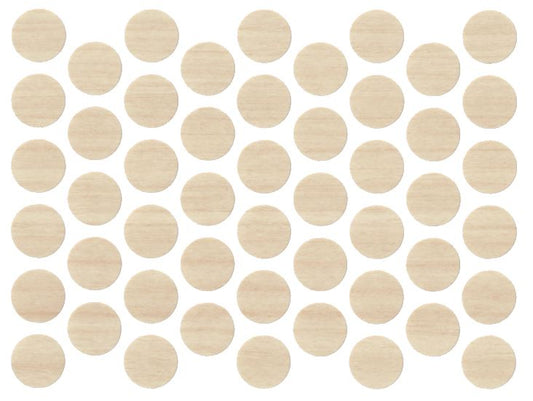

For specialized furniture lines, precise shade variations are available. TheSelf-Adhesive Screw Cover Caps - Chamonix Oak 9/16 in (14 mm)fit very light, almost whitish oak finishes, while options like theSelf-Adhesive Cover Caps - Cremona Sandy Oak 9/16 in (14 mm)are engineered for sandy, muted wood grains without heavy knot inclusions.

Professional Installation of Self-Adhesive Cover Caps

Installing aself-adhesive wood screw coverproperly requires following basic surface preparation standards. Improper application inevitably leads to edge lifting or complete adhesive failure.

1. Countersink the Hardware:The screw head or cam lock connector must sit completely flush or slightly recessed (approx. 0.02 in to 0.04 in (0.5 mm to 1.0 mm)) into the substrate. A protruding screw head causes tension in the center of the cap, lifting its edges off the panel.
2. Surface Preparation:The area around the hole must be entirely clean, dry, and free of dust or grease. Sawdust sitting on the melamine surface immediately destroys the acrylic adhesive's tack. Wiping the surface with a dry, lint-free cloth is mandatory. On oiled or waxed solid wood veneers, degrease the spot with a mild solvent (such as isopropyl alcohol) beforehand, as adhesives cannot bond to oily surfaces.
3. Temperature:The ideal application temperature for both the panel and adhesive pad is between 64°F and 77°F (18°C and 25°C). At temperatures below 59°F (15°C), the adhesive loses flexibility (tack), severely reducing initial adhesion.
4. Application and Pressure:Remove the cap from the sheet using a backing film or utility knife edge (avoid touching the adhesive side with your fingers) and center it over the hole. Apply firm, targeted pressure (e.g., with your thumb or a smooth plastic squeegee) for roughly 3 to 5 seconds.
5. Curing Time:The acrylic adhesive requires approximately 24 hours to reach its maximum bond strength (cohesion). Avoid heavy mechanical friction on fresh caps during this curing window.

Applications in Cabinetry and Furniture Assembly

Self-adhesive oak cover caps are ideal anywhere assembly holes disrupt the visual flow of a piece. The choice of finish pattern and cap diameter depends on the specific application.

• Case Goods and Wardrobes:When assembling an oak wardrobe or a Sonoma oak wardrobe, cabinet panels are often joined using Confirmat screws (direct connecting screws) or cam lock systems. Exposed fasteners on side panels or visible interior sections require clean coverage, where 23/32 in (18 mm) caps are most commonly specified.
• Living Room and Entertainment Centers:An oak TV stand or oak sideboard frequently features open compartments for media equipment. Any unused 32 mm system shelf support holes can be covered with9/16 in (14 mm) diameter cover capsto create a smooth, uninterrupted wood look.
• Desks and Seating:On an oak desk, screw heads are often located along support aprons or inner leg panels. Underneath seating frame construction, such as on anoak dining chair, deep screw pockets are covered with matching caps to prevent clothing from snagging on rough hole edges.

Comparison with Alternative Hole-Covering Systems

In addition to self-adhesive oak cover caps, plastic plug caps with press-fit stems are common hardware options. Stem plugs require an exact fit to the drilled hole diameter (e.g., exactly 0.2 in (5 mm) for system holes or specific drive recesses on screws). Due to their design, they sit higher off the surface (typically 0.06 in to 0.08 in (1.5 mm to 2.0 mm) thick at the head), making them tactilely noticeable.

Self-adhesiveoak cover capsoffer complete versatility: they work regardless of the hole's exact internal diameter or the screw drive type (PZ, PH, or Torx), provided the cap diameter overlaps the hole margin sufficiently. Furthermore, they maintain a much lower profile.

For furniture built from solid-color melamine boards or featuring color-accented panels, matching solid-tone alternatives are available built on the same pressure-sensitive system:

• Self-adhesive white cover capsfor standard white cabinet boxes.
• Self-adhesive black cover capsfor dark furniture or modern industrial designs.
• Self-adhesive gray cover capsandself-adhesive brown cover capsfor neutral, blended tones.

Frequently Asked Questions (FAQ): Oak Screw Cover Caps

When should I use 9/16 in (14 mm) vs. 23/32 in (18 mm) cover caps?The diameter of theself-adhesive cover capshould overlap the edge of the hole by at least 0.08 in to 0.12 in (2 mm to 3 mm) all around to ensure adequate surface contact. For standard countersunk screws (PZ2 or TX20 drives, head diameter approx. 1/4 in to 5/16 in (7–8 mm)) and 0.2 in (5 mm) shelf pin holes,9/16 in (14 mm) cover capsare the ideal size. For 19/32 in (15 mm) cam lock housings, wide washers, or threaded insert nuts, step up to23/32 in (18 mm) cover caps.

Do self-adhesive caps stick to real solid oak?Yes, these caps adhere well to solid wood and natural wood veneers, provided the surface is sanded smooth, dust-free, and sealed or lacquered. On raw oiled or waxed surfaces, surface tension is too low for strong adhesion; the spot must be locally degreased first. Keep in mind that the grain pattern printed on the cap is static, so it will not adapt dynamically to the natural grain variations of solid wood.

Can self-adhesive cover caps be reused?No. The acrylic adhesive is formulated for a permanent single-use bond. Peeling ascrew hole stickeroff damages the adhesive layer, causing it to lose its stickiness. Additionally, removing the thin backing material usually bends or creases the pad permanently. If you disassemble your furniture, simply replace old caps with fresh ones.

How do I remove old, firmly bonded adhesive caps?To avoid damaging delicate melamine panel surfaces, warm the cap briefly using a heat gun or hairdryer on a low setting (max. 120°F to 140°F (50°C to 60°C)). This softens the acrylic binder. Then, gently lift and peel the cap away using a flat plastic putty knife (never use a metal screwdriver!). Any residual adhesive wipes away easily with isopropyl alcohol or a mild label remover.

Which screw head types fit best under these caps?To achieve a flat, invisible surface with anoak cover plate, countersunk wood screws work best—provided the screw pocket has been properly countersunk. If using pan-head or truss-head screws, recess the hardware with a Forstner bit so the head sits below the face; otherwise, the cap will stretch over the raised screw, create a visible bump, and peel at the edges over time.
