Short Furniture Legs

4 in (10 cm) short furniture legsare load-bearing structural components that position a cabinet or furniture frame exactly 4 in (100 mm) above floor level. In furniture construction and interior cabinetry, this dimension represents an established standard. A floor clearance of 4 in (10 cm) serves several technical and functional purposes: it defines the exact working height of kitchen base cabinets, enables easy clearance for modern robotic vacuum cleaners, and protects substrate materials (such asparticle boardorMDF) from rising floor moisture.

When planning a piece of furniture or retrofitting existing cabinets, choosing the right leg is critical to structural integrity. A perfectly leveled cabinet is the foundation of custom cabinetry; much like a car's suspension, it determines whether doors close flush or hinges groan under strain. If the cabinet warps by even a few millimeters due to an uneven floor, shear forces transfer directly to the concealed European hinges, leading to uneven gaps and dragging door fronts.

Dimensions and Application: The Function of 4 in (100 mm) Floor Clearance

The decision to installshort furniture legswith an exact height of 4 in (10 cm / 100 mm) is typically made for specific space planning requirements. This dimension has proven to be an optimal compromise between stability, ergonomics, and accessibility across various living areas.

Robot Vacuums and Floor Care

One of the most common reasons for mounting 4 in (10 cm) high legs is automated floor cleaning. Standard robot vacuums with laser navigation typically feature a profile height of 3-3/8 in to 3-3/4 in (85 mm to 95 mm). If a sofa or sideboard rests flat on the floor or only uses 1-3/16 in (3 cm) floor glides, dust collects underneath that is nearly impossible to reach manually. With4 in (10 cm) short furniture legs, the space underneath becomes fully accessible. The vacuum can navigate without collision or getting caught on the bottom panel of the cabinet base.

Ergonomics in Kitchens and Bathrooms

In kitchen cabinet construction, a 4 in (100 mm) base leg is an absolute industry standard. The total working height of a kitchen counter consists of the base cabinet height (often 28-3/8 in / 72 cm), countertop thickness (e.g., 1-1/2 in or 1-9/16 in / 38 mm or 40 mm), and the base leg. With 4 in (10 cm) legs, you achieve an ergonomic standard height of nearly 33-7/8 in (86 cm). In the bathroom, 4 in (10 cm) legs under vanity cabinets reliably protect melamine-coated wood from water splashes and standing moisture after mopping.

Air Circulation and Mold Prevention

Proper rear ventilation is essential, especially for heavy, solid wardrobes placed against exterior walls.4 in (10 cm) cabinet legsraise the massive furniture block, allowing continuous air circulation beneath the base panel. This prevents condensation buildup and provides long-term protection against mold formation on both wall and furniture surfaces.

Material and Load Capacity: Choosing the Right Construction

The static load applied to a furniture leg varies dramatically depending on the piece. A lightweight nightstand has vastly different requirements than a three-door solid wood wardrobe or a fully loaded kitchen island.

Metal Legs for High Static Loads

For heavy case goods, sofas, or beds, metalshort furniture legsare the safest technical choice. Materials such as steel or aluminum deliver extremely high torsional rigidity. Depending on wall tube thickness and mounting plate design, a heavy-duty metal leg can support point loads ranging from 110 lbs to over 330 lbs (50 kg to over 150 kg) per piece. For example, if you are looking for4 in (10 cm) bed legs, they must support not only the static weight of the bed frame and mattress, but also dynamic live loads. Welded steel constructions excel here through sheer mass and stability.

Plastic Legs for Concealed Installation

In kitchen toe kicks, plasticshort furniture legsare used almost exclusively. These legs are lightweight, impervious to moisture, and clip directly onto the front toe kick panel via specialized clip systems. Because six, eight, or more legs are often installed under a kitchen run, the total load of cabinets and countertops is evenly distributed across the plastic supports.

Profile Shapes: Square vs. Round

The geometric shape of the leg influences not only the visual aesthetic, but also the contact surface area.

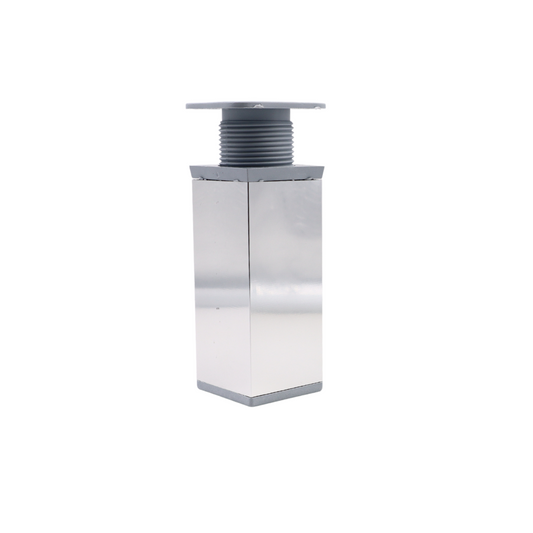

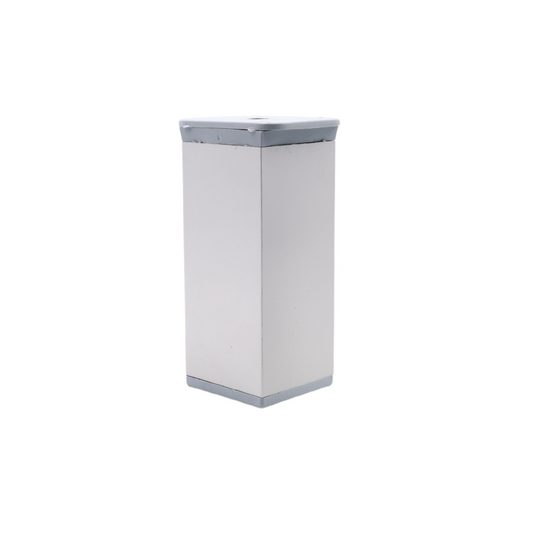

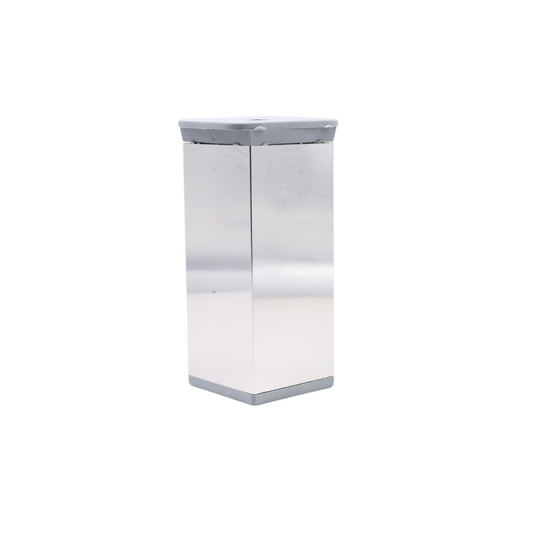

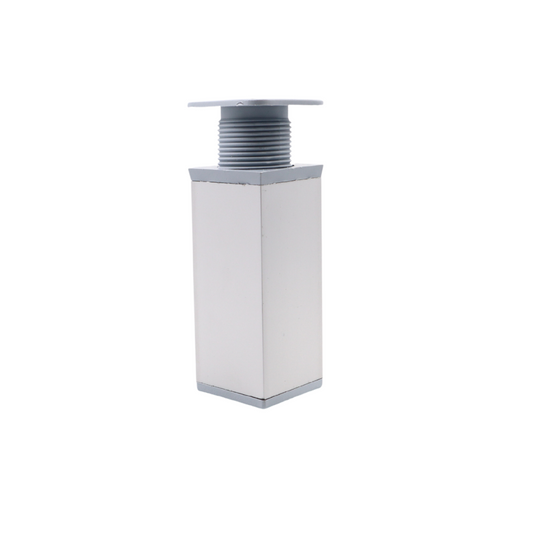

• Square Profiles(e.g., 1-9/16 x 1-9/16 in / 40x40 mm or 1 x 1 in / 25x25 mm) offer clean, angular lines that pair exceptionally well with modern, handleless furniture. A 1-9/16 x 1-9/16 in (40x40 mm) leg also provides a wide footprint, reducing surface pressure on softer flooring like vinyl or linoleum. Matching models can be found in ourSquare Metal Short Furniture Legscategory.
• Round Profiles(e.g., 1-3/16 in / Ø 30 mm or 2 in / Ø 50 mm) create a more delicate look, making them ideal for freestanding pieces such as armchairs, sofas, or coffee tables.

Height Adjustment: Leveling Uneven Floors

No floor is perfectly level. Even in new construction, concrete slab and subfloor tolerances exist. When a rigid leg sits on an uneven surface, the furniture begins to wobble. This is where adjustableshort furniture legsbecome indispensable.

Anadjustable 4 in (10 cm) short furniture legfeatures a threaded insert at the base (typically with anM8orM10thread) and a rotatable floor glide. By threading this glide in or out, the exact leg height can be adjusted continuously. The typical adjustment range for a 4 in (100 mm) leg is +5/8 in to +3/4 in (+15 mm to +20 mm), meaning you can extend the leg to a maximum height of 4-1/2 in or 4-3/4 in (115 mm or 120 mm).

Important assembly tip:Always plan base height so that adjustment is only needed upward. As a rule, a 4 in (10 cm) leg cannot be shortened to 3-1/2 in (9 cm), only extended. Always use a spirit level when plumbing a cabinet. Start at the highest point of the floor with the leg fully retracted, then adjust remaining legs until the cabinet frame is perfectly level and plumb.

Installation and Fastening Technology

Proper leg installation is essential to the stability of the entire piece. Even the strongest metal leg fails if anchored with incorrect screws or positioned poorly on the bottom panel.

The Mounting Plate

Most short furniture legs feature a permanently welded or bolted mounting plate at the top. This plate is typically square (e.g., 2-3/8 x 2-3/8 in / 60x60 mm) with four pre-drilled countersunk holes. These four attachment points evenly distribute leverage forces generated when moving furniture across the bottom panel.

Screw Selection and Pre-Drilling

When fastening into standard cabinet panels (particle board or MDF), use classic flat-headwood/chipboard screws. Pay close attention to panel thickness. For standard 5/8 in or 3/4 in (16 mm or 18 mm) panel bottoms, #6 x 5/8 in (3.5 x 15 mm) or #8 x 5/8 in (4.0 x 15 mm) screws are ideal. Screws that are too long will pierce through into the cabinet interior; screws that are too short will strip out under lateral force.

Use the matching driver bit—typicallyPZ (Pozidriv)orTX (Torx). A Torx drive provides optimal torque transfer without slipping or camming out and damaging the screw head.

DIY Tip:Mark hole centers through the mounting plate and pre-drill the material using a wood drill bit (e.g., 1/8 in / Ø 3 mm for a #8 / 4 mm screw) to a maximum depth of 3/8 in (10 mm). Pre-drilling prevents particle board splitting and ensures the screw drives in perfectly straight.

Cabinet Positioning

Never mount legs flush against the outer edge of furniture. For cabinets and sideboards, a setback of 5/8 in to 3/4 in (15 mm to 20 mm) from the outer edge is recommended. This conceals the mounting plate visually and prevents stubbing toes. For wider cabinets over 40 in (100 cm) wide, a center support leg is required to prevent sagging under load.

Featured Products for Your Project

Depending on the room and application, your project requires specific technical parameters. Here is an overview of suitable 4 in (100 mm) components from our lineup:

For Kitchen Cabinets and Concealed Toe Kicks:When installing kitchen runs, you need heavy-duty adjustable legs that hide behind a toe kick plinth.Adjustable Kitchen Base Legs 4 in (100mm) - Blackprovide high load capacity and precise adjustment for uneven floors.

For Modern Handleless Sideboards and Dressers:Exposed legs on living room furniture are a key design element. Square profiles accentuate clean, architectural lines. With theSquare Short Furniture Leg 1-9/16 x 1-9/16 in (40x40mm) - 4 in (100mm) - Black, you create bold industrial contrast against light wood finishes like Sonoma Oak. Alternatively, theSquare Short Furniture Leg 1 x 1 in (25x25mm) - 4 in (100mm) Satinprovides a slimmer, brushed stainless steel aesthetic.

For Wall Units and Bathroom Vanities:If visible legs need to remain subtle, tapered or chrome-plated options are ideal. TheAdjustable Tapered Short Furniture Leg 4 in (100mm) - Chrometapers toward the bottom to lighten the visual weight of heavy cabinets. For a classic cylindrical profile, theAdjustable Short Furniture Leg 4 in (100mm) - Satinfeatures a smudge-resistant matte surface.

Looking for dark accents for industrial or loft design? Explore ourBlack Short Furniture Legscategory. For high-gloss furniture surfaces, we recommend hardware from ourChrome Short Furniture Legssection.

Frequently Asked Questions (FAQ) About 4 in (10 cm) Short Furniture Legs

How many 4 in (10 cm) short furniture legs do I need for a 63 in (160 cm) wide cabinet?A cabinet of this width requires at least 6 legs. Mount four legs at the outer corners (with approx. 3/4 in / 20 mm setback) and two additional legs centered under the interior vertical divider. This prevents sagging in the base panel and safely transfers shelf loads.

Can I replace existing 3-1/8 in (8 cm) legs with 4 in (10 cm) legs?Yes, this is straightforward as long as the screw hole pattern aligns or you drill new pilot holes. Keep in mind that total furniture height will increase by 3/4 in (20 mm), which must be factored into alcoves or countertop heights.

Is 4 in (10 cm) floor clearance sufficient for my robot vacuum?In most cases, yes. Standard market robot vacuums range from 3-3/8 in to 3-3/4 in (85 mm to 95 mm) in height. With exactly 4 in (100 mm) clearance, the robot has sufficient room to maneuver. Check your device specifications to verify.

Do adjustable furniture legs support less weight than fixed legs?Threaded leveling mechanisms are mechanical components that can represent a weak point under extreme loads. However, for standard residential furniture (wardrobes, dressers, sofas), adjustable legs provide ample load capacity (often 110 lbs / 50 kg per leg). Only extend threads as far as needed; the further extended, the higher the leverage force under lateral loads.
