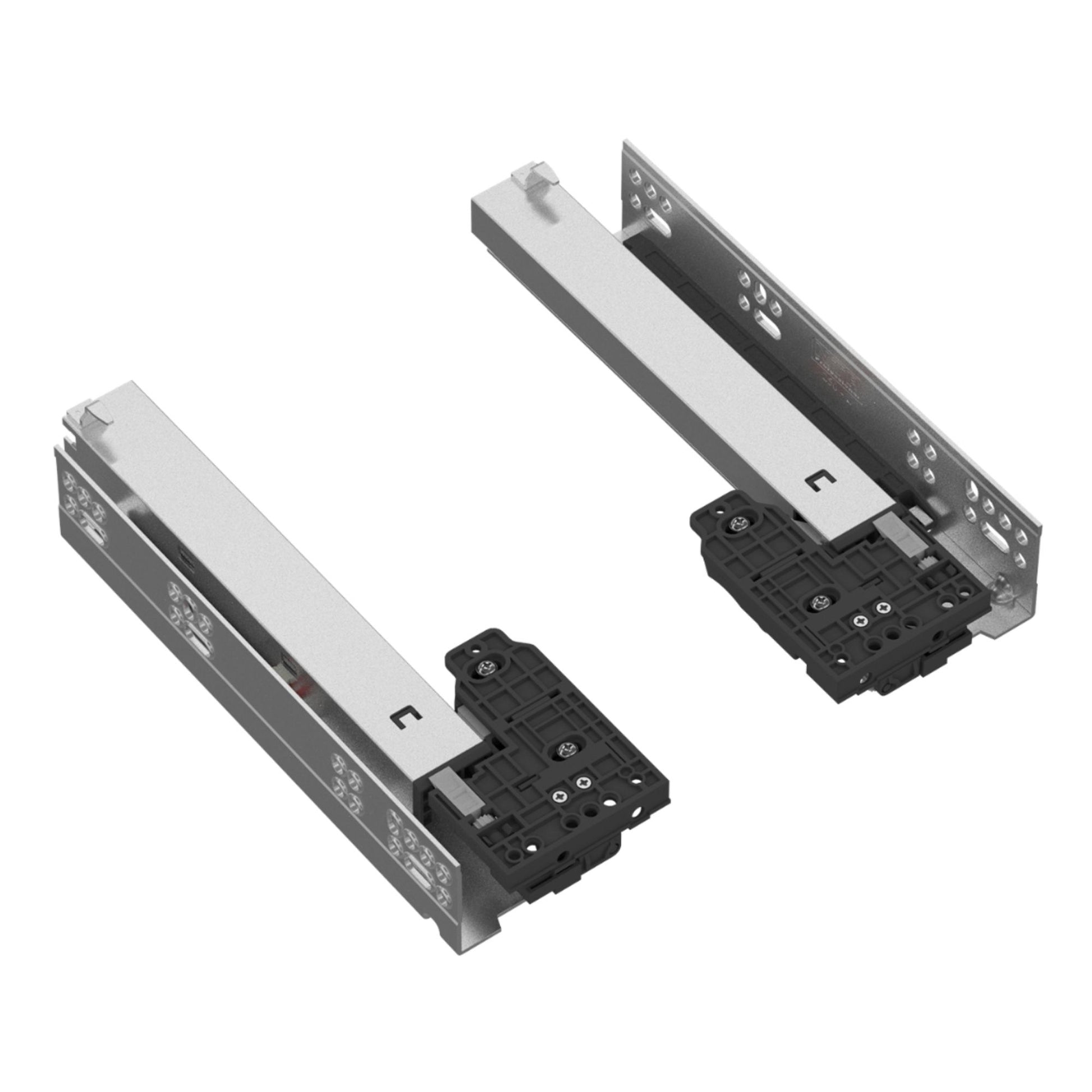

Soft-Close Undermount Slides (left and right), Full Extension - 10 inch

Soft-Close Undermount Slides (left and right), Full Extension - 10 inch

$18.32
$18.32
Estimated delivery time: 5-10 business days
Free shipping on $100+ orders
31 days for returns
Payment & security

Your payment information is processed securely.

Product details
Concealed Mounting · For wooden drawers up to 5/8 in (16 mm) side thickness

Soft-Close Undermount Drawer Slides, Full Extension 9-13/16 in - 23-5/8 in (250 mm - 600 mm)

These concealed undermount drawer slides offer full access to drawer contents and close quietly and smoothly thanks to the integrated soft-close system.

  • Full ExtensionYes
  • Additional MechanismSoft-Close System
  • Max Weight Load77 lbs (35 kg)
  • Max Drawer Side Thickness5/8 in (16 mm)
  • MaterialZinc-Coated Steel
Soft-Close Undermount Drawer Slides, Full Extension 9-13/16 in - 23-5/8 in (250 mm - 600 mm)
  • 23-5/8 in (600 mm)Length
  • 5/8 in (16 mm)Material Thickness

Up to 77 lbs (35 kg) Load Capacity and Concealed Undermount Installation

The zinc-coated steel undermount drawer slides run invisibly beneath the drawer bottom, providing complete access all the way to the back.

  • Integrated Cushioning: The soft-close mechanism gently and quietly pulls the drawer shut over the final few inches.

  • 100% Full Extension: Allows unrestricted access to all contents without annoying catching or jamming.

  • High Load Capacity: Rated for up to 77 lbs (35 kg), making these slides suitable for heavy drawers as well.

  • Precise 3D Adjustment: The adjustable plastic locking devices allow for exact fine-tuning of the door fronts.

Ideal for Kitchens, Dressers, and Home Furniture

  • KitchenPot and Dish Drawers

    Soft-closing action prevents contents from shifting, while full extension makes reaching items easy.

  • BedroomDressers and Nightstands

    Quiet closing eliminates harsh slamming sounds when opening or closing drawers at night.

  • Living AreaCredenzas and Cabinetry

    Concealed bottom mounting keeps all hardware completely hidden from view.

Installing the Undermount Drawer Slides

Includes 3D Adjustment Locking Devices
  1. 1

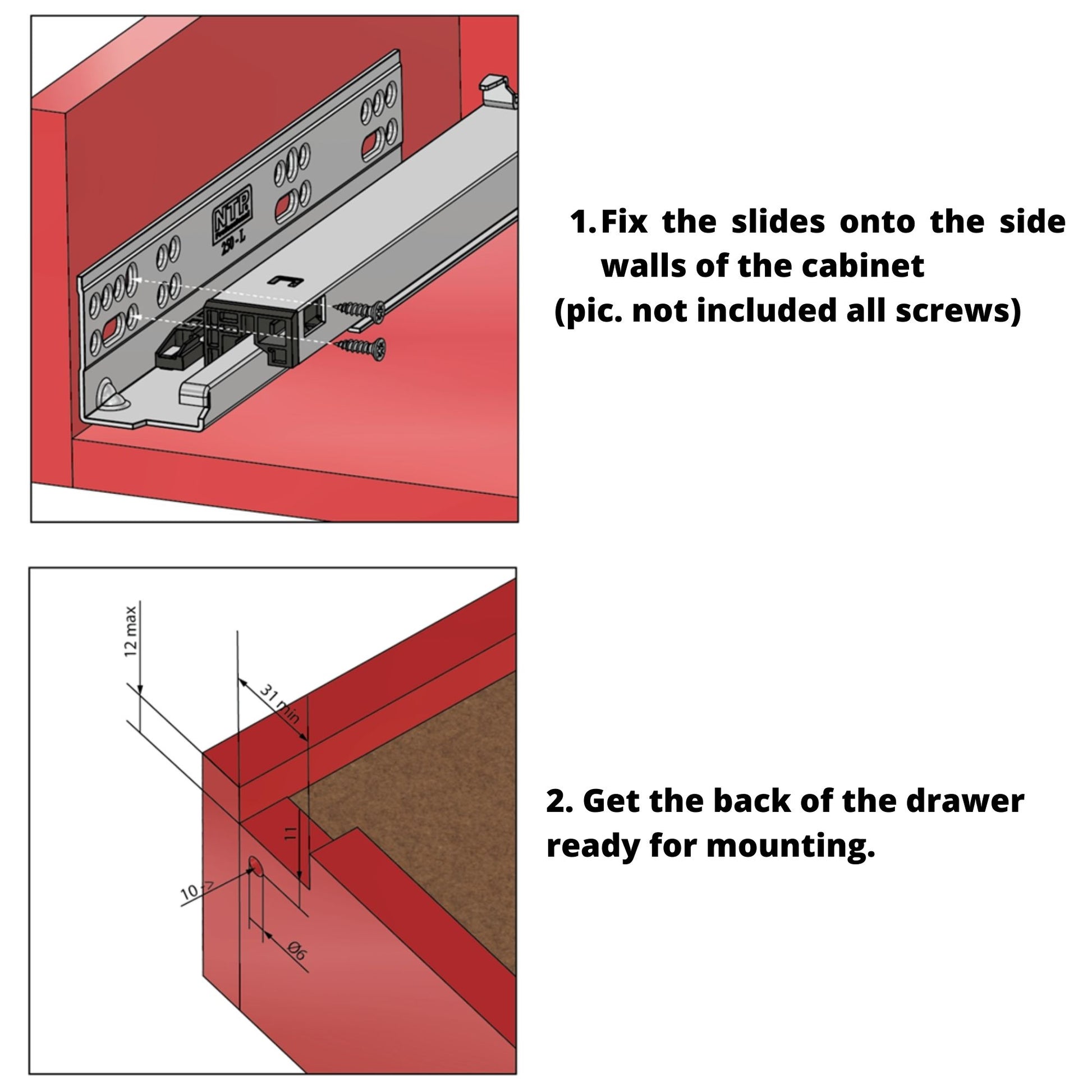

    Screw Slides to Cabinet Body

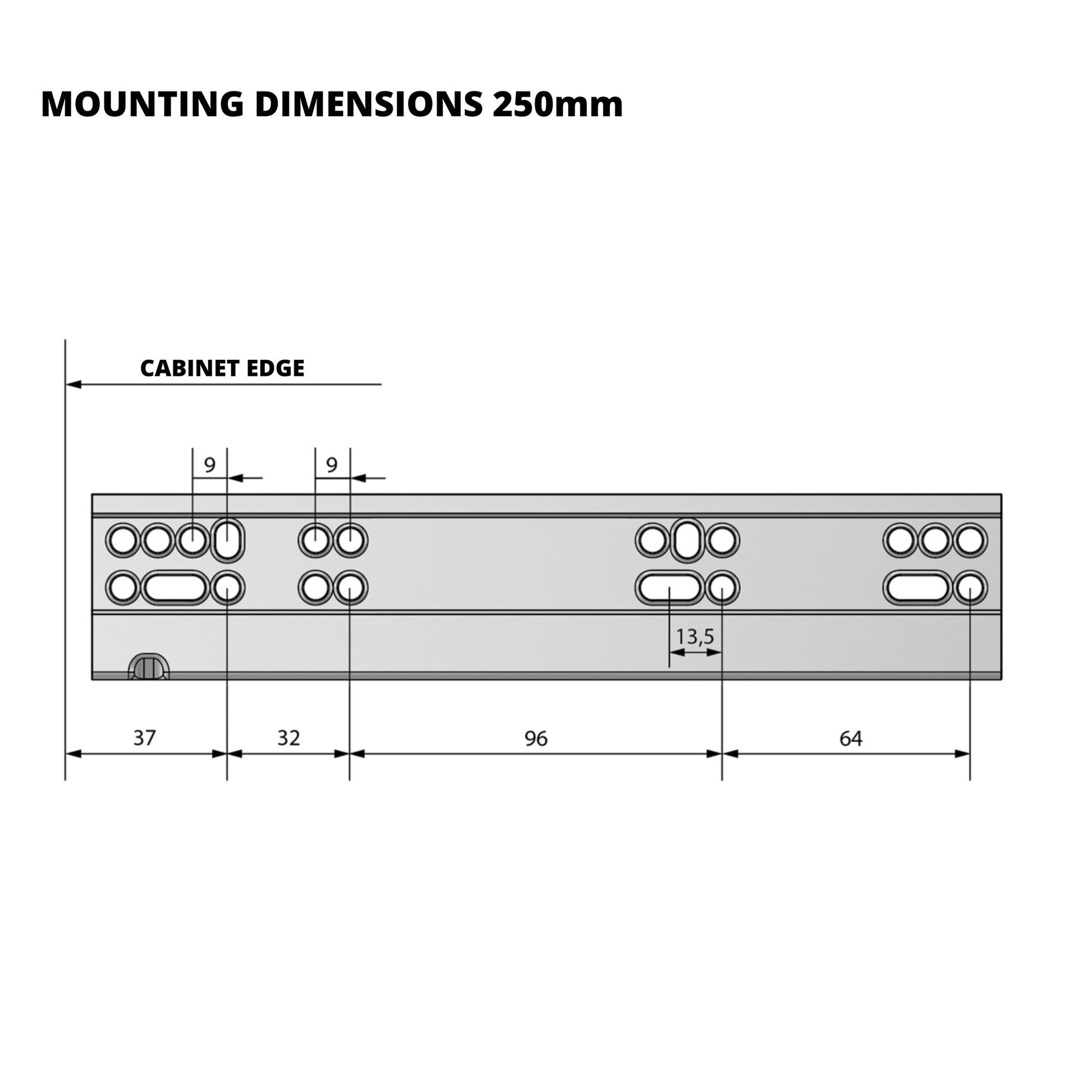

    Mount the slides horizontally to the inside walls of the cabinet body using the appropriate hole pattern.

  2. 2

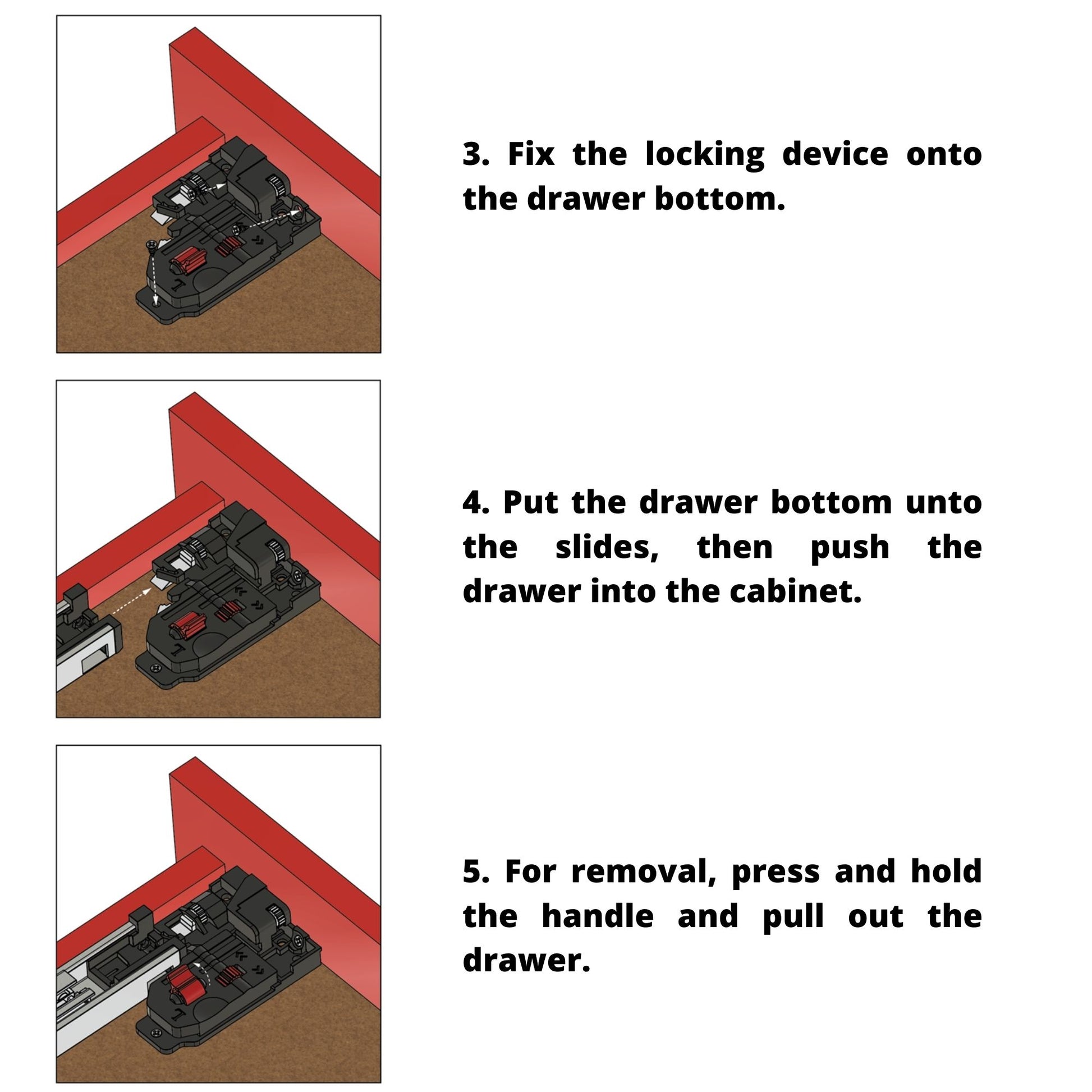

    Attach Locking Devices to Drawer Bottom

    Screw the plastic locking devices to the front underside of the drawer box.

  3. 3
    Place and Engage the Drawer

    Push the drawer box onto the slides until the locking clips audibly snap into place.

  4. 4

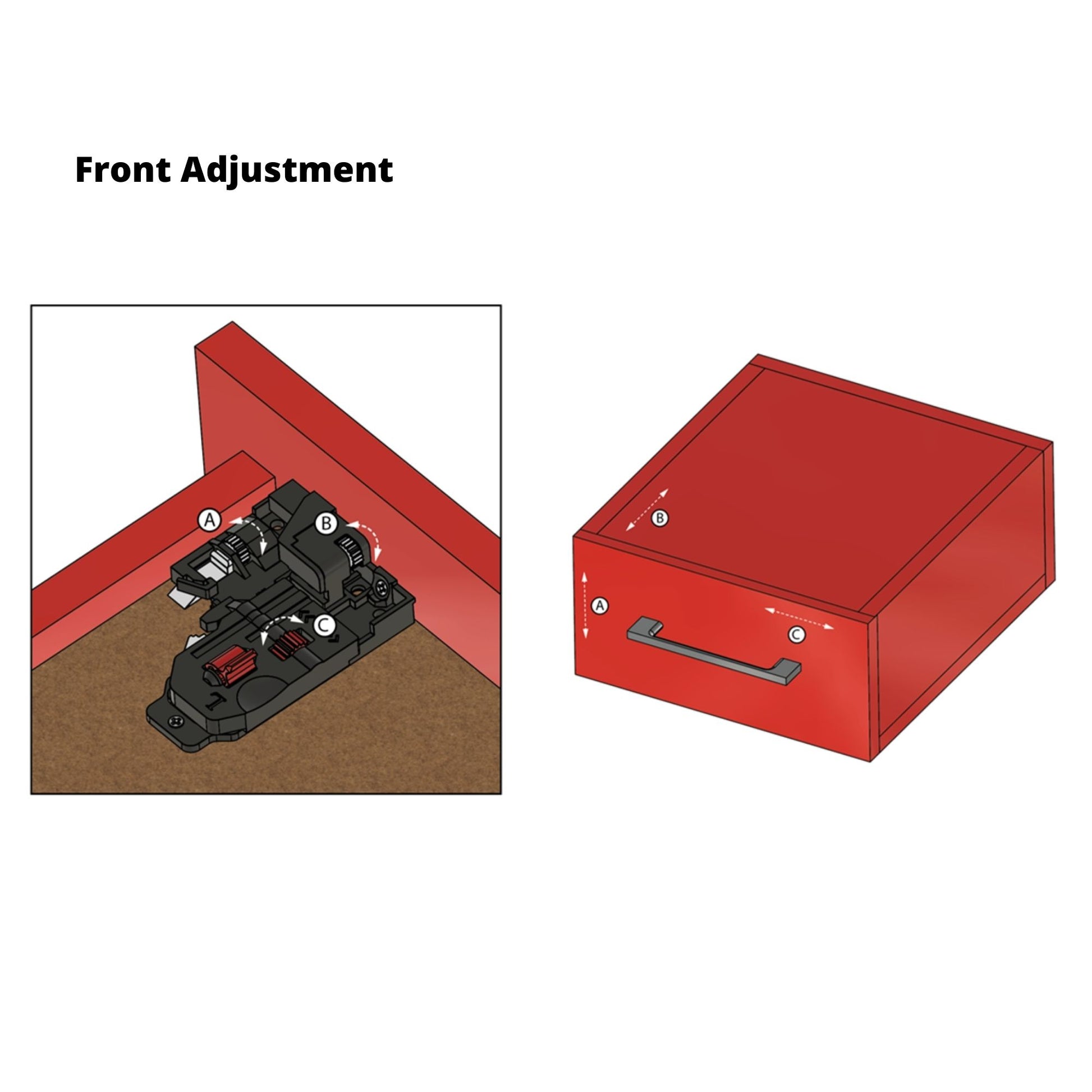

    Align the Door Front

    Use the 3D adjustment mechanism to fine-tune the front panel alignment laterally and vertically.

  • 5-10 business daysEstimated delivery time
  • Free shippingon orders $100+
  • 31 daysReturns & exchanges
  • PayPal · Shop PayCredit & debit cards

Technical data
EAN
5060685604141
SKU
PTPS-19S-250
