Product details
For 11/16 in (18 mm) Board Thickness · Pack of 100

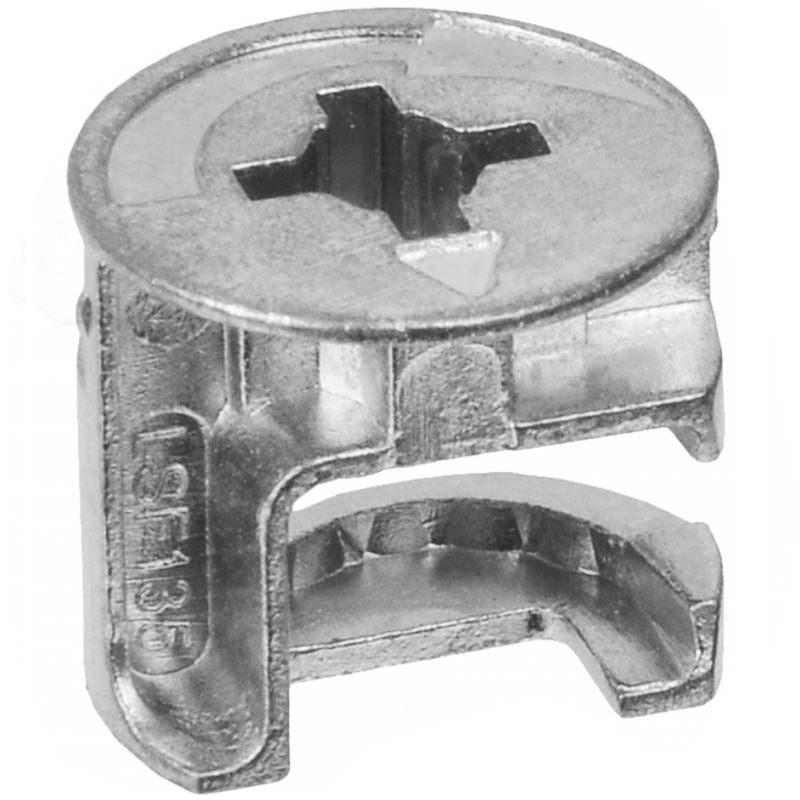

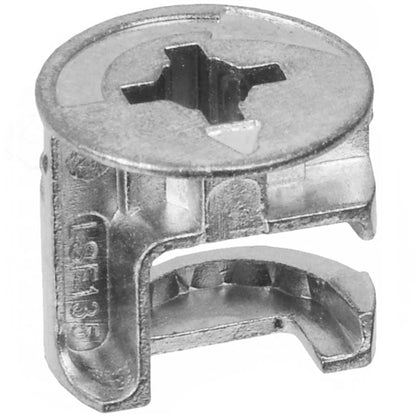

Furniture Cam Lock 9/16 in (15 mm), H=3/8 in (9.0 mm) - 100 pcs

These 9/16 in (15 mm) diameter and 3/8 in (9.0 mm) height cam locks enable concealed cabinet body connections. Specially designed for furniture boards with 11/16 in (18 mm) material thickness, this 100-piece pack ensures reliable holding power during furniture assembly.

  • Diameter9/16 in (15 mm)
  • Height3/8 in (9.0 mm)
  • Board Thickness11/16 in (18 mm)
  • Quantity100 pieces
  • MaterialZnAl
Furniture cam lock 9/16 in (15 mm), H=3/8 in (9.0 mm) - 100 pcs
  • 9/16 in (15)mm Diameter
  • 3/8 in (9.0)mm Height
  • 11/16 in (18)mm Board Thickness

9/16 in (15 mm) Cam Lock for 11/16 in (18 mm) Board Thickness

The 9/16 in (15 mm) diameter cam lock connects cabinet components seamlessly at right angles. The housing height of 3/8 in (9.0 mm) is precisely tailored for 11/16 in (18 mm) thick boards.

  • 9/16 in (15 mm) Bore Hole: Fits precisely into standard 9/16 in (15 mm) blind holes for housing fittings.

  • 3/8 in (9.0 mm) Height for 11/16 in (18 mm) Boards: Sized for 11/16 in (18 mm) furniture panels with zero risk of drilling through.

  • Durable ZnAl Alloy: Made from zinc-aluminum alloy to ensure dimensional stability when tightening with a screwdriver.

  • 100-Piece Bulk Pack: Provides an ample supply for building multiple cabinet bodies or modular shelving units.

Applications for 11/16 in (18 mm) Board Thickness

  • CabinetryCabinet Body Joinery

    Connects side panels securely and squarely to top and bottom panels.

  • ReplacementReplacing Damaged Hardware

    Replaces missing or worn cam lock fittings in existing furniture pieces.

  • WorkshopSeries Shelf Assembly

    With a pack size of 100 pieces, you have plenty of connectors ready for larger build projects.

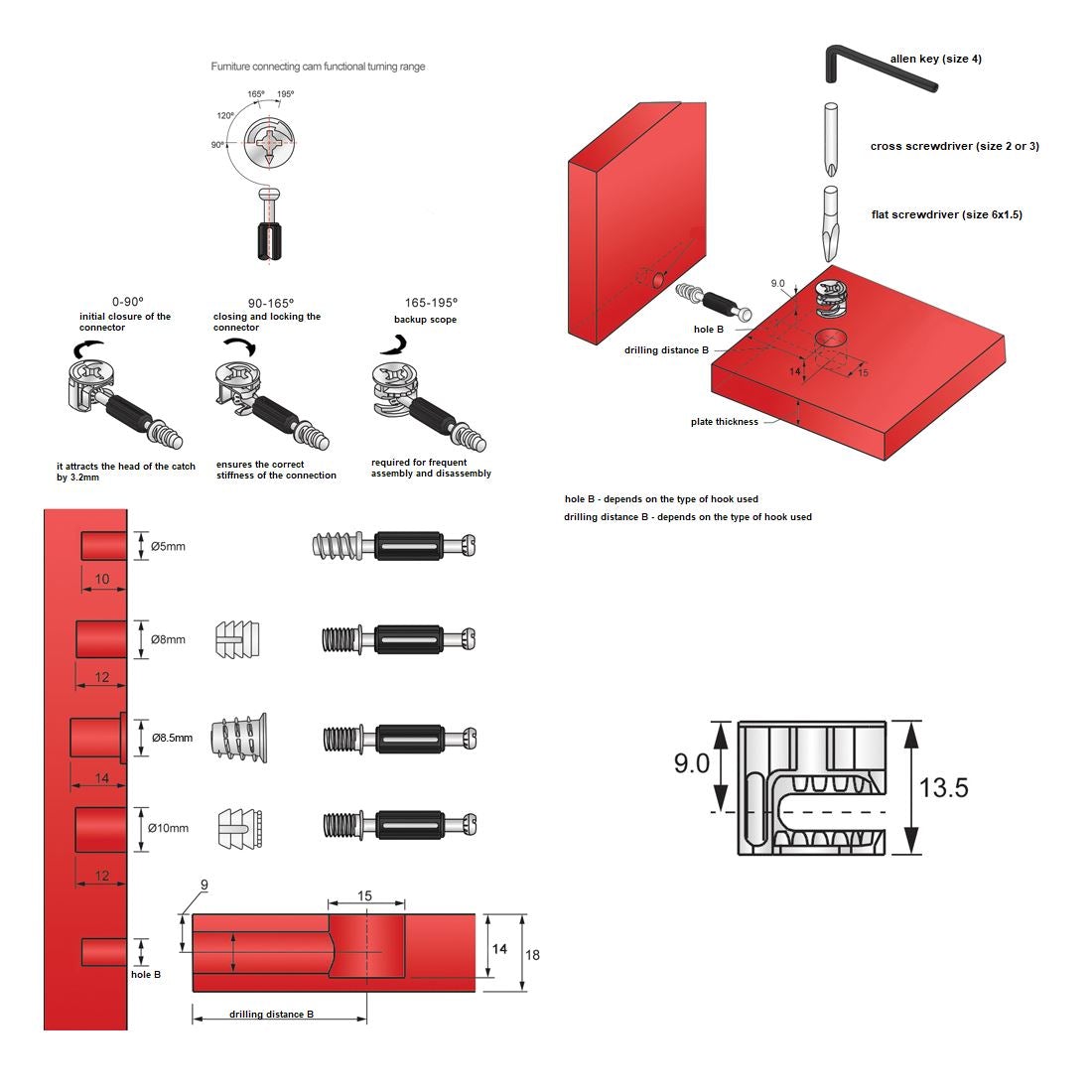

How to Install the Cam Lock

Requires a 9/16 in (15 mm) blind hole and a matching connecting dowel.
  1. 1
    Insert the Cam Housing

    Press the cam lock fitting into the pre-drilled 9/16 in (15 mm) hole in the furniture board.

  2. 2
    Join the Components

    Insert the connecting dowel from the adjoining panel into the side drill hole.

  3. 3
    Lock into Place

    Turn the housing clockwise with a screwdriver until the dowel is pulled tight and secured.

  • 5-10 business daysEstimated delivery time
  • Free shippingon orders $100+
  • 30 daysReturns & exchanges
  • PayPal · Shop PayCredit & debit cards

Technical data
Cam diameter
9/16 in (15 mm)
Color
Zinc
Diameter
9/16 in (15 mm)
Height
3/8 in (9.0 mm)
Material
Zinc alloy
Material thickness
11/16 in (18 mm)
Quantity
100 pcs
EAN
5060857455236
SKU
MM01-1518-G20/100-K
