Product details
ZnAl Cabinet Body Connectors · Pack of 100

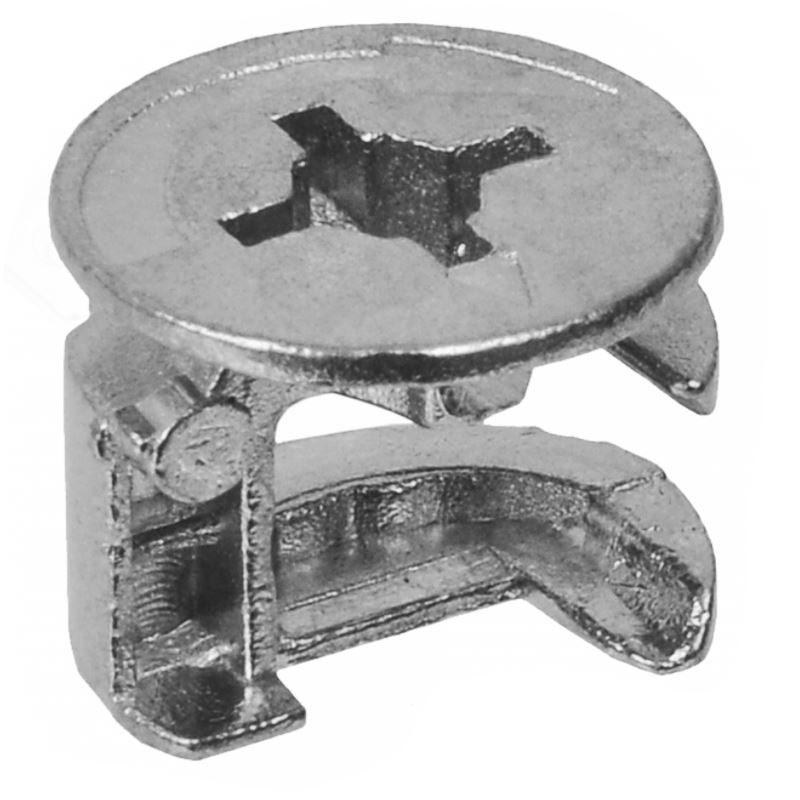

Cam Lock Fittings 9/16 in (15 mm), H=1/4 in (7.5 mm) - 100 pcs.

This cam lock fitting with a 9/16 in (15 mm) cam diameter and 1/4 in (7.5 mm) height is designed for concealed cabinet body connections in panel furniture. Made from a durable ZnAl zinc-aluminum alloy, it provides a form-fitting hold for board thicknesses starting at 9/16 in (15 mm).

  • Cam Diameter9/16 in (15 mm)
  • Height1/4 in (7.5 mm)
  • Board Thickness9/16 in (15 mm)
  • MaterialZnAl
  • Quantity100 pieces
Cam Lock Fittings 9/16 in (15 mm), H=1/4 in (7.5 mm) - 100 pcs.
  • 9/16 in(15 mm) Diameter
  • 1/4 in(7.5 mm) Height
  • 9/16 in(15 mm) Board Thickness

9/16 in (15 mm) Cam Diameter for Concealed Cabinet Connections

This ZnAl cam lock fitting enables invisible corner and T-joints in furniture construction. The housing sits flush in a 9/16 in (15 mm) routed hole and mechanically locks the connecting quickfit dowel into place.

  • Precise 9/16 in (15 mm) Hole Fit: Designed for standard cam housing routings, sitting perfectly flush with the panel surface.

  • Compact 1/4 in (7.5 mm) Height: Specially suited for shallow routing depths and components with board thicknesses starting at 9/16 in (15 mm).

  • Durable ZnAl Alloy: Die-cast zinc-aluminum construction offers high mechanical strength against pull-out under tensile load.

  • Bulk Pack of 100: Provides enough cam housings for series production, cabinet body assembly, or replacing damaged hardware.

Applications in Panel Furniture from 9/16 in (15 mm) Board Thickness

  • CabinetmakingWardrobe and Cabinet Body Assembly

    Creates stable corner joints between side panels and shelves without visible screw heads on outer surfaces.

  • RepairReplacing Damaged Hardware

    Fits existing standard 9/16 in (15 mm) diameter routings when replacing damaged cam lock housings.

  • WorkshopRTA Furniture Assembly

    Ideal for efficiently connecting pre-drilled, ready-to-assemble cabinet panels in woodworking.

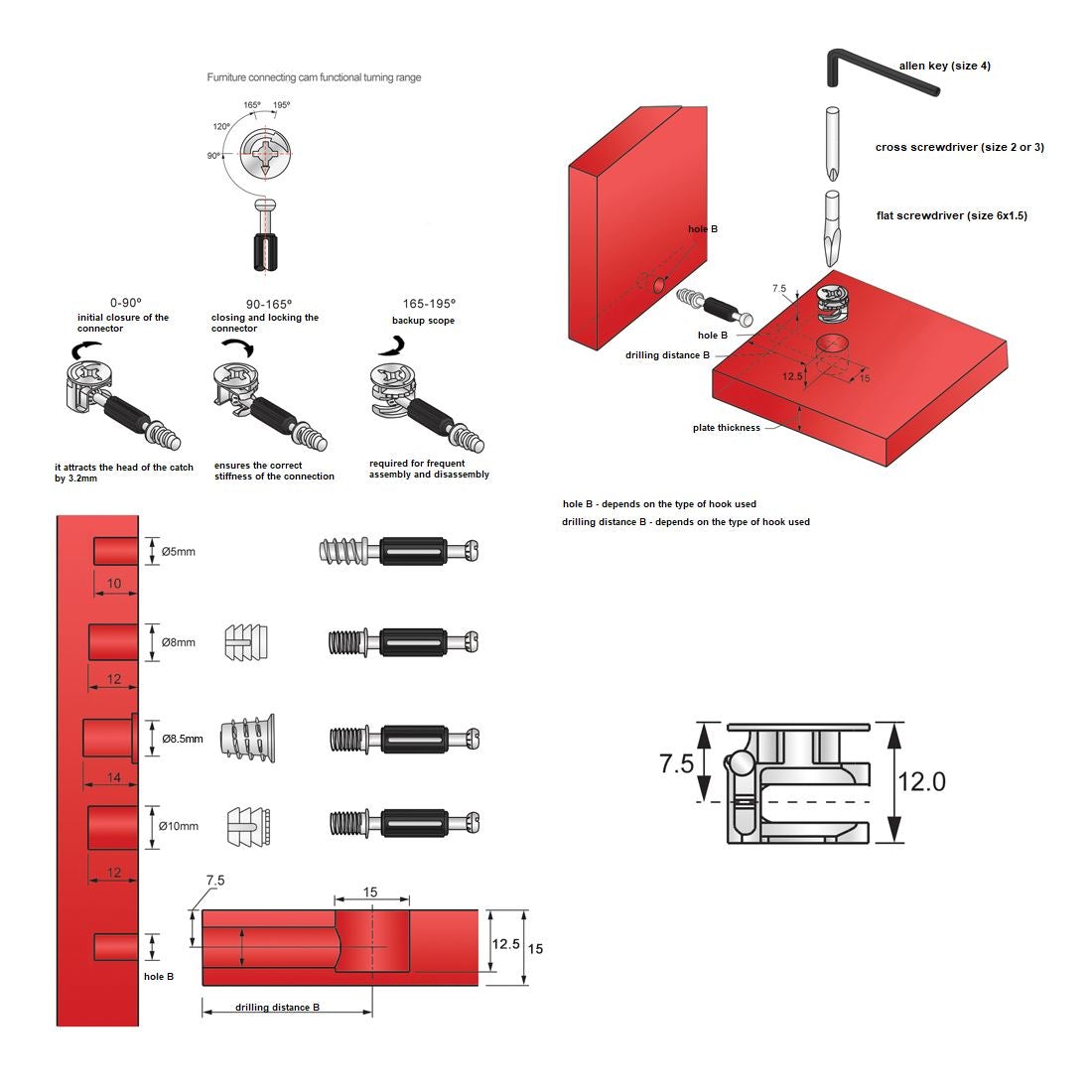

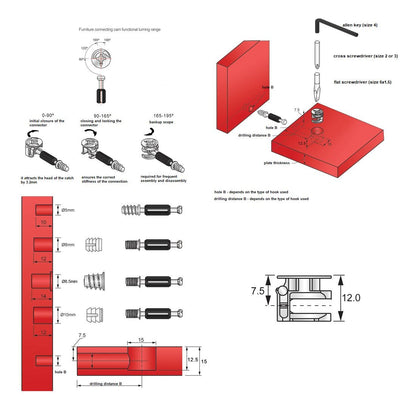

Installing the Cam Lock Fitting

100 furniture cam locks included
  1. 1
    Check the Hole

    Ensure the routed hole in the panel measures exactly 9/16 in (15 mm) in diameter and has adequate depth.

  2. 2
    Insert the Cam Lock

    Press or gently tap the ZnAl housing flush into the hole on the furniture panel.

  3. 3
    Lock the Dowel

    Firmly tighten the engaging connecting bolt by turning the cam lock clockwise.

  • 5-10 business daysEstimated delivery time
  • Free shippingon orders $100+
  • 30 daysReturns & exchanges
  • PayPal · Shop PayCredit & debit cards

Technical data
Cam diameter
9/16 in (15 mm)
Color
Zinc
Diameter
9/16 in (15 mm)
Height
5/16 in (7.5 mm)
Material
Zinc alloy
Material thickness
9/16 in (15 mm)
Quantity
100 pcs
EAN
5060857455229
SKU
MM01-1515-G20/100-K
