Product details
Made of nickel-plated steel · ±5/16 in (8 mm) adjustable

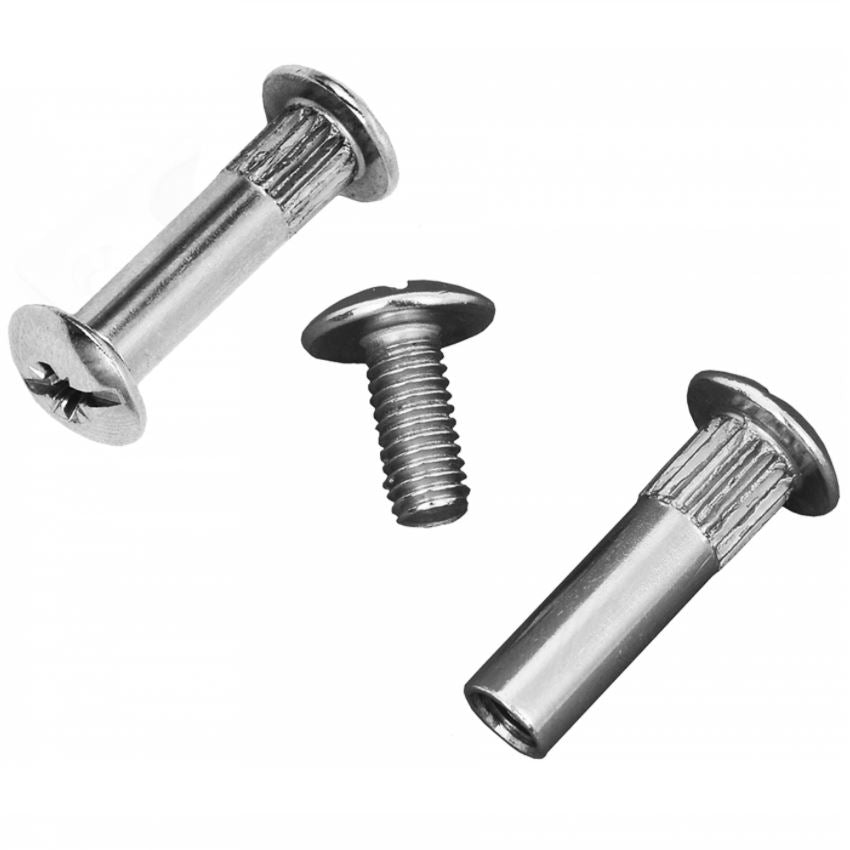

Barrel Nuts and Bolts 5/16 in (8 mm)

These barrel nuts and bolts are designed for connecting cabinet bodies and door fronts securely. Featuring a 5/16 in (8 mm) diameter and an adjustable length of ±5/16 in (8 mm), they allow you to easily compensate for assembly tolerances.

  • Bolt Diameter5/16 in (8 mm)
  • Adjustable Length±5/16 in (8 mm)
  • Connector Length1-1/8 in (28 mm)
  • MaterialNickel-plated steel
  • ColorNickel (G02)
Barrel Nuts and Bolts 5/16 in (8 mm)

Precise Cabinet Connection with 5/16 in (8 mm) Diameter

The 5/16 in (8 mm) barrel nut and bolt set creates a strong, permanent connection between cabinet bodies and fronts. Thanks to length adjustment, it accurately balances dimensional variations in panel materials.

  • Adjustable Length ±5/16 in (8 mm): Allows precise alignment of components and neutralizes material tolerances stress-free.

  • Diameter 5/16 in (8 mm): Fits standard 5/16 in (8 mm) system holes perfectly for a flush, rigid furniture connection.

  • Nickel-Plated Steel: Provides high mechanical strength and reliable protection against indoor corrosion.

  • Connector Length 1-1/8 in (28 mm): Ensures sufficient thread engagement and stability when pulling panel materials together.

Applications for 5/16 in (8 mm) Holes

  • CabinetmakingConnecting Cabinet Bodies

    Connects adjacent cabinet bodies flush and prevents shifting between units.

  • InstallationMounting Door Fronts

    Firmly secures overlay fronts and panels while length adjustment prevents tension.

  • RepairReplacing Loose Hardware

    Replaces damaged connector bolts in existing 5/16 in (8 mm) holes without re-drilling.

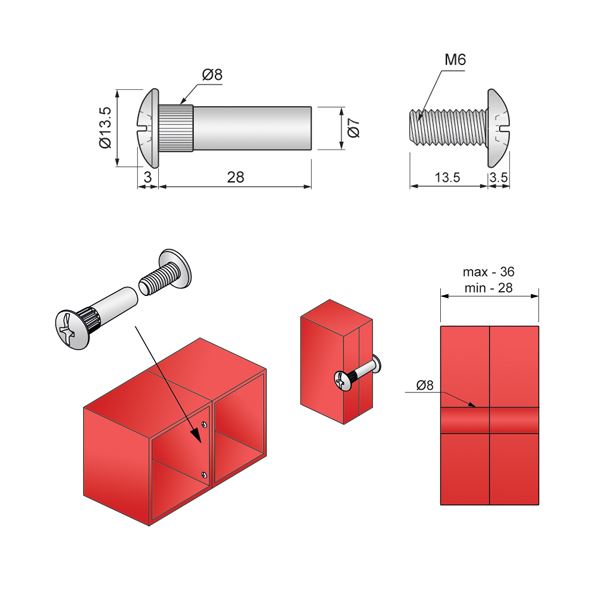

Installation in 3 Steps

Have a suitable screwdriver ready
  1. 1
    Check Hole

    Ensure both panel components have a matching through-hole of 5/16 in (8 mm).

  2. 2
    Insert Sleeve Nut

    Slide the sleeve nut through the aligned components from one side.

  3. 3
    Fasten Bolt

    Thread the bolt from the opposite side and adjust to the desired length.

  • 5-10 business daysEstimated delivery time
  • Free shippingon orders $100+
  • 31 daysReturns & exchanges
  • PayPal · Shop PayCredit & debit cards

Technical data
Adjustable length
±8 mm
Color
Nickel (G02)
Material
Nickel-plated steel
Plug length
28mm
Screw diameter
Ø8mm
EAN
5060685602482
SKU
ZL01-0828-G02
