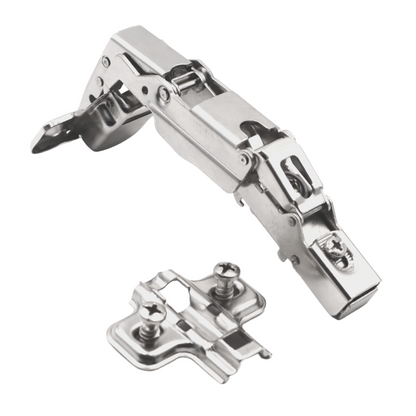

  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors (2) – Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors (3) – Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors (4) – Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors (5) – Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors Soft Close Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors Soft Close Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors Soft Close Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors Soft Close Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors Soft Close Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors Soft Close Furnica
  • 165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors Soft Close Furnica
1 12
Bestsellers

More Hinges

Top sellers in this category.

165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

165° Soft-Close Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

4.93 (1,491)
$5.22
$5.22
Buy at discounted prices!
Soft-close damping: Yes
Model: 165° 3D Soft-Close overlay doors
Estimated delivery time: 5-10 business days
Free shipping on $100+ orders
31 days for returns
Payment & security

Your payment information is processed securely.

Bestsellers

More Hinges

Top sellers in this category.

Product details
For overlay doors · Includes EURO screws & soft-close

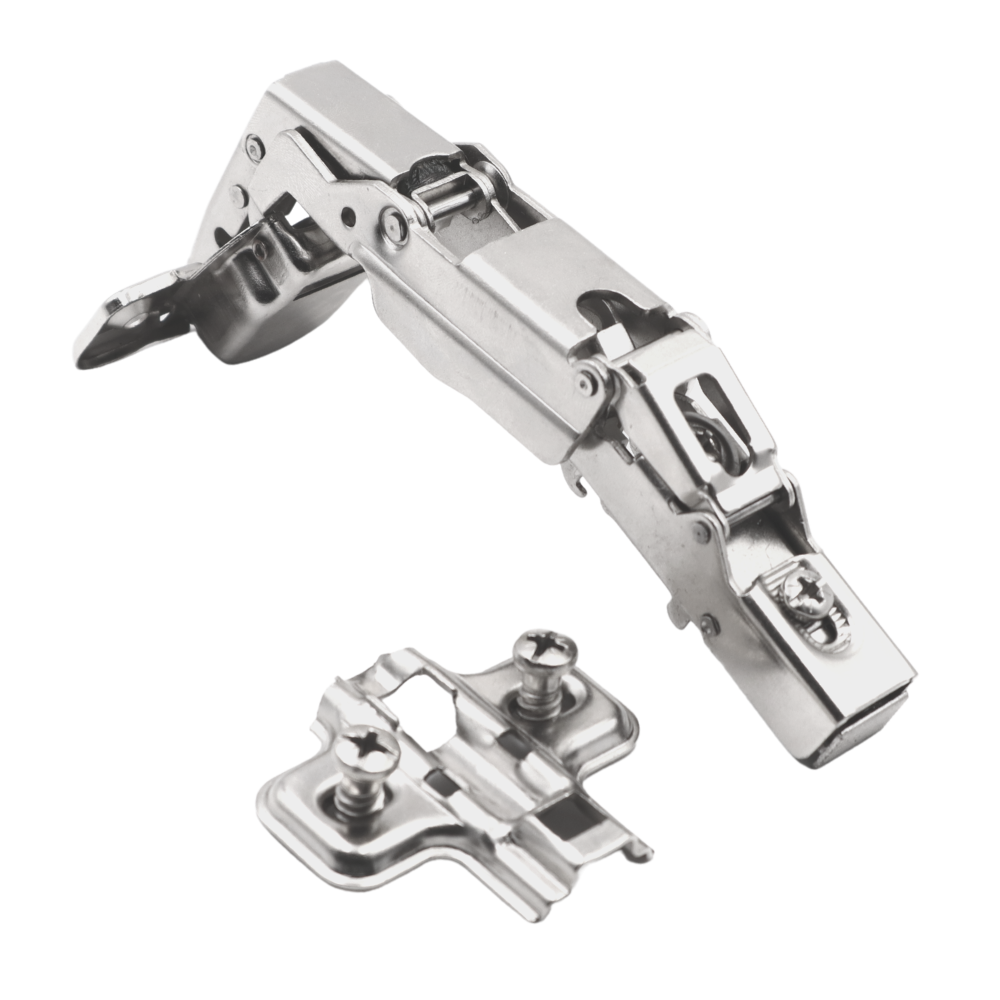

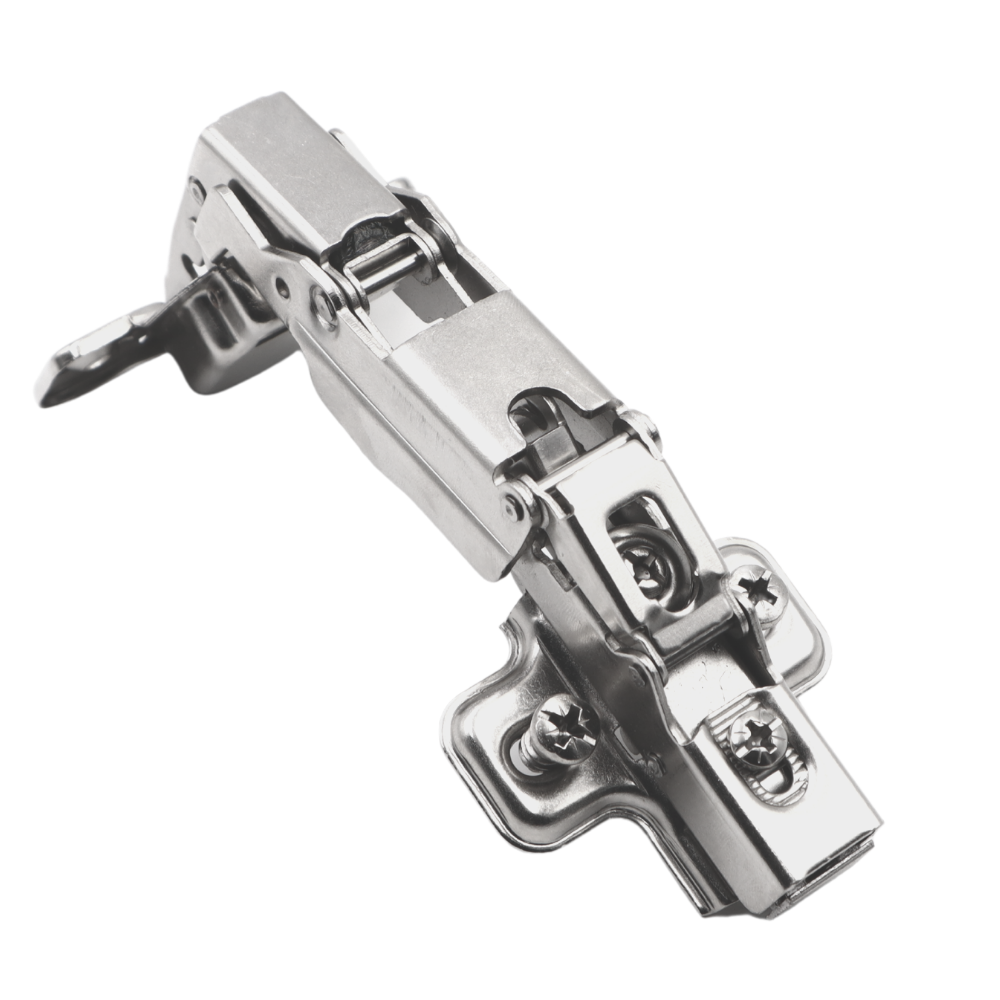

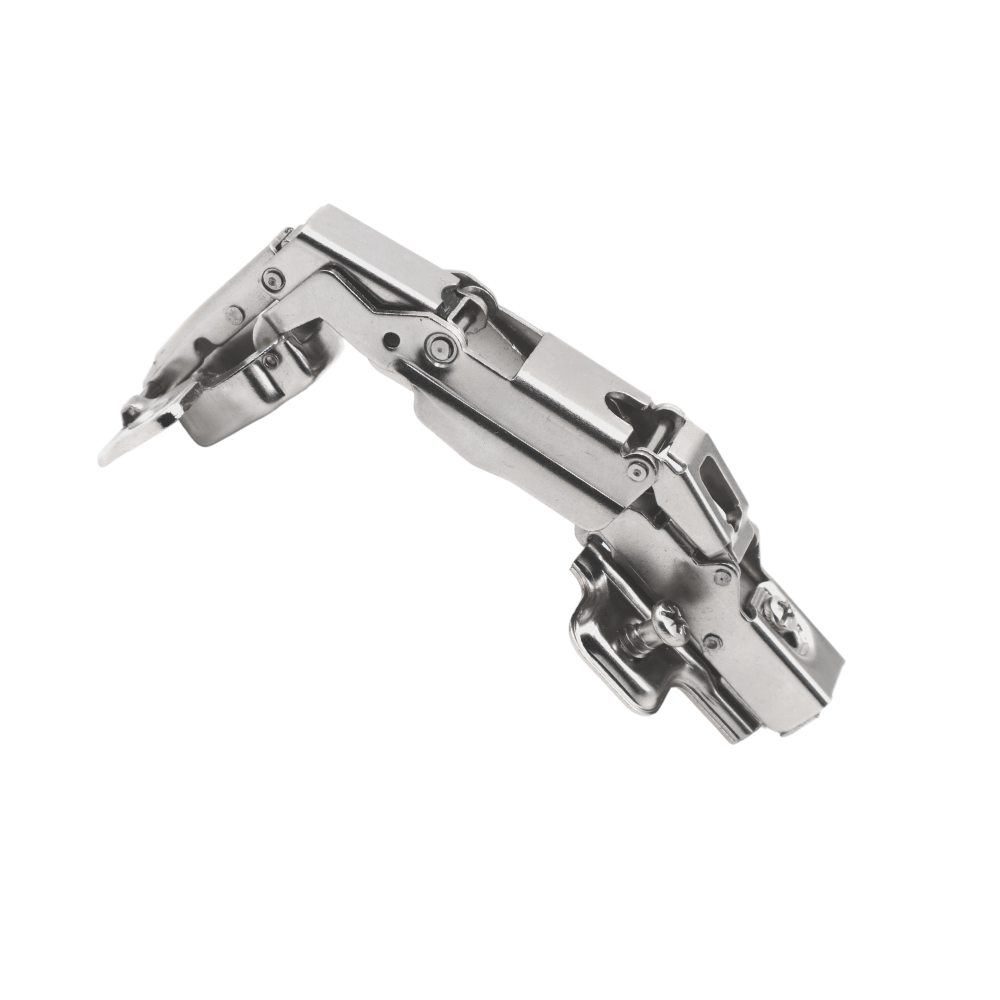

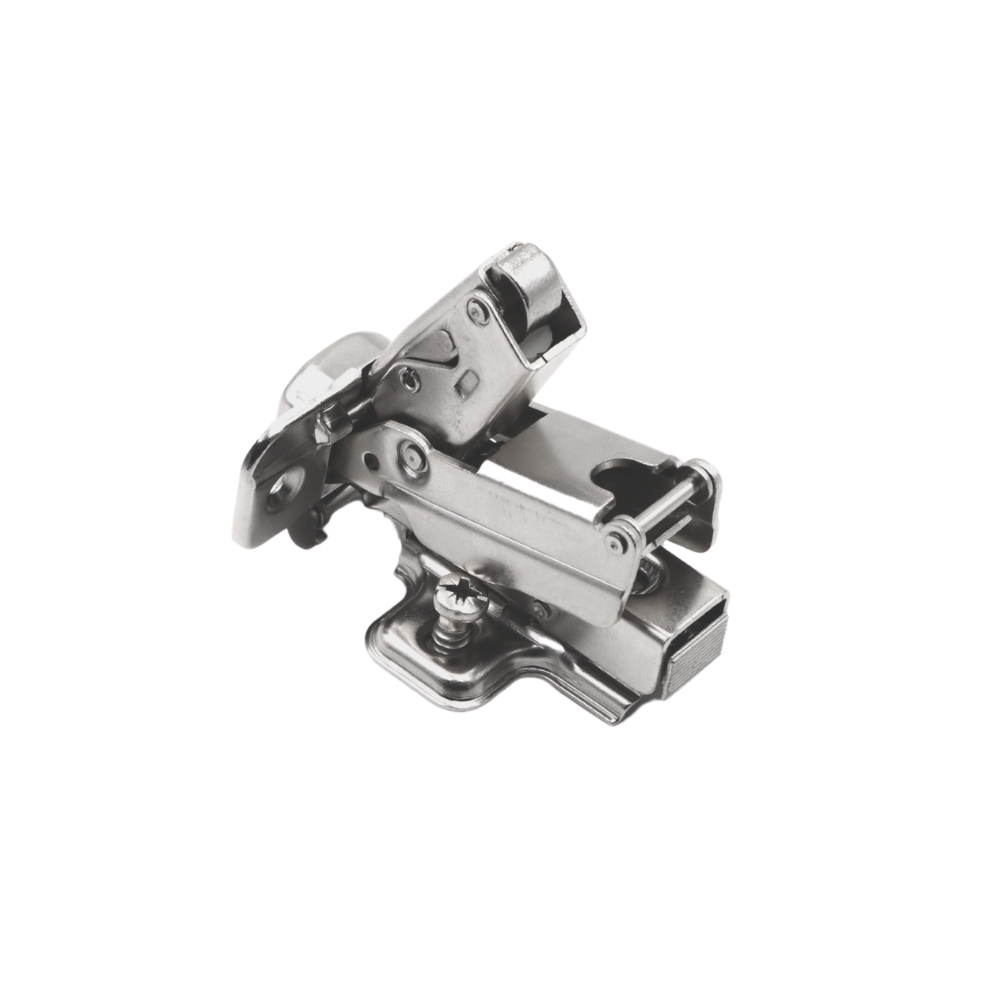

165° 3D Soft-Close Cabinet Hinge, H2 Mounting Plate with EURO Screws, Full Overlay

This wide angle 165 degree cabinet hinge with built-in soft-close mechanism provides complete, unobstructed access to your cabinet interior. Designed for full overlay door fronts, it comes complete with an H2 mounting plate and EURO screws.

  • Opening Angle165°
  • Cup Hole DiameterØ 1-3/8 in (35 mm)
  • Soft-CloseYes
  • Designed ForOverlay doors
  • MaterialNickel coated steel
165° 3D Soft-Close Cabinet Hinge, H2 Mounting Plate with EURO Screws, Full Overlay

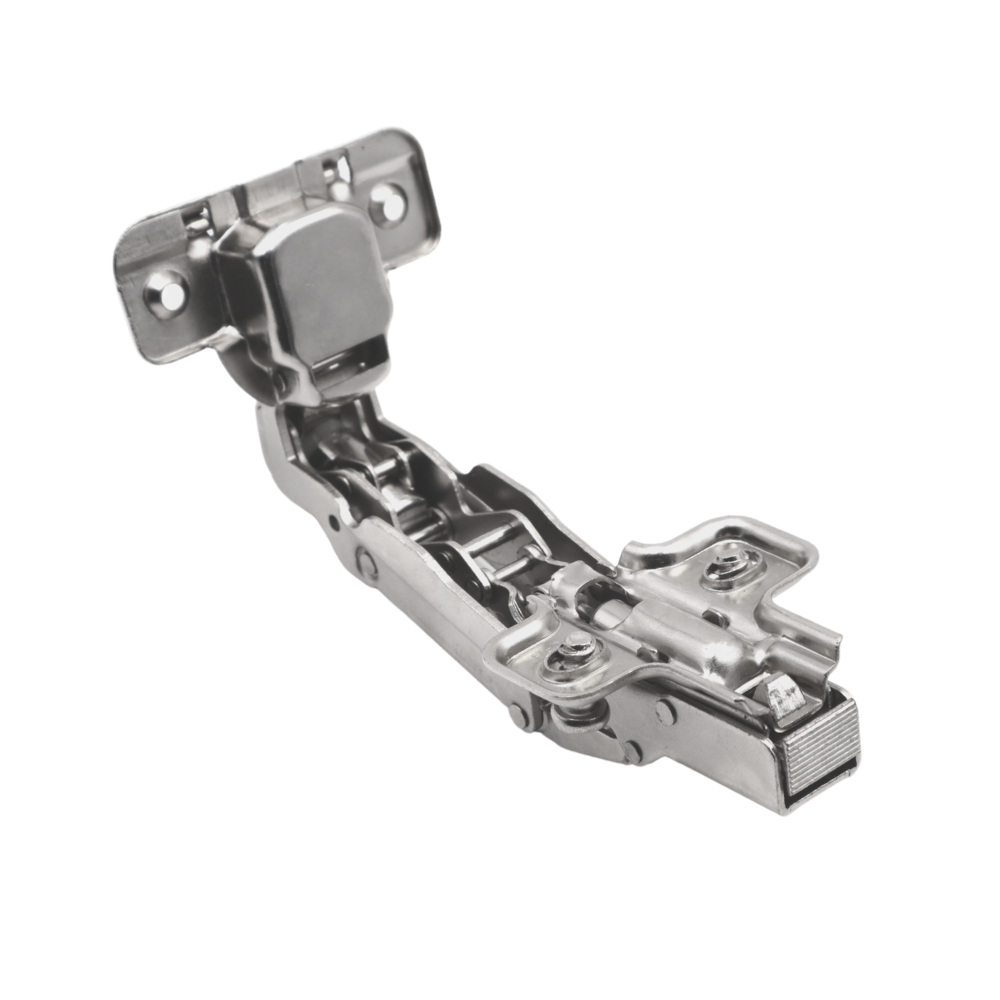

165° Wide Angle Cabinet Hinge with Ø 1-3/8 in (35 mm) Cup Hole

The 165° 3D soft-close cabinet hinge delivers an extra-wide opening angle ideal for corner cabinets and cabinets with interior roll-out trays. Crafted from durable nickel coated steel, the integrated damper ensures whisper-quiet, smooth closing.

  • 165° Opening Angle: Allows the cabinet door to swing open fully for complete, easy access to interior drawers and lazy Susans.

  • Integrated Soft-Close: The built-in hydraulic damper gently cushions the door, pulling it shut silently and smoothly against the cabinet body.

  • Standard Ø 1-3/8 in (35 mm) Cup Hole: Fits standard 35 mm cabinet cup drillings, making it perfect for quick upgrades or replacements.

  • Includes EURO Screws: Comes with EURO screws to ensure a secure, rock-solid anchor for the H2 mounting plate in system holes.

Applications for Wide Angle Overlay Cabinet Hinges

  • KitchenCorner and Lazy Susan Cabinets

    Provides a wide door swing on kitchen corner cabinets so pull-out shelves can extend without hitting the door.

  • Living AreaCabinets with Interior Roll-Out Trays

    Keeps open cabinet doors completely out of the way of internal drawers and pull-outs.

  • RetrofitReplacing Outdated Cabinet Hinges

    Replaces existing 35 mm cup hinges on overlay doors to easily upgrade your furniture with modern soft-close technology.

Installing the Wide Angle Cabinet Hinge

Secure the H2 mounting plate using the included EURO screws
  1. 1
    Attach the Mounting Plate

    Fasten the H2 mounting plate into the pre-drilled system holes on the cabinet body using the EURO screws.

  2. 2
    Insert the Hinge Cup

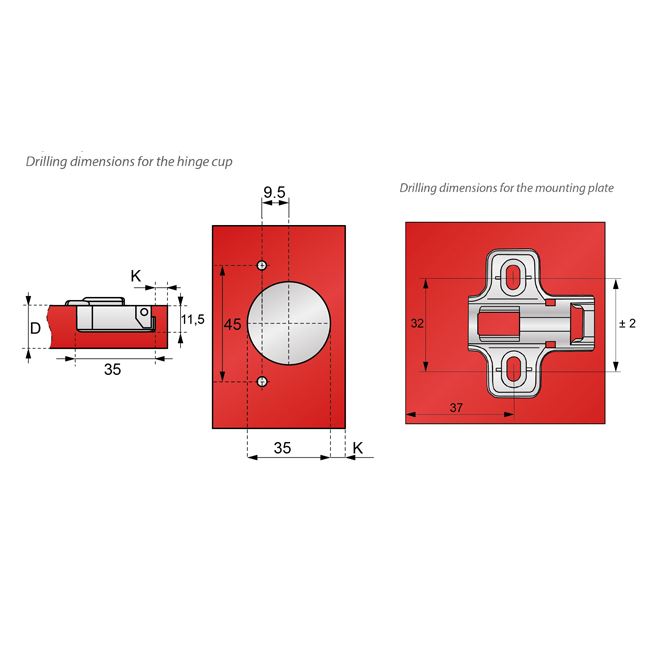

    Place the Ø 1-3/8 in (35 mm) hinge cup into the cabinet door bore hole and align it square to the edge.

  3. 3
    Attach the Hinge Arm

    Clip or slide the hinge arm onto the mounting plate and lock it into position.

  4. 4

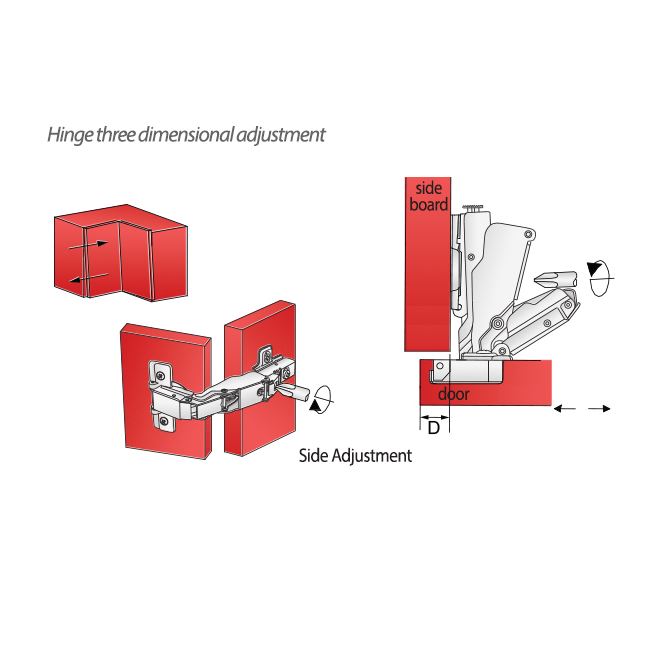

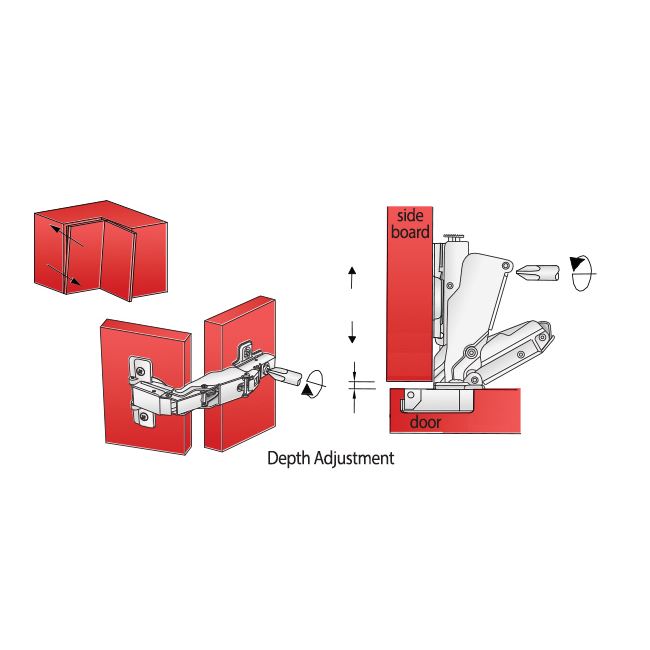

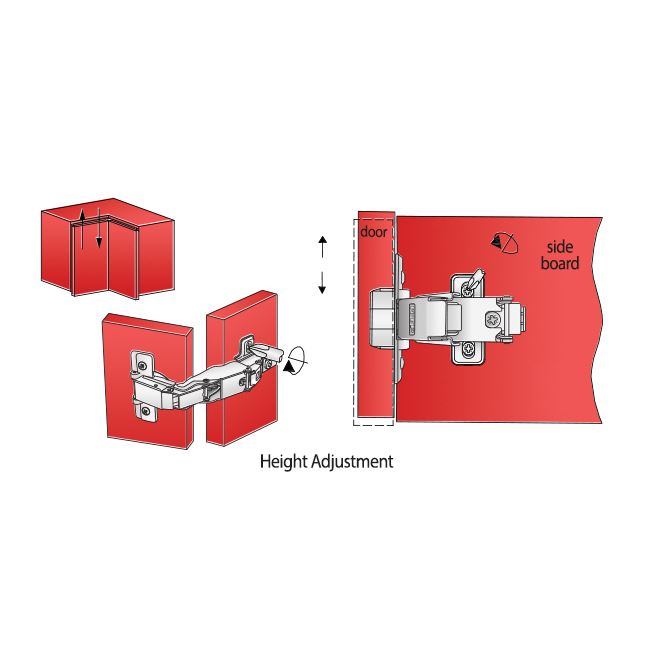

    Perform 3D Adjustment

    Fine-tune the door position in height, depth, and side overlay using the adjustment screws on the hinge arm.

  • 5-10 business daysEstimated delivery time
  • Free shippingon orders $100+
  • 31 daysReturns & exchanges
  • PayPal · Shop PayCredit & debit cards

Product features

Robust steel hinges

High-quality steel hinges offer exceptional durability and resist daily wear. Ideal for kitchen and living room furniture alike.

Gentle soft-close

Hinges with the soft-close system make doors shut quietly and gently. A comfortable feature that also reduces furniture wear.

Precise multi-dimensional adjustment

The hinges allow accurate front adjustment on several axes, so doors align perfectly for a clean, harmonious look.

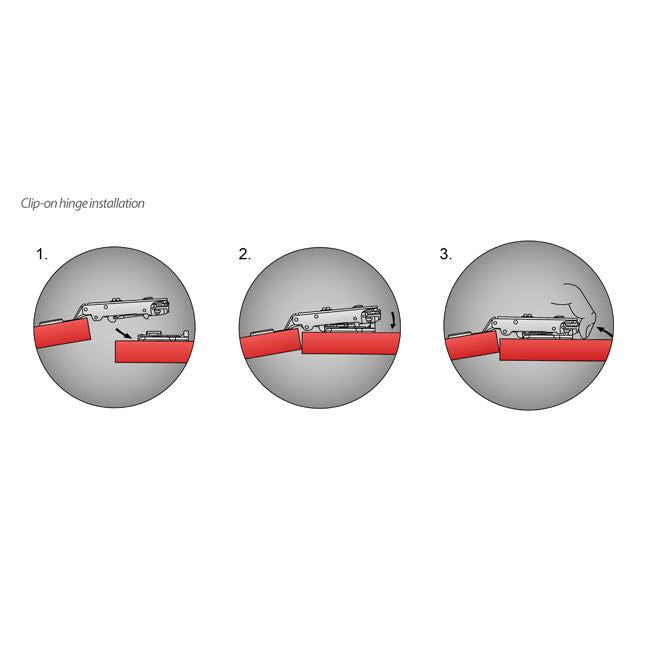

Quick clip-on mounting

The modern clip-on mechanism lets you attach and remove fronts in seconds. Ideal for anyone who values comfort and time savings.

Technical data
Soft-close damping
Yes
Included
Euro screws
Color
Chrome
Hinge cup diameter
Ø35mm
Material
Nickel-plated steel
Model
165° 3D Soft-Close overlay doors

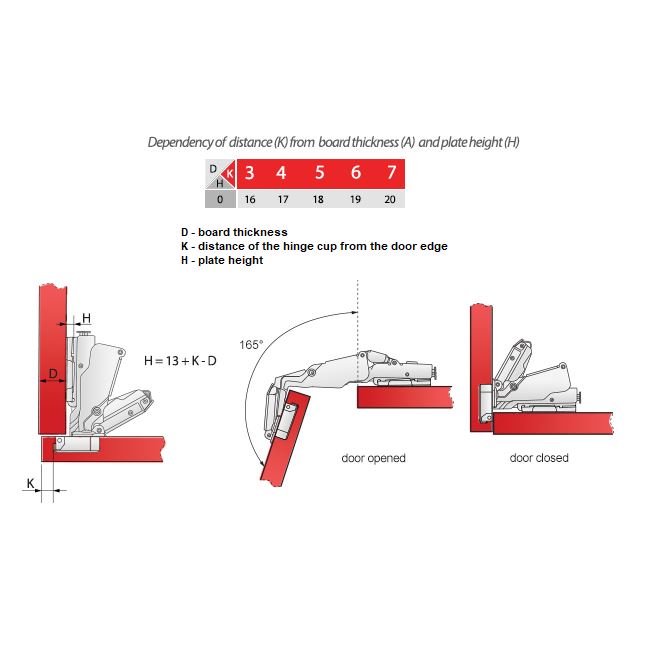

Mounting plate height
H2
Mounting plate type
Clip-on
Opening angle
165°
Made for
overlay doors
EAN
5060685600389
SKU
ZPCS04R-H2E

Reviews (1491)
4.93 Based on 1491 reviews
5★ 1400
4★ 80
3★ 11
2★ 0
1★ 0
Oliver✓ Verified2026-06-12
All good
John✓ Verified2026-05-26
All good
Josh✓ Verified2026-05-21
Great! The hinge glides smoothly and quietly. Highly recommend.
Harry✓ Verified2026-05-10
Great
Kate✓ Verified2026-04-28
The hinge came fast and fits perfectly.
James✓ Verified2026-04-17
The hinge closes softly on its own.
William✓ Verified2026-04-05
Really pleased! The hinge is convincing all round. Nothing to complain about.
Sam✓ Verified2026-03-23
The hinge is a clear recommendation. Completely satisfied.
Jessica✓ Verified2026-02-17
All good! The hinge closes securely and holds well.
Ben✓ Verified2026-02-17
The hinge is really well made. Completely satisfied.
John✓ Verified2026-02-17
The hinge is worth every penny.
Liam✓ Verified2026-02-05
The hinge was quick to fit and holds firmly. Clear instructions.

Product safety information

Furnica LTD
40-44 Uxbridge Road,
London W5 2BS, United Kingdom
office@furnica.co.uk

FAQ

Which hinges are best for everyday use?

High-quality, corrosion-resistant steel hinges offer maximum reliability. Our models have reinforced arms, precise mechanisms and optional soft-close damping that prevents slamming. Even after years of use they work quietly and stay stable — with excellent value for money.

How do soft-close hinges differ from standard hinges?

Soft-close hinges have a built-in damper that closes the door slowly and quietly. Standard hinges hold firmly, but without damping. Soft-close adds comfort, protects the furniture and lasts longer — ideal for heavy daily use.

How do I choose the right hinge for my cabinet door?

Consider the door type: overlay, inset, half-overlay or corner solutions. Our product descriptions list opening angles, mounting methods and plate compatibility. Door thickness and cabinet body also matter. Correctly chosen hinges guarantee stability, smooth operation and a long service life.

What affects hinge durability?

Durability depends on high-quality steel, strong springs, corrosion-resistant coatings and precise manufacturing. Our hinges are rated for thousands of opening cycles without loosening. Precision workmanship keeps them working flawlessly for many years.

Is installing cabinet hinges difficult?

No — most of our hinges are designed for quick, easy installation. Multi-directional adjustment lets you align the door precisely. Clear instructions and universal mounting plates make installation straightforward even for beginners. No special tools required.
