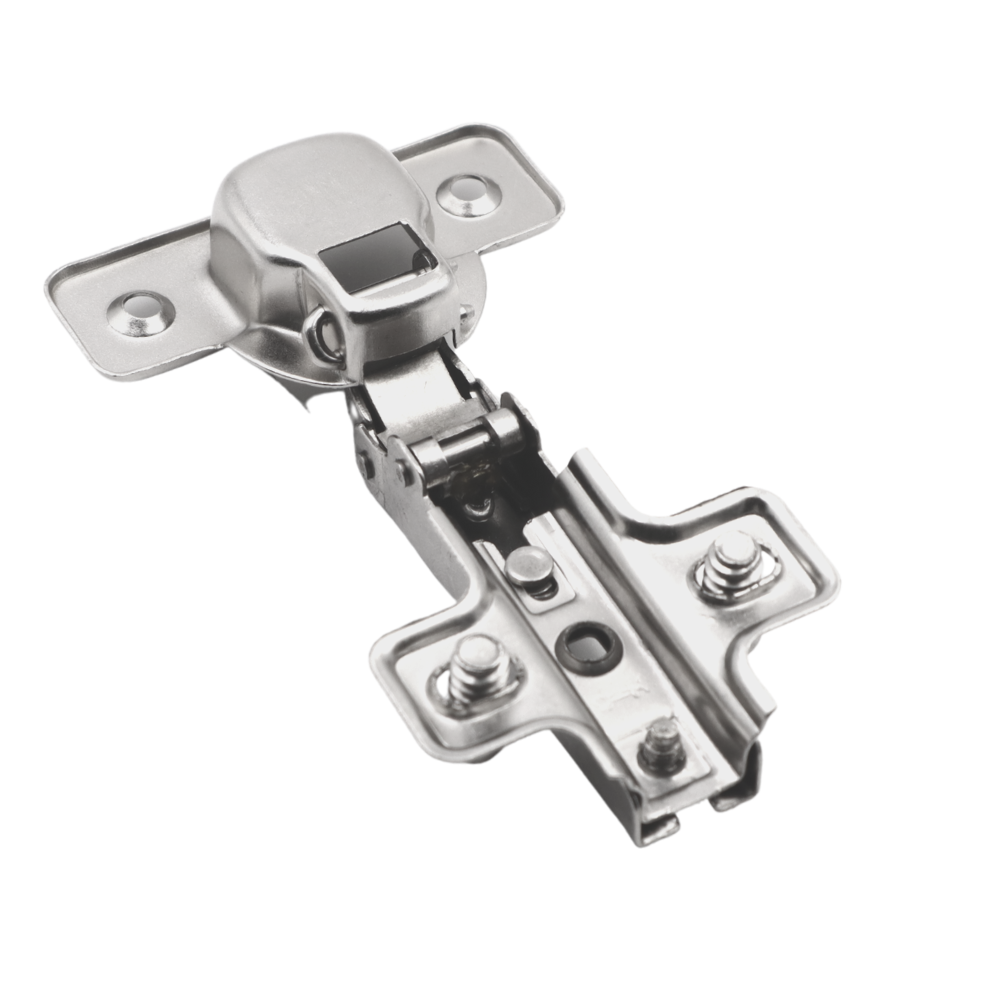

110° Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors

Name: 110° Hinge, H0 Mounting Plate with EURO Screws, Overlay Doors
Brand: Furnica
SKU: ZP11-H0E
Price: 0.67 USD
Availability: InStock
Rating: 4.93 (1439 reviews)

4.93 (1,439)

$0.67

Buy at discounted prices!

To meet the needs of our business customers and anyone planning larger purchases, we offer quantity discounts — starting at just 5 pieces! Check the table below to see which discount is applied automatically in your cart.

Buy	Save	Deal price
5-9	5% off	$0.64
10-19	10% off	$0.60
20-49	15% off	$0.57
50+	20% off	$0.54

Soft-close damping: No

Model: 110° overlay doors

Estimated delivery time: 5-10 business days

Free shipping on $100+ orders

30 days for returns

Payment & security

Your payment information is processed securely.

Bestsellers

More Hinges

Top sellers in this category.

Product details

For overlay doors · Includes EURO screws

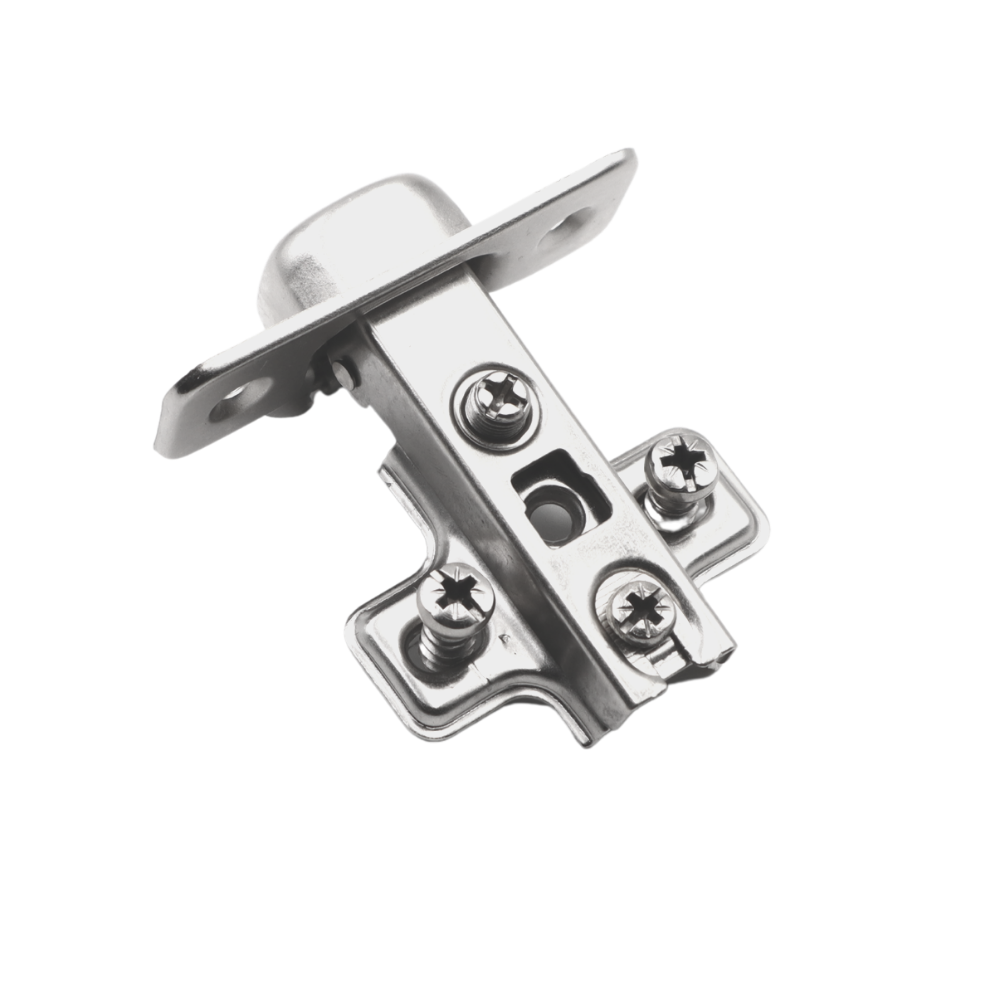

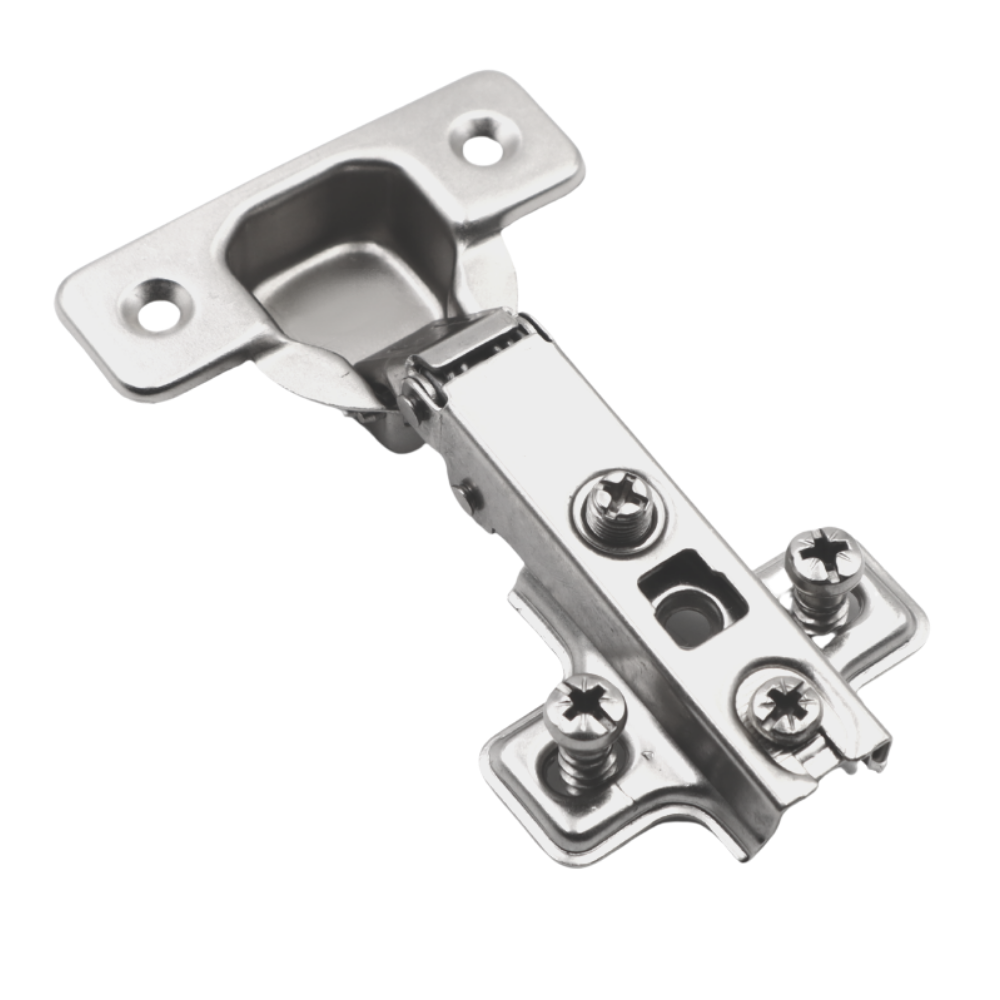

110 degree cabinet hinges, H0 mounting plate with EURO screws, full overlay

This cabinet hinge is designed for full overlay configurations where the cabinet door completely covers the outer edge of the cabinet body. The included EURO screws allow for direct mounting of the H0 mounting plate into pre-drilled system holes.

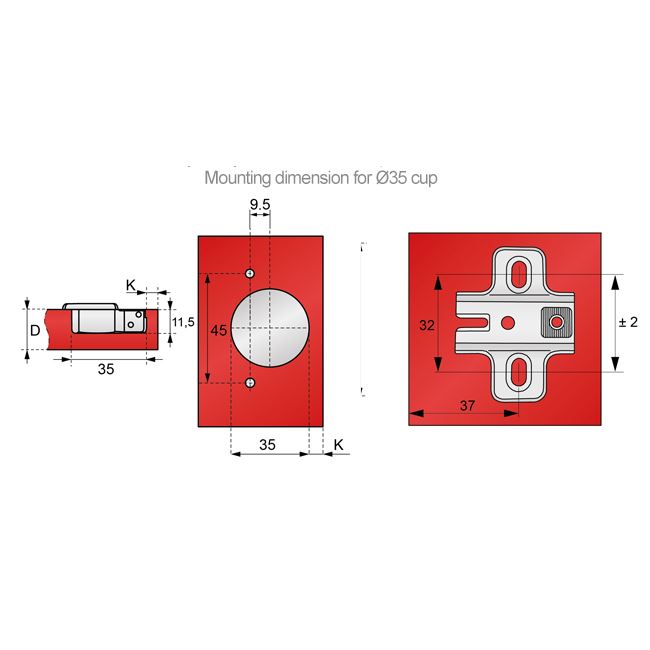

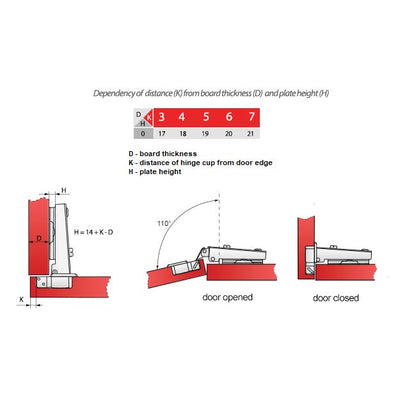

Cup hole diameterØ 1-3/8 in (35 mm)
Opening angle110°
Designed forOverlay doors
Mounting plate heightH0
MaterialNickel coated steel

110 degree cabinet hinges, H0 mounting plate with EURO screws, full overlay

1-3/8 in (35 mm) cup hinge for full overlay cabinet mounting

This overlay cabinet hinge connects the cabinet body to the door front. The mounting plate slides on easily and is secured in place with EURO screws.

Standard Ø 1-3/8 in (35 mm) cup diameter: Fits all standard 1-3/8 in (35 mm) cup holes on door fronts.
110° opening angle: Provides wide access to the cabinet contents without the door hitting the cabinet body.
Slide-on H0 mounting plate: Makes aligning the door on the cabinet body quick and straightforward.
Matching EURO screws included: Enables direct installation into pre-drilled 3/16 in (5 mm) system holes.
Durable steel construction: Nickel coated steel provides a resilient finish built for everyday use.

Applications for overlay cabinet doors

Kitchen cabinetsUpper wall cabinets
Ensures precise door alignment over the outer cabinet frame on standard cabinet bodies.
Home furnitureDressers and credenzas
Ideal for doors that fully cover the outer cabinet frame from the side.
CabinetmakingReplacing old hinges
Serves as a direct replacement part for existing 1-3/8 in (35 mm) cup drillings using slide-on mounting.

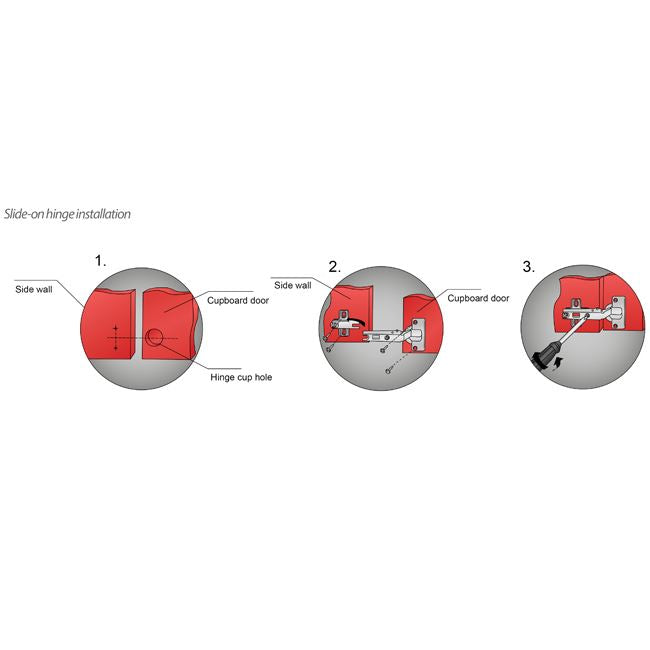

Installing the cabinet hinge

EURO screws for attaching the mounting plate are included in the package.

1
Insert the hinge cup
Insert the Ø 1-3/8 in (35 mm) cup into the door hole and align it square.
2
Fasten the cup
Secure the hinge cup to the inside of the door using suitable wood screws.
3
Mount the plate
Fasten the H0 mounting plate into the cabinet body holes using the included EURO screws.
4
Slide on and adjust
Slide the hinge onto the mounting plate and tighten the fixing screw to lock it in position.

5-10 business daysEstimated delivery time
Free shippingon orders $100+
30 daysReturns & exchanges
PayPal · Shop PayCredit & debit cards

Product features

Robust steel hinges

High-quality steel hinges offer exceptional durability and resist daily wear. Ideal for kitchen and living room furniture alike.

Gentle soft-close

Hinges with the soft-close system make doors shut quietly and gently. A comfortable feature that also reduces furniture wear.

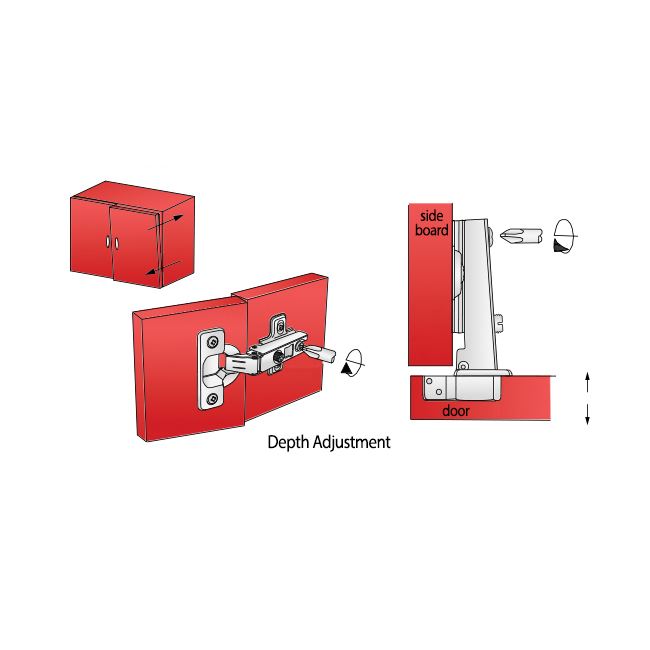

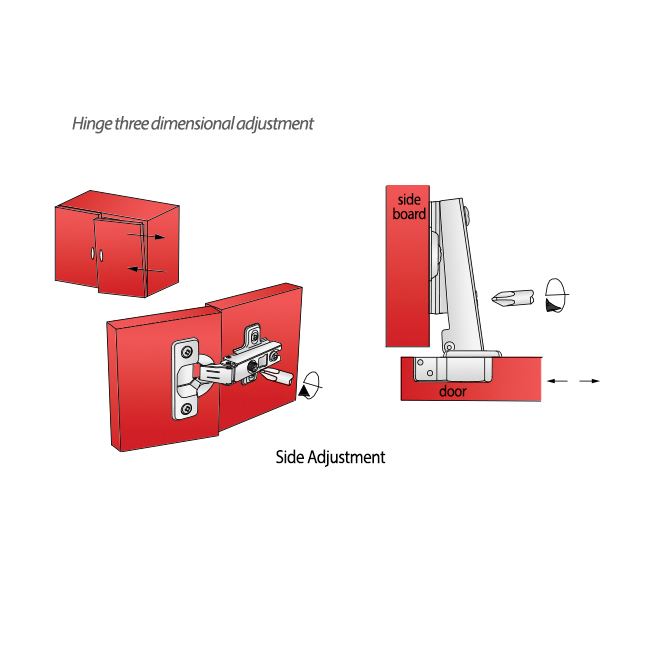

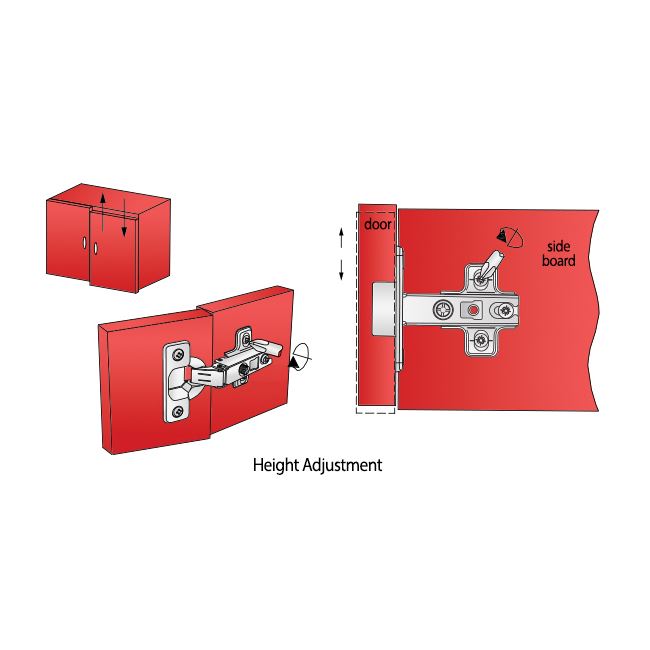

Precise multi-dimensional adjustment

The hinges allow accurate front adjustment on several axes, so doors align perfectly for a clean, harmonious look.

Quick clip-on mounting

The modern clip-on mechanism lets you attach and remove fronts in seconds. Ideal for anyone who values comfort and time savings.

Technical data

Attribute	Value
Soft-close damping	No
Included	Euro screws
Color	Chrome
Hinge cup diameter	Ø 1-3/8 in (35 mm)
Material	Nickel-plated steel
Model	110° overlay doors

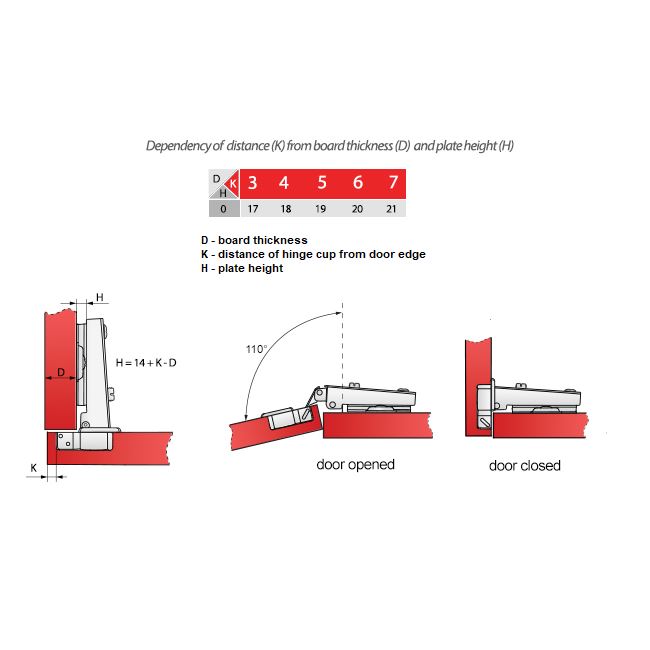

Mounting plate height	H0
Mounting plate type	Slide-on
Opening angle	110°
Made for	corner stop
EAN	5060685600372
SKU	ZP11-H0E

Reviews (1439)

4.93 Based on 1439 reviews

5★ 1349

4★ 79

3★ 11

2★ 0

1★ 0

Oliver✓ Verified2026-06-12

All good

John✓ Verified2026-05-26

All good

Josh✓ Verified2026-05-21

Great! The hinge glides smoothly and quietly. Highly recommend.

Harry✓ Verified2026-05-10

Great

Kate✓ Verified2026-04-28

The hinge came fast and fits perfectly.

James✓ Verified2026-04-17

The hinge closes softly on its own.

William✓ Verified2026-04-05

Really pleased! The hinge is convincing all round. Nothing to complain about.

Sam✓ Verified2026-03-23

The hinge is a clear recommendation. Completely satisfied.

Jessica✓ Verified2026-02-17

All good! The hinge closes securely and holds well.

Ben✓ Verified2026-02-17

The hinge is really well made. Completely satisfied.

John✓ Verified2026-02-17

The hinge is worth every penny.

Liam✓ Verified2026-02-05

The hinge was quick to fit and holds firmly. Clear instructions.

Product safety information

Manufacturer:
Elnick UG
Zechenstraße 3,
44536 Lünen, Germany
info@elnick.de / office@furnica.co.uk

FAQ

Which hinges are best for everyday use?

High-quality, corrosion-resistant steel hinges offer maximum reliability. Our models have reinforced arms, precise mechanisms and optional soft-close damping that prevents slamming. Even after years of use they work quietly and stay stable — with excellent value for money.

How do soft-close hinges differ from standard hinges?

Soft-close hinges have a built-in damper that closes the door slowly and quietly. Standard hinges hold firmly, but without damping. Soft-close adds comfort, protects the furniture and lasts longer — ideal for heavy daily use.

How do I choose the right hinge for my cabinet door?

Consider the door type: overlay, inset, half-overlay or corner solutions. Our product descriptions list opening angles, mounting methods and plate compatibility. Door thickness and cabinet body also matter. Correctly chosen hinges guarantee stability, smooth operation and a long service life.

What affects hinge durability?

Durability depends on high-quality steel, strong springs, corrosion-resistant coatings and precise manufacturing. Our hinges are rated for thousands of opening cycles without loosening. Precision workmanship keeps them working flawlessly for many years.

Is installing cabinet hinges difficult?

No — most of our hinges are designed for quick, easy installation. Multi-directional adjustment lets you align the door precisely. Clear instructions and universal mounting plates make installation straightforward even for beginners. No special tools required.
