165º Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors

Name: 165º Hinge, H2 Mounting Plate with EURO Screws, Overlay Doors
Brand: Furnica
SKU: ZP04-H2E
Price: 2.39 USD
Availability: InStock
Rating: 4.93 (1318 reviews)

4,93 (1.318)

$2.39

Buy at discounted prices!

To meet the needs of our business customers and anyone planning larger purchases, we offer quantity discounts — starting at just 5 pieces! Check the table below to see which discount is applied automatically in your cart.

Buy	Save	Deal price
5-9	5% off	$2.27
10-19	10% off	$2.15
20-49	15% off	$2.03
50+	20% off	$1.91

Soft-close damping: No

Model: 165° corner stop

Estimated delivery time: 5-10 business days

Free shipping on $100+ orders

31 days for returns

Payment & security

Your payment information is processed securely.

Bestsellers

More Hinges

Top sellers in this category.

Product details

For Corner Cabinets · 1-3/8 in (35 mm) Cup Hole

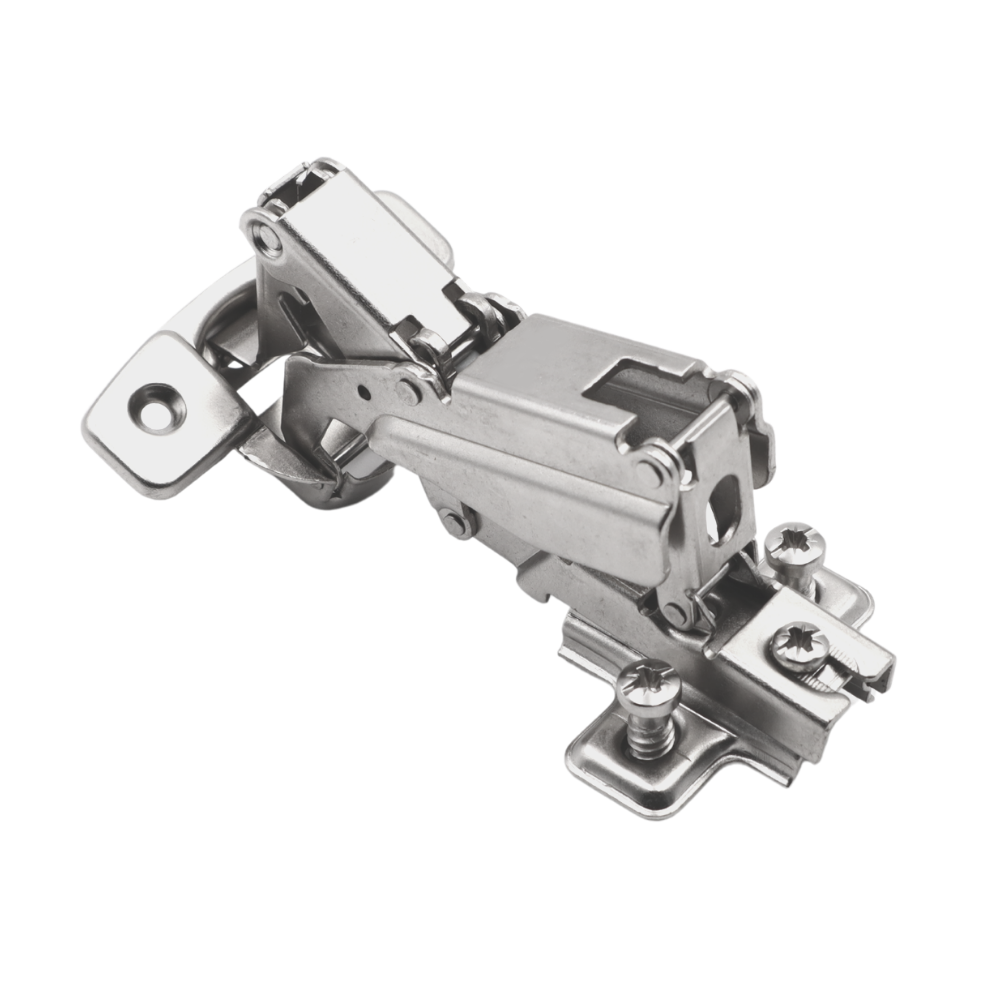

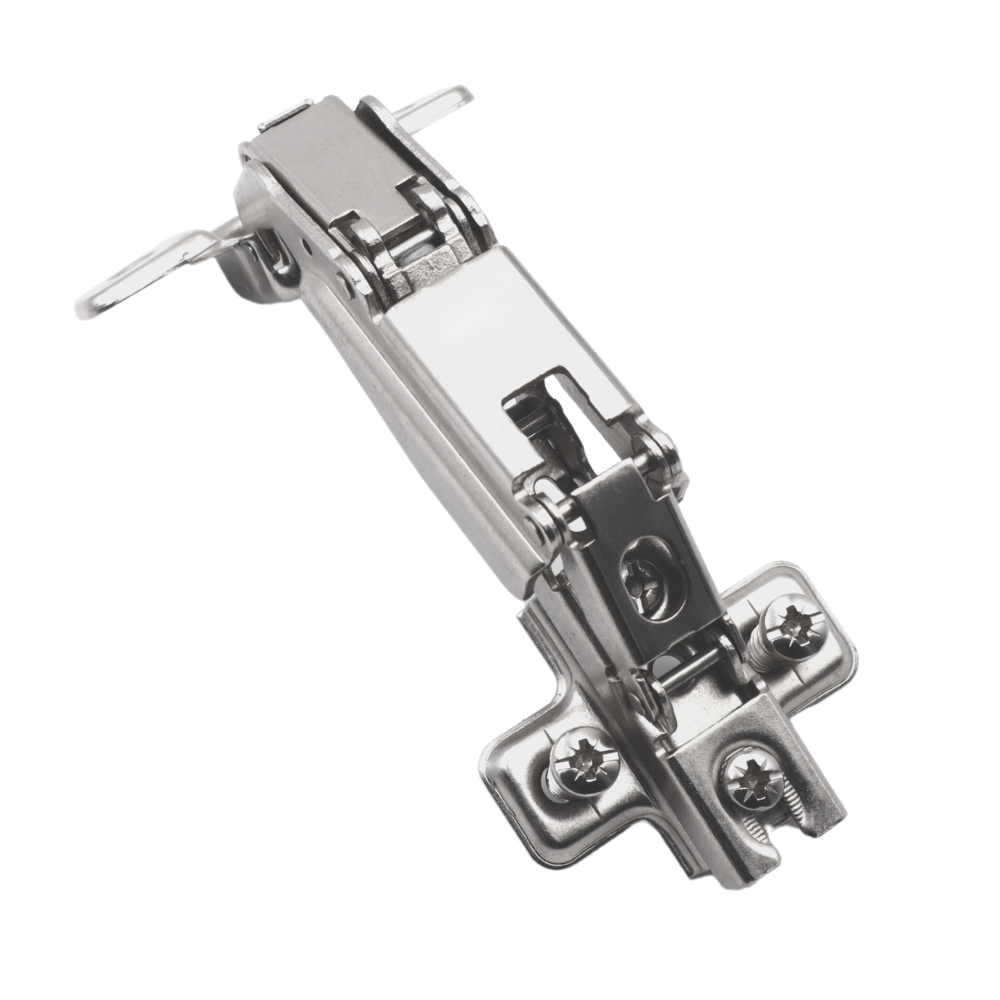

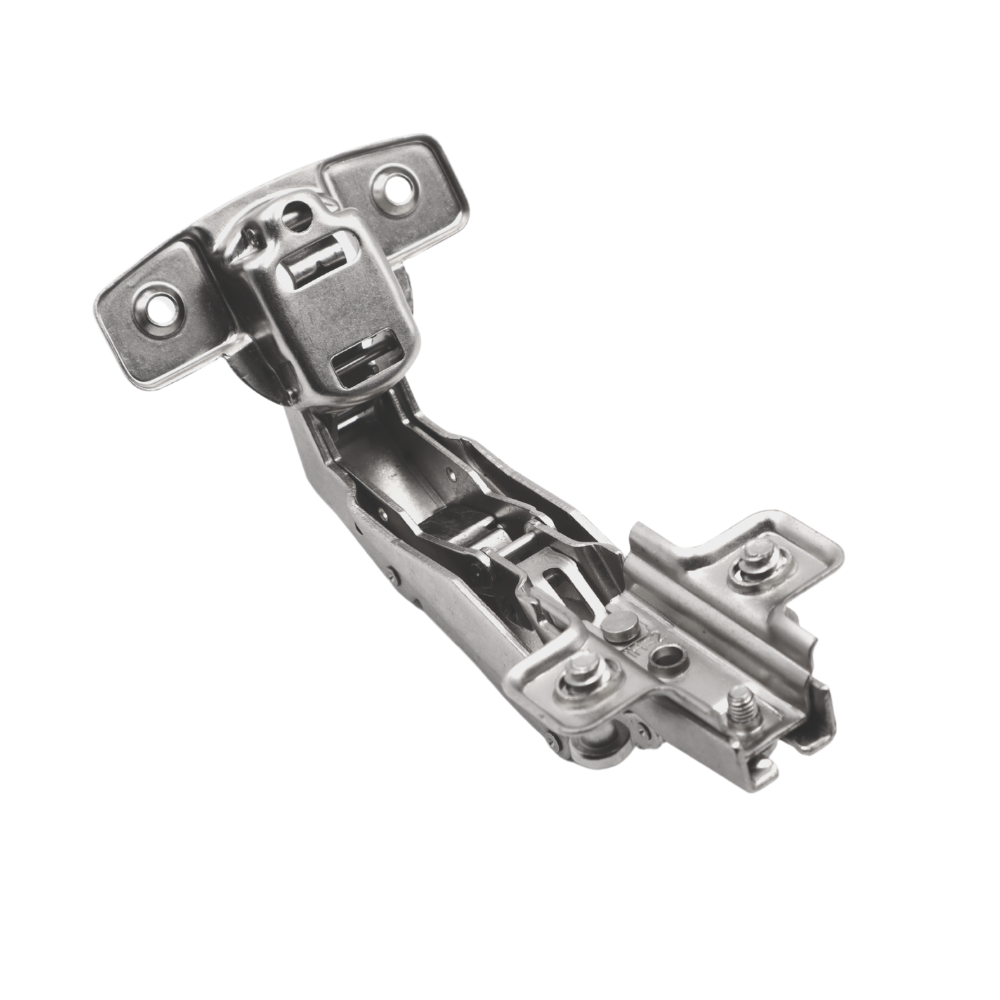

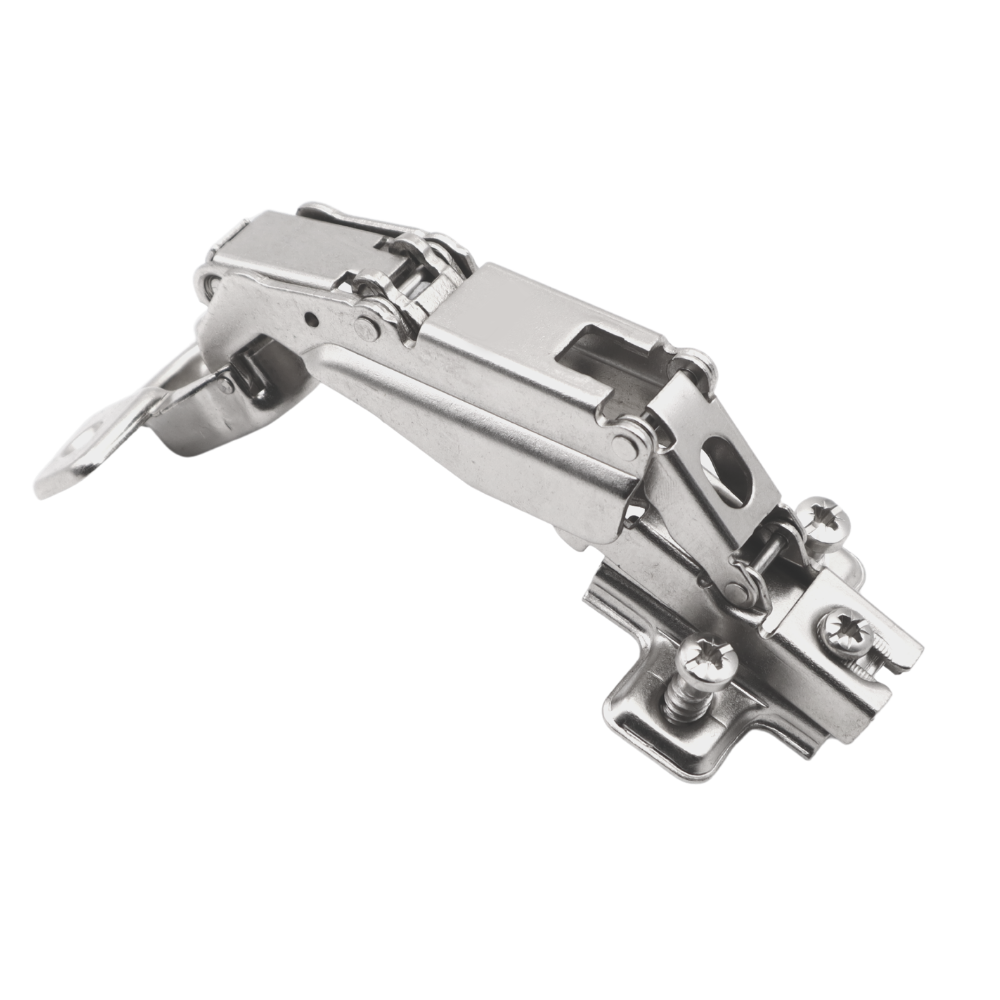

165 Degree Cabinet Hinge, H2 Mounting Plate with EURO Screws, Full Overlay

This wide angle cabinet hinge provides a 165° opening angle for full overlay doors, ensuring unrestricted access to the inside of your cabinet. Comes complete with an H2 mounting plate and matching EURO screws.

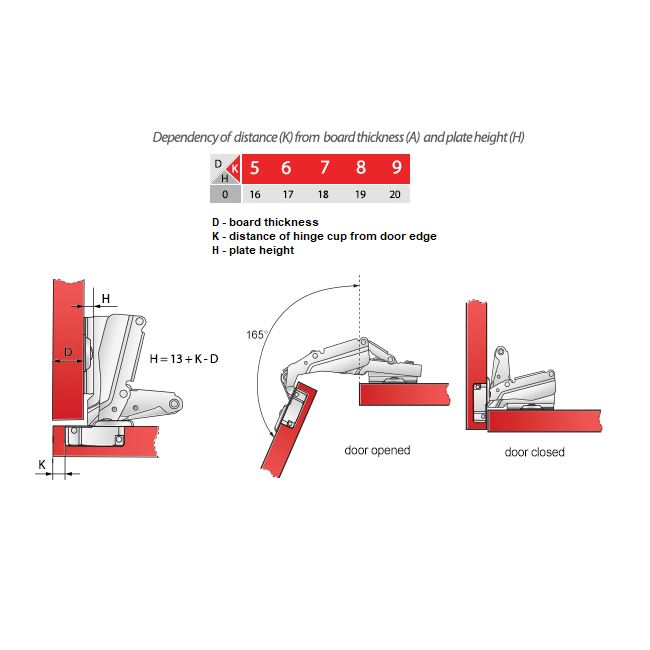

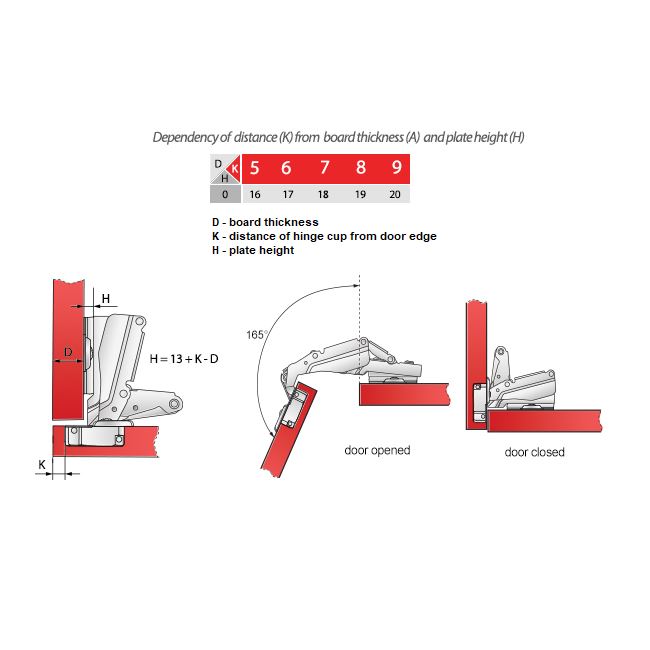

Opening Angle165°
Cup Hole DiameterØ 1-3/8 in (35 mm)
Designed ForOverlay doors
Mounting Plate HeightH2
IncludedEURO screws

165 Degree Cabinet Hinge, H2 Mounting Plate with EURO Screws, Full Overlay

165° Opening Angle for Unrestricted Cabinet Access

The 165 degree cabinet hinge is designed as a full overlay hinge for cabinet bodies that require maximum visibility and barrier-free reach.

165° Opening Angle: Allows the door to swing wide open, making it ideal for corner cabinets and internal pull-outs.
Standard 1-3/8 in (35 mm) Cup Hole: Fits standard pre-drilled door fronts with a 1-3/8 in (35 mm) cup diameter.
Full Overlay Design: Completely covers the cabinet body side edge when the door is closed.
EURO Screws Included: The included EURO screws allow direct mounting of the H2 plate into standard 3/16 in (5 mm) system holes.

Applications for 165° Wide Angle Cabinet Hinges

KitchenCorner Cabinets & Lazy Susans
Ensures the cabinet opening is completely clear when opened.
WorkshopTool Cabinets with Internal Drawers
Prevents the open cabinet door from blocking roll-out trays or interior drawers.
RetrofitReplacing Existing Hardware
Fits standard system hole patterns with 1-3/8 in (35 mm) cup holes and H2 mounting plates.

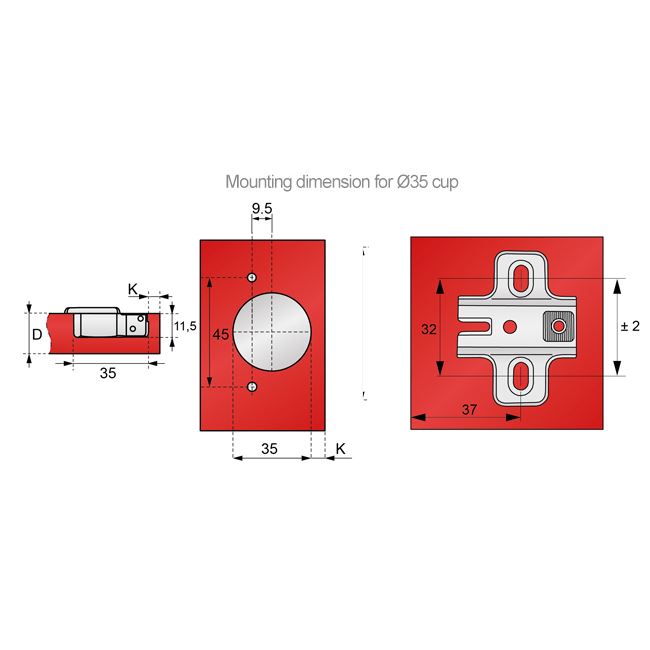

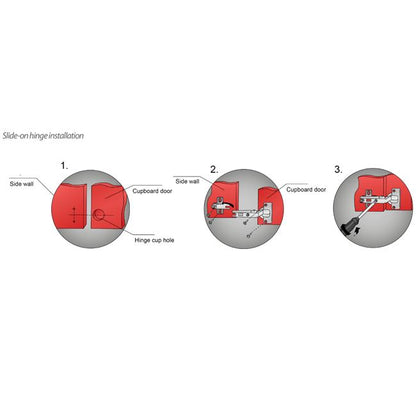

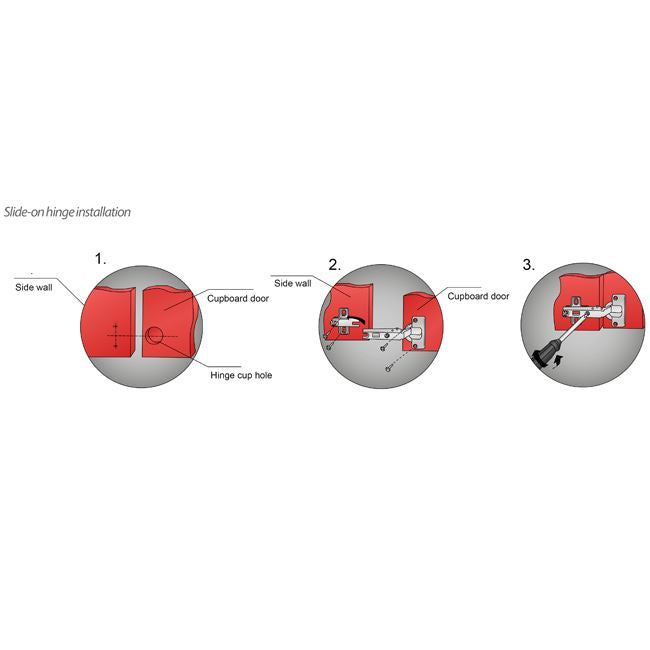

Installation on Cabinet Body and Door Front

Includes H2 mounting plate and EURO screws in the package.

1
Insert the Hinge Cup
Insert the 1-3/8 in (35 mm) hinge cup into the drilled hole on the door front and align it.
2
Attach the Mounting Plate
Fasten the H2 mounting plate into the system holes of the cabinet body using the included EURO screws.
3
Slide On the Hinge
Slide the hinge arm onto the mounting plate and secure it in place.

5-10 business daysEstimated delivery time
Free shippingon orders $100+
31 daysReturns & exchanges
PayPal · Shop PayCredit & debit cards

Product features

Robust steel hinges

High-quality steel hinges offer exceptional durability and resist daily wear. Ideal for kitchen and living room furniture alike.

Gentle soft-close

Hinges with the soft-close system make doors shut quietly and gently. A comfortable feature that also reduces furniture wear.

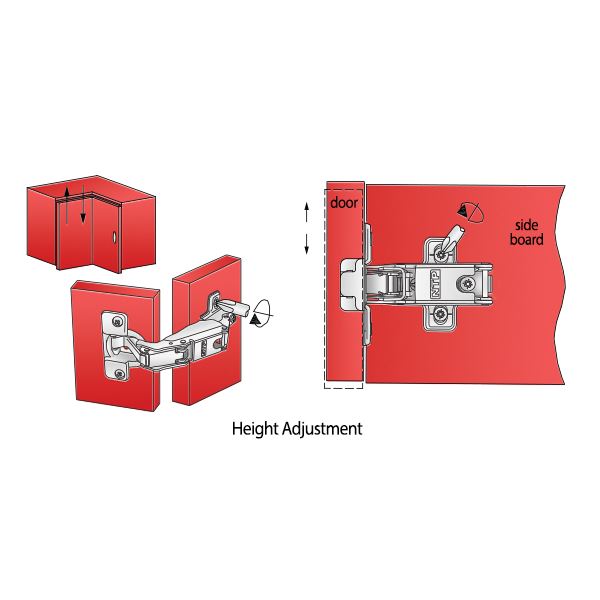

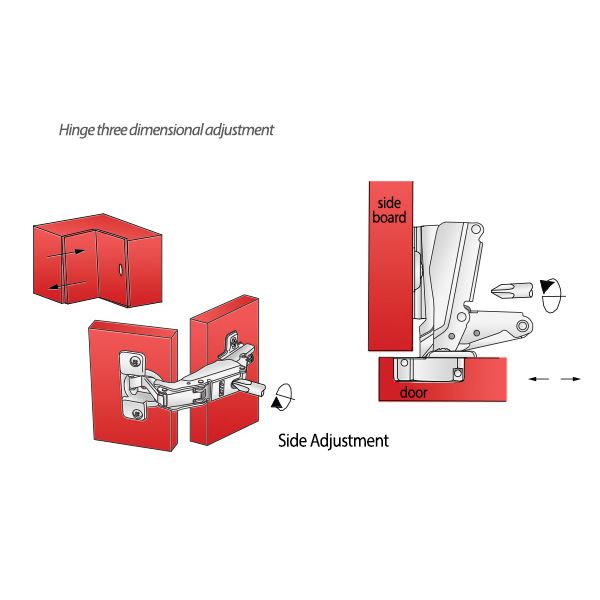

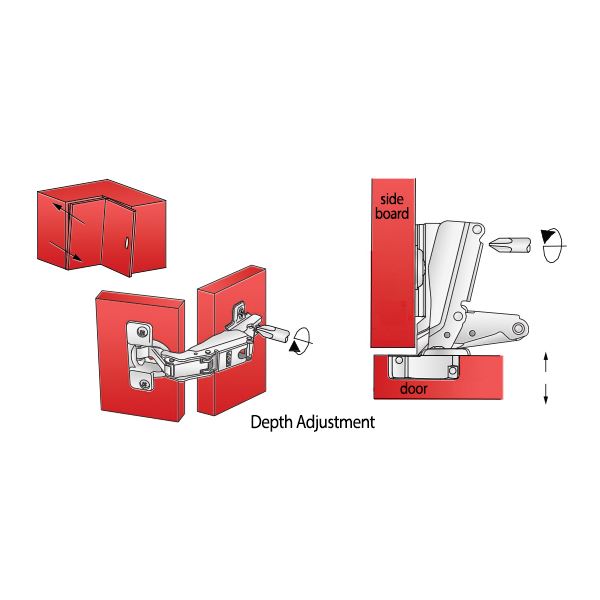

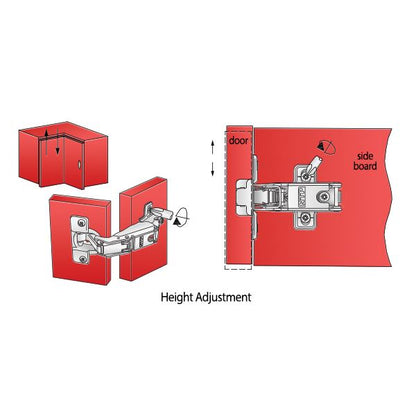

Precise multi-dimensional adjustment

The hinges allow accurate front adjustment on several axes, so doors align perfectly for a clean, harmonious look.

Quick clip-on mounting

The modern clip-on mechanism lets you attach and remove fronts in seconds. Ideal for anyone who values comfort and time savings.

Technical data

Attribute	Value
Soft-close damping	No
Included	Euro screws
Color	Chrome
Hinge cup diameter	Ø35mm
Material	Nickel-plated steel
Model	165° corner stop
Mounting plate height	H2
Mounting plate type	Aufschieben
Opening angle	165°
Made for	corner stop
EAN	5060685600396
SKU	ZP04-H2E

Reviews (1318)

4.93 Basierend auf 1318 Bewertungen

5★ 1237

4★ 73

3★ 8

2★ 0

1★ 0

Andreas✓ Verifiziert2026-07-19

Das Scharnier ist hochwertig und stabil. Verpackung einwandfrei. Kann ich nur empfehlen.

Sabine✓ Verifiziert2026-07-16

Absolut empfehlenswert! Das Scharnier fährt leichtgängig ein und aus.

Silvia✓ Verifiziert2026-07-13

La bisagra responde a lo esperado. Lo recomiendo.

Laura✓ Verifiziert2026-07-08

La bisagra es muy resistente. Envío rápido.

Federico✓ Verifiziert2026-07-07

Impeccabile! La cerniera funziona perfettamente. Cinque stelle.

Stefan✓ Verifiziert2026-07-04

Das Scharnier gleitet sanft und schließt von selbst. Passt millimetergenau.

Nicolas✓ Verifiziert2026-07-01

Impeccable ! La charnière fonctionne parfaitement. Rien à redire.

Max✓ Verifiziert2026-06-23

Das Scharnier ist brauchbar für den Preis.

Silvia✓ Verifiziert2026-06-18

La cerniera vale il suo prezzo. Lo consiglio.

Rubén✓ Verifiziert2026-06-15

La bisagra encaja perfectamente.

Sophie✓ Verifiziert2026-06-14

Perfekt

Oliver✓ Verifiziert2026-06-12

All good

Product safety information

Elnick UG
Zechenstraße 3,
44536 Lünen, Germany
info@elnick.de

FAQ

Which hinges are best for everyday use?

High-quality, corrosion-resistant steel hinges offer maximum reliability. Our models have reinforced arms, precise mechanisms and optional soft-close damping that prevents slamming. Even after years of use they work quietly and stay stable — with excellent value for money.

How do soft-close hinges differ from standard hinges?

Soft-close hinges have a built-in damper that closes the door slowly and quietly. Standard hinges hold firmly, but without damping. Soft-close adds comfort, protects the furniture and lasts longer — ideal for heavy daily use.

How do I choose the right hinge for my cabinet door?

Consider the door type: overlay, inset, half-overlay or corner solutions. Our product descriptions list opening angles, mounting methods and plate compatibility. Door thickness and cabinet body also matter. Correctly chosen hinges guarantee stability, smooth operation and a long service life.

What affects hinge durability?

Durability depends on high-quality steel, strong springs, corrosion-resistant coatings and precise manufacturing. Our hinges are rated for thousands of opening cycles without loosening. Precision workmanship keeps them working flawlessly for many years.

Is installing cabinet hinges difficult?

No — most of our hinges are designed for quick, easy installation. Multi-directional adjustment lets you align the door precisely. Clear instructions and universal mounting plates make installation straightforward even for beginners. No special tools required.
