11 inch drawer slides(10-5/8 in / 270 mm) are compact mechanical guide systems made from galvanized steel, specifically engineered for cabinet carcasses with a clear inside depth of at least 10-3/4 in to 11 in (273 mm to 280 mm). In furniture construction, this nominal length is an essential standard size primarily used in shallow cabinet depths. Installers and woodworkers rely on these hardware components for bathroom vanity units, narrow hallway dressers, desk pedestals, or specialized kitchen fitting applications. Choosing the right slide system dictates smooth running action, load capacity, and precise front reveal gaps.

Dimensional Specifications and Spatial Suitability

When planning a cabinet carcass, the slide's nominal length must align precisely with the available depth. An 11 in (270 mm) drawer runner strictly requires aclear cabinet depththat is slightly larger than the fitting itself. Industry professionals typically factor in a clearance of 1/8 in to 3/16 in (3 mm to 5 mm) to prevent the mechanical slide from striking the cabinet back wall.

This specific length resolves structural challenges in spaces with limited room. Typical applications fordrawer slidesin this size format include:

  • Bathroom Furniture:Vanity cabinets frequently feature plumbing cutouts for traps. The remaining usable depth along the sides necessitates short slides.
  • Office Furniture:Mobile pedestals under desks often utilize compact dimensions for the top supply drawer.
  • Kitchen Cabinetry:When11 inch drawer slidesare used to optimize kitchen layouts and work areas, 10-5/8 in (270 mm) models are frequently installed in upper wall cabinets or significantly reduced base cabinets (such as those in front of utility shafts).

Selection Criteria by Guide Type and Mechanism

The technical design of the slide runner directly dictates installation effort and daily operating comfort. A fundamental distinction is made between drawer side positioning and the type of carriage mechanisms.

Undermount Drawer Slides vs. Side Mount

With traditionalball bearing drawer slides, the runner mounts directly to the side of the drawer box. This requires a lateral clearance (side space) usually measuring exactly 1/2 in (12.7 mm) per side. If you want the hardware to remain completely invisible,undermount drawer slidesare the clear choice. Here, the slide mechanism installs entirely beneath the drawer box bottom. This enhances the furniture's aesthetic appeal while protecting the runners from accumulating dust. An added advantage of undermount installation is the integrated 3D front adjustment on the locking devices, allowing fine adjustment of the front gap alignment in height, side, and tilt down to fractions of an inch.

Full Extension vs. Partial Extension

A core technical feature is the extension travel distance. Apartial extension slideopens to approximately 75% to 80% of its nominal length. For an 11 in (270 mm) slide, this leaves roughly 2 in to 2-3/8 in (50 mm to 60 mm) of the drawer box inside the cabinet carcass. To achieve unrestricted access to the entire contents, afull extension slideis required. Here, the telescoping profiles overlap so that the drawer pulls out 100% past the front edge of the cabinet frame. Correspondingfull extension drawer slidesfeature an intermediate slider rail that guarantees stability even when fully extended.

Soft-Close and Push-to-Open

These two mechanisms are frequently confused, yet in their pure form they are mutually exclusive as they operate on opposing physical principles.

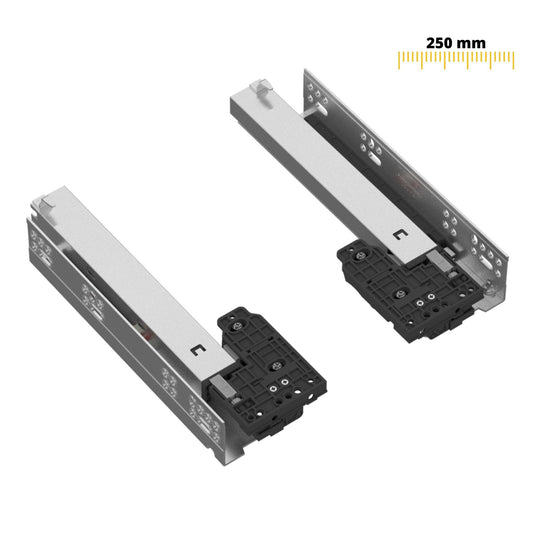

  • Soft-Close (Damped):A hydraulic damper absorbs the momentum of the closing drawer. Just before full closure, an activator catches the slide, decelerates the drawer, and pulls it smoothly and silently into its final position via spring tension. Systems such assoft-close undermount drawer slides, full extension 11 in (270 mm)prevent the front panel from slamming against the cabinet.
  • Push-to-Open (Touch Release):Designed specifically for handleless cabinet fronts. A spring-loaded plunger unlocks upon a light press on the front panel, pushing the drawer open a few inches.Push-to-open undermount drawer slides 11 in (270 mm)are ideal for this application.

When ultra-slim profiles are required for custom grooved side walls,1-1/16 in (27 mm) soft-close drawer slidesare frequently utilized. These lateral ball bearing slides fit precisely into a 1-1/16 in (27 mm) wide groove cut into the drawer side, reducing required lateral installation space.

Installation and Technical Requirements

Installing drawer slides requires precise measuring tools and strict adherence to tolerances. Aligning cabinet rails is much like laying train tracks—if parallelism strays by as little as 1/16 in (1.5 mm), the drawer will bind or jam during closing.

Mounting Hardware

For cabinet wall mounting (typically particle board or MDF), flat-headchipboard wood screwsin sizes #6 x 5/8 in (3.5 x 15 mm) or #8 x 5/8 in (4.0 x 16 mm) are standard. If the cabinet features a pre-drilled hole pattern using theSystem 32grid (32 mm hole spacing, 5 mm hole diameter), specializedEuro screws(6.3 x 13 mm) are used. Their blunt thread design provides significantly higher pull-out resistance in engineered wood panels.

Retrofitting Soft-Close Drawer Slides

When replacing older roller runners toretro-fit soft-close drawer slides, the drawer box's structural dimensions must be carefully verified. An undermount slide requires specific notch cutouts at the rear and an exact recessed drawer bottom setback (typically 1/2 in to 19/32 in / 12 mm to 15 mm). A direct 1-to-1 swap from a side-mounted roller runner to an undermount slide is not possible without modifying the wooden drawer box. In these cases, upgrading to ball bearingdrawer slides with soft-close dampersusing the same standard 1/2 in (12.7 mm) side clearance is usually the best path forward.

Complete Drawer Box Systems as an Alternative

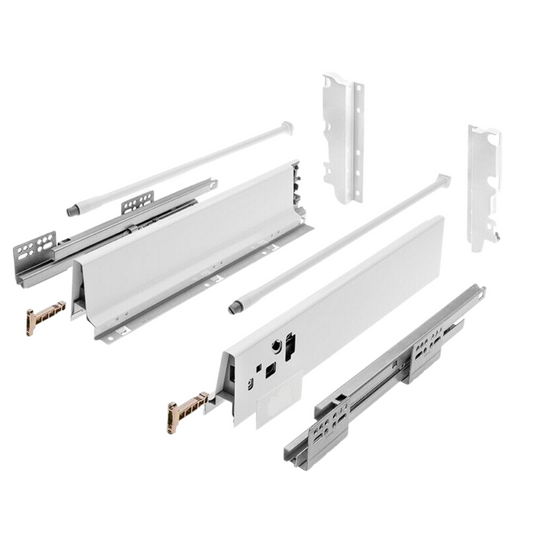

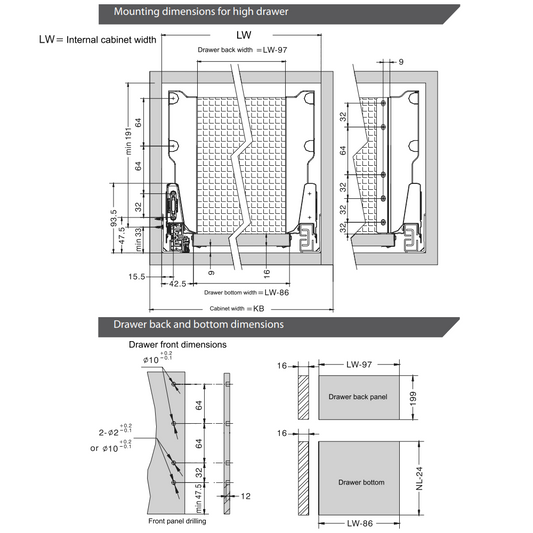

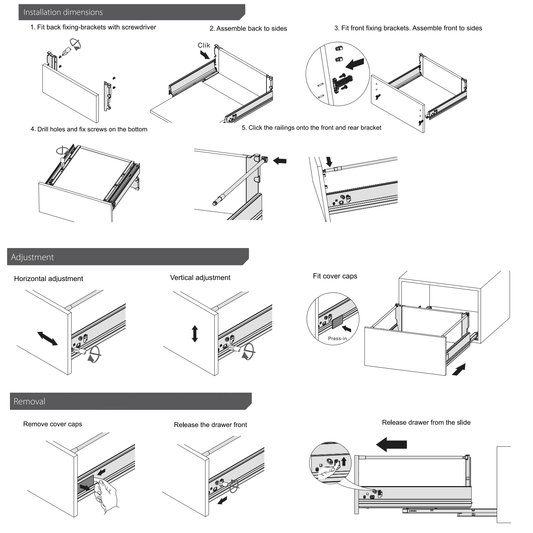

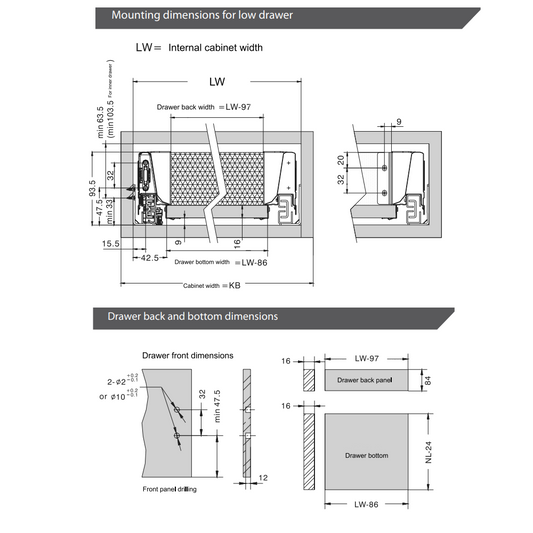

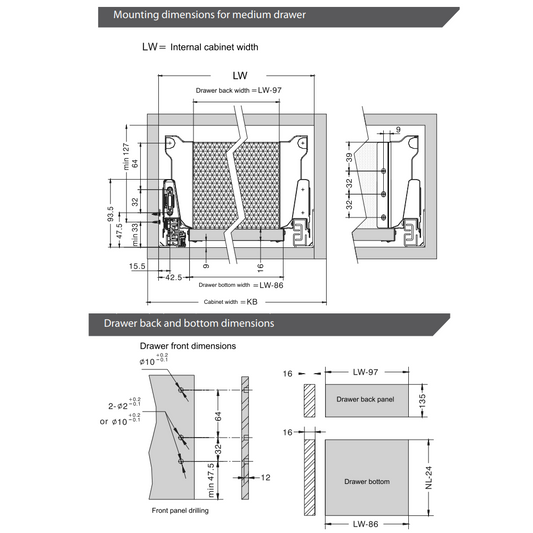

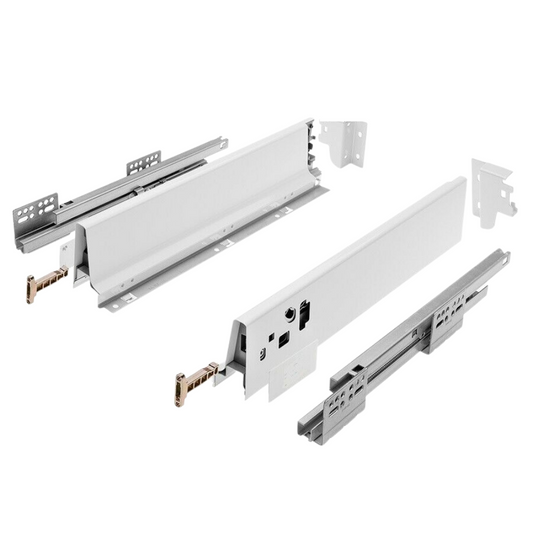

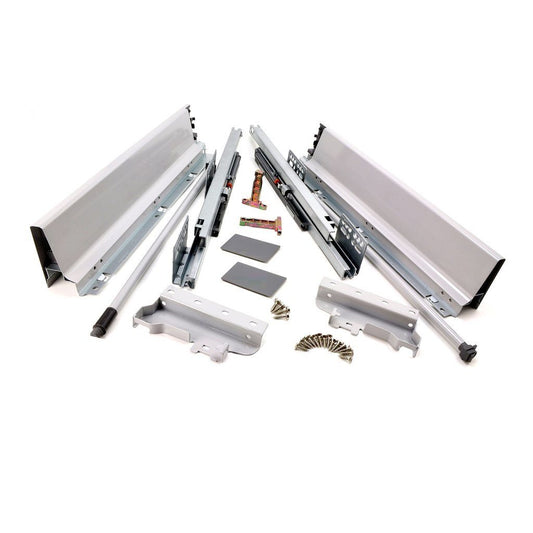

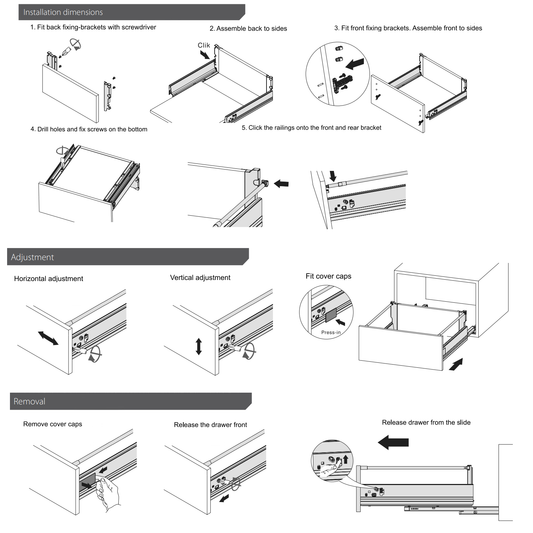

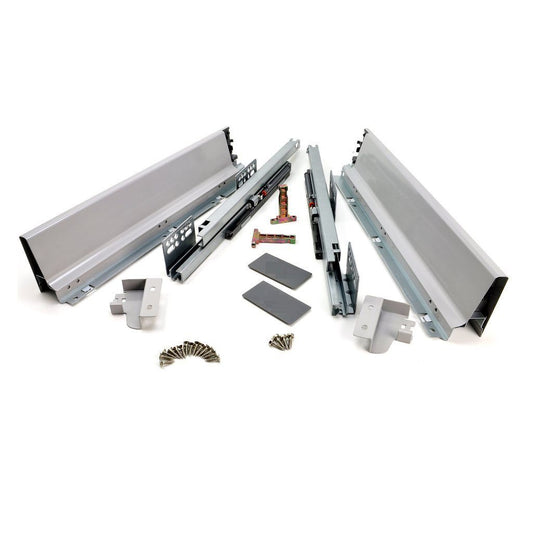

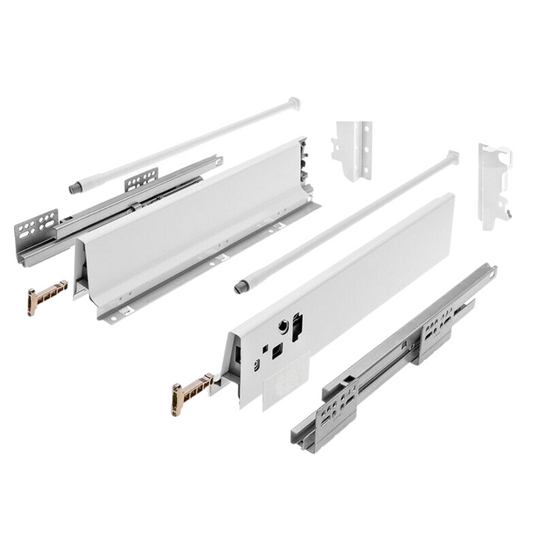

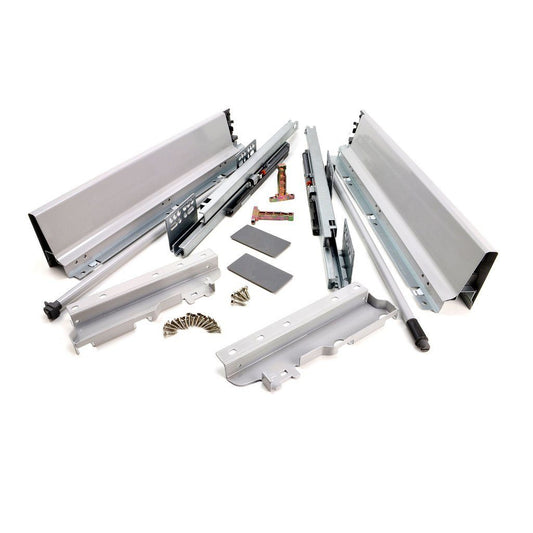

Beyond individual slide rails for wooden drawer boxes, complete metal drawer box systems offer an efficient alternative. In these systems, the steel drawer side walls (double-wall drawer sides) form a unified unit with the drawer slide. The cabinet maker only needs to cut and screw in a wooden bottom panel (typically 5/8 in / 16 mm thick) and a wooden rear panel. These systems are classified by side wall height to accommodate various storage capacities:

These complete kits drastically cut down workshop assembly time by eliminating the complex step of fabricating a traditional wooden drawer box.

Featured System Components in 11 Inch (270 mm) Format

A range of configurations is available to complete precise cabinetry projects. When selecting your hardware, pay close attention to the required weight rating, which typically ranges between 55 lbs and 66 lbs (25 kg to 30 kg) for this slide length.

Frequently Asked Questions (FAQ) Regarding Selection & Installation

How do I calculate the correct slide length for my cabinet?Measure the clear inside cabinet depth (interior dimension from front frame edge to rear wall). The nominal length of the drawer slide must be shorter than this measurement. For a interior depth of 10-7/8 in (275 mm), an 11 inch drawer slide (10-5/8 in / 270 mm) is an exact fit.

Can soft-close and push-to-open mechanisms be combined?Not in standard drawer hardware. Soft-close mechanisms pull the drawer shut, whereas push-to-open mechanisms spring it outward; their spring tension forces counteract one another. While specialized hybrid fittings exist on the market, they require custom routing and precise 3/32 in (2.5 mm) front reveals. For standard woodworking projects, you should choose one mechanical system over the other.

What is the difference between undermount and side-mount drawer slides?Side-mount slides (typically ball bearing designs) require clearance space between the drawer box and cabinet side wall (usually 1/2 in / 12.7 mm per side). Undermount slides install hidden beneath the drawer floor. They remain invisible when the drawer is open and require a specific wooden box construction featuring bottom panel recess setbacks.

What weight rating do I need for an 11 inch drawer slide?Due to the shallow depth, total storage volume is naturally limited. A standard load capacity of 55 lbs to 66 lbs (25 kg to 30 kg) is more than sufficient for virtually all applications (cutlery, vanity items, office supplies) at this slide length.Heavy duty drawer slidesrated for 100 lbs (45 kg) or more are rarely required for this compact size.

Which screws are best for cabinet carcass installation?When installing into 32 mm pre-drilled hole patterns, use Euro screws with a 1/4 in (6.3 mm) diameter. For smooth interior cabinet walls without pre-drilled holes, choose flat-head chipboard wood screws (#6 x 5/8 in / 3.5 x 15 mm). Ensure screw heads sit completely flush inside the slide profile track so they do not obstruct the roller carriages.
