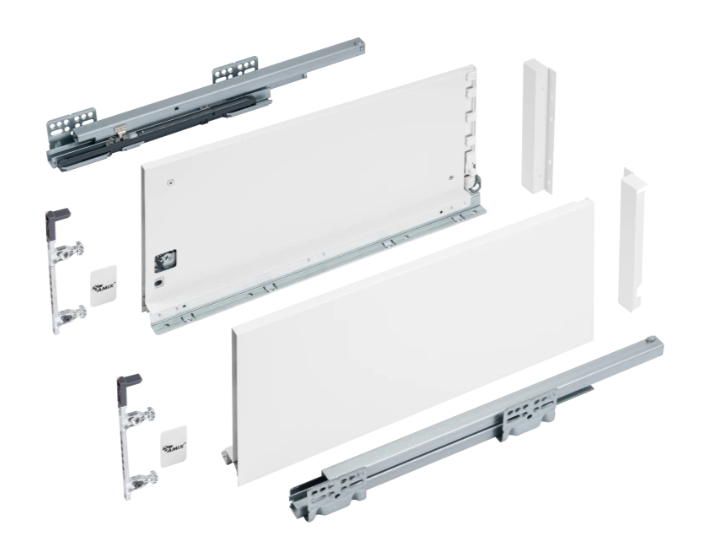

Slim Box Drawer System 88 lb - Soft-Close - 18 mm Panels

Product details

Full extension · Soft-Close · 40 kg load

Slim Box Drawer System 88 lb (40 kg) - Soft-Close - 11/16 in (18 mm) Panels

The Elite Box drawer system brings order to every drawer. It covers both front drawers and inner drawers that hide behind a shared front panel, for a clean, tidy look in the kitchen, bathroom, bedroom, office and wardrobe.

Side height3-5/16 / 4-9/16 / 6-9/16 / 7-13/16 in (84 / 116 / 167 / 199 mm)

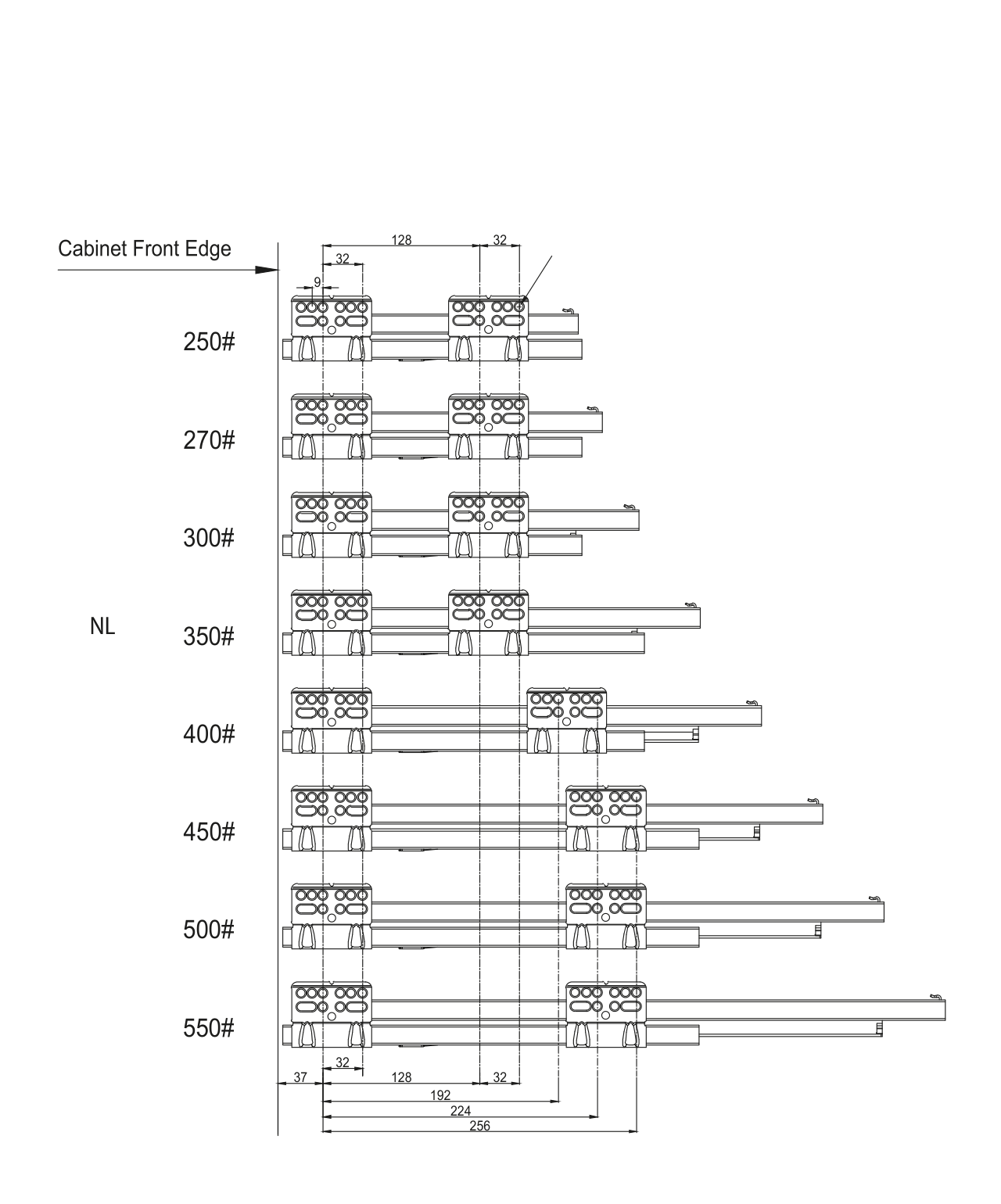

Nominal length9-13/16 / 10-5/8 / 11-13/16 / 13-3/4 / 15-3/4 / 17-11/16 / 19-11/16 / 21-5/8 in (250 / 270 / 300 / 350 / 400 / 450 / 500 / 550 mm)

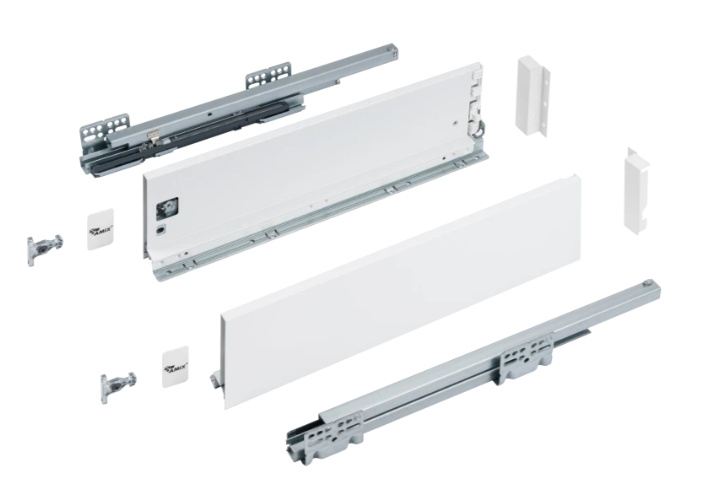

ColorWhite or Anthracite
Panel thickness5/8 / 11/16 in (16 / 18 mm)
Load capacity40 kg
Durability80,000 cycles at 35 kg

Quiet running and maximum use of space

Quiet running, smooth glide, a high load rating and maximum use of space make everyday work with this system comfortable. Railing sets for medium and high drawers are ideal for storing larger items and for waste separation systems.

For 16 and 11/16 in (18 mm) panels: the system is designed for 11/16 in (18 mm) panels, but special catches and clips also allow the drawer to be assembled with 5/8 in (16 mm) panels.
Full extension with synchronization: both slides run together, so the drawer opens evenly along its whole travel.
Soft-Close damping, Push-to-Open optional: choose the closing action that suits the furniture front.

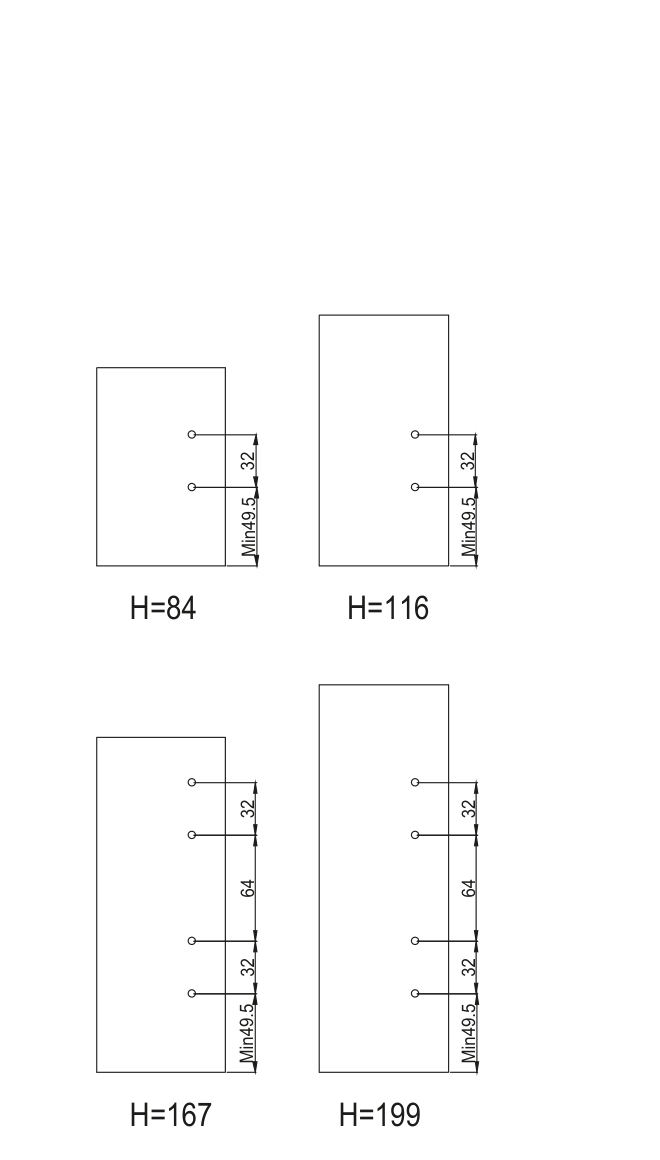

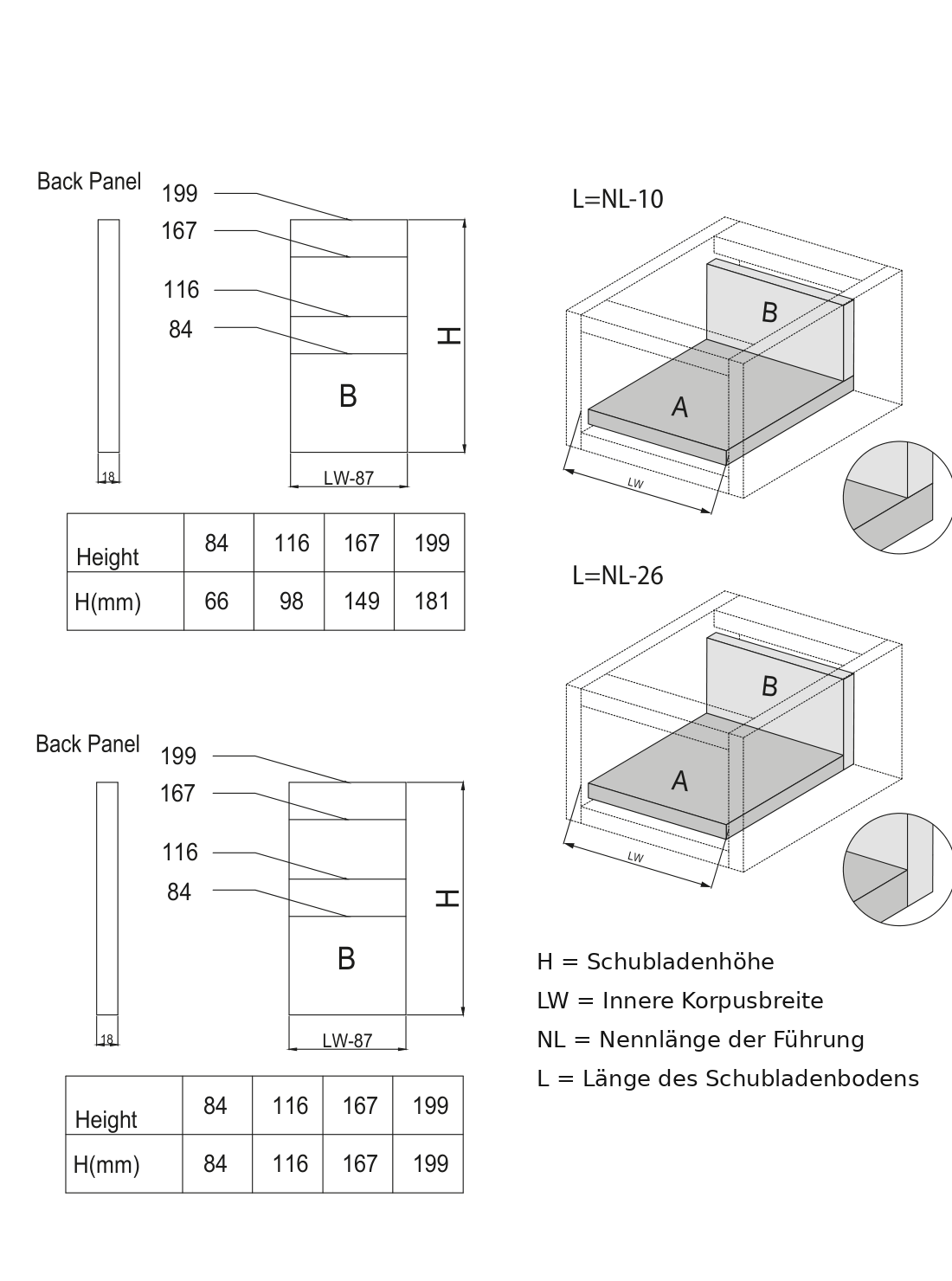

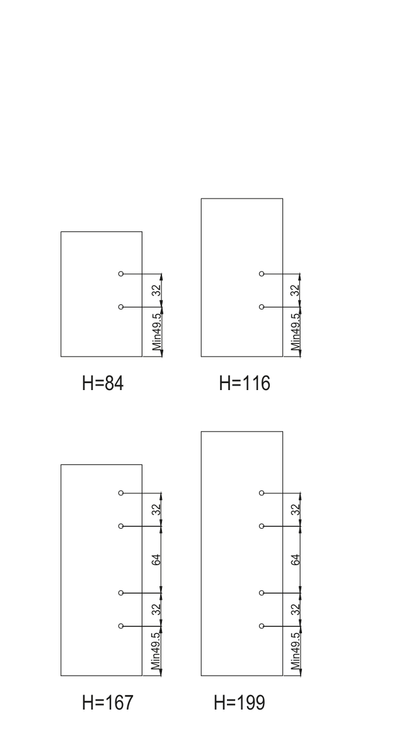

Precise adjustment: 5D on the Push version, 3D on the standard version, plus integrated back panel fixing and metal front fixings.

Technical data

PanelsFor 11/16 in (18 mm) panels, and with the supplied catches and clips also for 5/8 in (16 mm) panels
ExtensionFull extension with integrated synchronization
Load40 kg, tested to 80,000 cycles at 35 kg

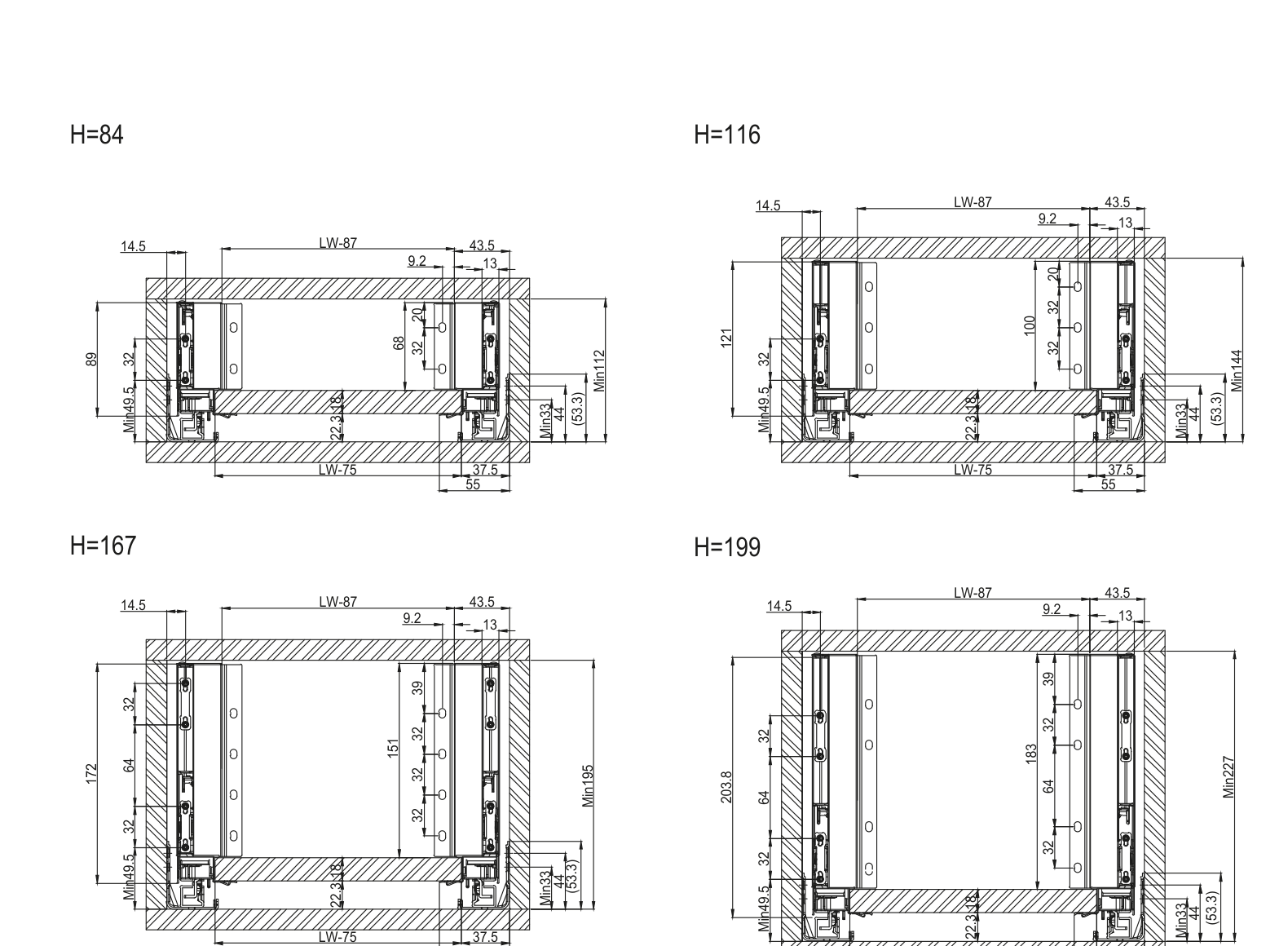

Cut-outSame cut-out as the most common drawer systems
OptionsFront holders for inner drawers available separately; a Push-to-Open version is also available

Technical data

Attribute	Value
Cabinet width	Adjustable – depends on cabinet width
Translation missing: en.filters.cycles.label	80,000 cycles at 35 kg
Full extension	Yes
Height	3-5/16 / 4-9/16 / 6-9/16 / 7-13/16 in (84 / 116 / 167 / 199 mm)
Load capacity	40 kg
Material thickness	5/8 / 11/16 in (16 / 18 mm)
Overall length	9-13/16 - 21-5/8 in (250–550 mm)
Soft-Close	Yes
EAN	5904208183266
SKU	ELITE-84X250/ANTR
