Product details
For Heavy Doors · 200N Force

Silver Heavy Duty Gas Strut 10 in (250 mm) - 200N

This heavy duty gas strut provides controlled lifting support for heavy cabinet doors with 200N of piston force. Includes mounting brackets and screws for immediate installation.

  • Piston force200 N
  • Length10-9/16 in (269 mm)
  • Hole centers9-3/4 in (247 mm)

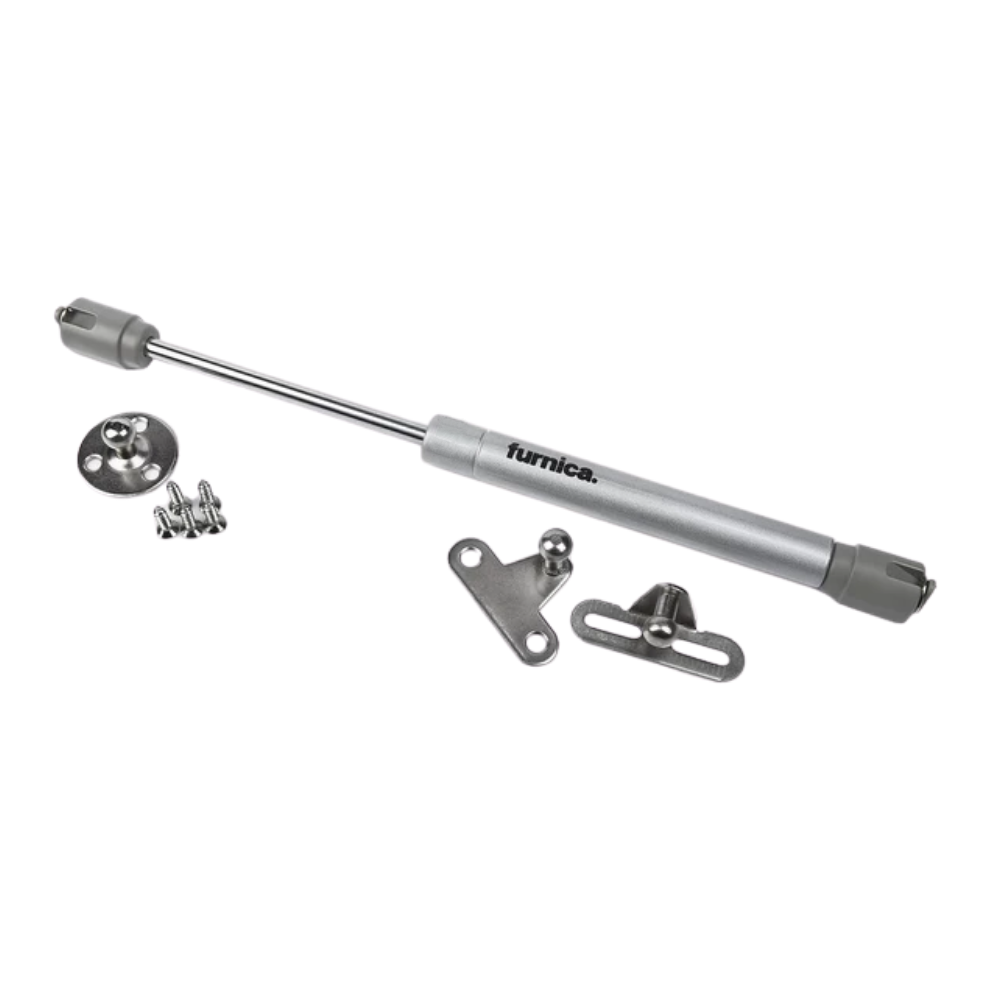

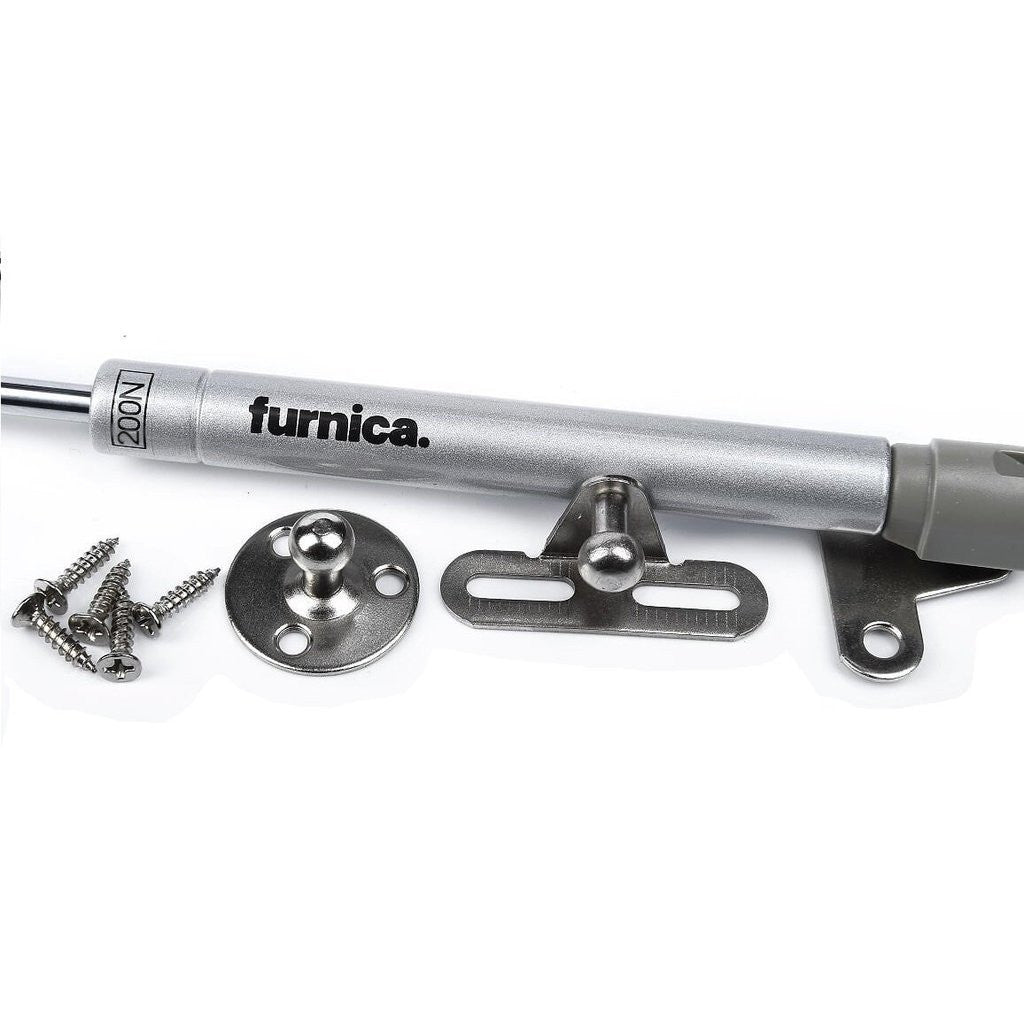

  • IncludedFixing brackets and screws
  • ColorSilver
Silver Heavy Duty Gas Strut 10 in (250 mm) - 200N
  • 10-9/16 in (269 mm) Length

200N Piston Force for Heavy Lift-Up Doors up to 44 lbs (20 kg)

This heavy duty gas strut holds heavy cabinet doors open securely, making lift-up doors on upper cabinets and tall units smooth and easy to operate.

  • High Force Support: With 200N of lifting force, this heavy lid gas strut is ideal for large door fronts weighing up to 44 lbs (20 kg).

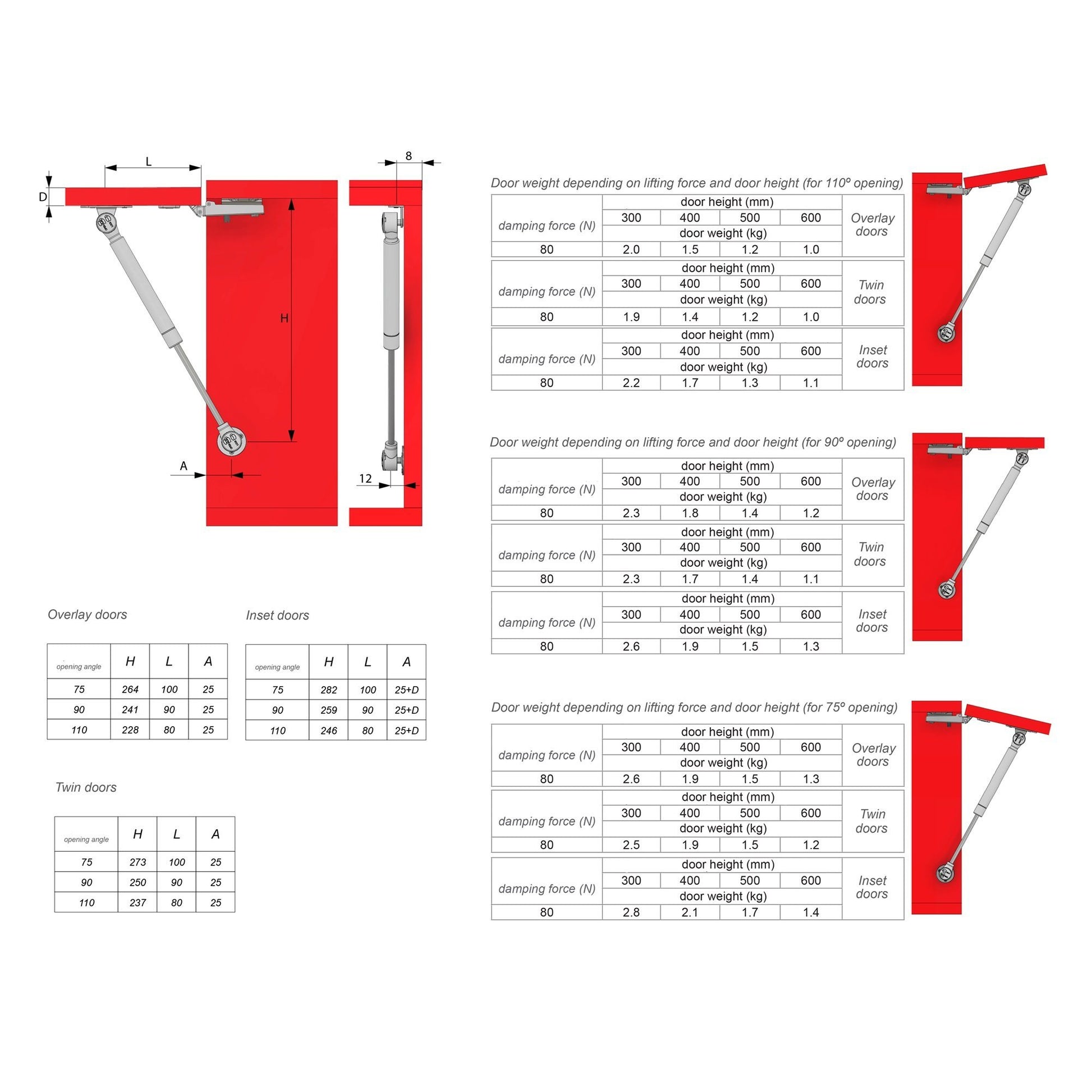

  • Flexible Opening Angle: Position the mounting brackets to achieve opening angles of 75, 90, or 110 degrees.

  • Complete Set: Comes ready to install with all necessary mounting brackets and hardware included.

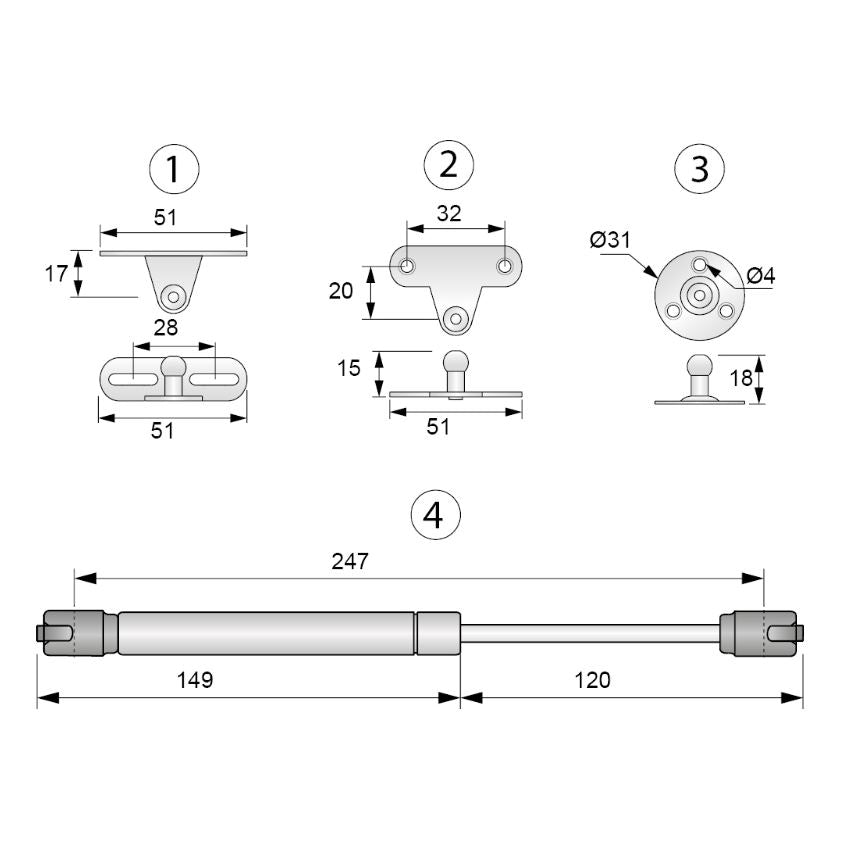

  • 9-3/4 in (247 mm) Hole Centers: The precise 9-3/4 in (247 mm) spacing between mounting points delivers optimal lifting leverage.

Typical Applications for Cabinet Doors

  • KitchenUpper Cabinets with Heavy Fronts

    Allows smooth, effort-free opening of wide wooden or aluminum-framed lift-up doors.

  • Living AreaTall Cabinets & Overhead Storage

    Holds heavy cabinet doors safely open without letting them slam shut unexpectedly.

  • ReplacementUpgrading Old Struts

    Direct replacement option for worn-out high force gas struts on existing lift systems.

Installing the Heavy Duty Gas Strut

Fixing brackets and screws included
  1. 1
    Select Mounting Position

    Choose the mounting location based on your desired opening angle of 75, 90, or 110 degrees.

  2. 2
    Attach Mounting Brackets

    Secure the brackets to the cabinet body and the wooden or aluminum frame using the included screws.

  3. 3
    Snap Strut into Place

    Snap the ball heads of the gas strut directly onto the installed mounting brackets.

  • 5-10 business daysEstimated delivery time
  • Free shippingon orders $100+
  • 31 daysReturns & exchanges
  • PayPal · Shop PayCredit & debit cards

Technical data
Included
mounting brackets and screws
Color
Silver
Manufacturer
Furnica
Length
269 mm
Push force
200N
Hole spacing
247 mm
EAN
5060685603854
SKU
PG01-200
