Wood Cover Caps

Self-adhesive wood cover capsare precision-stamped, melamine-coated, or veneered adhesive dots used in cabinetmaking and furniture manufacturing to create flush, visually seamless covers for screw heads, cam lock fasteners, and unused system holes.

For cabinetmakers, kitchen installers, and professional woodworkers, these covers represent the critical final step in achieving a cohesive surface finish on any piece of furniture. The caps typically consist of printed decorative paper that is impregnated with melamine resin and cured. The back features a layer of industrial-gradeacrylic adhesiveprotected by a release liner. This adhesive is specifically engineered for strong bonding to plastic surfaces, melamine finishes, and smooth engineered wood products.

Technical Specifications and Material Construction

Designing effective wood cover caps requires tight tolerances. The material thickness of the caps typically ranges from 0.012 in to 0.018 in (0.3 mm to 0.45 mm). This ultra-thin profile ensures that these self-adhesive wood veneer or melamine-coated dots barely protrude from the furniture surface, creating a seamless finish without catching edges.

In practice, two standard diameters have established themselves to cover the vast majority of cabinetmaking and interior fitting applications:

• 0.55 in (14 mm) Diameter:The standard size for conventionalwood screws and furniture screws. A standard particle board screw head with a thread diameter of 0.138 in to 0.157 in (3.5 mm to 4 mm) measures approximately 0.276 in to 0.315 in (7 mm to 8 mm) in diameter. The 0.55 in (14 mm) cap provides sufficient overlap to seal the drill hole securely and tightly. Matching caps can be found in the14mm Diameter Cover Capscategory.
• 0.71 in (18 mm) Diameter:This dimension is tailored precisely to the geometry of knock-down assembly fittings. A classiccam lock fastener(Minifix system) features a housing diameter of 0.59 in (15 mm). To completely conceal the fitting and ensure adequate adhesive surface area on the surrounding panel, the 0.71 in (18 mm) diameter is essential. Corresponding options are grouped under18mm Diameter Cover Caps.

Acting like an optical chameleon on the panel, the caps blend almost invisibly into the surrounding wood grain when properly color-matched. The acrylic adhesive features high initial tack and reaches full bond strength in approximately 24 to 48 hours. It resists typical indoor temperature fluctuations and aging, ensuring the caps will not peel away from the substrate even after years of use.

Finish Selection and Panel Compatibility

The success of wood cover caps depends on matching the color and grain texture of the substrate material. Modern furniture manufacturing is dominated by laminate particle board and MDF panels featuring realistic natural wood grain prints. The cap finishes are designed to match popular panel collections from major manufacturers (such as Egger or Kronospan).

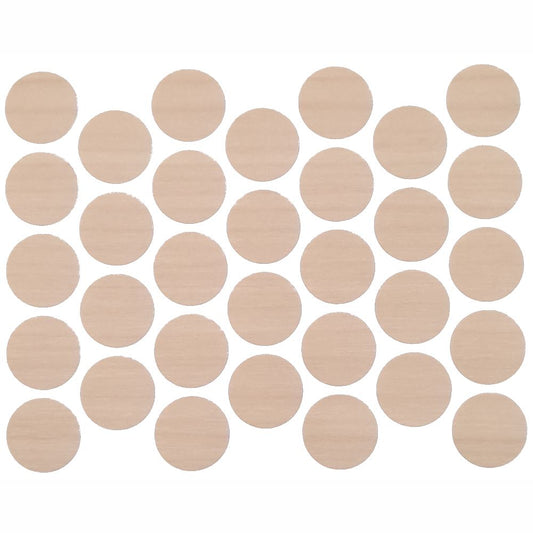

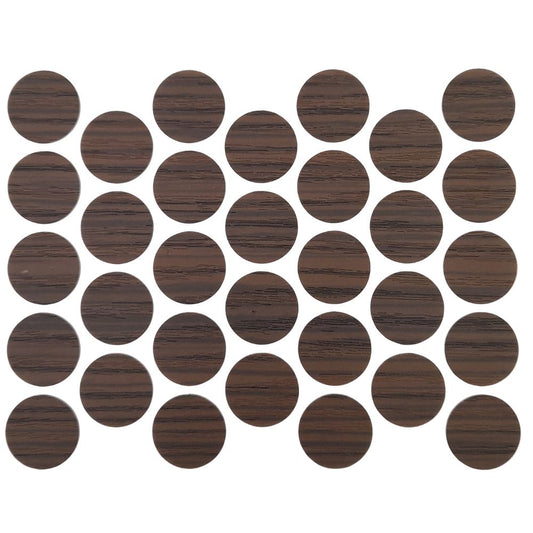

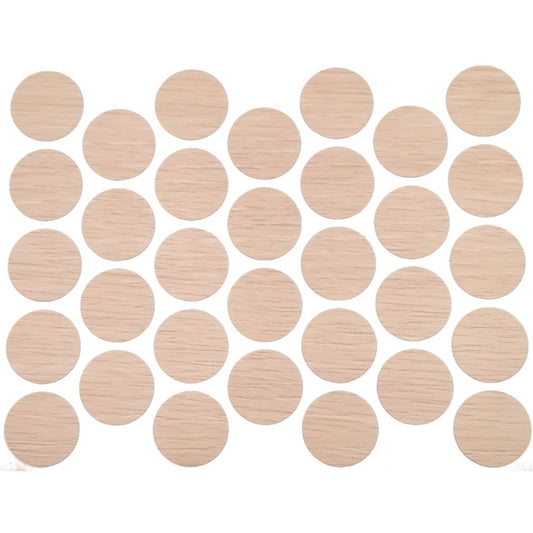

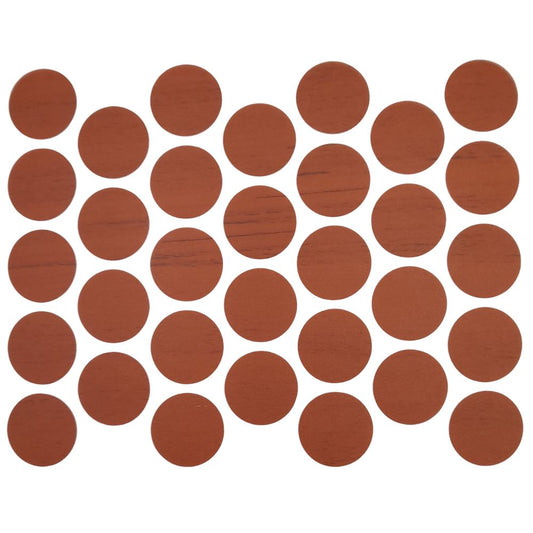

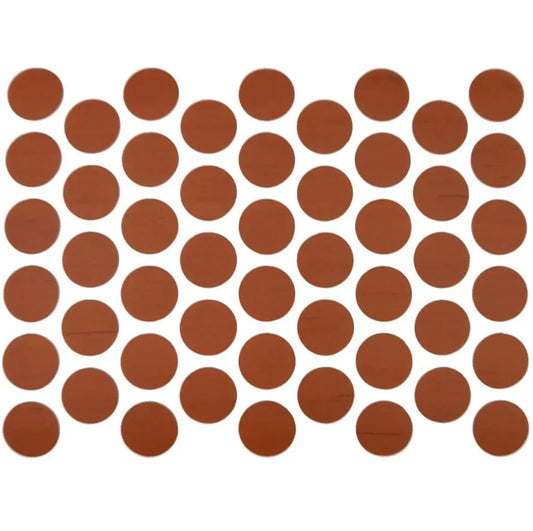

The spectrum ranges from very light woods like maple and birch, to reddish tones like beech and cherry, up to dark, heavily grained options like wenge, dark walnut, or zebrano. The oak selection is particularly extensive, as oak remains the dominant wood trend in contemporary furniture design. Specific grains like Sonoma Oak, Halifax Oak, or Amalfi Oak feature distinctive color gradients. An overview of oak-specific solutions is available in theSelf-Adhesive Oak Cover Capssection.

When planning a project—whether a wooden desk for an office or a wooden bathroom cabinet—the cap finish must be selected to match the exact panel code. Any slight shade variation will cause the cap to stand out visually on the surface.

Applications in Cabinetmaking

The application scenarios for wood cover caps are wide-ranging across all stages of furniture assembly.

Concealing Assembly Screws

During cabinet construction, side panels, bases, and top panels are frequently screwed together. When these connections remain visible from the outside—such as on a freestanding wooden wardrobe or a wooden dresser—covering the screw heads is essential. These caps restore a clean, continuous wood look to the exterior while hiding hardware neatly.

Sealing Unused System Holes

Industrially manufactured furniture relies heavily on the32 mm cabinet system. Side panels feature continuous line holes with a 0.197 in (5 mm) drill diameter spaced at 1.26 in (32 mm) intervals for shelf supports or hinge mounting plates. In a typical cabinet, dozens of these holes remain unused. To prevent dust and moisture from penetrating the raw particle board core and to streamline the interior appearance, these holes are sealed with 0.55 in (14 mm) caps. This hole-masking technique is standard practice in professional installation.

Repairs and Modifications

During modifications or when hinges need to be relocated, exposed drill holes are left behind. Using wood cover caps is the most efficient method to mask these blemishes without replacing the entire panel.

Application and Installation Guidelines

Proper application of these wood-look adhesive dots requires careful surface preparation and adherence to basic technical parameters.

1. Surface Preparation:The area around the drill hole or screw head must be completely dry, clean, and free from dust or grease. Sawdust residue, fingerprints, or tool oils will severely compromise the adhesive strength of the acrylic backing.
2. Screw Positioning:The screw head must sit completely flush with or slightly countersunk below the panel surface (0.020 in to 0.039 in / 0.5 mm to 1.0 mm). If the head protrudes, the cap will bulge and risk peeling off under mechanical stress, such as wiping or cleaning. When using4mm wood screwsor3.5mm wood screws, ensure correct countersinking depth.
3. Temperature:Application temperature should be between 64 °F and 77 °F (18 °C and 25 °C). At lower temperatures, the adhesive loses flexibility, reducing immediate tack.
4. Pressure Application:After placing the cap, press down firmly across the entire surface using your thumb or a soft plastic spatula. Firm pressure activates the pressure-sensitive adhesive bond.

Product Selection by Diameter and Finish

A wide variety of options is available to suit specific project requirements and panel materials. The selection below highlights common choices for furniture building:

• Self-Adhesive Screw Cover Caps - Sonoma Oak 0.55 in (14 mm): The standard choice for light, textured oak finishes, ideal for 0.138 in to 0.157 in (3.5 mm to 4 mm) particle board screws.
• Self-Adhesive Screw Cover Caps - Halifax Oak 0.71 in (18 mm): Larger format, sized to cover cam lock fittings in furniture featuring prominent Halifax cracked-oak designs.
• Self-Adhesive Screw Cover Caps - Wenge 0.55 in (14 mm): Designed for very dark, near-black wood tones, frequently used on a dark wood dresser.
• Self-Adhesive Screw Cover Caps - Beech 0.71 in (18 mm): A classic choice for assembly fittings in office furniture and shelving units.
• Self-Adhesive Screw Cover Caps - Italian Walnut 0.55 in (14 mm): Fine grain pattern for elegant living room furniture and wooden sideboards.

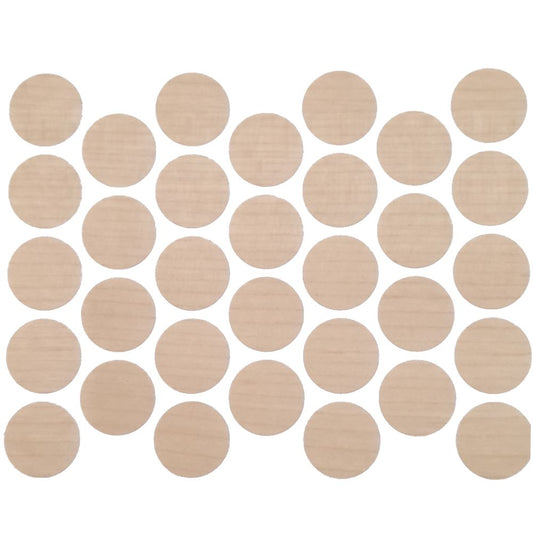

• Self-Adhesive Screw Cover Caps - Light Maple 0.55 in (14 mm): Subtle, light-colored pattern with minimal grain for clean interior fit-outs.

Frequently Asked Questions (FAQ) About Wood Cover Caps

What size do I need for standard particle board screws?

For standard particle board screws with a head diameter up to 0.315 in (8 mm) (typicallyPZ2 wood screwsor TX20), the 0.55 in (14 mm) diameter is the recommended technical choice. It leaves a surrounding adhesive margin of roughly 0.118 in (3 mm) on the panel surface. For cam lock housings measuring 0.59 in (15 mm) in diameter, step up to the 0.71 in (18 mm) version.

Will self-adhesive cover caps stick to oiled solid wood?

No. The acrylic adhesive is formulated for lacquered, veneered, or melamine-coated surfaces. Oiled or waxed solid wood finishes repel the adhesive. For oiled surfaces, caps must be secured with specialized wood glue, or solid wood flush plugs should be used instead.

How do I remove old wood cover caps?

To remove a firmly bonded cap without damaging the melamine surface beneath, gently warm the cap using a heat gun on a low setting. This softens the acrylic adhesive. Then, carefully lift the cap edge using a plastic scraper or fingernail. Remove any adhesive residue with a small amount of mineral spirits or isopropyl alcohol.

Are the finishes UV-resistant?

Yes, melamine-coated caps feature high lightfastness. Unlike basic paper stickers, these finishes resist fading under standard indoor sunlight exposure, retaining their color match with the furniture panel over many years.

How should unused adhesive cap sheets be stored?

Store the sheets flat, dry, and at room temperature around 68 °F (20 °C) inside a sealed plastic pouch. Avoid direct sunlight or extreme heat (such as inside an installation van during summer), which can dry out or degrade the acrylic adhesive on the backing paper prematurely.
