• Cam dowel 1-5/16 inch with Euro Screw-Thread - 1000 pcs NTP 34mm
  • Cam dowel 1-5/16 inch with Euro Screw-Thread - 1000 pcs NTP
  • Cam dowel 1-5/16 inch with Euro Screw-Thread - 1000 pcs NTP
1 3
Bestsellers

More Connectors & screws

Top sellers in this category.

Cam dowel 1-5/16 inch with Euro Screw-Thread - 1000 pcs

Cam dowel 1-5/16 inch with Euro Screw-Thread - 1000 pcs

4,88 (89)
$36.95
$36.95
Length: 34mm
Quantity: 1000 pcs
Estimated delivery time: 5-10 business days
Free shipping on $100+ orders
31 days for returns
Payment & security

Your payment information is processed securely.

Bestsellers

More Connectors & screws

Top sellers in this category.

Product details
Furniture Connectors · 1000-Piece Bulk Pack

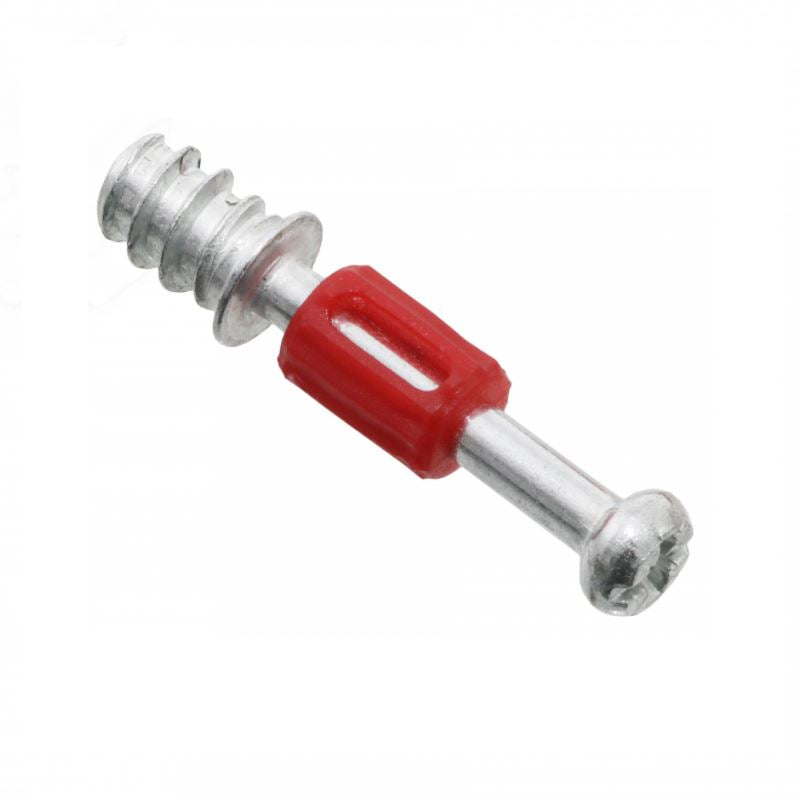

Screw-In 34mm Cam Dowels with Euro Thread - 1000 pcs

These 34mm cam dowels with Euro screw thread anchor cabinet components precisely and securely in furniture making. Combined with matching cam lock fittings, the 1-5/16 in (34 mm) usable length ensures a strong, tight-fitting panel joint.

  • Quantity1000 pieces
  • ThreadEuro
  • Length1-5/16 in (34 mm)
  • MaterialZinc-coated steel/plastic
  • ColorGalvanized/Red
34mm cam dowels with Euro thread - 1000 pcs
  • 1-5/16 in (34 mm)Length

1-5/16 in (34 mm) Usable Length with Euro Thread

These screw-in 34mm cam dowels with Euro thread act as sturdy connecting bolts for cam lock systems in commercial cabinet making and furniture manufacturing.

  • Direct Anchoring: The Euro screw thread bites directly into pre-drilled system holes for a solid hold in composite wood panels.

  • Precise 1-5/16 in (34 mm) Depth: The fixed bolt length guarantees exact alignment inside the cam lock housing for tight, flush cabinet joints.

  • Zinc-Coated Steel Core: Built with a durable zinc-plated steel pin to withstand high tensile loads and resist corrosion.

  • 1000-Piece Bulk Value Pack: Provides an ample supply for continuous production runs and workshop use.

Applications for 34mm Cam Lock Dowels

  • CabinetryKitchen & Tall Cabinets

    Connects side panels reliably to top, bottom, and structural shelves using cam fittings.

  • Production LineShelving & Armoire Systems

    Speeds up assembly line joining of engineered wood panels using 32 mm system drilling.

  • Bed FramesHeavy-Duty Frame Joints

    Delivers rigid, warp-free corner connections for heavy furniture and solid bed frames.

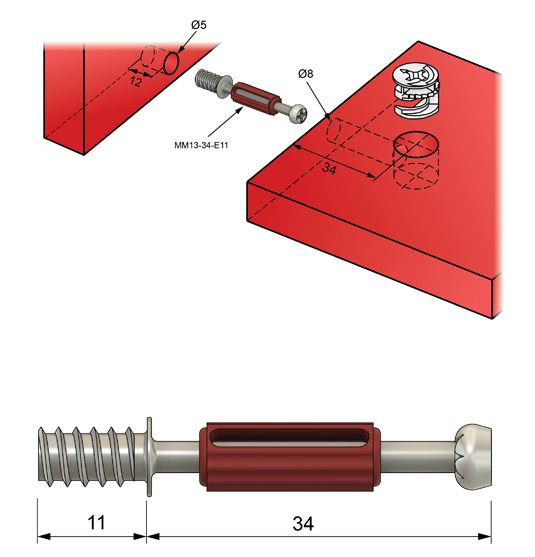

Installing the Cam Dowel

Requires pre-drilled system holes in the cabinet body.
  1. 1
    Prepare System Hole

    Drill the matching pilot hole for the Euro thread straight into the panel at a 90-degree angle.

  2. 2
    Screw In the Dowel

    Thread the cam dowel straight into the hole until the red collar rests flush against the surface.

  3. 3
    Lock the Cam

    Align the adjoining panel and turn the cam lock fitting to pull the connection tight.

  • 5-10 business daysEstimated delivery time
  • Free shippingon orders $100+
  • 31 daysReturns & exchanges
  • PayPal · Shop PayCredit & debit cards

Technical data
Color
Galvanized/Red
Length
34mm
Material
Zinc-plated Steel/Plastic
Quantity
1000 pcs
Thread
Euro
EAN
5060685602161
SKU
MM13-34-E11/1000-K
